WiFi Wireless USB Print Server

Model: LY-MPS-WN01

  • Simple and compact design, low power, small footprint, easy to carry
  • Gray & White color is available
  • Support to print & Scan in format of  image,PDF, PPT, Excel, Word
  • WiFi Function: Compliant with 802.11b/g/n wireless networks
  • Share the printing wirelessly, the speed up to 150Mbps
  • USB 2.0 High speed printer connection
  • Support Multi-users sharing one printer of a wireless network simultaneously
  • Support to customize the SD Card storage function, Max support 256GB
  • Equipped with 1 PCS 10/100 Mbps RJ-45 LAN Port
  • Strong compatibility(≥ 99%) with most majorities of printers on the market

LY-MPS-WN01 is a Wireless WiFi Network USB Print Server, it’s a portable device that can be used to share one printer among multi-users of a wireless network simultaneously. The WiFi Print Server enables it possible for users to send print jobs to a remote printer any time anywhere via a computer or smartphone. By means of Loyalty-Secu LY-MPS-WN01 Wireless Print Server that you can choose the most convenient location to keep your printer, whether at home or office, and no longer held back by the length of a USB cable.

With LY-MPS-WN01 WiFi Network USB Print Server, there is no need for a dedicated computer anymore, everyone on the network is empowered to print to a shared printer at any time, avoids the added cost of purchasing individual printers for each workstation or area, cost and energy saving.

Loyalty-Secu Wireless USB Print Server, with the easy setup tools, ensure you quickly configure the new print server to get you up and running in minutes. Using a windows- based utility wizard, and also features a WiFi configuration wizard for quick and easy connection to your wireless network, you can easily use and configure your print server from any computer on the network.

LY-MPS-WN01 Wireless Print Server equipped with 802.11b/g/n wireless standards for functionality with almost any wireless network, also offers a default RJ45 port for 10/100 Mbps wired connections.

Product Main Features:

1.WiFi Function: allowing the USB printer to achieve true wireless connection in seconds.

2.Internet Connection: WiFi or RJ45 LAN port

3.Quick Installation:No need to install any driver, with simple config tool for parameter configuration, ordinary USB LPR printer becomes the network printer in seconds.

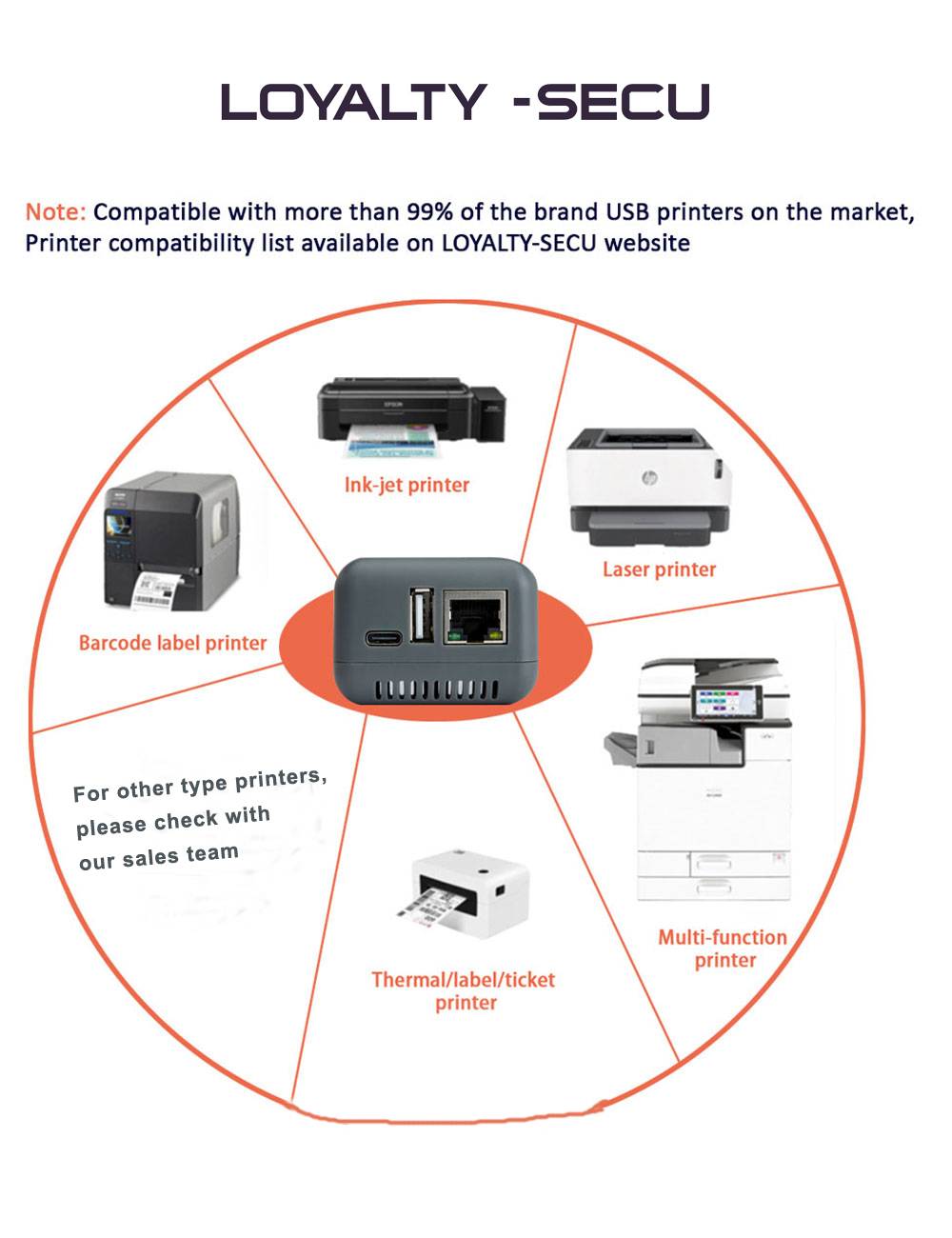

4.Strong Compatibility: compatible with more than 99% of the brand USB printer on the market, standard USB 2.0 interface, can be upgraded by software to compatible with newly launched printers.

5.Quick & Easy Printing: As long as the USB print server is connected to the Internet, other connected mobile phones or computers can print files directly.

6.Easy Setup and Use: Using a Windows- based utility wizard, and also features a WiFi configuration wizard for quick and easy connection to your wireless network

7.Work as a Portable Device: can be used to share one printer among multi-users of a wireless network simultaneously.

8.LOYALTY-SECU 1 Year Warranty and free lifetime technical support.

9.Support to customize the SD Card Storage function, Max support 256GB.Applied to the government or other law enforcement agencies for authorization and backup, query of printed documents.

10.SDK Provided: convenient to secondary development, accept any customization services

11.Support WEB, PSAdmin and other management methods, simple configuration and convenient management.

12.Support Windows 2000/2003/XP/Vista/7/8/10/11 computers to share and print simultaneously.

13.Compatible with Mac OS system, but must be configured with Windows System first.

14.WiFi Features: Complete 802.11n solution for 2.4GHz band Compatible ,with IEEE 802.11n Wi-Fi Standard.Baseband PHY and RF in a single chip for IEEE802.11b/g/n. Backward compatible with 802.11b/g devices while operating in 802.11n mode

Application:

Small and medium-sized companies, schools, households, stock markets, education, express companies, e-commerce companies, etc.

Product Package Items:

1PCS* 5V/1A Power Adapter

1PCS* USB Print Server

1PCS* User Manual

1PCS* After-Sales Card

How to make your USB Printer Work with LOYALTY-SECU WiFi USB Print Server Quickly?

Step 1: Please download “Print Server Config Tool” from our business site into your Windows computer.

Step 2: Please connect Print Server withYour Windows computer via USB cable.

Step 3: Please assign a fixed IP address for the USB Print Server via “Print Server Config Tool” on Windows computer firstly.

Step 4: Add the IP address and USB port information of print server into your target USB printer in your computer.Then you can explore the excellent printing experience via the Print Server.

Need to print via Android Smartphone: Download and install the Third-Party & Prepaid APP “PrinterShare” or “PrintHand” into your Android Smartphone and follow manual user to setup, then you can send print jobs to your USB printer wirelessly in LAN.

Note: Please follow our user manual & demo video to finish the above configuration.

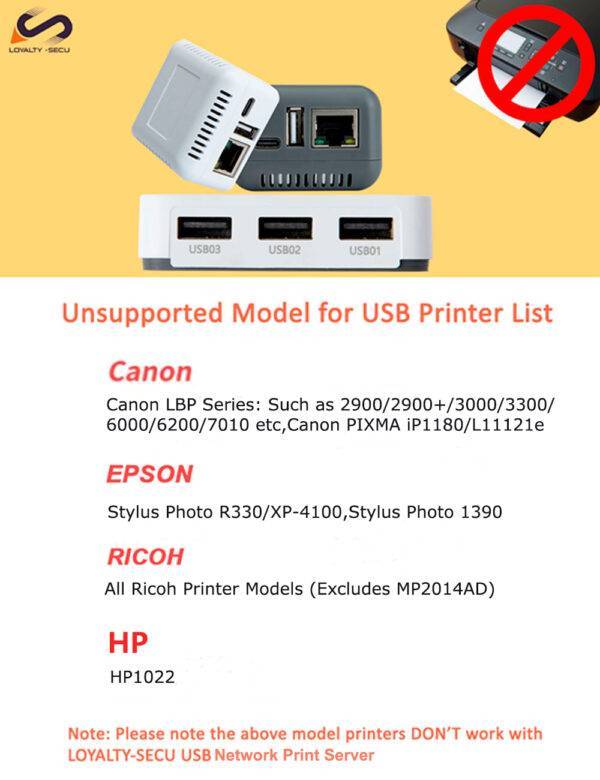

LOYALTY-SECU Network Print Servers Unsupported USB Printer Models

Canon:

Canon LBP Series: 2900/3000/3300/6000/6200/7010 etc.

EPSON:

EPSON Stylus Photo R Series:

Epson Stylus Photo R200/220/260/280/300/300M/

320/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.

Epson Stylus Series:300/400/800/800+/1000/1500, etc.

Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.

Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.

RICOH:

All Ricoh Printer Models (Excludes MP2014AD)

HP:

HP1022

WiFi Print Server With 3 Types Power Plug For Option

Product Specification:

ModelLY-MPS-WN01
Product ItemWireless WiFi USB Print Server
Support Printer TypeStandard USB Printer
CPUARM9
Memory64MB DDR2
Flash128MB NANDFLASH
Printer ConnectionUSB 2.0/USB 1.1
Print Server Print & Scan FunctionSupport
Operating SystemLINUX3.4
USB Print InterfaceUSB2.0 Host
USB Config InterfaceUSB2.0 Device
Network Interface10/100Mbps RJ45
TF SlotYes, Max support 256GB
WiFi Function802.11BGN
Bluetooth VersionClassic 2.0+ BLE4.2,can be customized
Network ProtocolsIPX, TCP/IP, NETBUEI, APPLETALK, LPR, SMB
(Over TCP/IP)
Working SystemWindows 2000/2003/XP/Vista/7, 8.x and 10
,MAC operating system
Power Supply5V/1A
Product Size(L*W*H)53*53*40mm
Product Weight25g
Packing Box Size13.5*13.5*5CM
Packing Weight160g
Packing Items1PCS * Print Server,1PCS * Power Adapter,1PCS * User
Guide
Product ColorWhite/Gray, accept customization for product color
Operating EnvironmentTemp: -10°C~50°C , Humidity: 20%~85%
Charging EnvironmentTemp: 5°C~40°C , Humidity: 20%~85%
Storage EnvironmentTemp: -20°C~70°C, Humidity: 5%~95%
