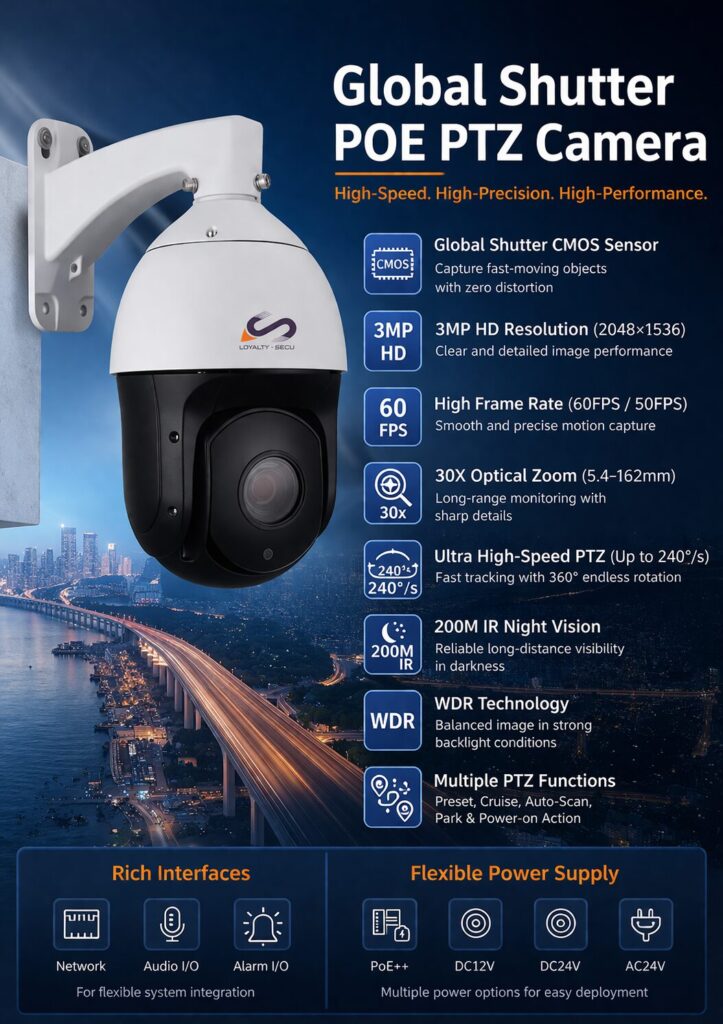

Global Shutter High-Speed PTZ Camera with 30X Optical Zoom
Model: LY-H6-G330P
- Global Shutter CMOS Sensor – Capturing fast-moving objects with reduced motion distortion.
- 3MP HD Resolution (2048×1536) – Clear and detailed image performance
- High Frame Rate (60FPS / 50FPS) – Smooth and precise motion capture
- 30X Optical Zoom (5.4–162mm) – Long-range monitoring with sharp details
- Ultra High-Speed PTZ (Up to 240°/s) – Fast tracking with 360° endless rotation
- 200M IR Night Vision – Reliable long-distance visibility in darkness
- WDR Technology – Balanced image in strong backlight conditions
- Multiple PTZ Functions – Preset, Cruise, Auto-Scan, Park & Power-on Action
- Rich Interfaces for Optional – Network, Audio I/O, Alarm I/O for system integration
- Flexible Power Supply – PoE++ / DC12V / DC24V / AC24V
3MP 60FPS PTZ Camera for Machine Vision, Motion Analysis, In-Motion OCR & Fast-Moving Object Capture
The LY-H6-G330P is a 3MP high-speed Global Shutter PTZ camera designed for capturing fast-moving objects with reduced motion distortion. It combines 60FPS imaging, 30X optical zoom, and ultra-fast PTZ movement up to 240°/s, providing precise and responsive monitoring for machine vision, motion analysis, in-motion OCR, and logistics automation applications.
Featuring a durable full-metal housing and advanced lighting control, the camera provides reliable outdoor operation and long-range night vision with an IR range of up to 656 ft (200m). The H6 Series is available with multiple optical zoom options, including 20X, 30X, 33X, and 40X. This model, LY-H6-G330P, features a 30X optical zoom lens with a 5.4–162mm focal length.
Equipped with a Global Shutter CMOS sensor and high frame rates of 60FPS (NTSC) / 50FPS (PAL), the camera helps maintain accurate image geometry when capturing fast-moving objects or during high-speed PTZ operation. With versatile interfaces including Network, Audio I/O, and optional Alarm I/O, along with flexible power options such as PoE++ (IEEE 802.3bt), DC12V, DC24V, and AC24V, the LY-H6-G330P is an ideal solution for system integrators requiring precise imaging, responsive PTZ control, and reliable performance.

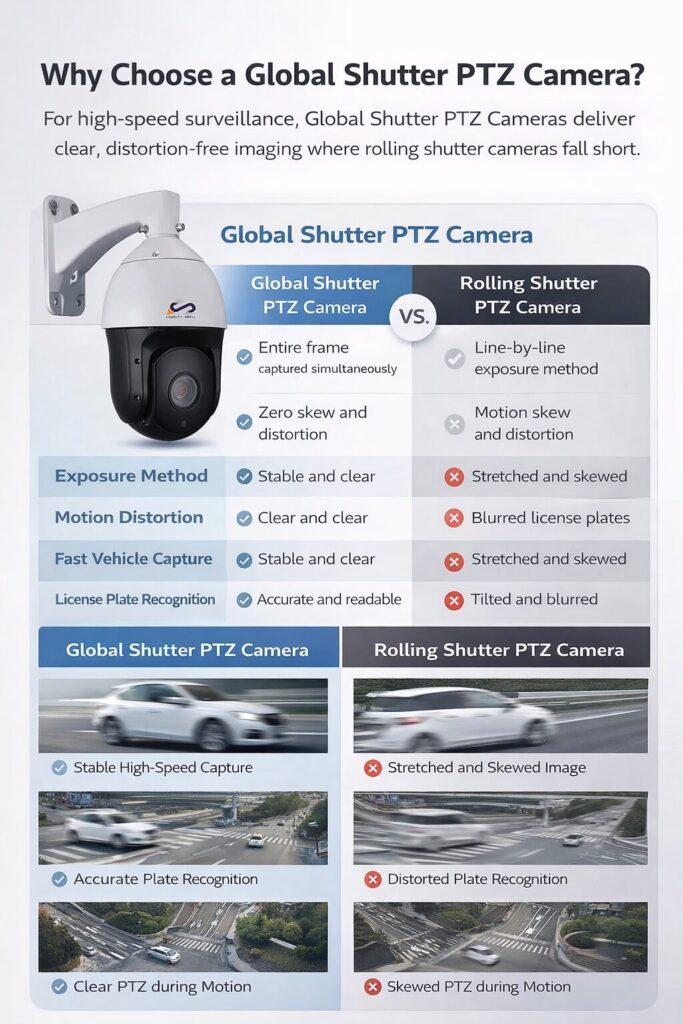

Why Choose a Global Shutter PTZ Camera for High-Speed Surveillance?
As surveillance projects increasingly focus on traffic monitoring, vehicle capture, and intelligent video analytics, image accuracy during high-speed movement has become a critical requirement.
This is where Global Shutter PTZ cameras deliver a clear advantage over traditional rolling shutter solutions.
What Is a Global Shutter Camera?
A Global Shutter camera captures the entire image sensor at the same time. All pixels are exposed simultaneously, helping reduce motion distortion when capturing fast-moving objects.
This technology is especially important for applications involving:
- High-speed vehicles
- Rapid PTZ pan, tilt, and zoom
- License Plate Image Capture
- AI-based video analytics
Global Shutter vs. Rolling Shutter
Rolling shutter cameras expose the image line by line. When objects move quickly or when a PTZ camera rotates at high speed, this exposure often results in:
- Skewed or stretched objects
- Distorted vehicle shapes
- Tilted or unreadable license plates
A Global Shutter PTZ camera helps reduce these issues by capturing the entire frame at once, providing more consistent image geometry during rapid motion.
Why Global Shutter Is Critical for PTZ Cameras
PTZ cameras continuously pan, tilt, and zoom to track targets. When combined with rolling shutter sensors, fast PTZ movement can significantly degrade image quality.
With Global Shutter technology, PTZ cameras maintain:
- More stable image geometry during high-speed rotation
- Accurate target tracking
- Reliable image data for AI and intelligent analytics systems License Plate Image Capture
Technology Comparison: Global Shutter vs. Rolling Shutter
Feature | Global Shutter PTZ | Rolling Shutter PTZ |
Fast-moving objects | Reduced distortion | More distortion risk |
High-speed PTZ rotation | Stable image geometry | Possible image skew |
Vehicle capture | More accurate image capture | Possible distortion |
OCR / label capture | Better image input | Motion distortion may affect results |
Machine vision | Suitable | Application dependent |
Summary
While rolling shutter cameras are suitable for standard surveillance scenarios, high-speed and precision applications demand Global Shutter technology.
A Global Shutter PTZ Camera ensures accurate imaging, reliable analytics, and professional performance for modern traffic and intelligent surveillance systems.
Fast-Moving Object Capture
Designed for Fast-Moving Scenes
The LY-H6-G330P combines Global Shutter imaging, high frame rates and high-speed PTZ control to provide reliable image capture in dynamic environments.
It is suitable for applications where objects, vehicles or the camera itself are moving rapidly and accurate image information is important.
Typical Applications
- Fast-moving packages
- Conveyor belt inspection
- Moving vehicles
- License plate capture
- Industrial machine vision
- Motion analysis
- AI vision systems
In-Motion OCR & Shipping Label Reading
In-motion OCR refers to capturing and reading text, labels or identification information while an object is moving, without requiring the object or conveyor to stop.
The LY-H6-G330P provides high-speed Global Shutter imaging and 30X optical zoom, making it suitable as an image acquisition camera for logistics automation, shipping label inspection and downstream OCR systems.
Typical Applications
- Shipping label reading
- Barcode and QR code capture
- Parcel identification
- Conveyor inspection
- Package sorting
- Warehouse automation
- Logistics tracking
Machine Vision & Motion Analysis
The LY-H6-G330P can provide high-quality image input for machine vision and motion analysis systems where accurate imaging of moving objects is required.
Global Shutter technology helps maintain image geometry during rapid movement, while 30X optical zoom enables detailed observation from longer distances.
Typical Applications
- Industrial inspection
- Object tracking
- Conveyor monitoring
- Motion analysis
- AI vision
- Automated inspection
Vehicle & Traffic Monitoring
The Global Shutter sensor helps capture more geometrically accurate images of moving vehicles and license plates. The camera can be integrated with third-party ANPR/LPR software for vehicle identification and license plate recognition.

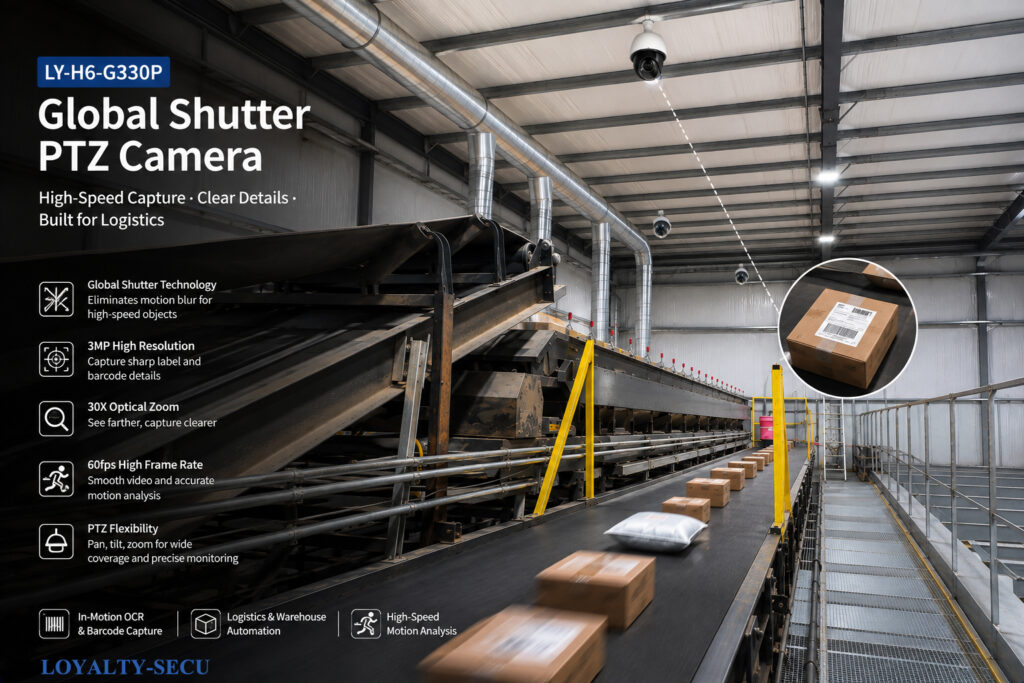

Application: High-speed conveyor monitoring
Deployment: 5 × LY-H6-G330P
Challenge: Capturing fast-moving objects accurately
Solution: Global Shutter + 60FPS + 30X Optical Zoom + High-Speed PTZ
Application Environment: Industrial / logistics conveyor system
FAQ
Frequently Asked Questions
1.What is a Global Shutter PTZ Camera?
A Global Shutter PTZ camera uses a sensor that exposes the entire image at the same time, helping reduce image distortion when capturing fast-moving objects or during rapid PTZ movement.
2.Why is Global Shutter important for fast-moving objects?
Global Shutter technology helps reduce skew and geometric distortion that can occur when fast-moving objects are captured with a rolling shutter sensor.
3.Can this camera be used for in-motion OCR?
Yes. The LY-H6-G330P can be used as an image acquisition camera for in-motion OCR systems, including shipping label, barcode and package identification applications.
4.Can it monitor conveyor belts?
Yes. The camera is suitable for high-speed conveyor monitoring and can be integrated into machine vision or logistics automation systems.
5.Does the camera support 30X optical zoom?
Yes. The LY-H6-G330P features a 30X optical zoom lens with a 5.4–162mm focal length.
6.What is the maximum PTZ speed?
The camera supports horizontal speeds up to 240°/s, making it suitable for rapid
target positioning.
7.Can it be used for license plate capture?
Yes. It can be used for license plate image capture and integrated with third-party
ANPR/LPR software, depending on project requirements.
8.Does the camera support ONVIF?
Yes.The camera supports ONVIF Profile S and Profile G for system integration.
Related Applications & Technical Resources
Global Shutter PTZ Camera for High-Speed Conveyor Monitoring
Customer Case Study
Global Shutter PTZ Camera for High-Speed Parcel Sorting Systems
Application Guide
Global Shutter PTZ Camera for High-Speed Machine Vision & Motion Analysis
Technical Application
Main Features
Global Shutter PTZ Camera Main Features
*Advanced IR & Laser Illumination
Equipped with 6 high-quality IR LEDs and 4 laser LEDs, supporting automatic switching between long-, mid-, and short-range illumination, delivering up to 200m IR night vision.
* 3MP Global Shutter Imaging
High-performance 3MP Global Shutter CMOS sensor with advanced encoding ensures clear, distortion-free images in high-speed and dynamic scenes.
* 5A Intelligent Image Processing
Supports Auto White Balance, Auto Focus, Auto Exposure, Auto Noise Reduction, and Auto Contrast Enhancement for optimal image quality in all environments.
* Precision PTZ Control
High-precision motor design enables smooth motion, accurate positioning, and stable high-speed rotation.
* High-Efficiency Video Encoding
Built on a high-performance platform supporting dual streams, H.264 / H.265 compression, and multi-level video quality configuration.
* Smart IR Matching Algorithm
Intelligent matching of IR distance, brightness, zoom ratio, and viewing angle to ensure optimal night-time image clarity.
* Flexible Power & Networking
Supports POE++ (IEEE 802.3bt) for simplified installation and stable power delivery.
* Open System Compatibility
Fully compatible with the ONVIF protocol for seamless integration with mainstream VMS platforms.
*Audio & Alarm Interfaces (Optional)
Optional Audio Input/Output and Alarm Input/Output for extended system integration.
* Industrial-Grade Protection
IP66-rated weatherproof housing with built-in surge and lightning protection up to 8000V, ensuring reliable outdoor operation.
1. 3MP 30X Global Shutter PTZ Camera Packing Details
2.Avaible Brackets for the 3MP PTZ Camera
Global Shutter PTZ Camera Datasheet
Model | LY-H6-G330P |
Camera | |
Image Sensor | 1/2.8” Global shutter CMOS |
Minimum Illumination | Color:0.001 Lux @(F1.67, AGC ON); B/W:0.0005Lux @(F1.67, AGC ON) |
3D NDR | Support |
WDR | 120DB |
Electronic Shutter | Supports automatic and manual electronic shutter 1/25~1/100,000s |
Day Night Mode | AUTO ICR Color to B/W |
Focal Length | 30X Optical zoom,5.4- 162mm |
Zoom Speed | Approx.5.5s(Optical Wide~Tele) |
Digital Zoom | 16X Digital zoom |
Angle of View | 57°-2.03°(Wide-Tele) |
Resolution | 2048(H)x1536(V) |
Mainstream | 50fps (2048×1536, 1920×1080, 1280 × 960, 1280 × 720) 60fps (2048×1536, 1920×1080, 1280 × 960, 1280 × 720) |
Sub Stream | 50fps (1280 × 720 ,704×576, 640×480 ,352×288) 60fps (1280 × 720 ,704×480, 640×480 ,352×240) |
3rd Stream | 50fps (704×567 ,640×480 ,352×288) 60fps (704×480 ,640×480 ,352×240) |
Video Compression | H.265/H.264 High profile / M-JPEG |
Network Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6TP，RTSP，ARP，DDNS，DNS |
Interface Protocol | ONVIF (PROFILE S, PROFILE G) |
Smart Function | |
Computing Power | 2T |
General Event | Motion detection, video occlusion, full disk, illegal access |
Smart Intelligence | Area intrusion, cross-border detection, departure from the area, loitering detection, personnel gathering, rapid movement, item retention, audio anomaly, human detection, vehicle detection |
PTZ Control | |
IR Distance | 200m |
Horizontal Range | 0°～360° continuously |
Vertical Range | -10°～90° |
Horizontal Speed | 0.05°～240°/s |
Vertical Speed | 0.05°～180°/s |
Max Speed | 240°/S |
Preset | 256 |
Patrol Scan | 4pcs（10 preset for each） |
L/R Scan | Support |
Horizontal Scan | Support |
Power-off Memory | Support |
PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
Watch Position | Support |
Wide Angle Speed Limit | Focus / speed automatic matching function |
POE Function | |
POE Supply Voltage | DC48V |
POE Supply PIN | 1,2(+),3,6(-) / 4,5(+),7,8(-), Auto adaptation |
General | |
Power | DC12V-4A /POE++ |
Consumption | ＜30W |
Mounting | Wall mounting or lifting |
Work Environment | temperature ：-30～60℃；humidity＜90% |
Protection level | IP66 waterproof，8000V lightning protection |
What's Included?
Manual, Camera, Wall Bracket (default), a 65W PoE injector and installation screws.
