Capturing Fast-Moving Package Labels in Logistics & Industrial Automation
Customer Application
A customer in the industrial and logistics sector is using LOYALTY-SECU LY-H6-G330P Global Shutter PTZ Cameras to monitor objects moving continuously along conveyor systems.

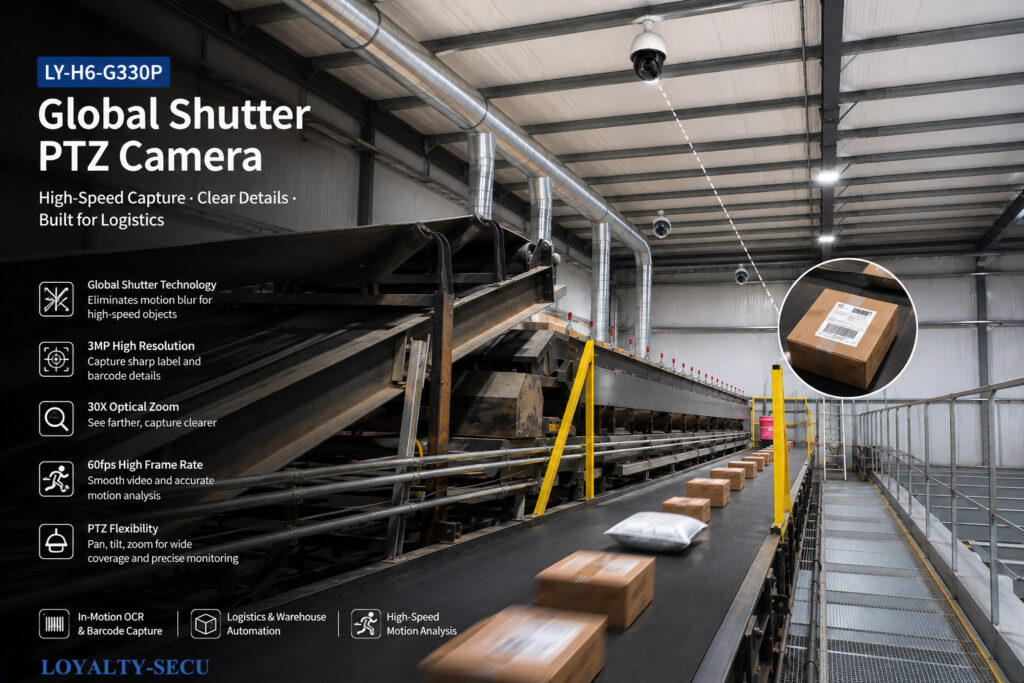

The cameras are installed at an elevated position above the conveyor lines, providing a clear overhead view of fast-moving packages and their labels.
To date, the customer has deployed 5 units of LY-H6-G330P, with additional camera deployments potentially being considered as the application expands.
For this type of dynamic environment, reliable image capture is important for applications such as package monitoring, label inspection, OCR, barcode recognition, image analysis, and logistics automation.
The Challenge
Capturing clear images of fast-moving packages can be challenging for conventional camera systems.
When objects move continuously along a conveyor, motion blur and image distortion may affect the visibility of shipping labels, barcodes, and other printed information.
In this application, the cameras are also installed above the conveyor system and need to monitor specific areas from a relatively long working distance.
Therefore, the imaging solution needs to provide:
- Clear imaging of fast-moving objects
- High frame rates for dynamic scenes
- Sufficient resolution for package and label details
- Long-distance image capture
- Flexible Pan-Tilt-Zoom control
- Reliable operation for continuous industrial monitoring
The Solution: LY-H6-G330P Global Shutter PTZ Camera
To address these requirements, the customer selected the LOYALTY-SECU LY-H6-G330P Global Shutter PTZ Camera.
The camera combines Global Shutter technology, 3MP resolution, 60/50 FPS, 30X optical zoom, and PTZ functionality, providing a flexible imaging solution for high-speed conveyor monitoring.
Unlike a conventional fixed camera, the PTZ design allows the viewing direction and optical zoom to be adjusted remotely, providing greater flexibility when monitoring different areas or configuring multiple cameras across a large conveyor system.
Key Technologies
Global Shutter for Fast-Moving Objects
The Global Shutter sensor captures the image across the sensor at the same moment, helping reduce motion distortion commonly associated with rolling-shutter imaging.
This makes the LY-H6-G330P suitable for dynamic applications where objects move rapidly through the camera’s field of view.
For conveyor-based applications, Global Shutter technology can help maintain clearer image information when capturing moving packages and labels.
60/50 FPS High Frame Rate
The LY-H6-G330P supports 60/50 FPS, providing frequent image capture during continuous movement.
A higher frame rate increases the number of available frames when an object passes through the monitoring area, helping downstream systems select suitable images for analysis or recognition.
30X Optical Zoom for Long-Distance Monitoring
With 30X optical zoom, the camera can capture details from relatively long working distances.
This is particularly useful when cameras are mounted above conveyor lines and need to monitor specific areas without placing the camera directly next to the conveyor.
The optical zoom also provides greater flexibility when the monitoring area or installation distance changes.
PTZ Flexibility
The Pan-Tilt-Zoom design allows operators or integrated software systems to remotely adjust the camera’s viewing direction and zoom level.
For multi-camera deployments, PTZ functionality provides additional flexibility when configuring camera positions and monitoring different sections of a conveyor or automated sorting system.
Multi-Camera Deployment
An important feature of this application is the multi-camera deployment.
Instead of relying on a single camera, the customer has currently deployed 5 LY-H6-G330P cameras across the application environment.
Multiple cameras can help provide coverage of different conveyor sections, viewing angles, or operational areas.
This approach also provides a scalable solution for larger industrial environments. As the application develops, additional cameras may be added to expand monitoring coverage and support new operational areas.
Typical Application Workflow
A typical system architecture can be structured as:
Fast-Moving Packages → LY-H6-G330P Cameras → Image Capture → OCR / Barcode / AI Vision → Logistics Management System
The LY-H6-G330P serves as the visual imaging layer, while downstream software can process captured images according to the specific requirements of the application.
Depending on the system architecture, the camera can be integrated into a broader machine vision or logistics automation solution.
For system integrators, multiple cameras can also be deployed across different conveyor sections or automated sorting areas to build a scalable visual monitoring system.
Application Areas
The LY-H6-G330P can be considered for a range of high-speed industrial and automation applications, including:
- Logistics & Warehouse Automation
- High-Speed Conveyor Monitoring
- Package Label Capture
- In-Motion OCR
- Barcode & QR Code Capture
- Machine Vision
- Motion Analysis
- Automated Sorting Systems
- Production Line Monitoring
Conclusion
The deployment of 5 LY-H6-G330P Global Shutter PTZ Cameras demonstrates how Global Shutter imaging and PTZ functionality can be combined to address demanding high-speed monitoring applications.
Installed above conveyor systems, the cameras provide flexible coverage for monitoring fast-moving packages and capturing visual information from dynamic scenes.
With Global Shutter technology, 3MP resolution, 60/50 FPS, 30X optical zoom, and PTZ control, the LY-H6-G330P provides a scalable imaging platform for applications including logistics automation, conveyor monitoring, machine vision, and in-motion image capture.
As the application continues to develop, additional camera deployments may further expand monitoring coverage and system capabilities.
