3 USB Ports Bluetooth Network Print Server

Model: LY-MPS-BN03

  • 3 USB Ports Bluetooth Network Print server
  • With Print and Scan function
  • Upgraded & User-Friendly Config Tool
  • Bluetooth (Classic+BLE4.0) Mode
  • Product Size: 75*75*18mm; Product weight: 30g
  • Economical & perfect solution for users who owned several USB printers
  • Support to connect 3 PCS USB Printers simultaneously
  • Multi-Users sharing one or Multi-Printers of a wireless network simultaneously.
  • Strong compatibility (99%) with most majorities of printers on the market
  • Support to print the Word, Excel, PDF, Image format or other format files via smartphone directly
  • With external TF Card Slot, Max support 256GB
  • Equipped with 1 PCS 10/100 Mbps RJ-45 LAN Port
  • Support print from Android smartphone and computer wirelessly

Bluetooth Network Print Server with 3 USB 2.0 ports, it can be used to share one or three USB printers among multi-users in a WLAN network simultaneously.

Meanwhile, 3 Ports USB Bluetooth Network Print Server can turn one of USB printers into Bluetooth printer. In case of no network connection, it still can send print jobs to one of USB printers via Bluetooth function, and Network Bluetooth USB Print Server allows you to print within a range of up to 100 meters via Bluetooth.

With 3 Ports Bluetooth Network USB Print Server, there is no need a dedicated computer  collocated for USB printer anymore, everyone can send the print jobs to the USB printer which connects with print server in the same WLAN at any time, avoids the added cost of purchasing individual printer for each workstation or area. It’s particularly suitable for home and office who owned several USB printers.

3 USB Ports Bluetooth Print Server adopts standard USB2.0 interface (compatible with USB1.1). With using LOYALTY-SECU user-friendly Config Tool for quick and easy connection to your wireless network, and you can easily use and configure your USB print server from any Windows computer on the LAN network.

Support Windows2000/ 2003/ XP/ Vista/ 7/ 8.x/ 10/11/ Mac/ UNIX/ Linux/ Android and other operating systems to print with USB printer. Meanwhile, it just needs to download and install the APP (PrinterShare or Printhand) into your smartphone directly, and then you can send print jobs from your phone to USB printer wirelessly!

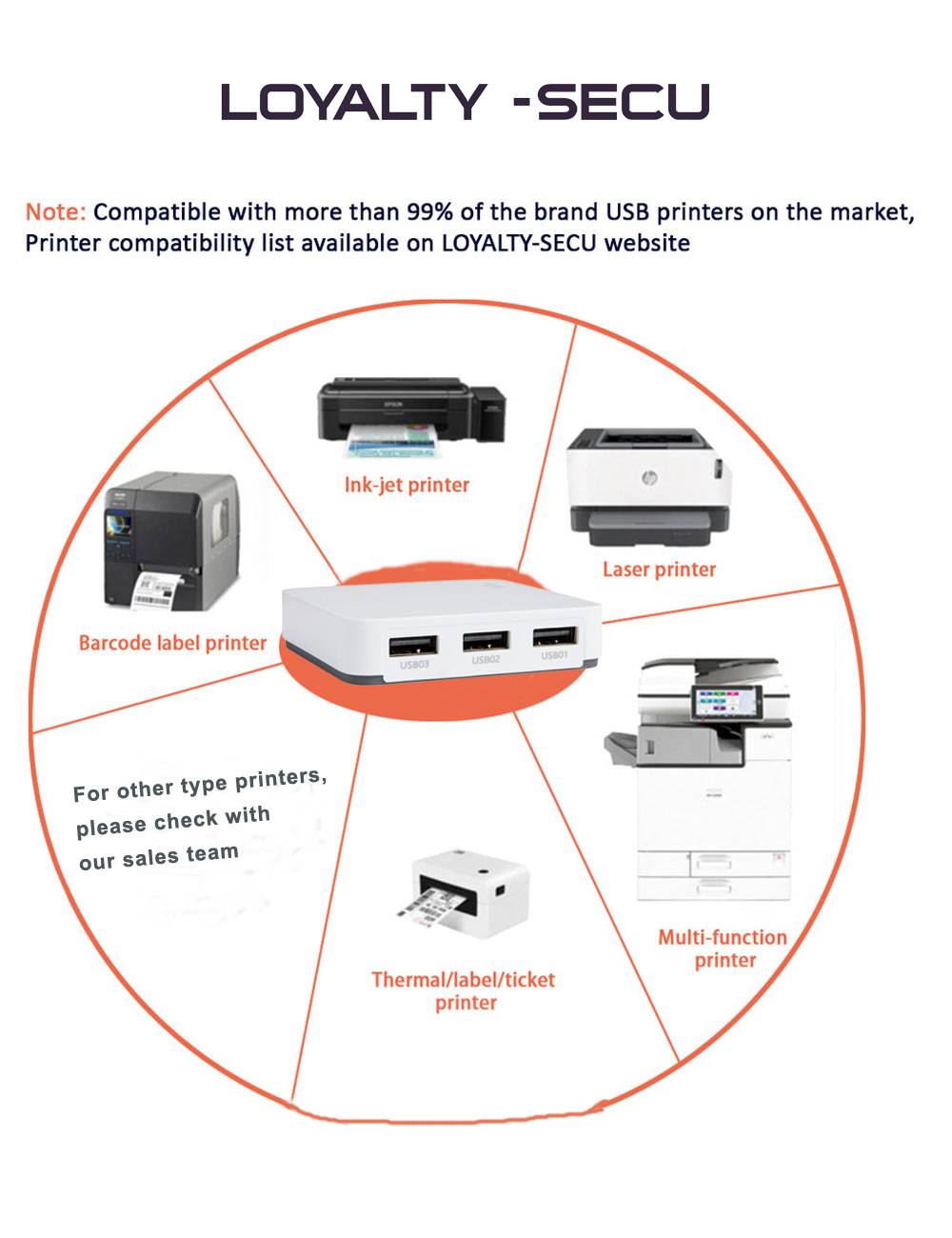

Workable Printer Types:

Inkjet Printers, Label Printer, Barcode Printer, Impact ,Printer (Dot Matrix Printing) Thermal Label or Receipt Printer, Laser Printer,Multifunction Printer (MFP),and so on.

3 Ports USB Bluetooth Network Print Server Advantages



1.What 3 USB Ports Bluetooth Network Print Server can Bring for You?

Our Network Bluetooth Print Server makes your family and your team easily stay productive no matter you’re working from home or in the office.

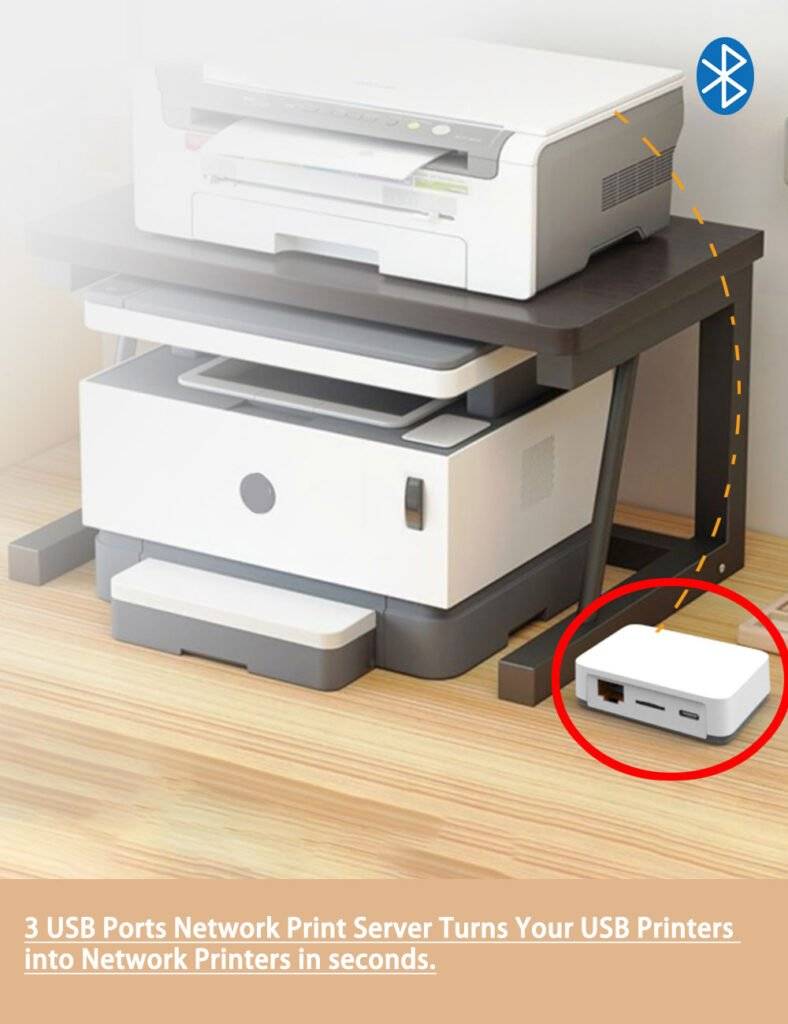

3 USB Ports Network Bluetooth Print Server supports turn 3 USB printers into Network printers and one of USB printer with Bluetooth function quickly.

In the case of no network connection, Bluetooth print server still supports printing via Bluetooth technology.

USB Bluetooth Network Print Server supports your USB printers to be shared with multiple users simultaneously over a LAN network.

Network Bluetooth print server allows you print and scan file in format of image, PDF, PPT, Excel, Word via your Android smartphone and computer wirelessly

With 3 Ports Network Bluetooth USB Print Server, there is no need a dedicated computer collocated for your USB printer anymore, everyone can send the print jobs to the USB printer which connects with our USB print server in the same WLAN at any time, avoids the added cost of purchasing individual printer for each workstation or area. It’s particularly suitable for home and office who owned several USB printers.



2.How to make your USB Printer Work with USB Network Bluetooth Print Server Quickly?



Windows Computers Printing via LAN:

Step 1: Please download “Print Server Config Tool” from our business site into your Windows computer.

Step 2: Please connect Print Server with Your Windows computer via USB cable.

Step 3: Please assign a fixed IP address for the USB Print Server via “Print Server Config Tool” on Windows computer firstly.

Step 4: Add the IP address and USB port information of print server into your target USB printer in your computer. Then you can explore the excellent printing experience via the Print Server.

Step 5: Download and install APP “PrinterShare” or “PrintHand” into your Android Smartphone and follow manual user to setup, then you can send print jobs to your USB printer wirelessly in LAN.



Windows Computers Printing via Bluetooth:(No pin code required)

Step 1: Connect the Bluetooth print server to the USB Printer via USB Cable

Step 2: Power on the print server & USB Printer

(The Bluetooth print server will be named after the connected USB Printer and paired with your computer automatically)

Step 3: Obtain the Bluetooth Networking COM Number of the Print Server

Step 4: Choose the corresponding COM Number for the target USB Printer in Printer Properties of your computer

Step 5: Explore the printing via Bluetooth from Computer to the USB Printer.





Android Smartphone Printing via Bluetooth:

Download and install the Pre-paid Third-Party APP “PrinterShare” or “PrintHand” into your Android Smartphone firstly and start the Bluetooth connection, then you can send print jobs via Bluetooth from your Android smartphone to your USB printer.



Application:

Small and medium-sized companies, schools, households, stock markets, education, express companies, e-commerce companies, etc.



Product Package Items:

1PCS* 5V/1A Power Adapter        1PCS* User Manual              1PCS* USB Print Server

The Workflow of USB Network Bluetooth Print Server with Your USB Printer

4.Something Important Needs to be Noted before Order



* Please configure the USB print server with “Print Server Config Tool” via Windows Operation System computer only, MAC operating system computer doesn’t support!

* Only Android smartphone support to send print jobs to your USB printer via USB print server, IOS iPhone doesn’t support! Meanwhile, MAC operating system computer doesn’t send print jobs to USB printer via Bluetooth function, only via Network!!

* Please make sure your USB printer support RAW protocol, IMF protocol doesn’t support!

* Please kindly note that it only supports one USB printer with Scan function, if you need more “scan” license, please contact us for detailed information.

* 3 USB Ports Network Bluetooth Print Server only supports USB01 port with Bluetooth function, it means the USB printer which connects with USB01 port of print server with Bluetooth function.

* Please kindly note that the APP “PrinterShare” or “PrintHand” is not free when you download it from APP store.

LOYALTY-SECU Network Print Servers Unsupported USB Printer Models

Canon:

Canon LBP Series: 2900/3000/3300/6000/6200/7010 etc.

EPSON:

EPSON Stylus Photo R Series:

Epson Stylus Photo R200/220/260/280/300/300M/

320/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.

Epson Stylus Series:300/400/800/800+/1000/1500, etc.

Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.

Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.

RICOH:

All Ricoh Printer Models (Excludes MP2014AD)

HP:

HP1022

Bluetooth Print Server With 3 Types Power Plug For Option

Product Specification:

ModelLY-MPS-BN03
Product Item3 USB Port Bluetooth Network Print Server
Support Printer TypeInkjet Printers, Label Printer, Barcode Printer, Impact Printer (Dot Matrix Printing) ,Thermal Label or Receipt Printer, Laser Printer, Multifunction Printer(MFP),and so on
CPUARM9
Memory64MB DDR2
Flash128MB NANDFLASH
Printer ConnectionUSB 2.0/USB 1.1
Product Size(L*W*H)75*75*18mm
Operating SystemLINUX3.4
USB Print InterfaceUSB2.0 Host
USB Config InterfaceUSB2.0 Device
Network Interface10/100Mbps RJ45
TF SlotYes, Max support 256GB
WiFi FunctionSupport to customize
Bluetooth VersionClassic 2.0+ BLE4.0 Mode
Network ProtocolsIPX, TCP/IP, NETBUEI, APPLETALK, LPR, SMB
(Over TCP/IP)
Working SystemWindows 2000/2003/XP/Vista/7, 8.x and 10
,MAC operating system
Power Supply5V/1A
Product Weight30g
Packing Items1PCS * Print Server,1PCS * Power Adapter,1PCS * User
Guide
Product ColorWhite, accept customization for product color
Operating EnvironmentTemp: -10°C~50°C , Humidity: 20%~85%
Charging EnvironmentTemp: 5°C~40°C , Humidity: 20%~85%
Storage EnvironmentTemp: -20°C~70°C, Humidity: 5%~95%
Print Server Config ToolYes
USB Interfaces3PCS * USB2.0 Interfaces, support to work with 3 pcs printers simultaneously
