3 USB Ports Wireless WiFi Bluetooth Network Print Server for Multiple USB Printers Printing via Network
Model: LY-MPS-WB06
- Converts your old USB printers into wireless printers into seconds.
- Adopts industrial grade ARM A7 1.2GHz Chipset, ensure the printing much faster and more stable.
- Dual RJ45 network port design, support to work with 2 different network segments.
- Support to print via smartphone and computer simultaneously.
- Support to work with 3 pcs USB2.0 printers.
- Equipped with 2.4GHz WiFi and 4.0 Bluetooth function.
- Product Size: 89*89*26mm; Product weight: 86.4g
- Driver-free design, with the user-friendly config tool, can add the printer within seconds.
- Support to print via wired network /Wi-Fi/Bluetooth simultaneously.
- Can be connected to three different local area networks at the same time (2 pcs RJ45 port+ WiFi)
- High compatibility: support CUPS system, IPP printing protocol, compatible with more than 99.5% of printer models on the market.
LY-MPS-WB06 is a Wireless WiFi Bluetooth Network Print Server which with 3 USB 2.0 Interfaces, it’s an external device that can be used to share 3PCS USB printers among multi-users of a wireless network and 2 different wired network segments (total 3 different network segments) simultaneously. The 3 USB Ports WiFi 2.4GHz Bluetooth Printer Server enables its possibility for users to send print jobs to several USB printers any time anywhere via a computer or smartphone. With LOYALTY-SECU 3-Port Wireless USB Print Server that you can choose the most convenient location to keep your printers, whether at home or office, and no longer held back by the length of a USB cable.
LOYALTY-SECU LY-MPS-WB06 WiFi Bluetooth Network Print Server supports USB printer printing via 4.0 Bluetooth when there is no network or wired infrastructure is costly or unreasonable. Allowing a computer or smartphone or other PDA send the print jobs to the connected USB printers via Bluetooth technology.
LOYALTY-SECU LY-MPS-WB06 3 USB Ports WiFi Bluetooth Network Print Server adopts the latest ARM A7 1.2GHz industrial grade and high stability chipset, support CUPS system, brings much faster and more stable printing experiences and high compatibility feature (compatible with more than 99.5% of the brand USB printer on the market) when compares with other print server vendors. With LOYALTY-SECU LY-MPS-WB06 converts your old USB printers into network Bluetooth printers into seconds.
LY-MPS-WB06 WiFi Bluetooth Ethernet USB Printer Adapter with 3 Different Network Segments, there is no need for a dedicated computer or extra print server anymore, any user under the 3 different network segments able to share the USB Printers via a single LY-MPS-WB06, avoids the added cost of purchasing individual print server and printer for each workstation or area, cost, and energy saving. It’s particularly suitable for home and office who owned several network segments and several USB printers.
3 USB Ports WiFi Bluetooth Print Server Highlights:
1.Converts your old USB printers into wireless printers into seconds.
2.Adopts industrial grade ARM A7 1.2GHz Chipset, ensure the printing much faster and more stable.
3.Dual RJ45 network port design, support to work with 2 different network segments.
4.Support to print via smartphone and computer simultaneously.
5.Support to work with 3 pcs USB2.0 printers.
6.Equipped with 2.4GHz WiFi and 4.0 Bluetooth function.
7.Product Size: 89*89*26mm; Product weight: 86.4g
8.Driver-free design, with the user-friendly config tool, can add the printer within seconds.
9.Support to print via wired network /Wi-Fi/Bluetooth simultaneously.
10.Can be connected to three different local area networks at the same time (2 pcs RJ45 port+ WiFi)
11.High compatibility: support CUPS system, IPP printing protocol, compatible with more than 99.5% of printer models on the market.
12.Type-C cable for power supply and product configuration.
13.Supported system: Windows, MAC OS, LINUX, Android and Harmony OS and other systems.
14.Upgraded heat radiating design, ensure stable work performance and long using life.
15.With the cost-saving and high efficiency features, it’s particularly suitable for the enterprises who owned several USB printers and different network segments.
3 USB Ports Wireless Network Print Server Main Features:
1.Creates New Life for Old USB Printers:
With LOYALTY-SECU 3 USB Ports WiFi Bluetooth Print Server, converts your old USB printers into wireless printers into seconds.
2.Industrial Grade ARM A7 1.2GHz CPU:
Support CUPS system, IPP printing protocol, brings much faster and more stable printing experiences and high compatibility feature when compares with other print server vendors.
3.Dual RJ45 Network Port Design:
Support to work with 2 different network segments. It’s particularly suitable for home and enterprises who owned several network segments and several USB printers. (Such as 192.168.1.X and 192.168.2.X)
4.Integrated the Bluetooth and WiFi Function:
Equipped with 2.4GHz 802.11b/g/n WiFi and 4.0 Bluetooth function. Support to print via Wi-Fi/Bluetooth simultaneously. (When selecting Bluetooth method for printing, you need to connect the USB printer to the USB01 port of the print server)
5.Sharing 3 PCS USB 2.0 Printers via Network:
Work as an external device that can be used to share 3PCS USB printers among multi-users of a wireless network and 2 different wired network segments (total 3 different network segments) simultaneously.
6.Driver-free Design:
No driver installation required on the print server, user need to install the USB printer driver on the computer first, after connected the print server to the printer, can add the printer directly via the print server config tool.
7.More than 99.5% High Compatibility:
Compatible with more than 99.5% of printer models on the market. Such as Inkjet printers, laser printers, label/barcode printers, dot matrix printers, thermal/label/receipt printers, MFP Printers, etc.
8.Computer Print Sharing:
Support to work with Windows 2000/2003/XP/Vista/7/8/10/11, MAC OS, LINUX System. (MAC OS discovers printers automatically)
9.Android Smartphone Print Sharing:
Support to print in format of image, PDF, PPT, Excel, Word Android and Harmony OS devices. The mobile phone can connect to the print server via Bluetooth, and it can also print without network conditions.
10.More Flexible Ways to Connect:
The 3 USB ports print server with wired network /Wi-Fi/Bluetooth three methods for connection, ensures the users can choose any method they want based on the actual working environment, totally hassle-free and trouble-free.
11.Excellent Heat Dissipation Design:
Upgraded heat radiating design, ensure stable work performance and long using life.
12.Type-C Cable for Product Configuration:
Adopted the simple Type-C cable for power supply and the connection between the print server and computer for product configuration.
Comparison with Other Print Server Vendors
LOYALTY-SECU Network Print Servers Unsupported USB Printer Models
Canon:
Canon LBP Series: 2900/3000/3300/6000/6200/7010 etc.
EPSON:
EPSON Stylus Photo R Series:
Epson Stylus Photo R200/220/260/280/300/300M/
320/340/380/800/R1800/1900/R2000/R2400/R2880/R3000, etc.
Epson Stylus Series:300/400/800/800+/1000/1500, etc.
Epson Stylus Color Series: 880/880i/900/900G/900N/980/980N, etc.
Epson Stylus Pro Series: 3880/4000/4800/4880/4900/5000/5500, etc.
RICOH:
All Ricoh Printer Models (Excludes MP2014AD)
HP:
HP1022
Application
Small and medium-sized companies, schools, stock markets, education, express companies, e-commerce companies which with professional network administrators.

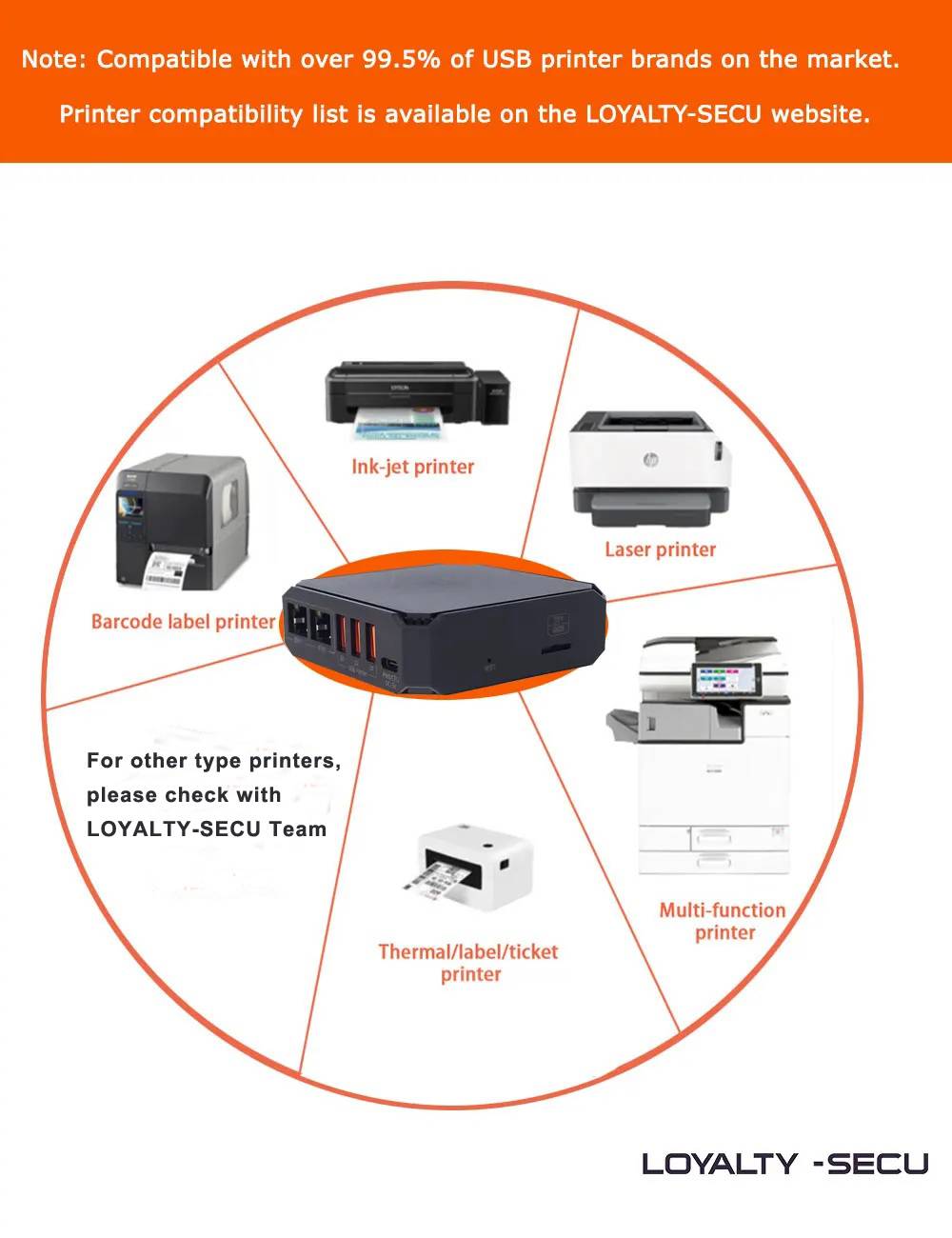

Workable Printer Types
Inkjet Printers, Label Printer, Barcode Printer, Impact Printer (Dot Matrix Printing) Thermal Label or Receipt Printer, Laser Printer, Multifunction Printer (MFP), and so on.
3 USB Bluetooth WiFi Network Print Server Packing List
WiFi Bluetooth Print Server With 3 Types Power Plug For Option
WiFi Bluetooth Network Print Server with 3 USB Ports Workflow
Product Specification:
| Model | LY-MPS-WB06 |
|---|---|
| Product Item | 3 USB Port WiFi Bluetooth Print Server,support 3 different network segments |
| Support Printer Type | Inkjet Printers, Label Printer, Barcode Printer, Impact Printer (Dot Matrix Printing) ,Thermal Label or Receipt Printer, Laser Printer, Multifunction Printer(MFP),and so on |
| CPU | ARM A7 1.2GHZ |
| Memory | 128MB DDR2 |
| Flash | 128MB NANDFLASH |
| Printer Connection | USB 2.0/USB 1.1 |
| Operating System | LINUX3.4 |
| USB Print Interface | USB2.0 Host |
| USB Config Interface | USB2.0 Device |
| CUPS System | Support |
| Product Size(L*W*H) | 89*89*26mm |
| Product Weight | 86.4g |
| USB Interfaces | 3PCS * USB2.0 Interfaces, support to work with 3 pcs printers simultaneously |
| Print Server Config Tool | Yes |
| Network Interfaces | 2PCS *10/100Mbps RJ45 (With two different network segments, such as 192.168.1.X and 192.168.2.X) |
| WiFi Function | 2.4GHz, 802.11b/g/n |
| Bluetooth Function | 4.0 Bluetooth |
| Network Protocols | IPP,LPD,IPX, TCP/IP, NETBUEI, LPR, SMB (Over TCP/IP), AppSocket |
| Working System | Windows 2000/2003/XP/Vista/7/8/10/11 ,MAC OS,LINUX and Android & Harmony OS operating system |
| TF Slot | To be developed |
| 4G Function | To be developed |
| Power Supply | 5V/1A |
| Gift Box Size | 13*13*5CM |
| Gift Box Weight | 200g(With product and accessories inside it) |
| Packing Iist | 1PCS * Print Server,1PCS * Power Adapter,1PCS * User Guide |
| Product Color | Black (Accept customization for product color) |
| Operating Environment | Temp: -10°C~50°C , Humidity: 20%~85% |
| Product Warranty | 1 Year |
