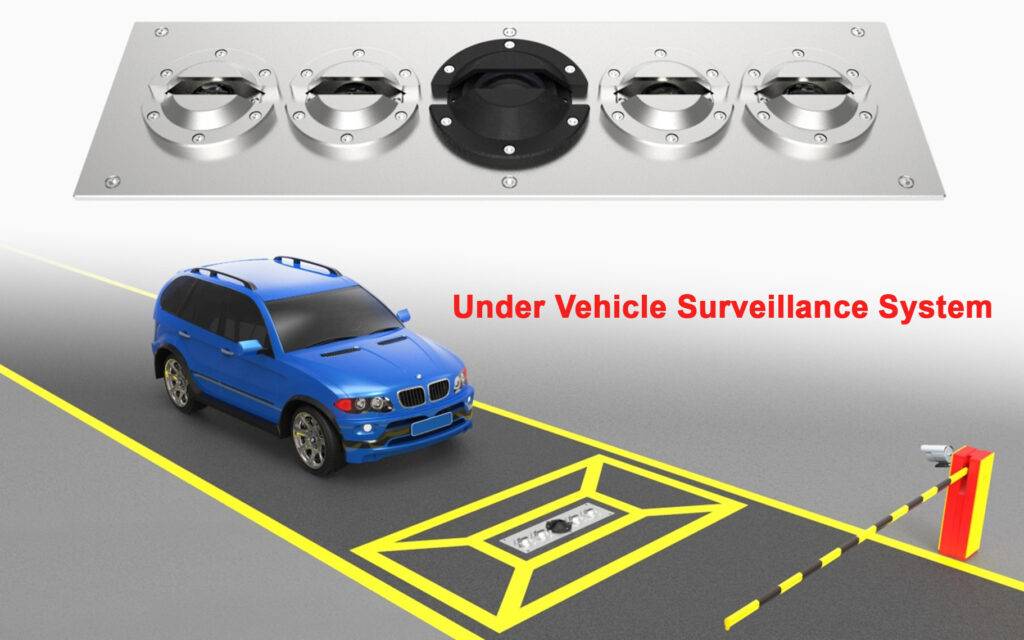

Under Vehicle Surveillance System UVSS with ANPR LPR ALPR Camera

Model: LY-UVSS-A01

  • All-in-one Under Vehicle Surveillance System(UVSS)
  • Auto digital line scan, high-resolution undercarriage imaging.
  • High automation, easy to be used and integrated
  • Applicable to variety of vehicles, wide vision.
  • Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
  • Undercarriage image can be stored, retrieved, searched or compared with other images.
  • A variety of image processing methods: enlarge, stretching and cutting.
  • ALPR-Automatic License Plate Recognition and RFID technology for optional.

Overview

LOYALTY-SECU Under Vehicle Surveillance System

Dedicate on scanning the threats & contraband beneath the vehicle

Under Vehicle Surveillance System also been called Under Vehicle Scanning System

mainly focus on inspecting the beneath part of a variety of vehicles. It can quickly identify threats/ contraband/ smuggling of persons hiding at the bottom with high accuracy. Under Vehicle Inspection System UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

The fixed UVSS consists of Speed Matching, LED lighting, Linear Imaging Modules. An induction or photoelectric sensor served as a trigger signal, equipped with a License Plate Recognition camera, takes HD photos of the lower part of the vehicles. integrates vehicle and vehicle information. The Fixed Under Vehicle Scan System can automatically activate when a vehicle approaches and transmits real-time images of a vehicle’s base to a front -end program, enables security checks of the lower section of passing vehicles. the portable UVSS uses an all-in-one portable box design, no construction required, plug and play, and flexible.

This Under Vehicle Scanning System can be easily set up at any location to quickly help improving security at event venues or large events. LOYALTY-SECU UVSS provides quick, complete, and reviewable detection, the speed matching module can adjust the device’s parameter according to vehicle speed, ensuring high quality images. this system can capture complete zero-blind-spot images of the bases of the passing vehicles. Integrated vehicle information supports searching by license plate number and entry time. Zoom in on image details or flag abnormalities.



This Under Vehicle Surveillance System is ideal for security checks of vehicle that enter or leave large locations as below:

Government and military facilities, Electrical power plants, Chemical companies, Sport Stadium, Parks,

Airports, Business Centers, Customs Border Inspection, etc

Demo Video

Brief Introduction

UVSS Features

●Auto digital line scan, high-resolution undercarriage imaging.

●High automation, easy to be used and integrated

●Applicable to variety of vehicles, wide vision.

●Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.

●Undercarriage image can be stored, retrieved, searched or compared with other images.

●A variety of image processing methods: enlarge, stretching and cutting.

●Multi entrance management and statistics of entering and exiting vehicles

●ALPR-Automatic License Plate Recognition and RFID technology for optional. associative storage of various vehicle information and undercarriage images.

All-in-one Under Vehicle Surveillance System

Specifications

UVSS Embedded Screening Part
Camera Sensorline scans CCD
Camera Resolution5000*2048 pixels
IlluminationLED Lights
Dimension1200mm x 350mm x 300mm
Power Supply24VDC, 3A
Power Consumption150W
Operating -20 degree to +60 degree
UVSS Controller
Input/OutputInput: 2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication PortRS485, Ethernet (Optional)
Operating -10℃ to 55℃
UVSS System Host
SolutionGrantech SYM76941VGGA
CPUIntel Celeron E3400@2.6GHz CPU
Memory2G (4G is optional )
Graphics512M
Hard DiskSATA2 Hard Disk 500G
Dual LANAt least one Intel Gigabit
USB2.0 InterfaceMax support to 2 USB2.0 Interface
Monitor22inch LCD, resolution up to 1920*1080
