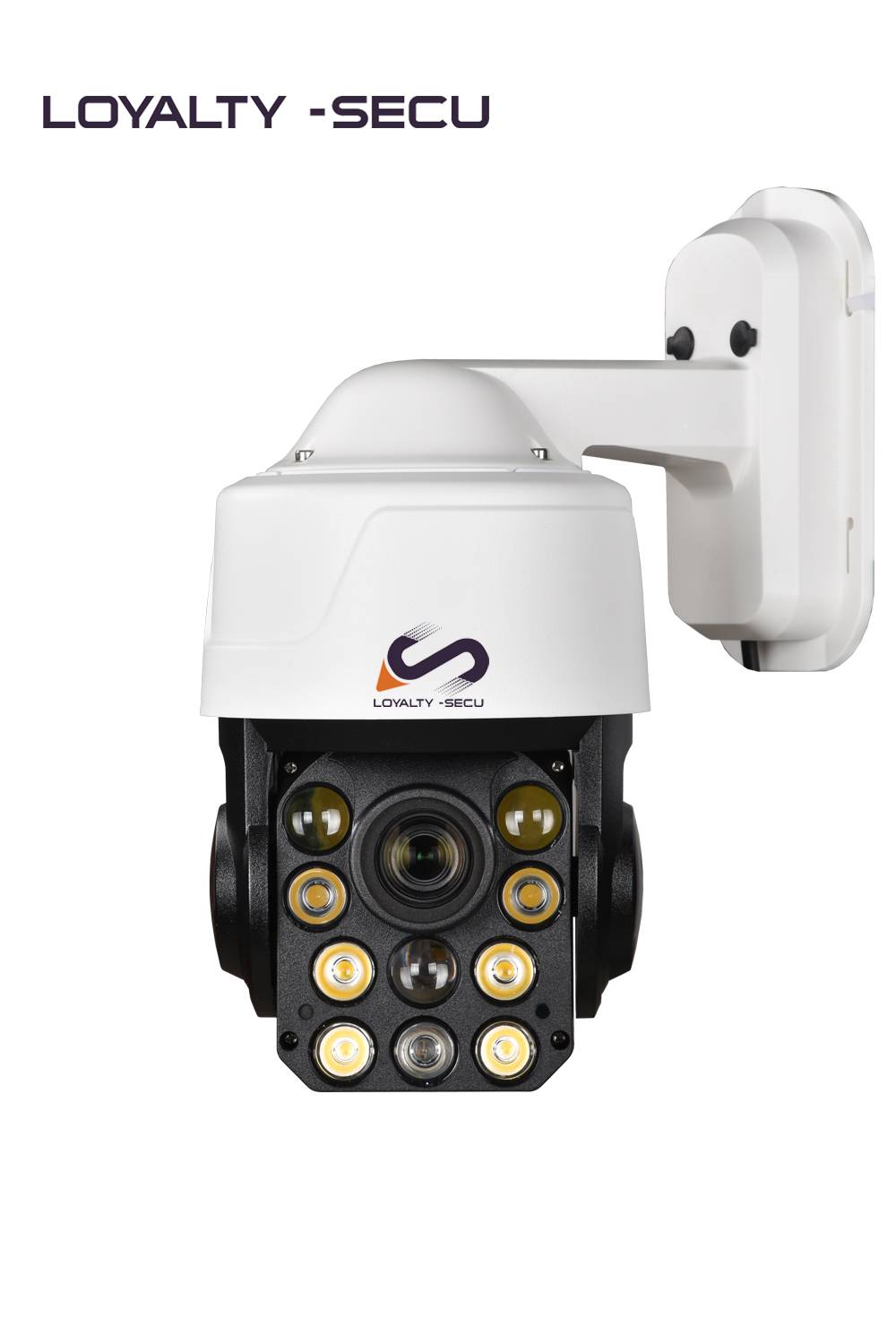

Mini 5MP 18X POE Auto Tracking Network PTZ Surveillance Camera System
Model: LY-W5-518
- 5MP,POE PTZ Camera
- 4 Inch Private Housing
- 18X Optical Zoom, Infrared night vision distance up to 100m
- Infrared night vision, color night vision, intelligent sensing, three modes are optional
- With built-in SD Card for data storage
- Support two-way audio, with humanoid tracking function
- Built-in POE+(IEEE802.3at)
- IP66 Waterproof. With the professional APP for smartphone preview
- Particularly suitable for garden, store, factory,office and so on
- Power Supply: 12V 2A
Overview
LOYALTY-SECU Mini 4 Inch all metal WiFi PTZ camera is a super low cost-effective solution, specially designed for the locations where cable fixing is unavailable, and with the pan tilt zoom function, ensure the users can use only one camera to guard all the corners or angles they want whether in the stores, offices, home, garden, factory, other places.
The Mini 3MP/5MP WiFi POE Auto Tracking PTZ Camera adopting the high-performance CPU, brings the excellent image quality for preview. With the WDR and BLC function, make sure the PTZ camera can work under a backlight environment smoothly. With the 18X optical zoom, intelligent humanoid detection function, brings the worry-free experiences, all the details are in control.
LOYALY-SECU 3MP/5MP WiFi PTZ Camera Using high-power infrared LEDs, the infrared night vision distance up to 100 meters, even in the night, have a clear sight of the monitoring objects. Moreover, the Wireless WiFi 18X PTZ Camera is equipped with an ICR filter to ensure that there is no color cast during the day and can be seen clearly at night.
Demo Video
Main Features
* 7PCS ceramic package array LEDS,3PCS Laser LEDs, 18X optical zoom, IR distance up to 100m.
* 5MP POE PTZ Security Camera System.
* 4 Inch Mini PTZ Camera for outdoor monitoring
* Infrared night vision, color night vision, intelligent sensing, three modes are optional.
* With the WDR and BLC function, make sure the PTZ camera can work under a backlight environment smoothly.
* Support auto iris, auto focus, auto white balance, 3D digital noise reduction; Ultra-low illumination.
* With Pan Tilt Zoom function, support to zoom in any angle at any time under the 5MP image mode.
* Camera rotation angles: Horizontal: 0°~ 355°; Vertical: 0°~ 105°, all-round monitoring, flexible for up and down, left and right. With wider monitoring range, much more money saving.
* Support humanoid detection, intercom alarm pushing to the smartphone. With only PTZ camera in hand make you feel like having 4 bullet cameras.
* With SD card option for data storage (Max 512GB)
* With the professional APP for camera intercom, warning area setting, triggering the alarm via the smartphone.
* All metal housing design, IP66 waterproof, weather-proof.
* Using high precision synchronous reduction motor, with high performance motor drive, control precision, stable movement, small vibration.
* PC CMS to control multi-cameras
* Built-in Microphone and Speaker
* Optimized H.265 compression algorithm, support dual stream, support mobile phone Remote monitoring, compatible with Android / iOS.
* P2P: Plug & play, Support QR code scanning to view on iPhone and android Mobiles
* Support IE, Google, Firefox browser
* Abnormal automatic recovery, network outages automatically connect function
* Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP
* Support ONVIF
* Supports static IP and also supports dynamic IP (DHCP)
* Motion detection, email alert, FTP upload
* Support: Power off memory/Presets/6 groups cruise/A-B scan/ auto-scan1858
Specifications
| Model | LY-W5-518 |
| Camera Solution | SSC30KD+GC4653 |
| Camera Resolution | 5MP |
| Optical Zoom | 18X,Lens: 4.7-84.6mm |
| Minimum Illumination | 0.01Lux |
| Day/night Mode | Support IR-cut |
| IR Distance | 100M |
| Storage Function | Support 512G TF card max |
| Motion Detection | 4 separate test areas can be set(Sensitivity can be set) |
| Alarm Linkage | Send pictures by email; pictures and videos uploaded to the FTP server; |
| Preset Speed | 40°/S |
| OSD | OSD name, time, date, information overlay |
| Video Processing | Support H.264 Main Profile, H.264 Baseline |
| Preset | 128 |
| Camera APP | AC18pro |
| POE Standard | Built-in POE+(IEEE802.3at） |
| Two Way Audio | Yes |
| Product Size | Φ128*214mm |
| GW | 2.5KG |
Dimensions
