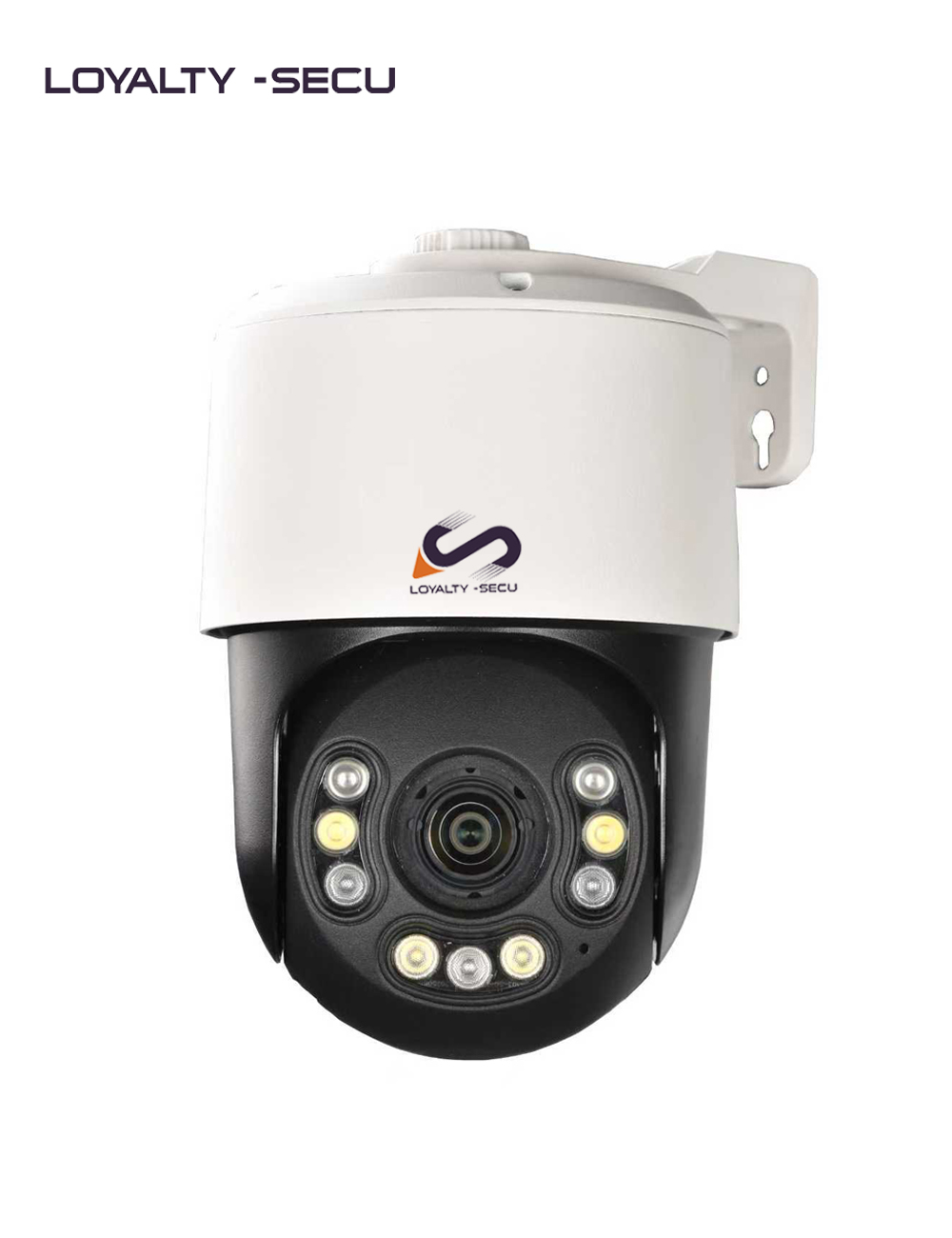

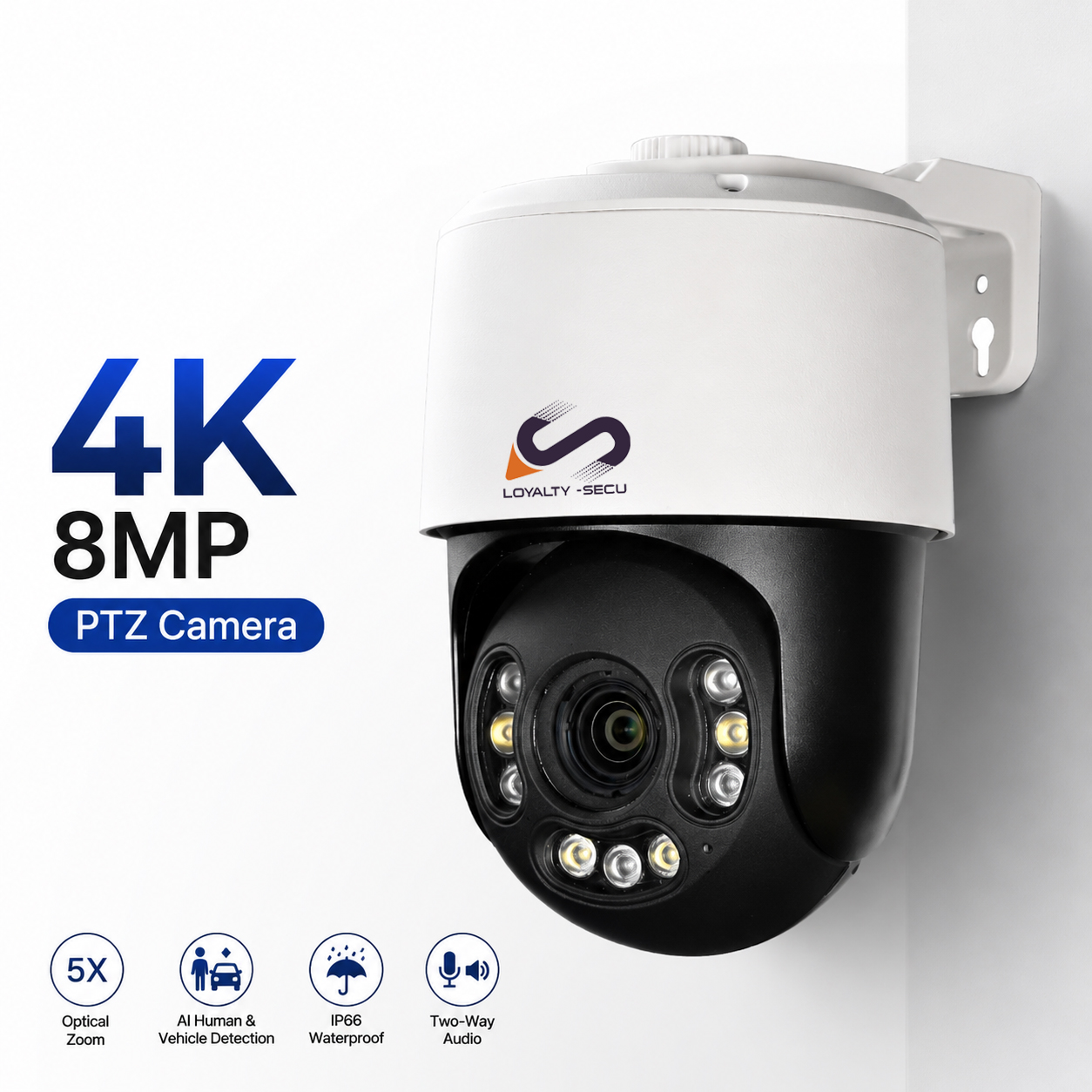

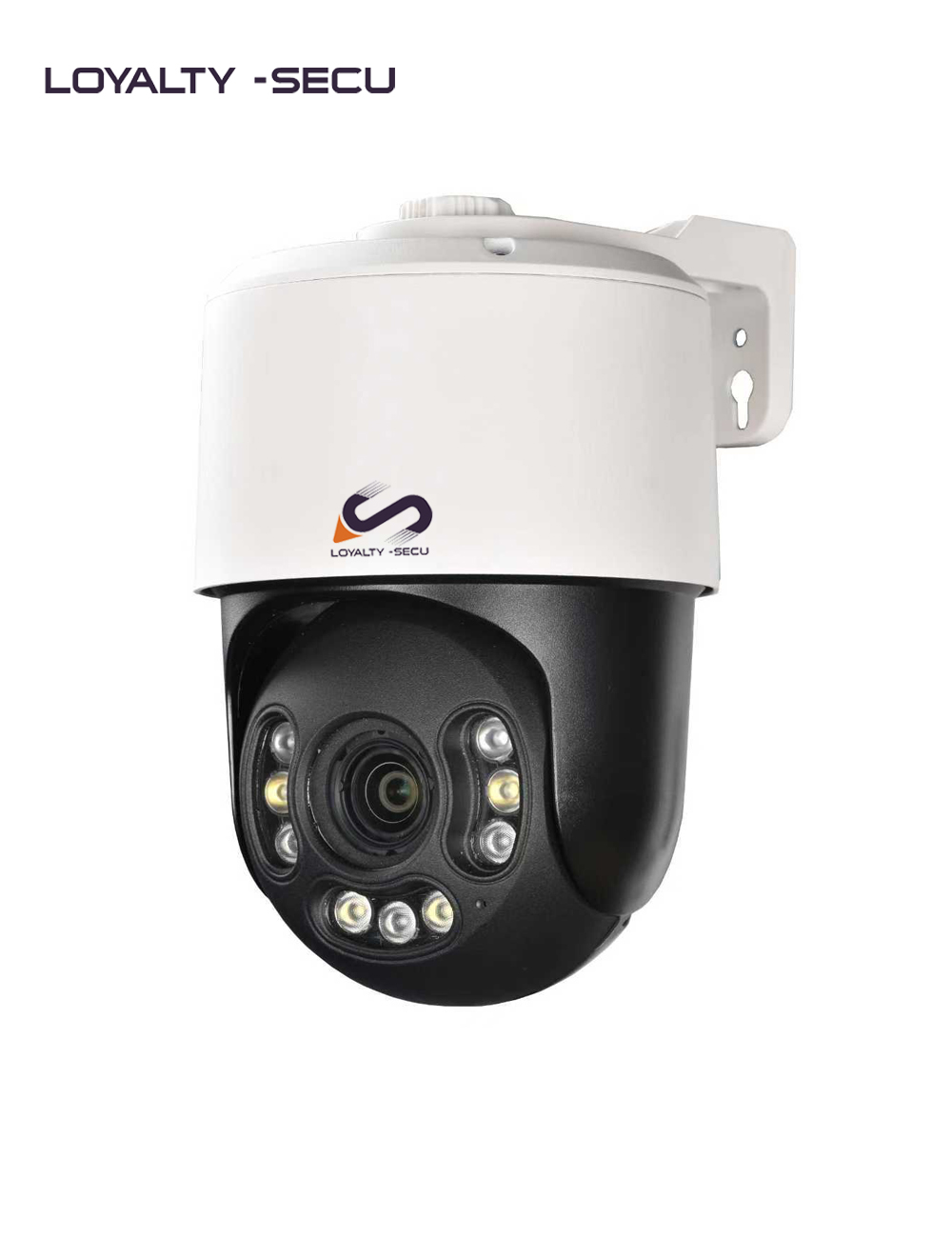

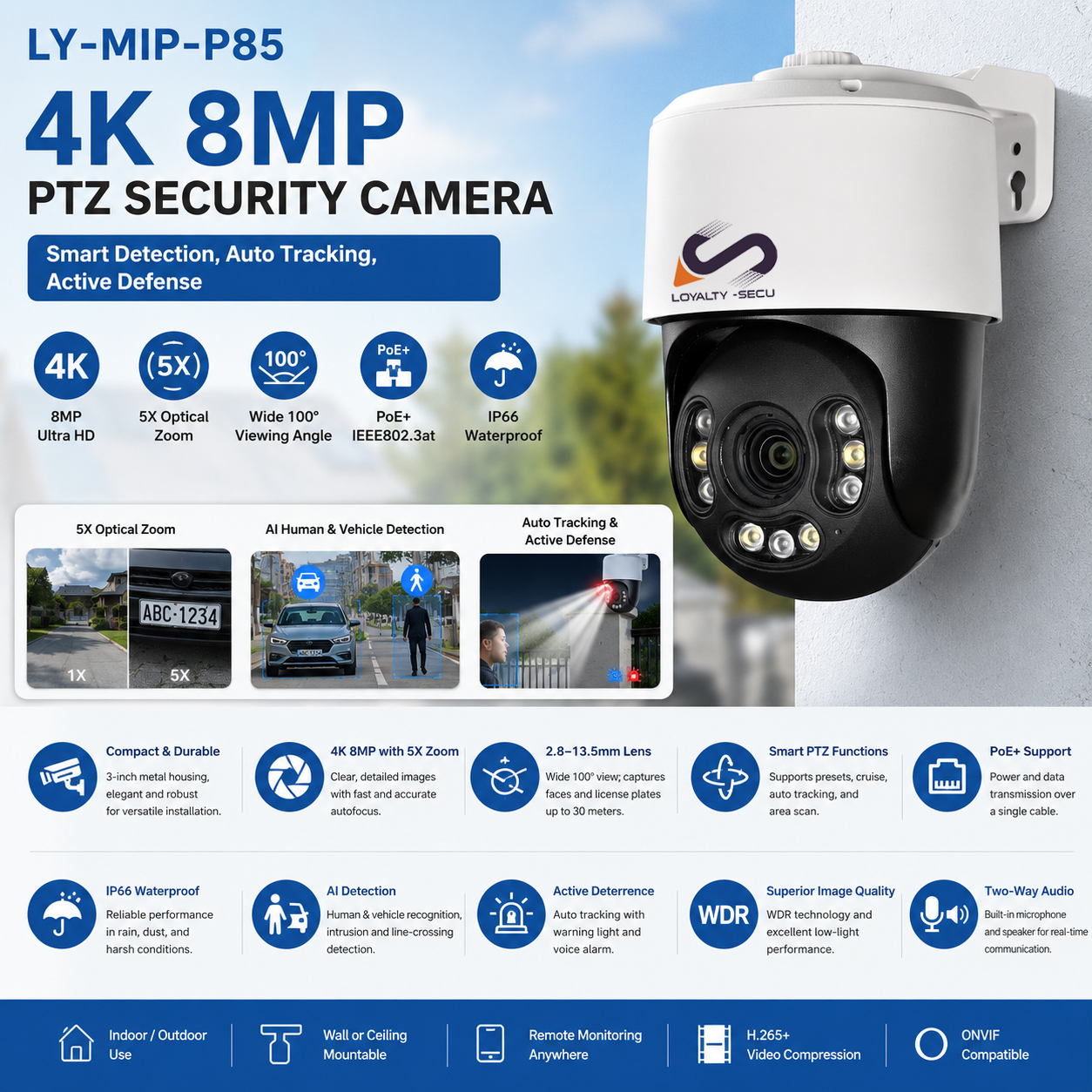

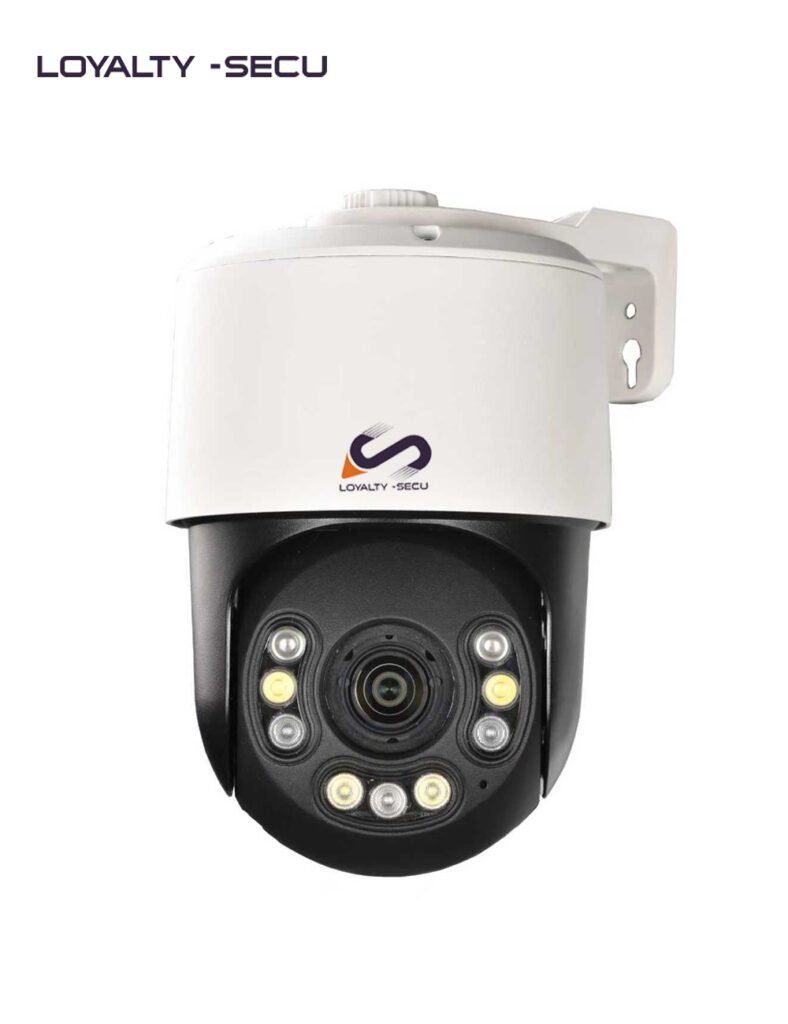

LOYALTY-SECU LY-MIP-P85 8MP 4K Mini PTZ Camera | 5X Optical Zoom PoE IP Camera with Auto Tracking & Active Defense
Model: LY-MIP-P85
- Compact 3-Inch Metal PTZ Camera – Durable and stylish design for flexible installation.
- 4K 8MP with 5X Optical Zoom – Clear, detailed images with fast auto focus.
- 2.8–13.5mm Lens – Wide 100° viewing angle; captures faces and plates up to 30m.
- Smart PTZ Functions – Preset, cruise, auto tracking, and area scan supported.
- PoE+ Support – Power and data through one cable for easy setup.
- IP66 Waterproof Housing – Reliable for indoor and outdoor environments.
- AI Human & Vehicle Detection – Supports intrusion and line-crossing alerts.
- Active Deterrence – Auto tracking with warning light and voice alarm.
- Excellent Image Performance – WDR and enhanced low-light visibility.
- Two-Way Audio – Built-in microphone and speaker for real-time communication.
Overview
Professional 8MP 4K Mini PoE PTZ Camera for Smart Security Surveillance
The LOYALTY-SECU LY-MIP-P85 is a professional-grade 8MP 4K Mini PTZ IP Camera designed for advanced indoor and outdoor security monitoring. Featuring a compact 3-inch full metal housing, powerful 5X optical zoom, intelligent auto tracking, AI human & vehicle detection, and PoE support, this camera delivers high-performance surveillance for commercial, industrial, and engineering projects.
Equipped with a high-quality 2.8–13.5mm motorized varifocal lens, the LY-MIP-P85 provides crystal-clear 4K Ultra HD video and captures faces and license plates at distances up to 30 meters. Its intelligent PTZ functions, including preset positions, cruise patrol, area scan, and auto tracking, provide flexible and efficient monitoring for modern security applications.
With Active Defense technology, built-in microphone & speaker, visible light warning, and voice deterrence, the Mini 4K 8MP PTZ Camera not only monitors but also actively protects your property in real time.
Designed for professional installations, the 8MP 5X POE PTZ Camera supports PoE+ (IEEE802.3at), allowing power and data transmission through a single Ethernet cable for simplified deployment and reduced installation costs.
The IP66 waterproof full metal body ensures stable operation in harsh outdoor environments, making it ideal for warehouses, factories, offices, parking lots, retail stores, schools, residential properties, and perimeter security applications.
Demo Video
Brief Introduction
4K 8MP 5X Zoom PTZ Camera Features
8MP 4K Ultra HD Resolution
Delivers exceptionally sharp and detailed video quality for professional surveillance applications.
5X Optical Zoom PTZ Camera
Equipped with a 2.8–13.5mm motorized zoom lens for smooth zooming and precise image capture without quality loss.
Smart Auto Tracking
Automatically tracks moving humans or vehicles for enhanced monitoring efficiency and reduced manual operation.
AI Human & Vehicle Detection
Supports intelligent intrusion detection, cross-line detection, and human/vehicle recognition to minimize false alarms.
Active Defense System
Built-in visible warning light and voice alarm help deter intruders and improve real-time security response.
Compact 3-Inch Full Metal Design
Mini PTZ camera with durable metal housing for both indoor and outdoor installations.
PoE+ Support (IEEE802.3at)
Single-cable solution for power and network transmission, simplifying installation and reducing wiring complexity.
Two-Way Audio Communication
Built-in microphone and speaker support real-time remote communication and audio monitoring.
IP66 Waterproof Protection
Reliable operation in rain, dust, heat, and other harsh outdoor environments.
Advanced PTZ Functions
Supports preset positions, cruise patrol, area scanning, and intelligent guard functions for flexible monitoring.
Why Choose the LOYALTY-SECU LY-MIP-P85 PTZ Camera?
Professional Commercial-Grade Security Camera
Designed for professional security projects, system integrators, and engineering contractors instead of entry-level consumer applications.
Rare Combination of Features
One of the few compact PTZ cameras combining:
- 8MP 4K resolution
- True 5X optical zoom
- PoE support
- Full metal housing
- Auto tracking
- Active defense
Excellent Image Quality
Uses a premium-quality branded lens comparable to leading industry standards, ensuring clear images and smooth zoom performance.
Better Value Than Traditional Bullet Cameras
Priced competitively while offering PTZ movement, zoom capability, auto tracking, and cruise functions that standard fixed bullet cameras cannot provide.
Broad Compatibility
Compatible with most mainstream NVRs, ONVIF platforms, and VMS software systems.
Ideal for Multiple Applications
Suitable for:
- Warehouse surveillance
- Factory security
- Parking lots
- Retail stores
- Office buildings
- Schools & campuses
- Residential properties
- Commercial security projects
- Smart city surveillance
Application Scenarios
🏠 Home & Villa Security – Protect your property with AI intrusion alerts and auto-tracking.
🛒 Shops & Retail Stores – Monitor entrances and cashier areas, deter theft with two-way audio.
🏭 Factories & Warehouses – Rugged IP66 design ensures 24/7 surveillance in tough environments.
🏢 Offices & Business Parks – Safeguard lobbies, parking lots, and perimeter areas with active defense.
🎓 Schools & Campuses – Smart patrol and intrusion detection for safer learning environments.
🌍 Public Areas – Ideal for parks, squares, stations, and stadiums with intelligent crowd monitoring.
🚗 Parking Lots & Garages – Detect vehicles and trigger voice alerts to prevent theft or vandalism.
🚧 Construction Sites – Quick PoE setup for flexible and reliable site surveillance.
Support Local storage and playback
The 4K 8MP PTZ camera supports micro TF card up to 256GB. Insert a TF card, and then it is a competed remote home security system. When the TF card is full, the new recordings will overwrite the old ones, it can make sure the recording of security camera working normally all the time. Meanwhile you can play videos via your mobile phone APP directly.

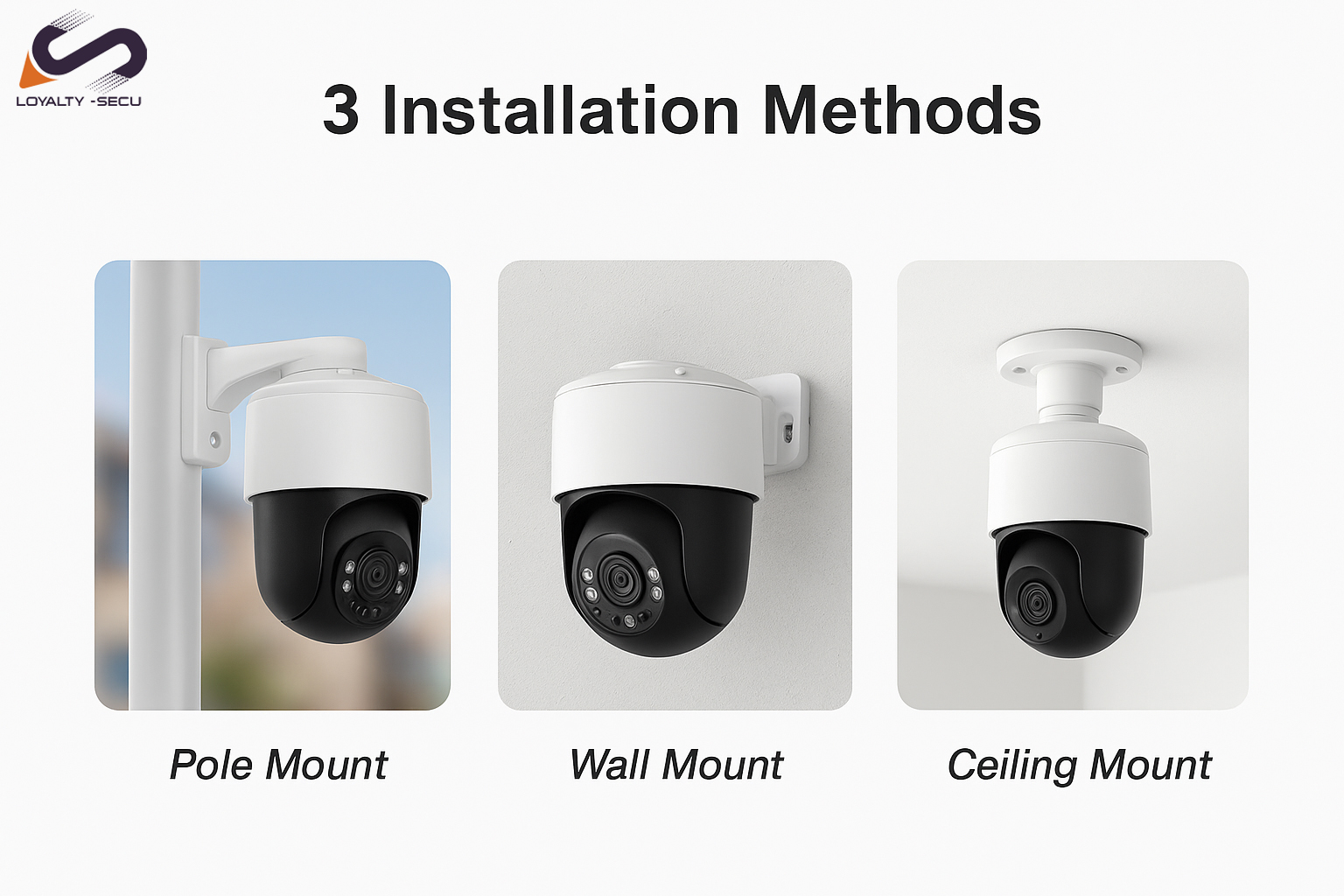

3 Installation Methods
PTZ Camera Package
User Manual, PTZ Camera , installation bracket.
Specifications
|
Model |
LY-MIP-P85 |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Camera Solution |
SigmaStar378QE+Sony415 |
|
Minimum Illumination |
Color: 0.01Lux, B/W: 0.001Lux,0 Lux with IR |
|
3D NDR |
Support |
|
WDR |
Support |
|
Electronic Shutter |
AUTO |
|
Day Night Mode |
AUTO ICR Color to B/W |
|
Focal Length |
2.8-13.5mm,5X Optical Zoom, (F1.6 to F2.7) |
|
Zoom Speed |
Approx.3s (Optical Wide~Tele) |
|
Resolution |
2592(H)x1944(V) |
|
Mainstream |
3840*2160
@ 30fps 2592*1944@25fps, 2500*1600@25fps,2048*1536@25 fps |
|
Sub Stream |
D1@30fps |
|
Video Compression |
H.265+/H.265/.H.264 |
|
Network Protocol |
TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE, UPNP,SMTP |
|
Interface Protocol |
ONVIF |
|
Storage |
Support 512G TF card |
|
AI Function |
Human detection/Vehicle detection/Regional intrusion detection/Cross line detection |
|
Free APP |
AC18 pro/ Video-Link |
|
PTZ Control |
|
|
Fill Light Distance |
40m |
|
Lighting Mode |
Intelligent mode/ IR mode/ Full-color mode |
|
Horizontal Range |
0°～355° |
|
Vertical Range |
-10°～90° |
|
Horizontal Speed |
0.5°～60°/s |
|
Vertical Speed |
0.5°～60°/s |
|
Max Speed |
60°/S |
|
Preset |
256 |
|
Cruise |
Support |
|
Area Scan |
Support |
|
Horizontal Scan |
Support |
|
Power-off Memory |
Support |
|
PARK Action |
Watch position/ Cruise/Area Scan /Horizontal scan |
|
Watch Position |
Support |
|
Wide Angle Speed Limit |
Focus / speed automatic matching function |
|
POE Function |
|
|
POE Supply Voltage |
DC48V |
|
POE Supply PIN |
1,2(+),3,6(-) / 4,5(+),7,8(-), Auto adaptation |
|
General |
|
|
Power Supply |
DC12V or POE |
|
Consumption |
Less than 18W |
|
Work Environment |
Temperature: -20～60℃; humidity＜90% |
|
Protection Level |
IP66 waterproof,6000V lightning protection |
|
GW |
2.2KG |
3 Inch POE 5X Zoom PTZ Camera Dimension
