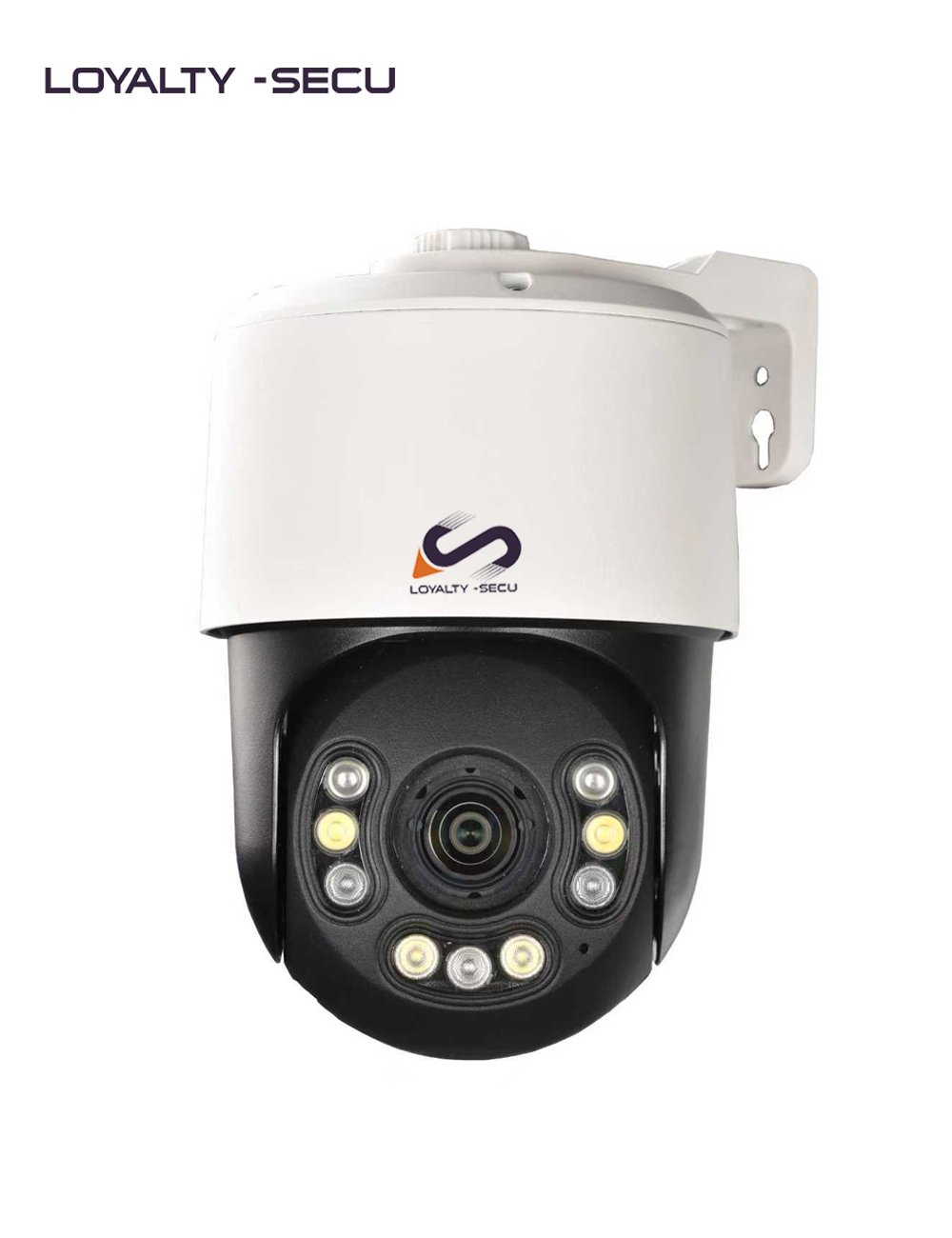

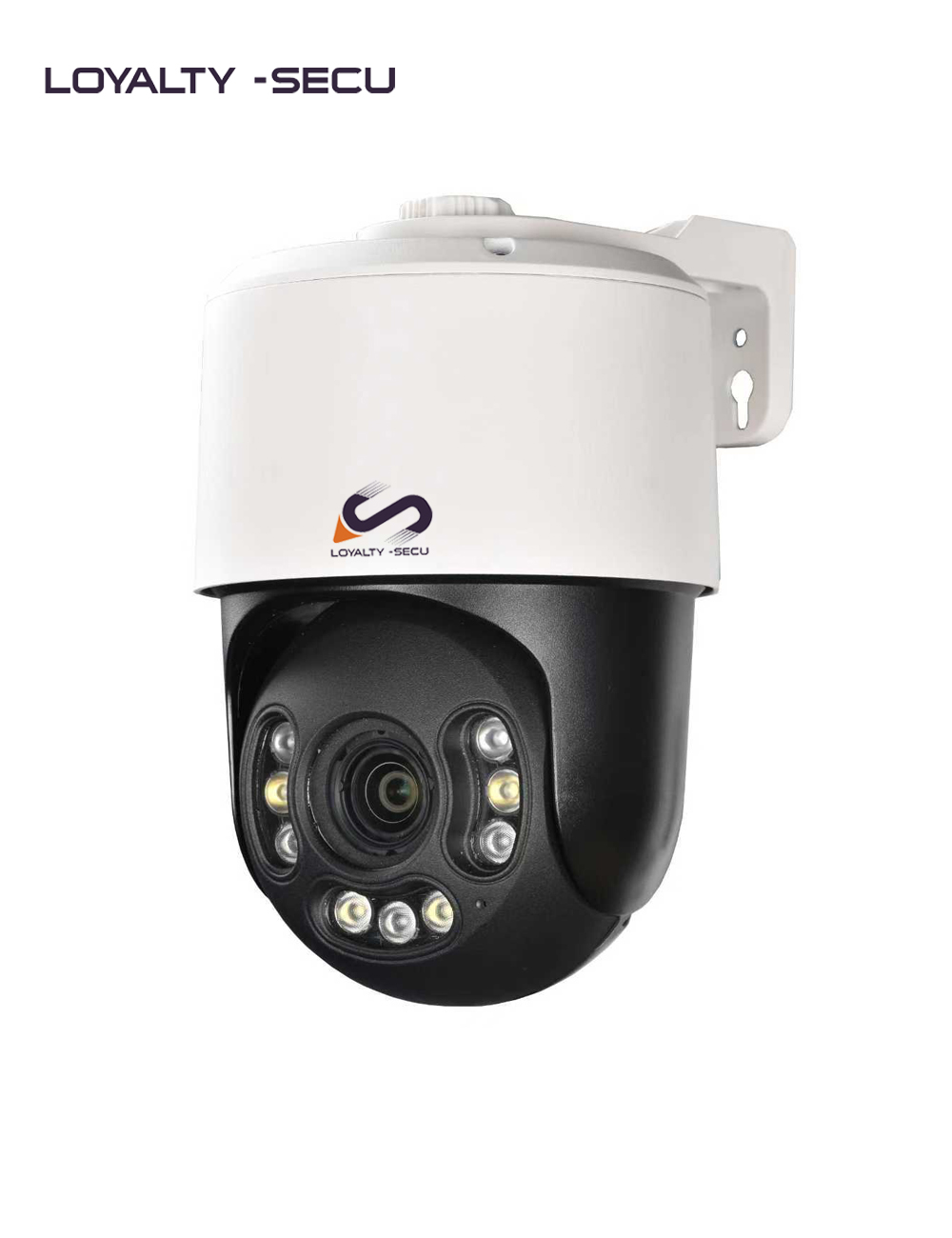

LOYALTY-SECU LY-MIP-P55 | 5MP Mini 3-Inch HD-IP PTZ Camera, 5X Optical Zoom, Auto Tracking, Active Defense, Full Metal Housing, PoE
Model: LY-MIP-P55

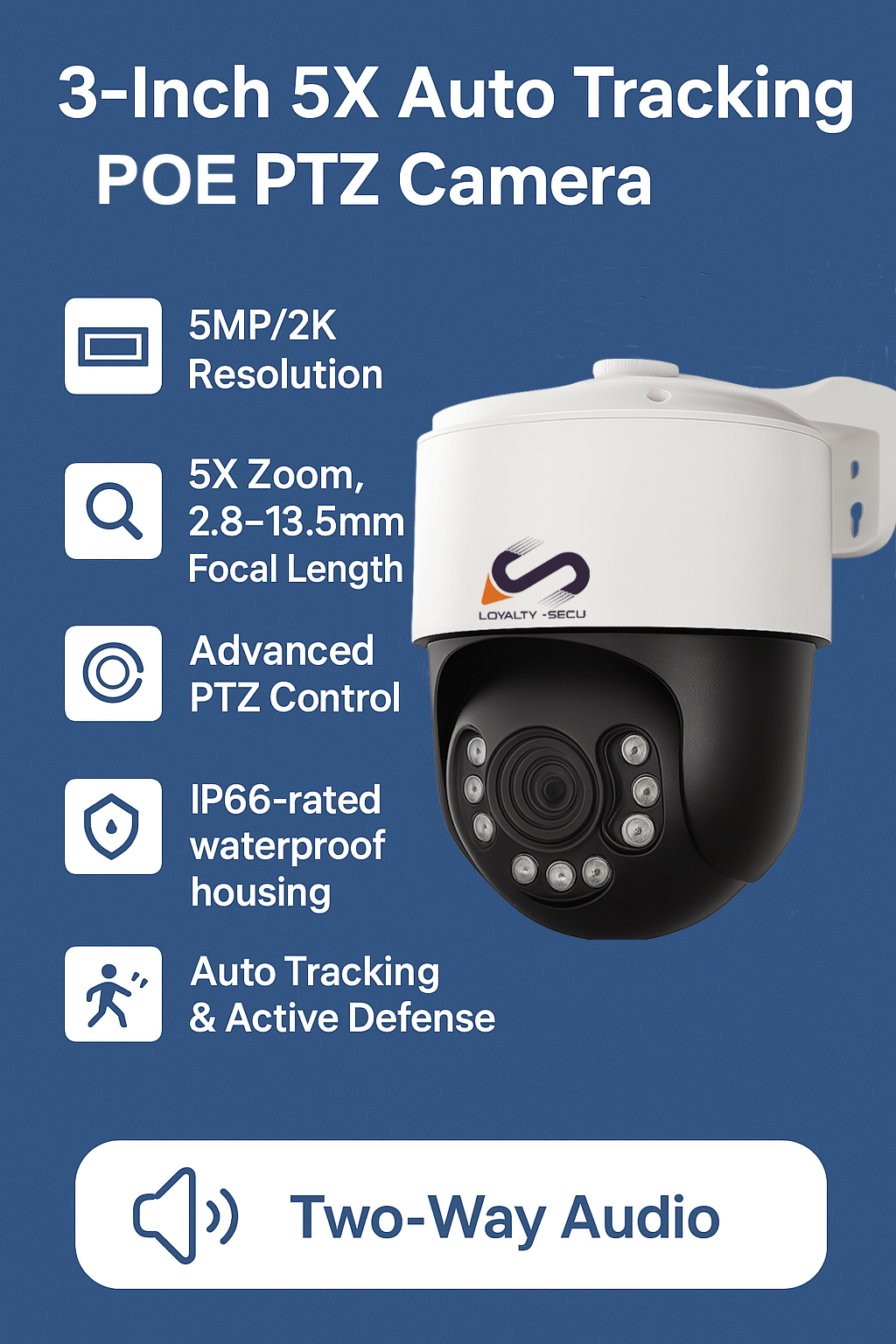

- Compact 3-Inch Metal PTZ Camera – Small, elegant, and robust design for versatile installation.
- 5MP HD Lens with 5X Optical Zoom – Sharp, clear images with fast and accurate focusing.
- 2.8–13.5mm Focal Length – Wide 100° horizontal view; zoom captures faces and license plates up to 30 meters.
- Advanced PTZ Control – Supports presets, cruise, auto-tracking, and area scanning for flexible monitoring.
- PoE+ Support (IEEE802.3at) – Simplifies power and network setup with a single cable.
- All-Weather Durability – IP66-rated waterproof housing; suitable for indoor/outdoor use; wall or ceiling mountable.
- Smart AI Detection – Human/vehicle recognition, intrusion and cross-line detection, with preset & cruise guarding.
- Auto Tracking & Active Defense – Real-time tracking with visible light alerts and voice deterrence.
- Superior Image Quality – 5MP resolution, 5X optical zoom, WDR, and excellent low-light performance.
- Two-Way Audio – Built-in microphone and speaker for seamless communication.
Overview

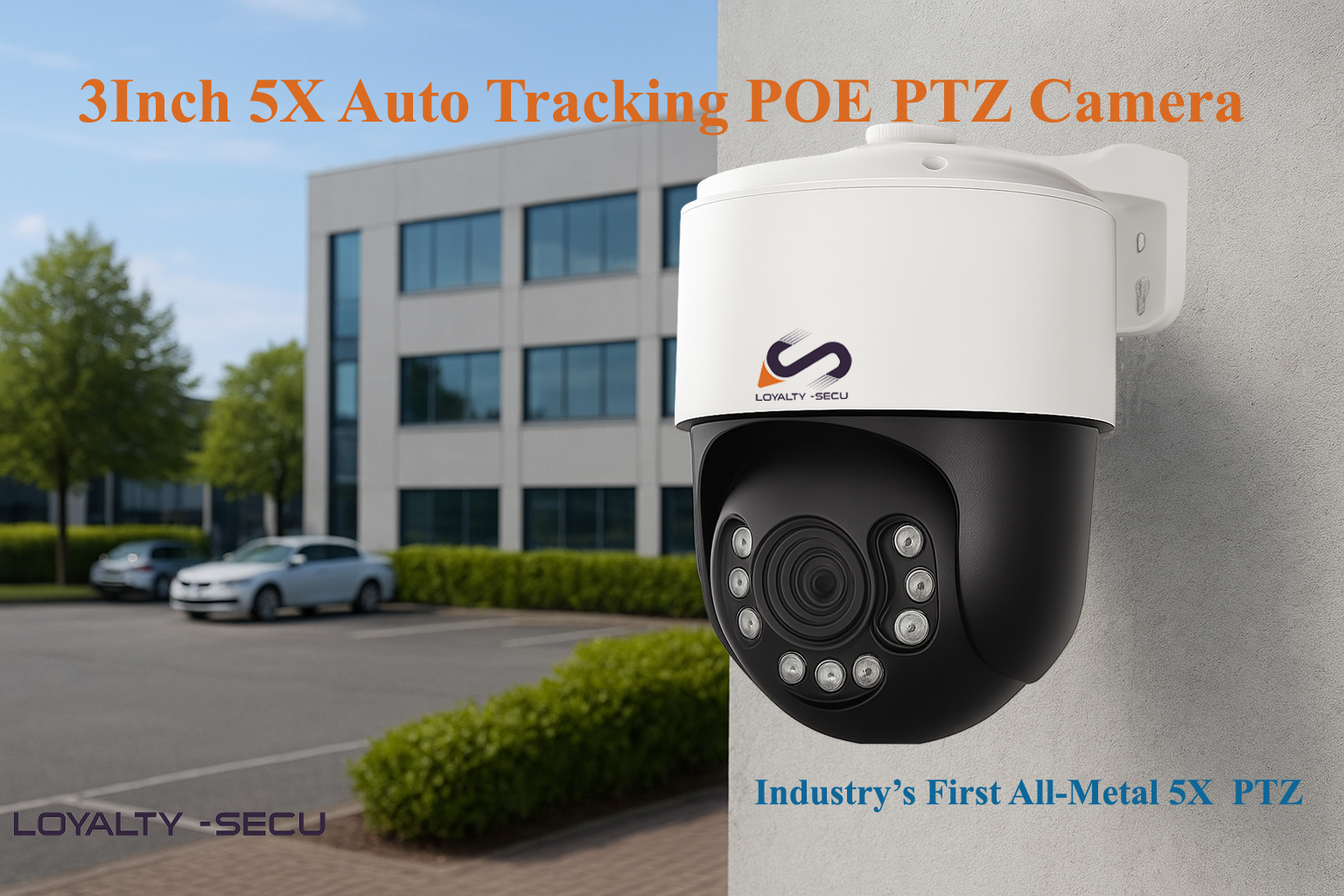

The Mini POE 5X PTZ Camera is a compact 3-inch security camera designed for professional surveillance. Equipped with a 5MP HD sensor and 2.8–13.5mm 5X optical zoom lens, it delivers clear, detailed images and can capture faces and license plates up to 30 meters.
The camera features advanced PTZ control, including presets, cruise, auto-tracking, and area scanning. Smart AI detection identifies humans and vehicles, while auto tracking and active defense respond with visible light alerts and voice warnings.
Built for all-weather use, it has full metal housing, IP66 waterproof rating, and supports wall or ceiling mounting. PoE+ support simplifies installation with a single cable, and two-way audio enables real-time communication.
Compact, durable, and intelligent, this Mini POE PTZ Camera provides a versatile surveillance solution for both indoor and outdoor applications.
Demo Video
Brief Introduction
5MP 5X Zoom PTZ Camera Features
1.High-Definition Imaging – 5MP HD resolution (2592×1944), H.265+/H.265/H.264 video compression.
2.Advanced AI Analysis – Human/vehicle recognition, regional intrusion detection, cross-line detection.
3.PTZ Control – 0°–355° pan, -10°–90° tilt, 60°/s max speed, 256 presets, power-off memory.
4.Night Vision & Lighting – 40m IR/white light distance, intelligent/IR/full-color modes.
5.Audio & Storage – Two-way audio with built-in mic & speaker, supports up to 512GB TF card.
6.Robust Build – IP66 waterproof, lightning protection, operating temperature -20℃ to 60℃.
7.Network & Protocols – TCP/IP, HTTP/HTTPS, RTSP, DDNS, PPPoE, ONVIF compatible.
8.Convenient Power – Supports DC12V or PoE (48V), <18W low power consumption.
9.Easy Setup – PoE support with transmission distance over 100m.
10.Flexible Control – Supports ONVIF, 256 presets, cruise, area scan, and mobile APPs (AC18 Pro / Video-Link).
11.Durable & Reliable – Full metal housing, IP66 waterproof, 6000V lightning protection.
Application Scenarios
🏠 Home & Villa Security – Protect your property with AI intrusion alerts and auto-tracking.
🛒 Shops & Retail Stores – Monitor entrances and cashier areas, deter theft with two-way audio.
🏭 Factories & Warehouses – Rugged IP66 design ensures 24/7 surveillance in tough environments.
🏢 Offices & Business Parks – Safeguard lobbies, parking lots, and perimeter areas with active defense.
🎓 Schools & Campuses – Smart patrol and intrusion detection for safer learning environments.
🌍 Public Areas – Ideal for parks, squares, stations, and stadiums with intelligent crowd monitoring.
🚗 Parking Lots & Garages – Detect vehicles and trigger voice alerts to prevent theft or vandalism.
🚧 Construction Sites – Quick PoE setup for flexible and reliable site surveillance.
Waterproof IP66 & 6000V Thunder-proof
The security outdoor camera is equipped with an IP66 rated weatherproof metal shell and supports 6000V Thunder-proof, designed to operate the security PTZ camera even in some real extreme weather conditions.

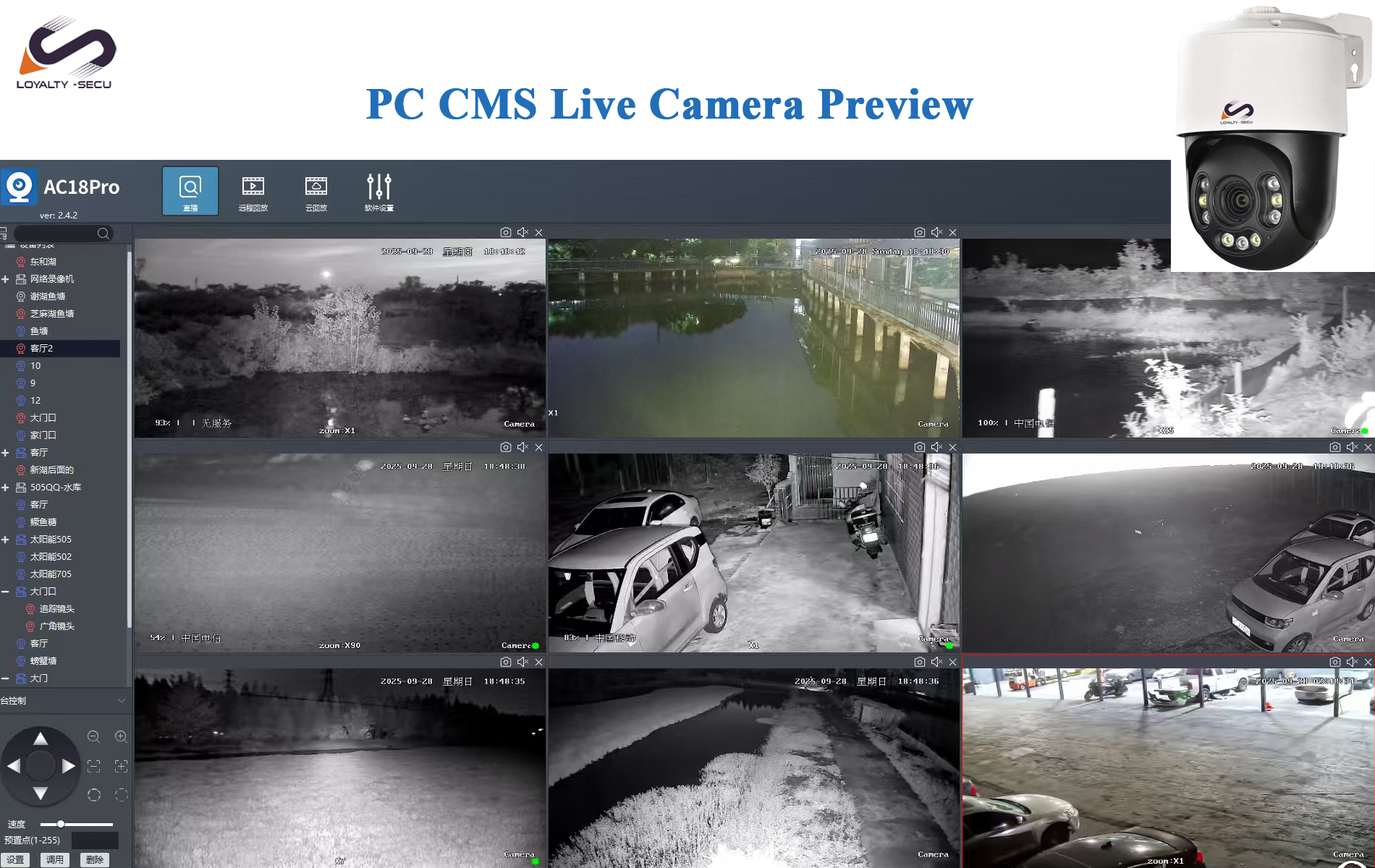

Support Local storage and playback
The PTZ camera supports micro TF card up to 256GB. Insert a TF card, and then it is a competed remote home security system. When the TF card is full, the new recordings will overwrite the old ones, it can make sure the recording of security camera working normally all the time. Meanwhile you can play videos via your mobile phone APP directly.

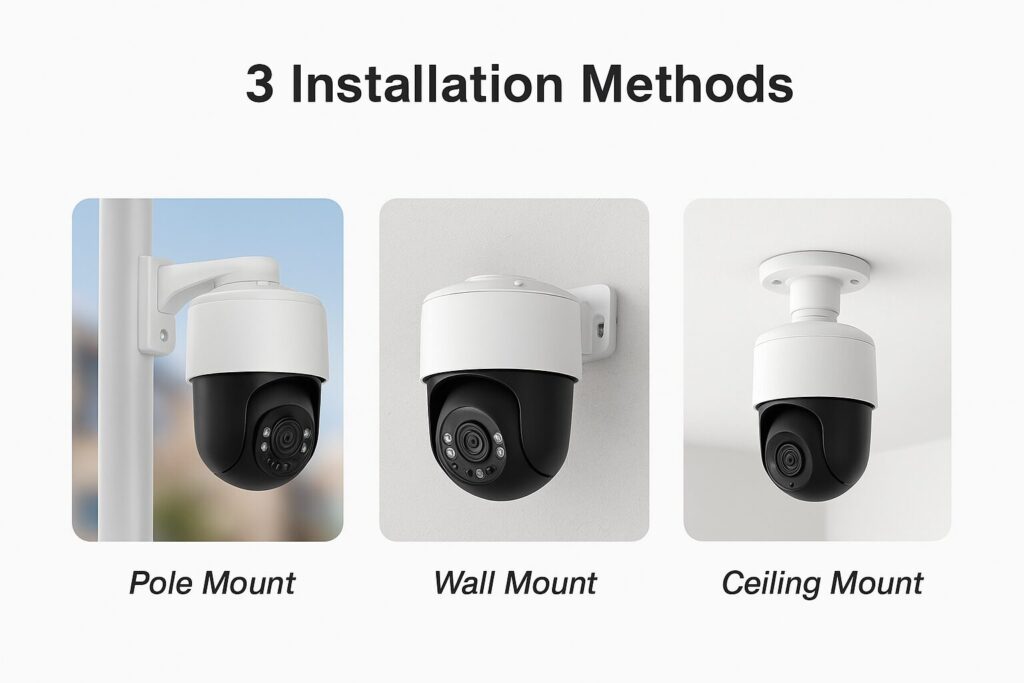

3 Installation Methods
PTZ Camera Package
User Manual, PTZ Camera , installation bracket.
Specifications
|
Model |
LY-MIP-P55 |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS |
|
Camera Solution |
Simastar377D+GC4653 |
|
Minimum Illumination |
Color: 0.01Lux, B/W: 0.001Lux,0 Lux with IR |
|
3D NDR |
Support |
|
WDR |
Support |
|
Electronic Shutter |
AUTO |
|
Day Night Mode |
AUTO ICR Color to B/W |
|
Focal Length |
2.8-13.5mm,5X Optical Zoom, (F1.6 to F2.7) |
|
Zoom Speed |
Approx.3s (Optical Wide~Tele) |
|
Resolution |
2592(H)x1944(V) |
|
Mainstream |
2592*1944@25fps,2500*1600@25fps,2048*1536@25 fps |
|
Sub Stream |
D1@30fps |
|
Video Compression |
H.265+/H.265/.H.264 |
|
Network Protocol |
TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE, UPNP,SMTP |
|
Interface Protocol |
ONVIF |
|
Storage |
Support 512G TF card |
|
AI Function |
Human detection/Vehicle detection/Regional intrusion detection/Cross line detection |
|
Free APP |
AC18 pro/ Video-Link |
|
PTZ Control |
|
|
Fill Light Distance |
40m |
|
Lighting Mode |
Intelligent mode/ IR mode/ Full-color mode |
|
Horizontal Range |
0°～355° |
|
Vertical Range |
-10°～90° |
|
Horizontal Speed |
0.5°～60°/s |
|
Vertical Speed |
0.5°～60°/s |
|
Max Speed |
60°/S |
|
Preset |
256 |
|
Cruise |
Support |
|
Area Scan |
Support |
|
Horizontal Scan |
Support |
|
Power-off Memory |
Support |
|
PARK Action |
Watch position/ Cruise/Area Scan /Horizontal scan |
|
Watch Position |
Support |
|
Wide Angle Speed Limit |
Focus / speed automatic matching function |
|
POE Function |
|
|
POE Supply Voltage |
DC48V |
|
POE Supply PIN |
1,2(+),3,6(-) / 4,5(+),7,8(-), Auto adaptation |
|
General |
|
|
Power Supply |
DC12V or POE |
|
Consumption |
Less than 18W |
|
Work Environment |
Temperature: -20～60℃; humidity＜90% |
|
Protection Level |
IP66 waterproof,6000V lightning protection |
|
GW |
2.2KG |
