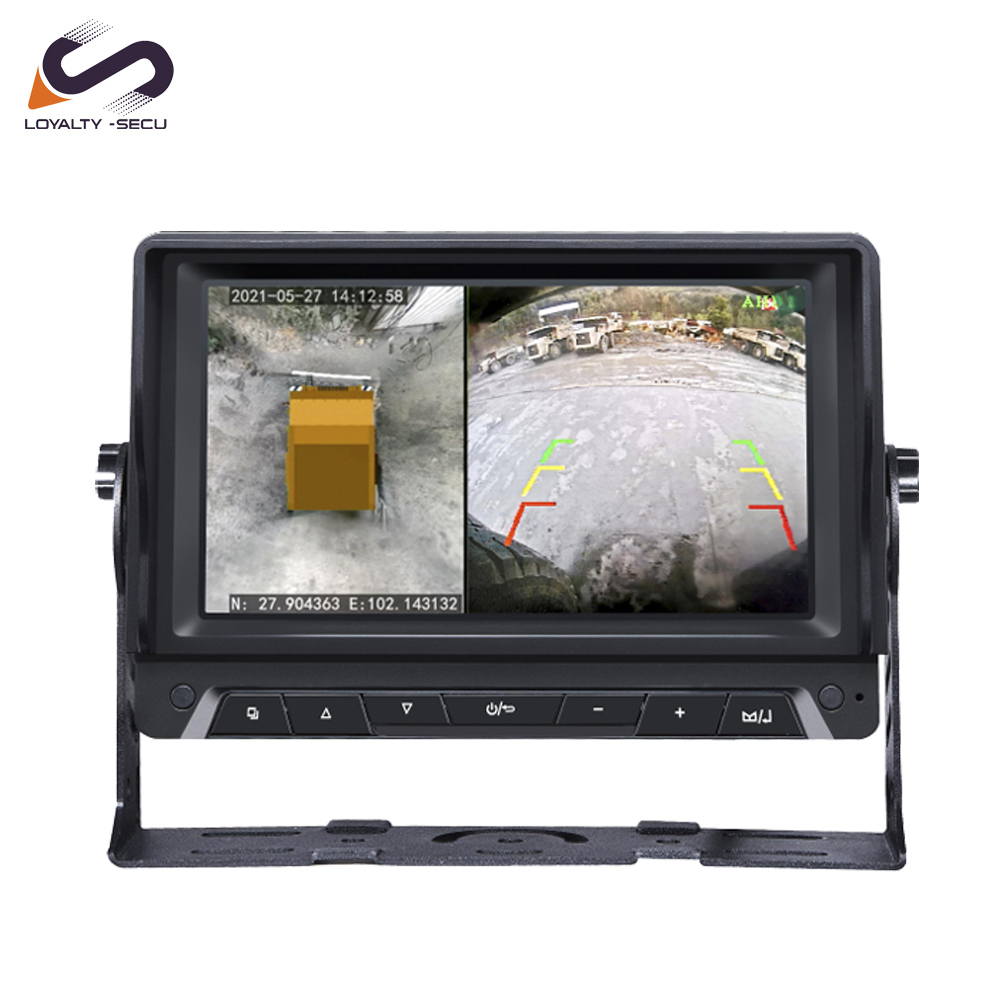

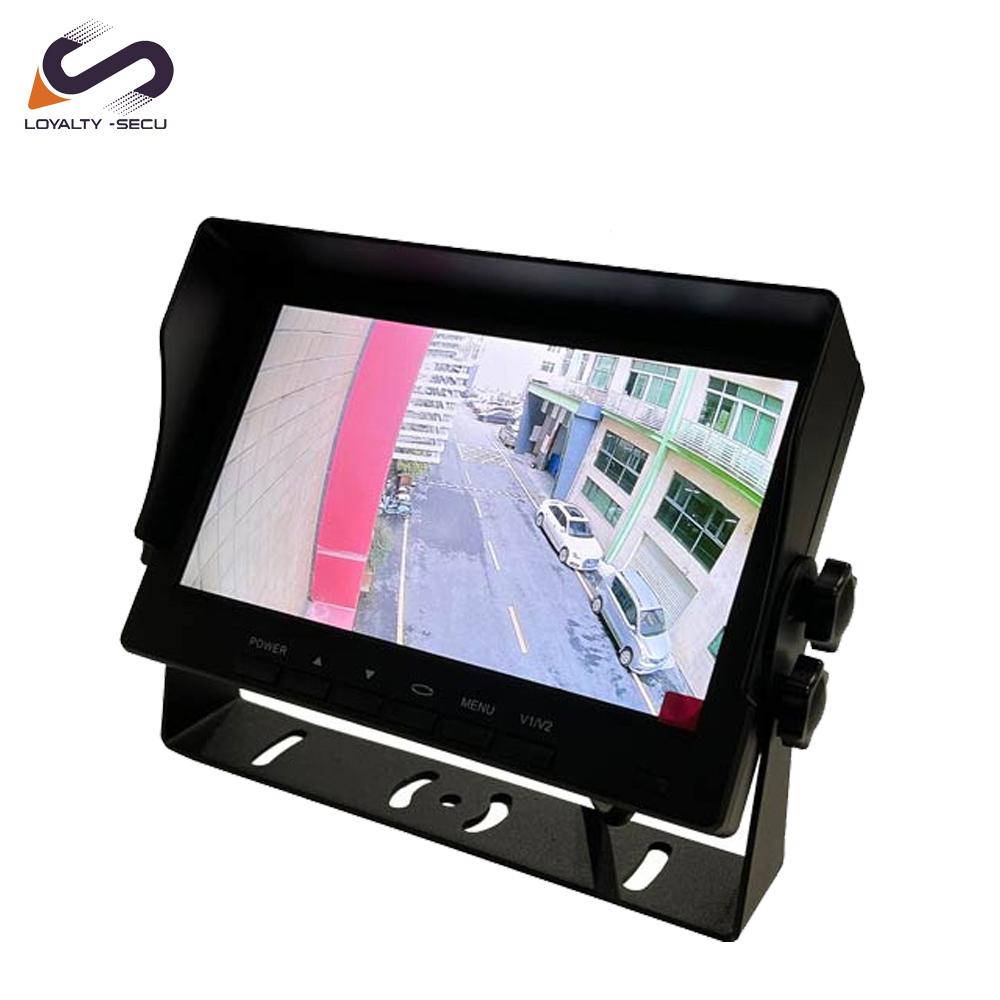

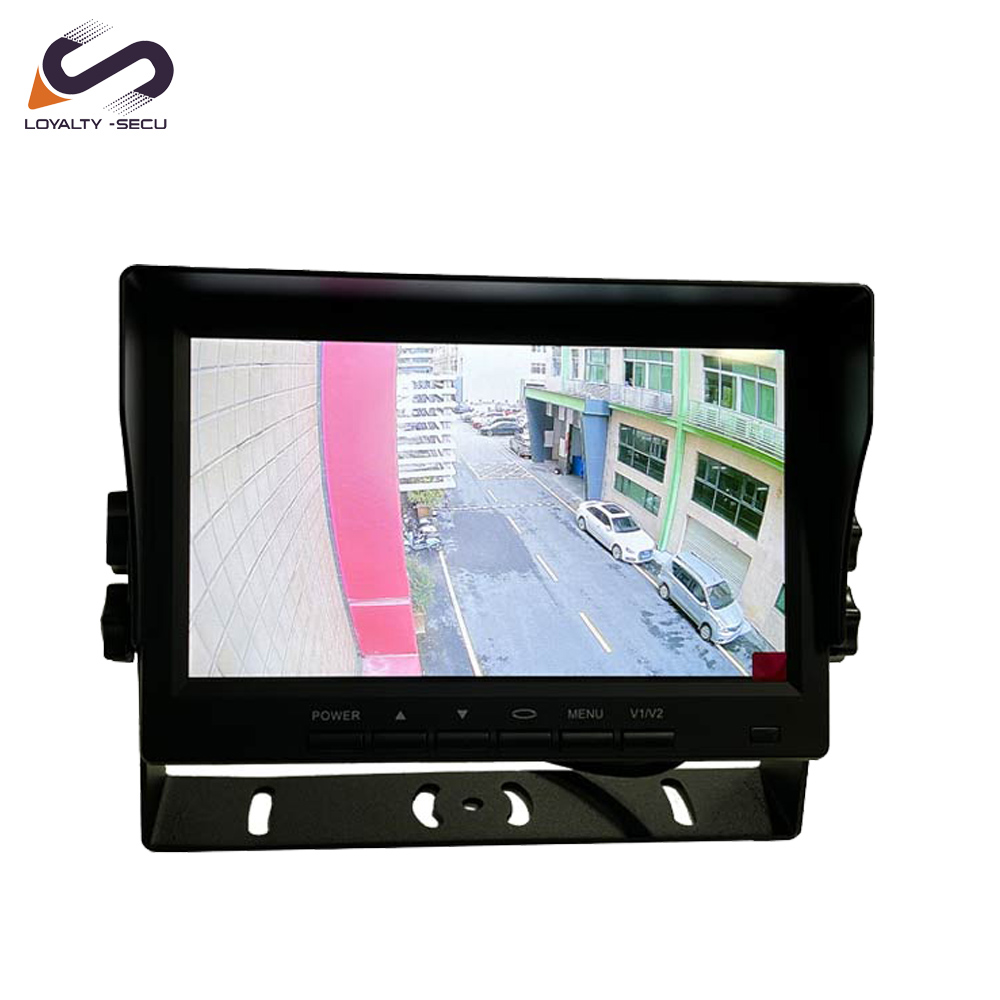

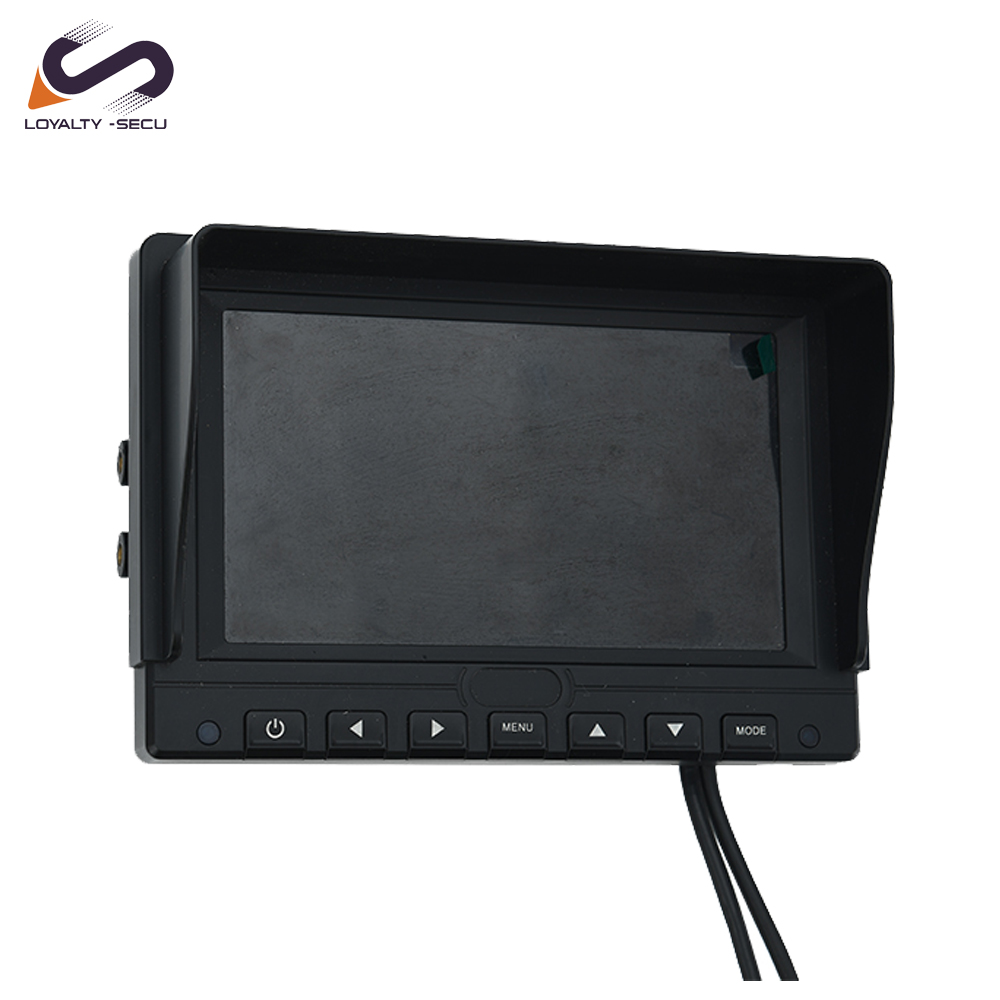

LOYALTY-SECU 7-Inch Anti-Vibration Vehicle Monitor · 170° Wide Viewing Angle · IPS HD Display
Model: LY-07M-2
- 1024×600 HD resolution, supports 1080P input for clearer reversing and monitoring images
- IPS full-viewing-angle LCD, providing clear visuals from any direction
- 600 cd/m² high-brightness backlight, clearly visible under strong light
- Dual AHD 1080P video inputs, compatible with multiple camera formats
- 5.6mm reinforced anti-shock screen structure for enhanced vibration resistance
- Comes with a metal U-shaped bracket, stable and easy to adjust
- Designed specifically for vehicle reversing and surveillance systems
- ABS housing, lightweight and durable
Overview
Vehicle Monitor | IPS Full-Viewing-Angle LCD Panel | In-Vehicle Surveillance Display

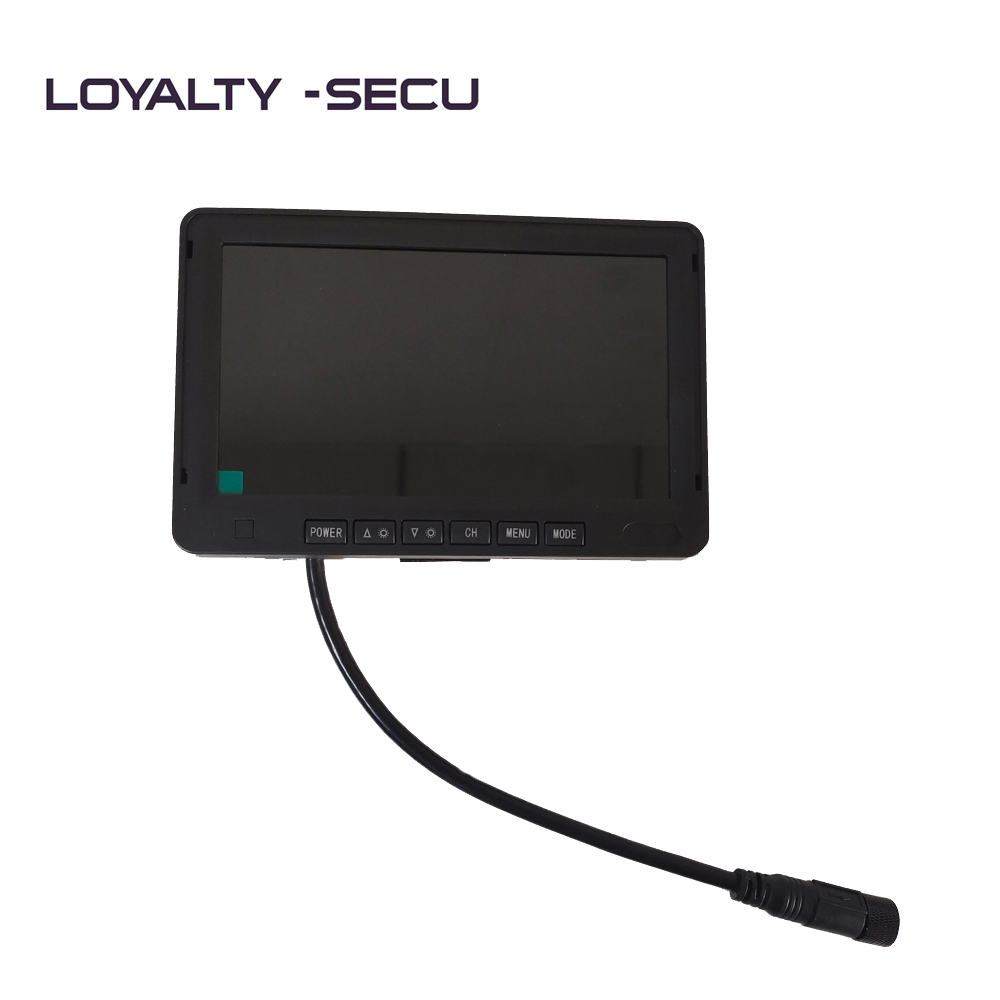

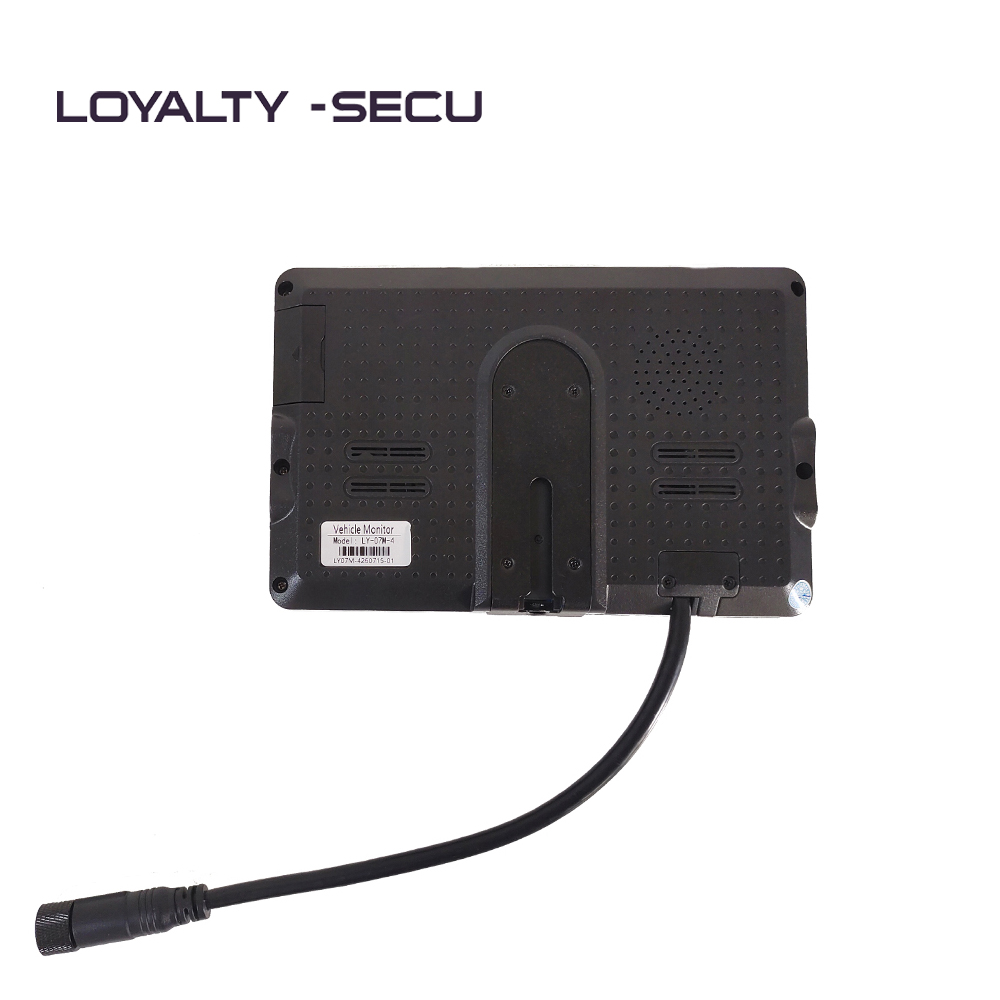

The LY-07M-2 7-inch Anti-Vibration Vehicle Monitor features a 1024×600 HD resolution with an IPS full-viewing-angle display, delivering a horizontal viewing angle of up to 170°, ensuring clear and stable visuals from multiple positions. It supports 1080P input and dual-channel AHD video, making it compatible with various camera signal formats.

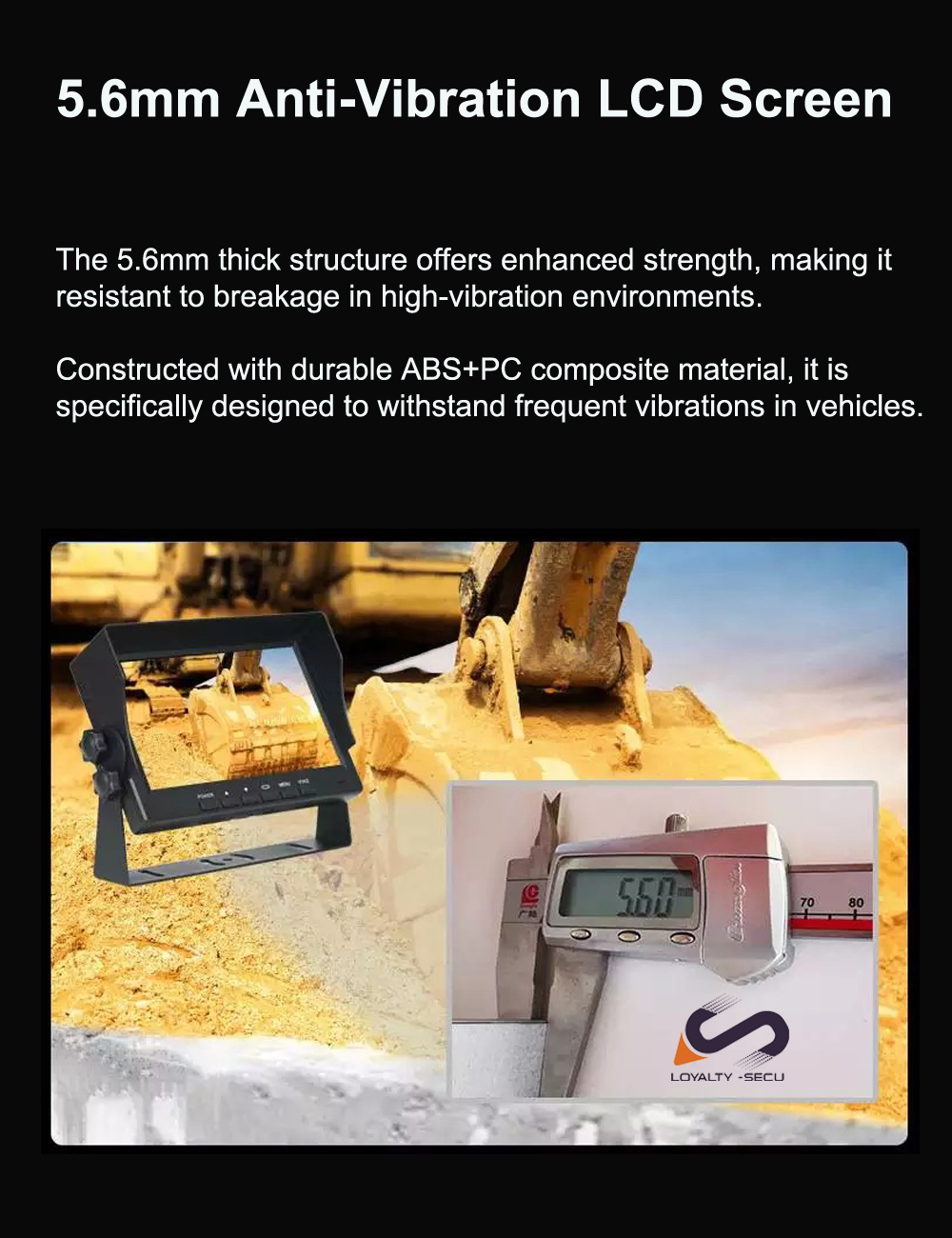

The monitor uses a 5.6mm reinforced anti-shock screen structure combined with an ABS+PC composite housing, specifically designed for vehicles operating in high-vibration environments with enhanced impact resistance. The 600 cd/m² high-brightness backlight keeps the screen readable even under strong outdoor sunlight.

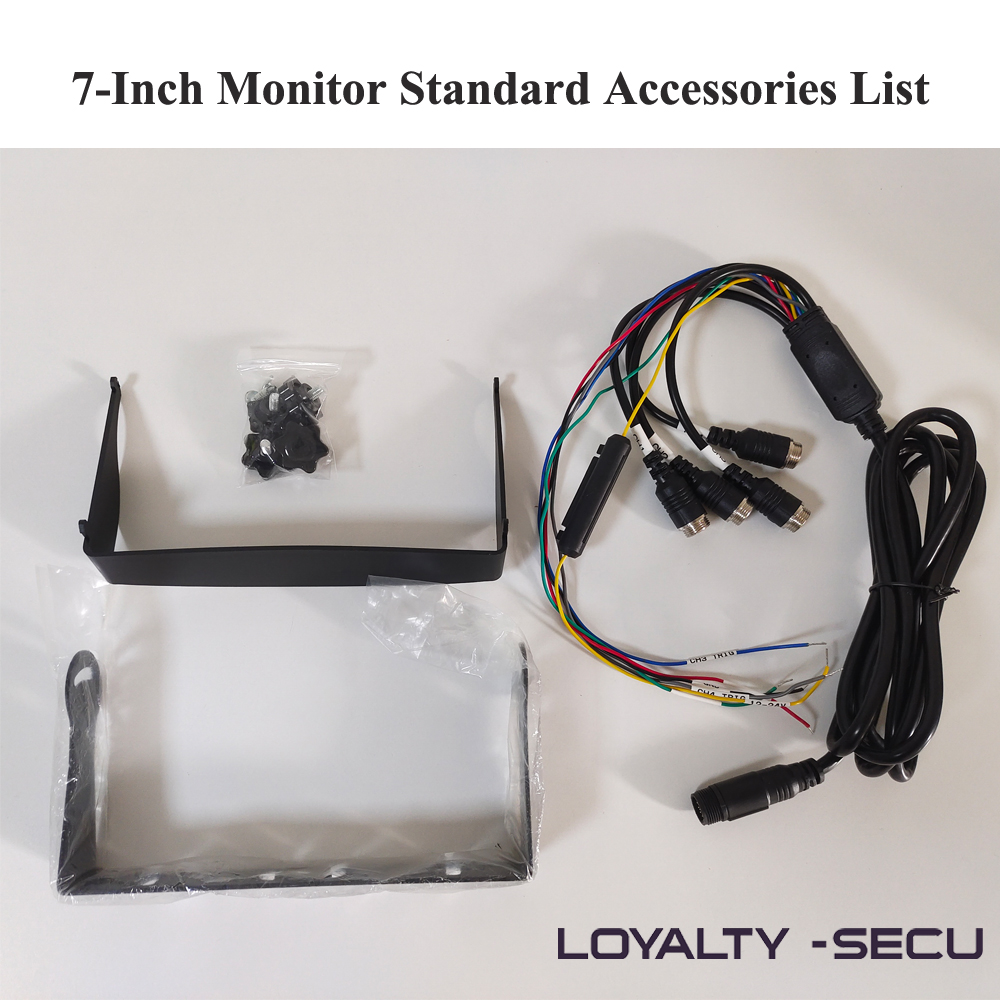

Built with pure copper double-shielded cables, premium LCD panels, and high-quality driver ICs, the monitor ensures stable image transmission and strong anti-interference performance. It supports 9–36V wide-voltage input and is equipped with TVS surge protection, making it suitable for a wide range of vehicle types. A metal U-shaped bracket is included for secure installation with easy angle adjustment.
Widely used in semi-trailers, tractors, dump trucks, cargo trucks, flatbed trucks, and heavy-duty trucks, it is ideal for reversing assistance, cargo monitoring, outdoor operation, and multi-angle vehicle surveillance needs.
Demo Video
Brief Introduction
Heavy-duty Vehicle Monitor Main Functions
- 2MP HD display, backward compatible with 960P / 720P / CVBS analog cameras
- IPS screen ensures multi-angle visibility; reinforced 5.6mm structure withstands vibration

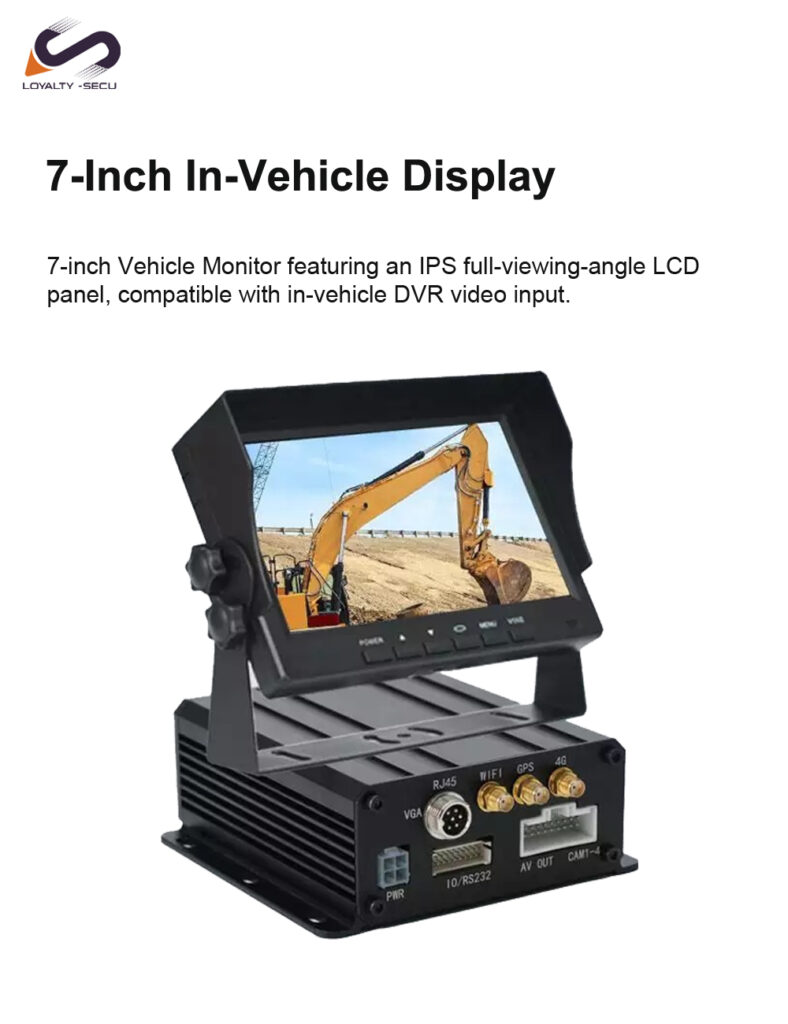

- Dedicated vehicle monitoring display, supports DVR signal input
- 7-inch 1024×600 IPS screen with 170° horizontal viewing angle
- Premium A-grade LCD panel + 600 cd/m² high-brightness backlight for clearer visuals

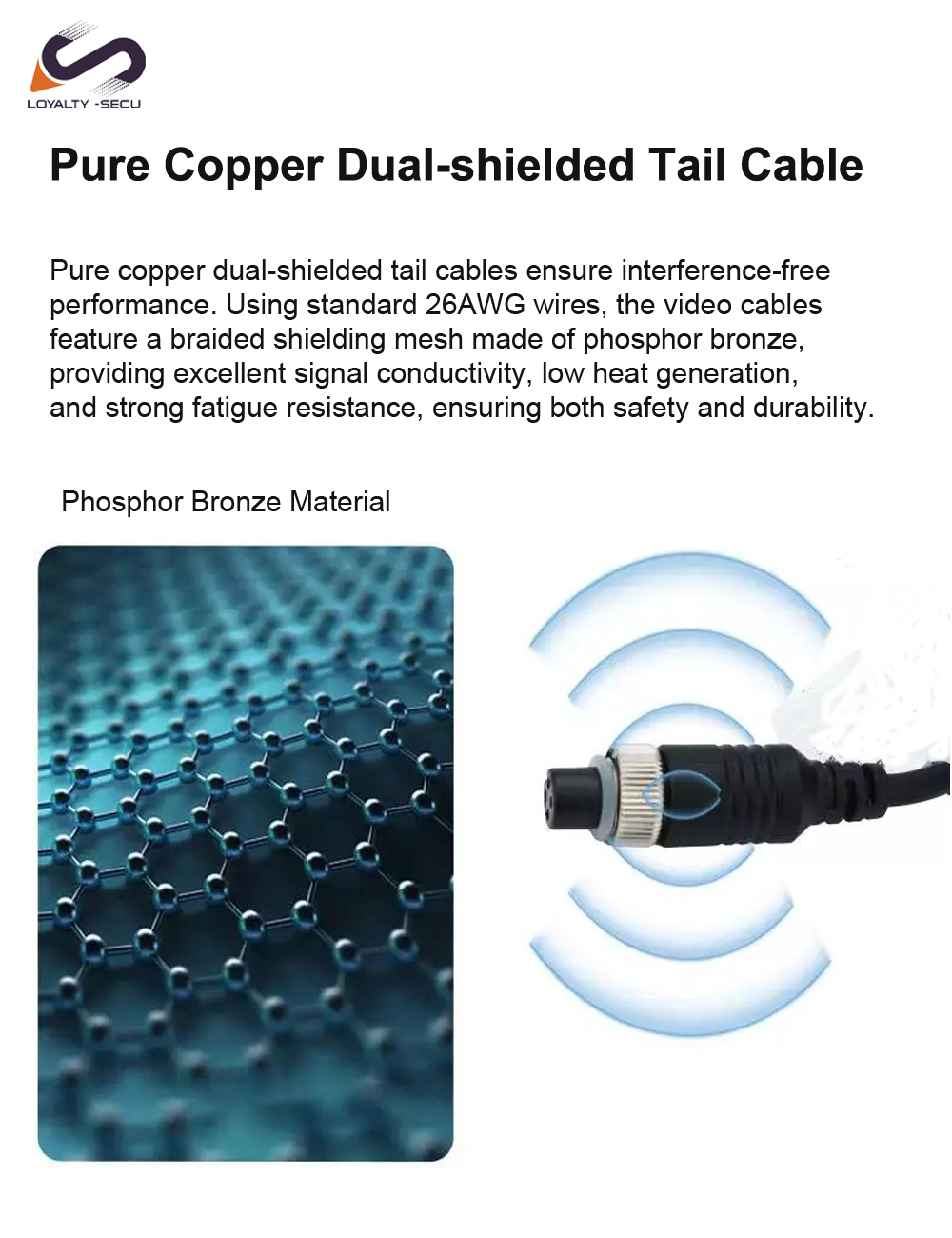

- Pure copper dual-shielded cable + 26AWG standard wire
- Braided shielding structure for the video cable
- Phosphor bronze conductor for better signal transmission and reduced heating
- Strong anti-interference capability, suitable for complex vehicle environments
- ABS+PC anti-shock structure for heavy-vibration vehicle scenarios

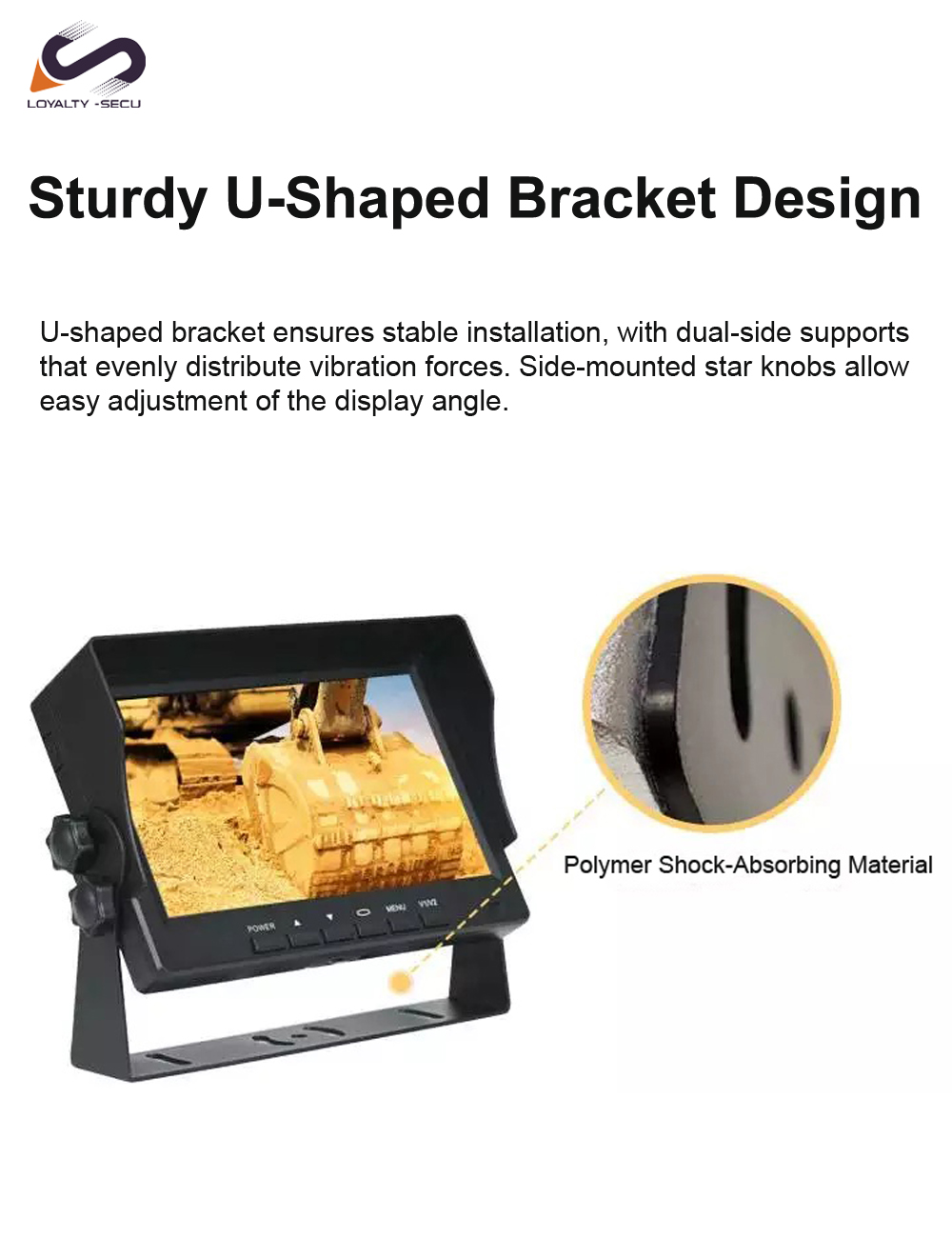

- U-shaped stable mounting bracket, dual-side locking design, tool-free angle adjustment
- Imported LCD panel + driver IC for stable and reliable performance
- 9–36V wide voltage support + TVS surge protection, compatible with multiple vehicle types
- Supports 1080P HD camera input and dual-channel video switching

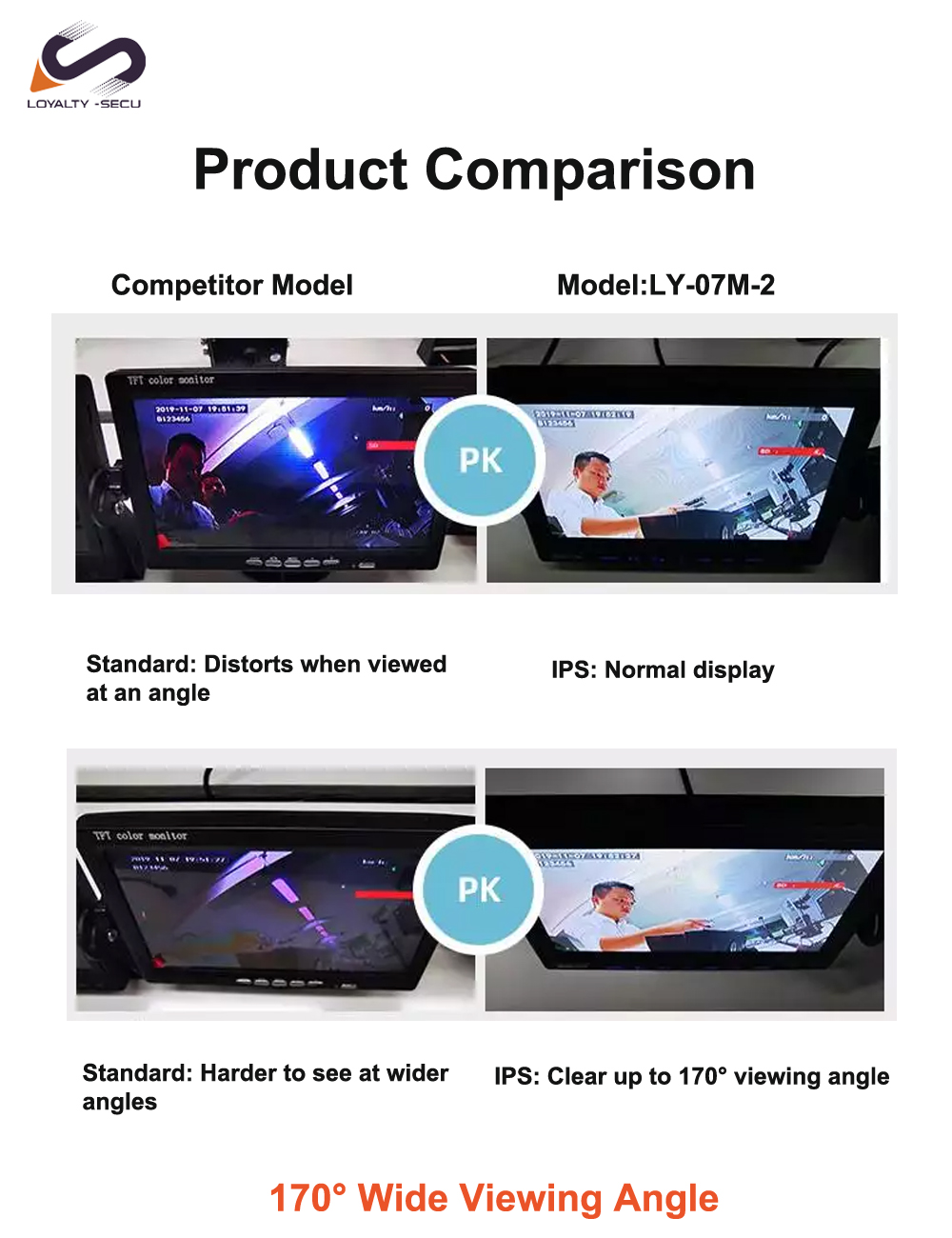

LOYALTY SECU Product Comparison with Competitors
Model | LY-07M-2 | Other Companies |
Resolution | 1024*600 HD | 800*480 |
Viewing Angle | Horizontal 170° | 100° Horizontal |
LCD Structure | 5.6mm Vehicle Anti-Vibration | 3.5mm Standard Home Use |
Cable Type | Pure Copper Dual Shielding | Common cable |
LCD Driver Chip | Imported | Domestic |
Input Voltage | 9–36V Wide Voltage | 12V |
Power Protection | TVS Surge Protection | None |
Reversing Camera Monitor Application Scenarios
Widely used in semi-trailers, tractor trucks, dump trucks, cargo trucks, flatbed trucks, and heavy-duty trucks, suitable for outdoor operations, reversing assistance, cargo monitoring, and multi-angle vehicle vision enhancement.
7Inch IPS Vehicle Monitor Product Specifications
Model | LY-07M-2 |
Panel Type | IPS |
LCD Screen Size | 7Inch |
Pixel Density | 280 ppi |
Aspect Ratio | 16:9 |
LCD Brightness | 600cd/m2 (Typ.) |
Viewing Angle | Horizontal Viewing Angle: 170° |
Operating Temperature | -25~70C，(5-95 %RH |
Power Supply | 9/~6V DC |
Power Consumption | 5.64W |
Product Dimension | 78.5×118.5×58.5MM |
