Dual Sensor Temperature Measurement Fire Detection Alarm Thermal Imaging and Visible 37X PTZ Camera System

Model: LY-DSTC-P464-37X

* All in one Network Dual Sensor Thermal & Visible Camera System
*Thermal camera resolution:640*480, camera sensor: Uncooled VOX Microbolometer, Lens: 25mm.
* Up to 2000m thermal imaging night vision.
* Thermal camera with 9 color palettes for option
* Visible camera resolution: 2560*1440,camera lens: 6.5~240mm, 37X optical zoom,16X digital zoom.
* With TF card for data storage (Max 256GB)
* With single IP network design, supports to output visible and thermal real-time recording image simultaneously
* With temperature measurement function, support real-time point temperature, line temperature, regional temperature measurement and other methods of temperature
* Support various intelligent functions such as fire detection and alarm, tripwire intrusion, area intrusion, etc.
* With PAN Tilt Zoom feature, Horizontal: 0.1°~240°/s;Vertical:0.1°~90°/s
* Good support for GBT28181, ONVIF and other network protocols.
* With built-in anti-lightning & anti-surge protection
* Support multiple power inputs: DC12V/DC24V/AC24V/POE
* Power supply: AC 24V/ 3A,work temperature: -20℃-+60℃

Overview

LOYALTY-SECU LY-DSTC-P464-37X is a high performance and super long range Network Dual Sensor Thermal & Visible PTZ Camera System which combines thermal imaging with color video in a compact & all-in-one PTZ camera housing, with single IP network design, support to output visible and thermal real-time recording image simultaneously, brings the excellent and stable 24H online monitoring through non-contact temperature measurement technology .The temperature measurement is accurate and supports over-heat and intrusion alarms. The Network Dual Vision Thermal Imaging PTZ Camera with fire point detection and alarm, perimeter detection & alarm motion detection, tripwire intrusion, area intrusion, intelligent tracking, crossing fences, item left, item moving and loitering detection.



LOYALTY-SECU IP Dual Vision Long Range Fire Detection Thermal Imaging and Visible 4MP Camera System adopts industry leading Uncooled VOX Microbolometer detector, thermal camera resolution:640(H)×480(V), with 25mm focal lens, brings the high sensitivity and good image quality, thermal camera night vision distance up to 2000m. CMOS Visible camera system uses a high-performance 1/1.8” CMOS image sensor with a total pixel count of 4 MP, Lens: 6.5~240mm ,37X optical zoom,16X digital zoom, brings an excellent dual field of view in day and night vision.





LOYALTY-SECU 8 Inch Dual Sensor Network Thermal Imaging & Visible PTZ Camera System Includes:



1.Thermal camera resolution:640(H) x512(V)

2.Visible camera resolution can be 2MP/4MP,meanwhile the camera with wide optical zoom for option:30X/37X,camera lens 25mm, it’s the perfect solution for the project integrators who can choose the suitable model based on their actual demands.

3.Camera with rain wiper

Dual Sensor Thermal PTZ Camera Work Scenarios

Widely used in the Fire prevention and detection for factory, forest, oilfield, gas station, marine, exhibition, border,

coastal defense, station, road, highway, railway. airports, city security, seaport and wharf or other industries where needed to measure the temperature, such as electric power, industrial temperature detection and so on.

Thermal Imaging Camera Night Vision 640*480 Resolution

Main Features

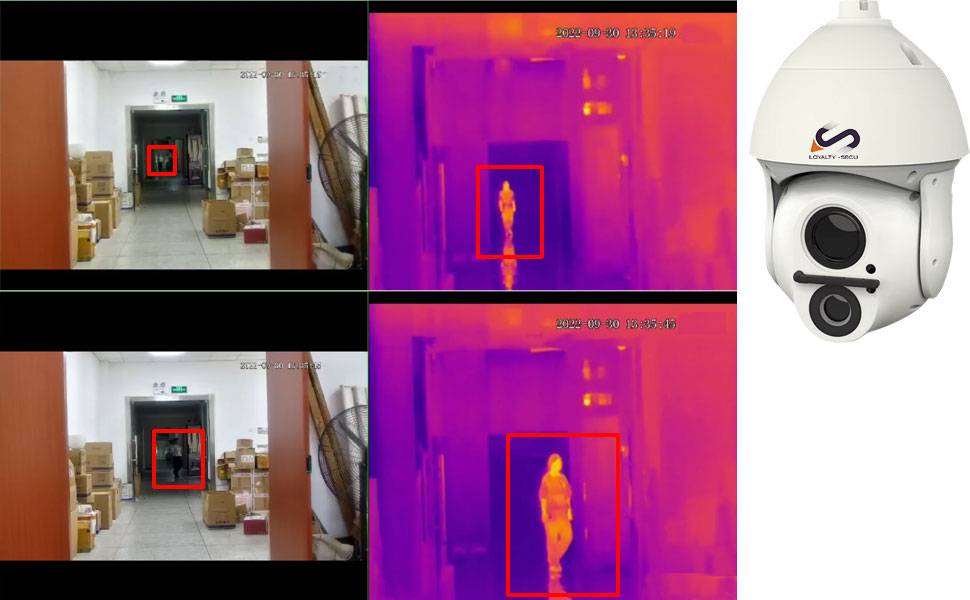

All in One Dual Vision Thermal & Visible PTZ Camera System
Combines thermal imaging with color video in a compact & all-in-one PTZ camera housing, with single IP network design, support to output visible and thermal real-time recording image simultaneously.

Thermal Camera Adopts Uncooled VOx Microbolometer Detector
Based on microbolometer long-wave infrared detectors cover wavelengths from 8-14 µm and provide performance consistent with the best in the industry, ensures the high sensitivity and good image quality.

640*480 Thermal Image
The IR camera has an ability to “see” heat this way creates an entirely new level of awareness for professionals and consumers.

25mm Long Focus Lens
Makes target 70% bigger, brings the excellent viewing experience in super long range and wide monitoring environment.

4MP 37X Visible Camera
Uses a high-performance 1/1.8” Starvis CMOS image sensor with a total pixel count of 4 MP or greater to record at 2K resolution, Lens: 6.5~240mm ,37 star light optical zoom,16X digital zoom, brings an excellent dual field of view in day and night vision.

24 Hours Real Time Monitor
Allows you to view the monitoring environment anytime, anywhere, discover potential fire threats in advance, and minimize property damage and casualties.

Thermal Camera with 9 Color Palettes
Includes white hot, black hot, iron red, rainbow and many others for optional.

Temperature Measurement
Support real-time point temperature, line temperature, regional temperature measurement and other methods of temperature.

Fire Detection and Alarm, Motion Detection
Quickly locating the target, high efficiency, time and energy saving

Multiple AI Functions
Support automatic tracking, single-scene and multi-scene cruise tracking.
Support various intelligent functions such as perimeter detection & alarm, tripwire intrusion, area intrusion, etc. Visible camera support auto-iris, auto-zoom, auto white balance, BLC.

Good support for GBT28181, ONVIF
Compatible with GBT28181, ONVIF and other network protocols, seamless access to mainstream platforms and other network devices

Solid Pan Tilt Zoom Function
Horizontal: 0.1°~240°/s;Vertical:0.1°~90°/s, with 256 presets, so you can adjust the direction of view of the thermal camera left and right to see any corner, see everything in more detail.

Accurate 3D positioning
Much more convenient, fast and accurate to capture the target.

Built-in Surge-Protective and lightning protection
6000V Anti-Thunder features, guard your thermal camera carefully with much longer using life.

Thermal Camera with Temperature Measurement for Early Fire Detection

IP Dual Sensor Thermal & Visible Camera System Datasheet:

Product Model

LY-DSTC-P464-37X

Thermal Camera

Detector Type

Uncooled VOX Microbolometer

Resolution

640(H)×480(V)

Pixel Size

17μm

Spectrum Band

8~14μm

Lens Focal Length

25mm

NETD

≤40mK@F1.0

Color Palettes

White Hot, Black Hot, Iron Red and Many Others

Temperature Measurement

1.Support real-time point temperature, line temperature, regional temperature measurement and other methods of temperature measurement, parameters can be individually configured

2. Supports multiple preset temperature measurement functions, and can set up to 300 temperature measurement presets

3. Each preset point can be set:

Point temperature measurement: 12 pieces.

Regional temperature measurement: 12 pieces.

Line temperature measurement: 12 pieces.

Supports up to 12 pieces simultaneous temperature measurement for each preset point (point + regional + line), regional temperature measurement supports circles, squares, and irregular polygons (no less than 7 bend points)

4.Support temperature alarm function

5.Support isotherm, color bar display function, support temperature correction function

6.Temperature measurement with unit Fahrenheit, Celsius for option

7.Support real-time temperature analysis, historical temperature

information query function

AI Function

Temperature Detection & Measurement, Fire Detection and Alarm, Perimeter Detection & Alarm

Visible Camera

Image Sensor

1 / 1.8″ Sony Starvis CMOS

Resolution

2560*1440 @25fps/30fps

Pixel

4MP

Minimum Illumination

Color 0.001Lux/F1.5; B/W 0.0001Lux /F1.5

Starlight Ultra low illumination

Gain Control

Auto / Manual

Signal-to-noise Ratio

>55dB(AGC Off,Weight ON)

White Balance

Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp

2D/3D Noise Reduction

Support

Fog Penetrating

ON / OFF, Electronic & Optical Fog Penetrating

Exposure

Support automatic and manual two modes.

BLC

ON / OFF

Strong Light Suppression

Support

Day /Night Mode

Auto / Manual

Focal Length

6.5mm –240mm

Optical Zoom

37X

Zoom Speed

About 4.0s

Digital Zoom

16X

Aperture Value

F:1.5-4.0

Electronic Shutter

1/3-1/30000s

Angle of View

61.8°~ 1.86°

AI Function

Supports intelligent tracking, crossing fences, tripwire intrusion, area intrusion, item left, item moving, and loitering detection

PTZ Function

Rotation Range

Horizontal: 0°~360°Endless rotation Vertical:-10°~90°

Rotation Speed

Horizontal: 0.1°~240°/s;Vertical:0.1°~90°/s

Presets

256

Automatic Mode

4 groups cruise / A-B scan/360°Horizontalscan/Pattern scanning

PTZ Function

Park action/Power action/The rotation speed can be automatically adjusted according to the lens zoom factor

Power-Off Memory

Yes

Camera Lens Wiper

Yes

Network

Video Compression

H.265/H.264/MJPEG

Network Protocol

ONVIF, GB28181, HTTP, RTSP, RTP, TCP

User Management

Support multi-level user rights management

Storage Function

Support TF card storage (up to 256G)


Maximum Image Size

2560*1440 (Visible Light), 640*480/384× 288 (Infrared)

Video Output

Support PAL / NTSC

Mainstream Image

(Resolution / Frame Rate)

Visible: 1440P/1080P / 720P Can Be Set

Thermal: 640*480,384× 288

Sub Stream Image

(Resolution / Frame Rate)

Visible: D1 / CIF Can Be Set

Thermal: 640*480

System Integration

Network interface

1* RJ45, Single IP, 10M / 100M / 1000M Adaptive

Audio

1* Input ,1*Output

Alarm

1* Input ,1*Output

CVBS Output

1.0V[p-p] / 75Ω,BNC

RS485

1, PELCO-D

General Specification

Power

AC24V/3A

Consumption

Day(Still:6W; Day (Cruise) :9W;Night (Cruise + IR light on):28W

Mounting

Wall mounting or lifting

Work Environment

Temperature:-20~60℃;humidity<90%

Protection Level

IP66 Waterproof,6000V Anti-Thunder ,with Surge-Protective

Gross Weight

6.5kg

Bracket

Wall mounting/ Lifting

Dimension

Φ237(mm)×335(mm)
