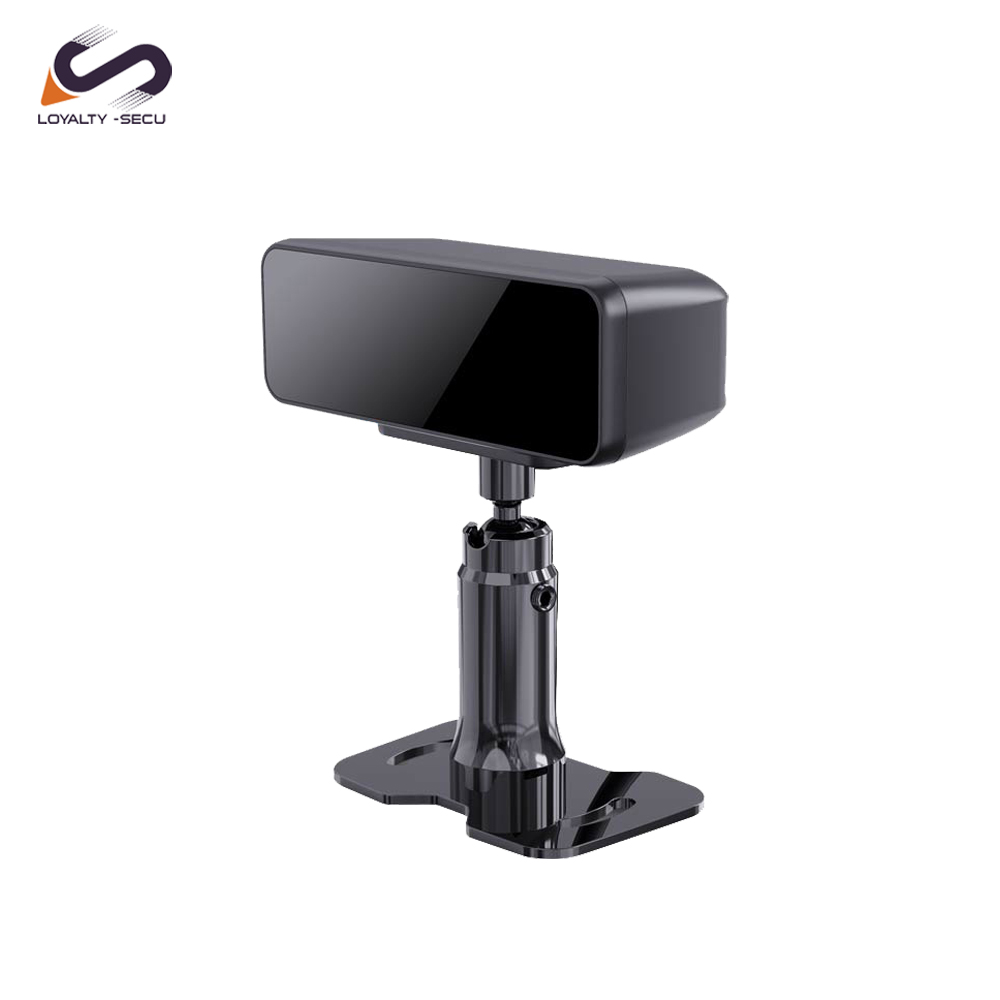

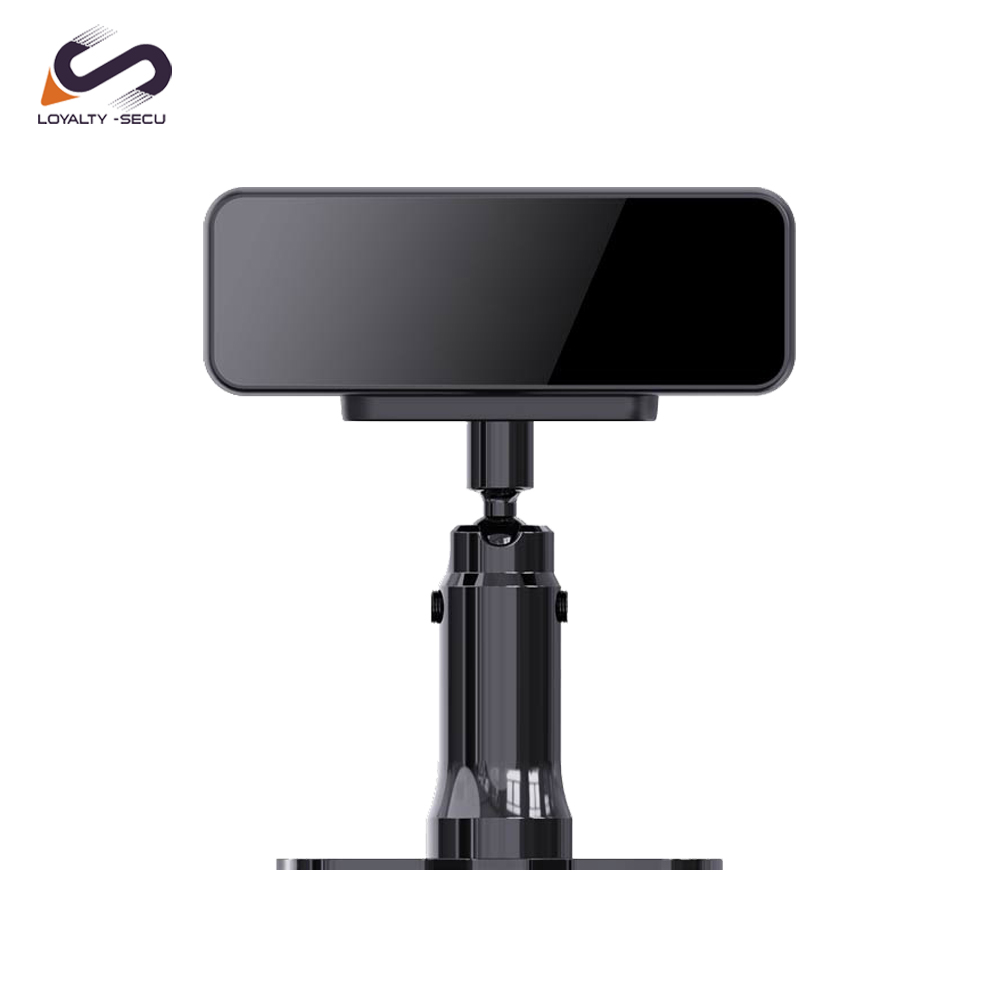

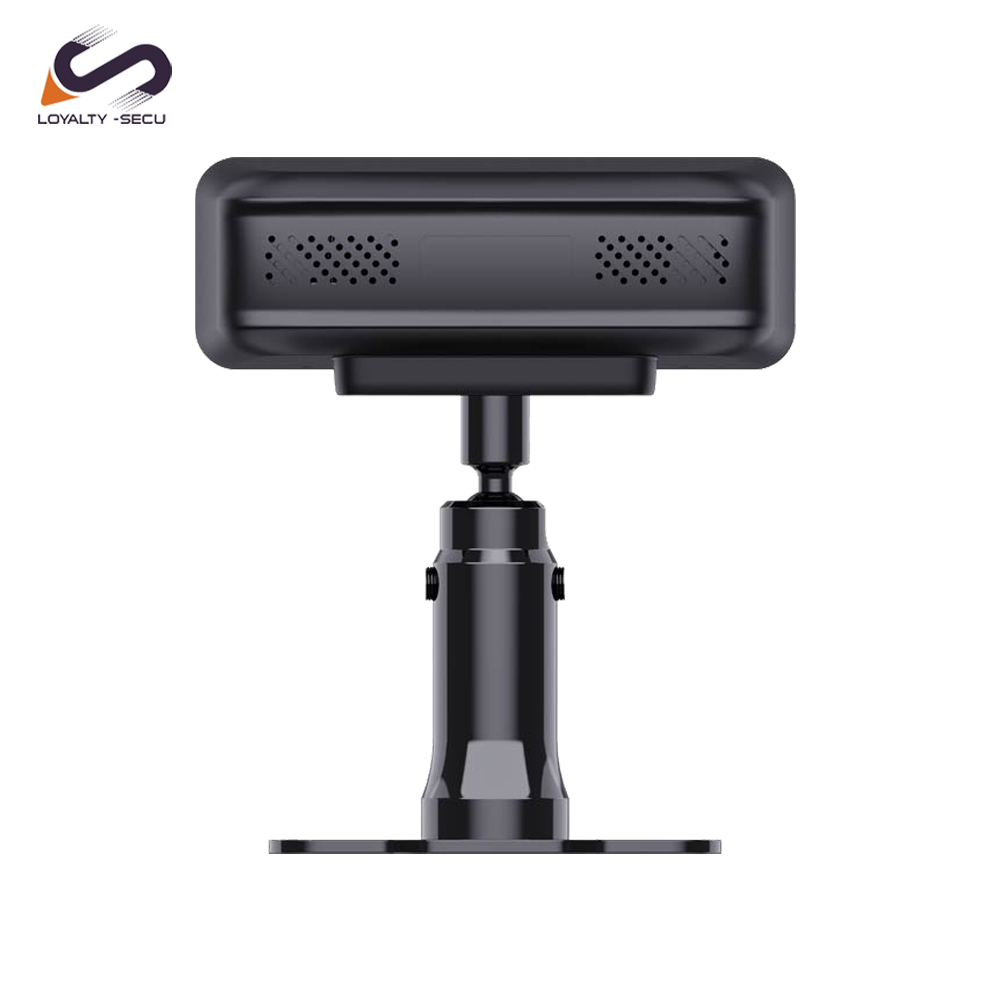

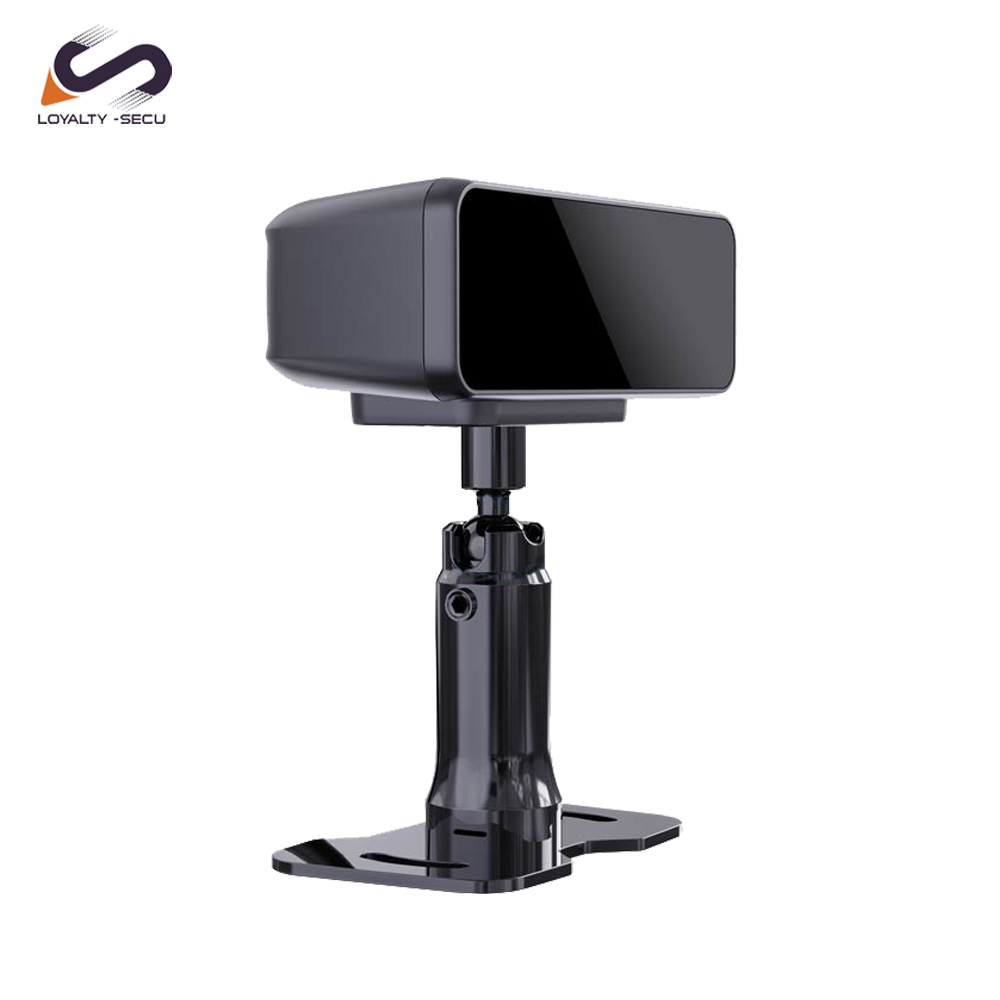

DMS Driver Monitoring System AI Fatigue Detection Camera for Trucks & Heavy Vehicles Fleet Safety
Model: LY-DMS-C57
- Designed for in-vehicle use with invisible IR light that won’t disturb driving
- HD 1280P imaging for clear driver monitoring and behavior analysis
- HDR wide dynamic range for stable image quality in complex lighting conditions
- Advanced 3D noise reduction for sharper and clearer video
- Hidden lens design for discreet installation without affecting driving experience
- Built-in infrared night vision for reliable low-light monitoring
- 360° adjustable metal bracket for flexible installation and optimal angle
- Built-in microphone for synchronized audio and video recording for full evidence capture
Overview
DMS Driver Monitoring System
Fatigue Driving Warning & Safety System
The LOYALTY-SECU DMS Driver Monitoring System is based on deep learning and computer vision technology. Through an in-vehicle AI camera, it continuously monitors the driver’s status and behavior in real time. Combined with a built-in 4G communication module, all critical events are instantly uploaded to a cloud-based management platform.
The system is widely used in logistics transportation, freight fleets, mining vehicles, and construction machinery. It significantly improves driving safety while enabling intelligent and visualized fleet management.
Driver Behavior Monitoring
The system can accurately detect the following driving behaviors:
- Face recognition / driver identity verification
- Fatigue driving (eye closure, yawning)
- Distracted driving (inattention, looking around)
- Mobile phone usage (calling or using phone)
- Smoking detection
- Seat belt not fastened detection
- Driver absence / face loss detection
- Camera occlusion detection
Fatigue Driving Detection System Main Features
High-Performance In-Vehicle AI Camera
*Specially designed for in-vehicle driving environments with invisible infrared illumination that does not affect the driver’s vision
* Supports high-definition image and video output for clear and reliable monitoring
* HDR Wide Dynamic Range technology delivers excellent image quality under complex lighting conditions
* Advanced 3D noise reduction technology ensures sharper, clearer, and more stable images
* High-resolution imaging (1280 × 720) enables accurate driver recognition and behavior analysis
* Hidden camera lens with black light-transmitting material design for discreet installation without affecting driving experience
* Built-in invisible infrared night vision provides stable monitoring performance in low-light environments

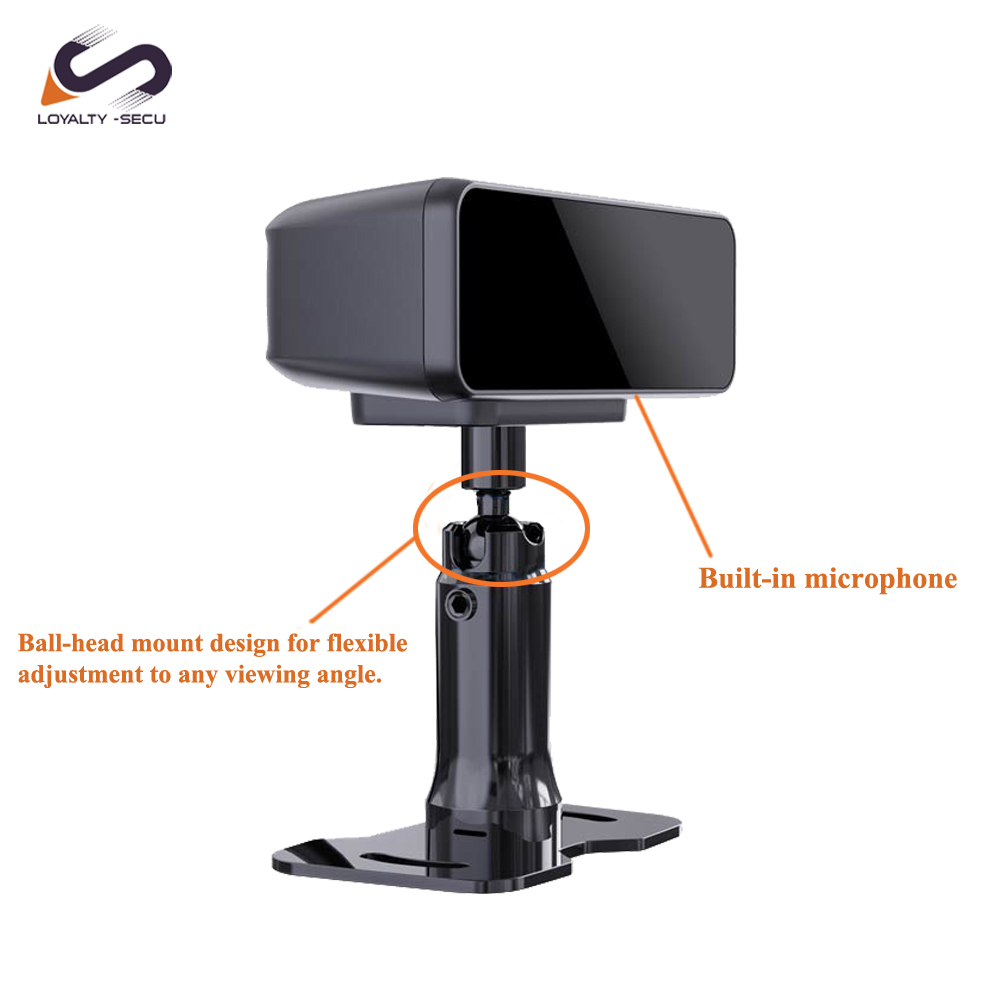

* Full-metal 360° adjustable bracket allows flexible installation and optimal viewing angles for clear driver face capture
* Built-in microphone supports synchronized audio and video recording for complete event evidence collection
Driver Behavior Monitoring System Core Functions

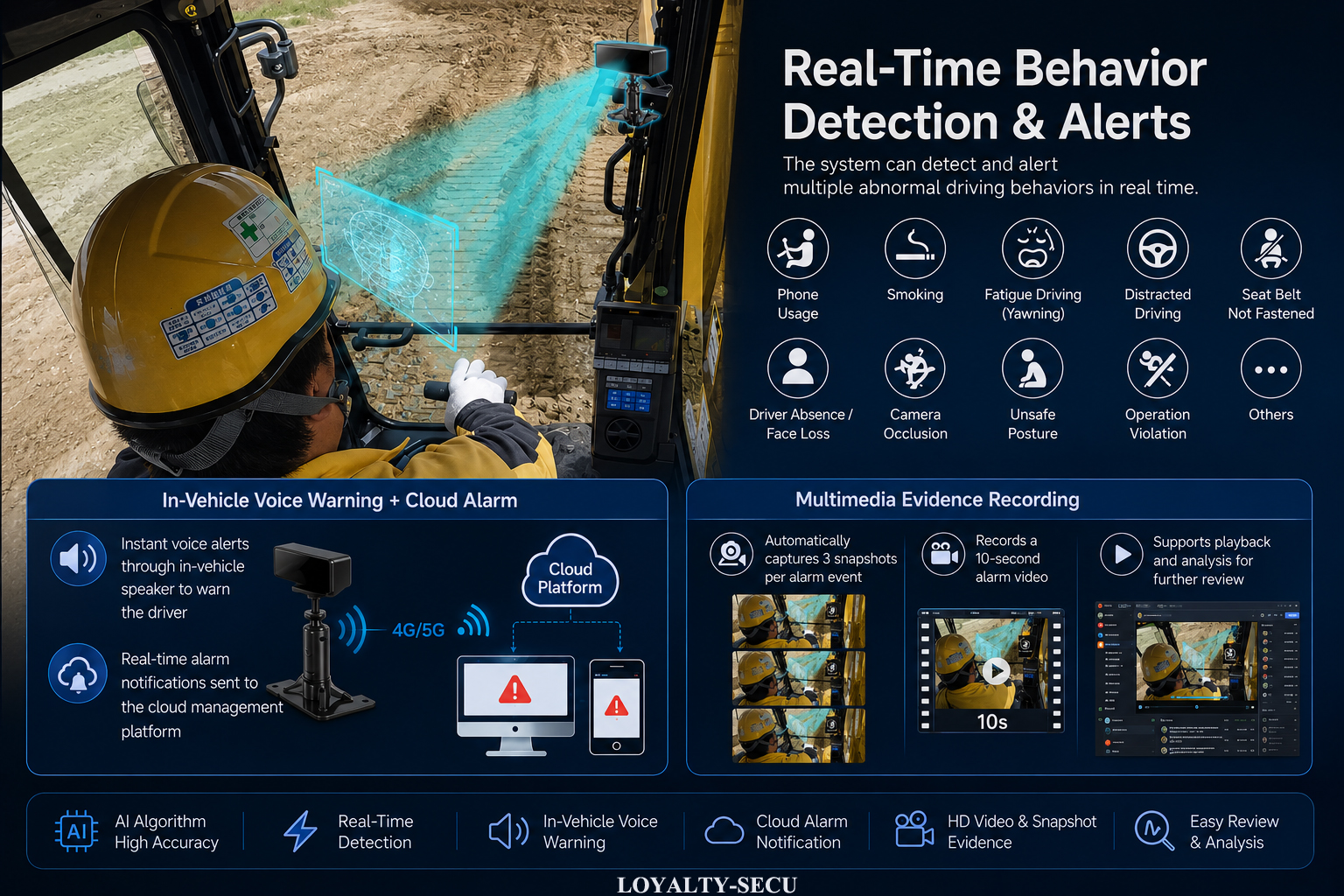

Real-Time Behavior Detection & Alerts
The system can detect and alert multiple abnormal driving behaviors in real time.
In-Vehicle Voice Warning + Cloud Alarm
- Instant voice alerts through in-vehicle speaker to warn the driver
- Real-time alarm notifications sent to the cloud management platform
Multimedia Evidence Recording
- Automatically captures 3 snapshots per alarm event
- Records a 10-second alarm video
- Supports playback and analysis for further review
In-vehicle Safety Monitoring System Architecture
- In-Vehicle Hardware System
- DMS fatigue monitoring camera
- AI intelligent host
Enables real-time in-vehicle analysis and local alerting.
- Cloud Management Platform
- Real-time alarm data upload and storage
- Safety level analysis
- Remote driving status monitoring
- Supports mobile APP and PC client access

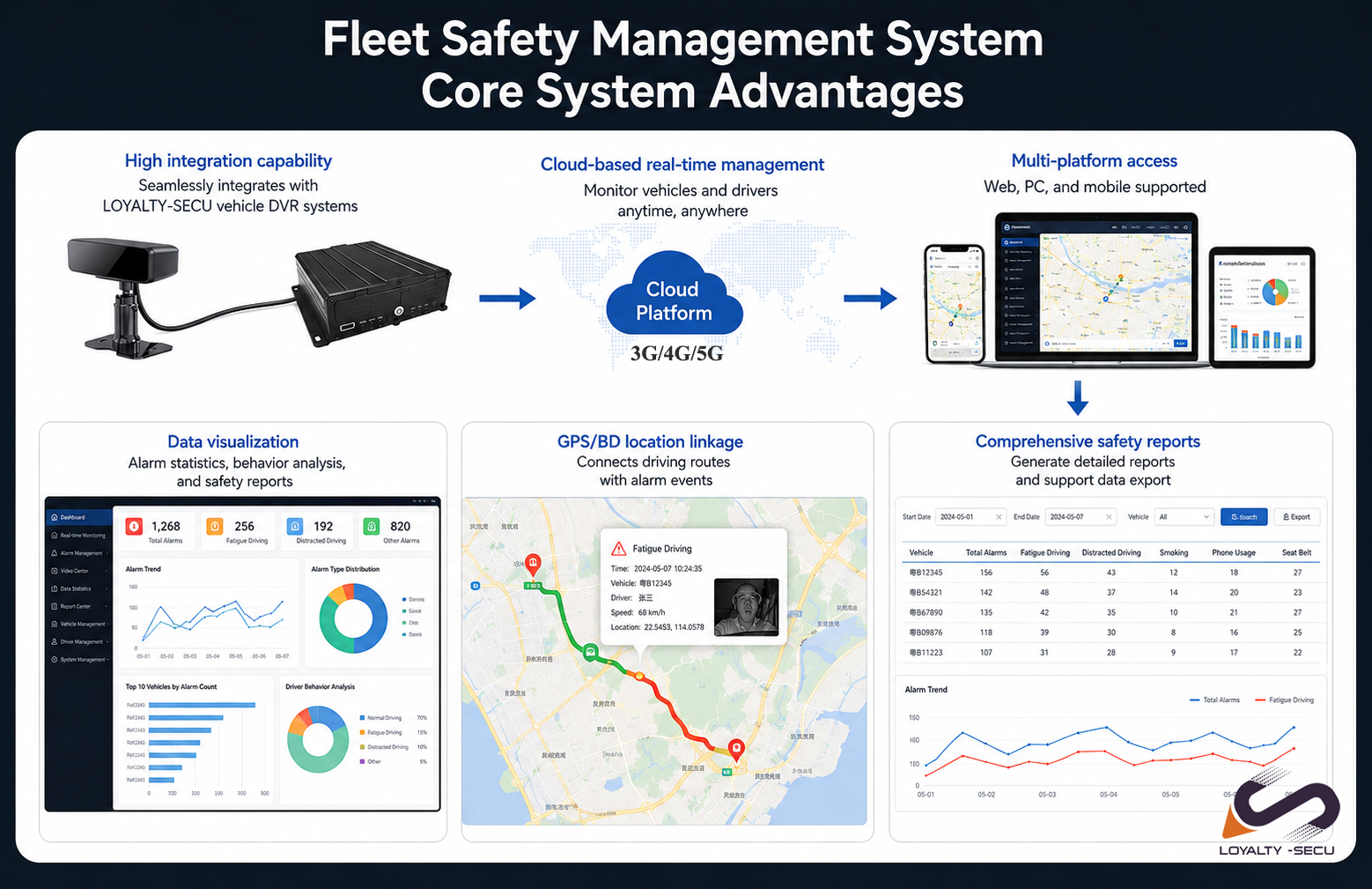

Fleet Safety Management System Core System Advantages
- High integration capability: seamlessly integrates with LOYALTY-SECU vehicle DVR systems
- Cloud-based real-time management: monitor vehicles and drivers anytime, anywhere
- Multi-platform access: Web, PC, and mobile supported
- Data visualization: alarm statistics, behavior analysis, and safety reports
- GPS/BD location linkage: connects driving routes with alarm events
1. DMS Driver Monitoring System Alarm Data Management
The system supports complete safety event recording and analysis:
- Real-time alarm image upload
- Historical alarm data query
- Alarm video playback
- Violation behavior statistical report export

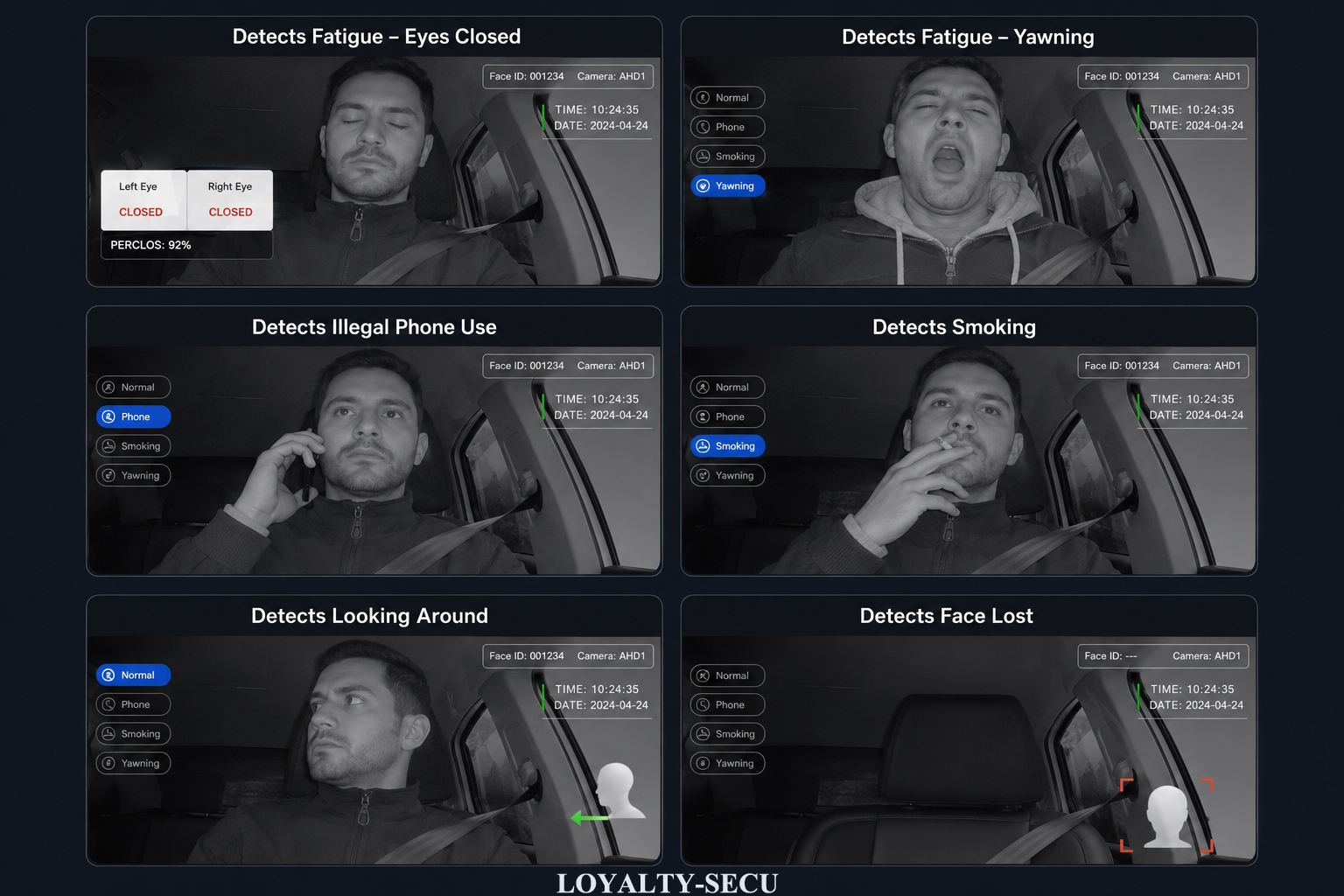

Fatigue Driving Detection System Alarm Types
- Fatigue (eye closure) detection
- Yawning detection
- Distracted driving detection
- Illegal mobile phone usage detection
- Smoking detection
- Face loss detection
- Camera occlusion detection
Driver Fatigue Alert System Application Scenarios
- Logistics and freight fleet management
- Long-distance cargo transportation
- Mining and construction vehicles
- Public transportation safety management
- Enterprise fleet safety monitoring

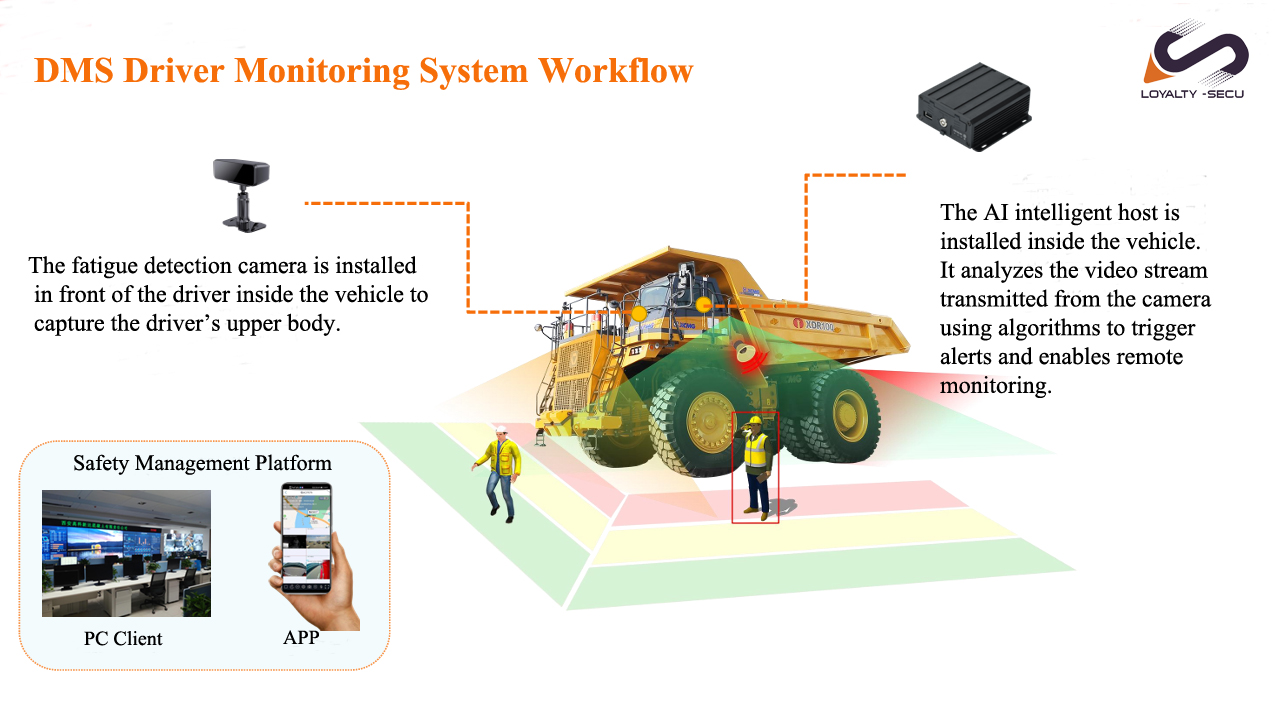

ADAS Driver Monitoring Solution System Workflow
- The DMS camera is installed in front of the driver to capture facial and upper-body images
- The AI intelligent host performs real-time local analysis and behavior recognition
- Voice alerts are triggered immediately when abnormal behavior is detected
- Alarm data is uploaded to the cloud platform in real time
- The management platform (PC / APP) receives and monitors vehicle status instantly
AI Vehicle Surveillance System Datasheet
Model | LY-DMS-C57 | |
Camera Specifications | Image Sensor | 1/3” CMOS |
Effective Pixels | 1280(H)*720(V) | |
Signal System | PAL/NTSC | |
Minimum Illumination | 0 Lux (IR On), F1.2 | |
Shutter Speed | AUTO / 1/50 (1/60) – 1/100,000 sec | |
Day/Night Mode | Black & White | |
WDR | ≥90db | |
Backlight Compensation (BLC) | Support | |
Lens Type | M12 Lens | |
Aperture | Fixed aperture F1.8 | |
Field of View (FOV) | Horizontal (H): 60° | |
Built-in Microphone | Yes | |
General | Temperature | -20°C to +70°C |
Humidity | 10%–90% | |
Power Supply | DC 12V | |
Power Consumption | <2.5W | |
Dimension | 86(L)*39(W)*100(H)MM | |
Weight | 175g | |

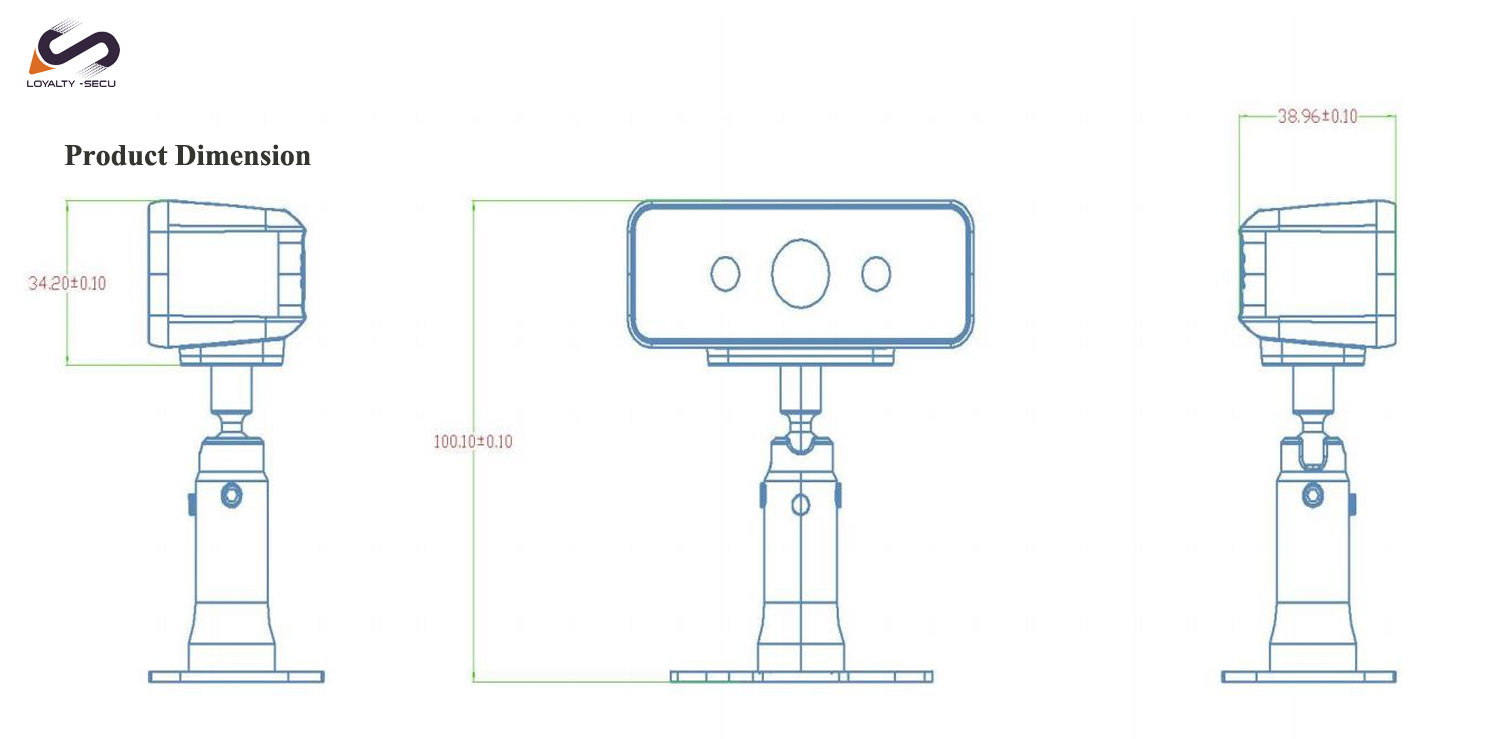

AI Driver Monitoring Camera Product Dimension
