Commercial Vehicle Cargo Truck 1080P Surveillance CCTV Camera System

Model: LY-TCS-B210

  • 1080P Full HD Resolution/Dome In-Car Camera
  • Adopt 850nm LED fill light, brings much more clearer night vision
  • Pure copper double-shielded tail wire design minimizes signal interference.
  • Built-in pickup to capture sound synchronously
  • The surface is sprayed to prevent corrosion.
  • Adaptive digital noise reduction, 2D-DNR and 3D-DNR ensure clean and delicate images in various environments

Overview

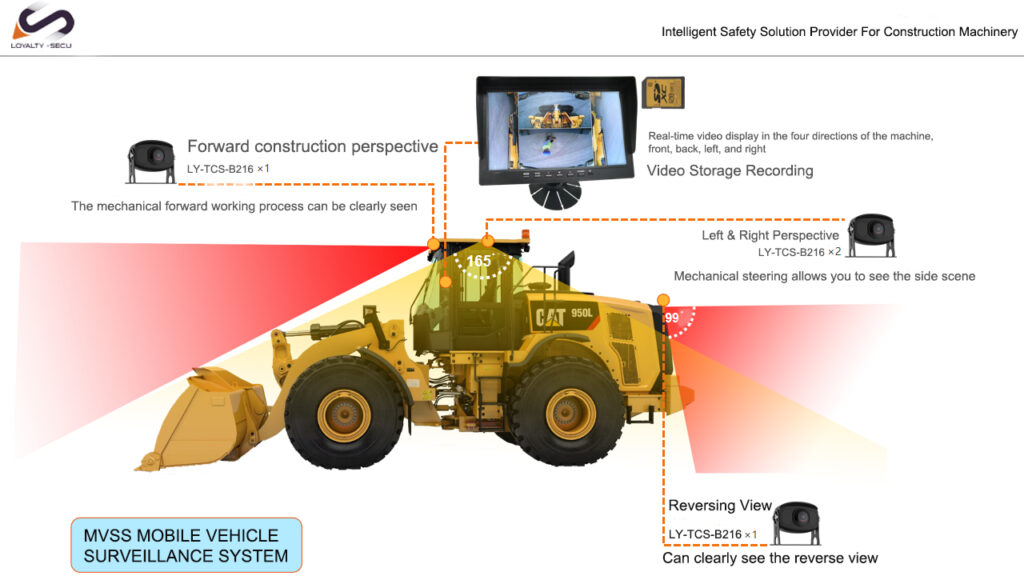

The visual blind area of construction machinery is much larger than that of vehicles such as cars. These blind areas can have a significant impact on safety. Looking outside from the perspective of the excavator cab, because the structural layout of the excavator is that the cab is on the left, the boom is in the middle, and the upper extension body of the excavator can also turn, it is doomed that the right side and the rear side of the excavator are a certain height area of the sight blind area during work.



LOYALTY-SECU MVSS Mobile Vehicle Surveillance System based on a large number of video and picture data in the blind area can accurately identify pedestrians, animals and other living beings in the blind area of large vehicles on the right side, behind the vehicle and in front of the vehicle, and timely remind drivers and passers-by to avoid, minimizing casualties and property losses.

Main Features

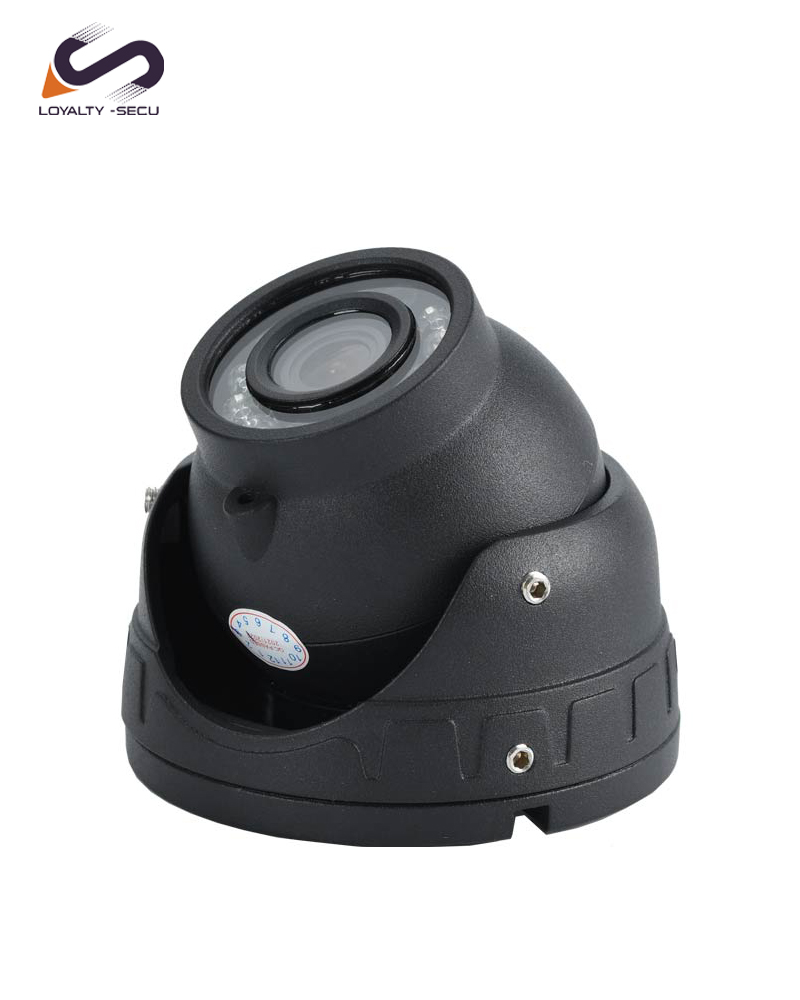

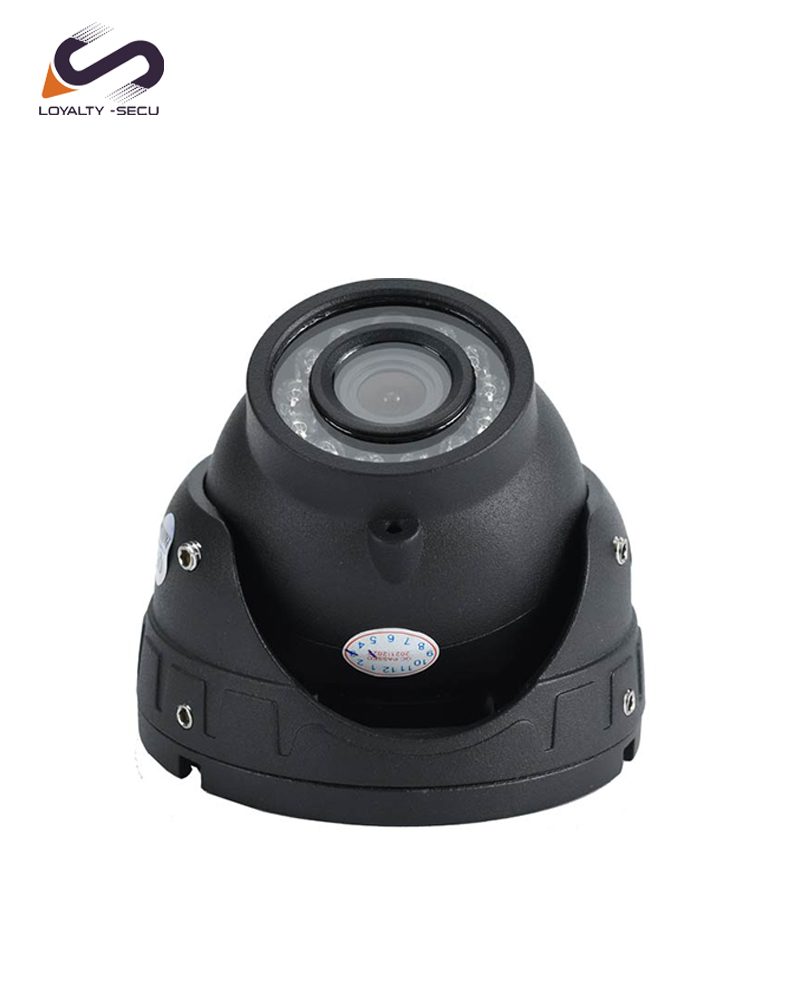

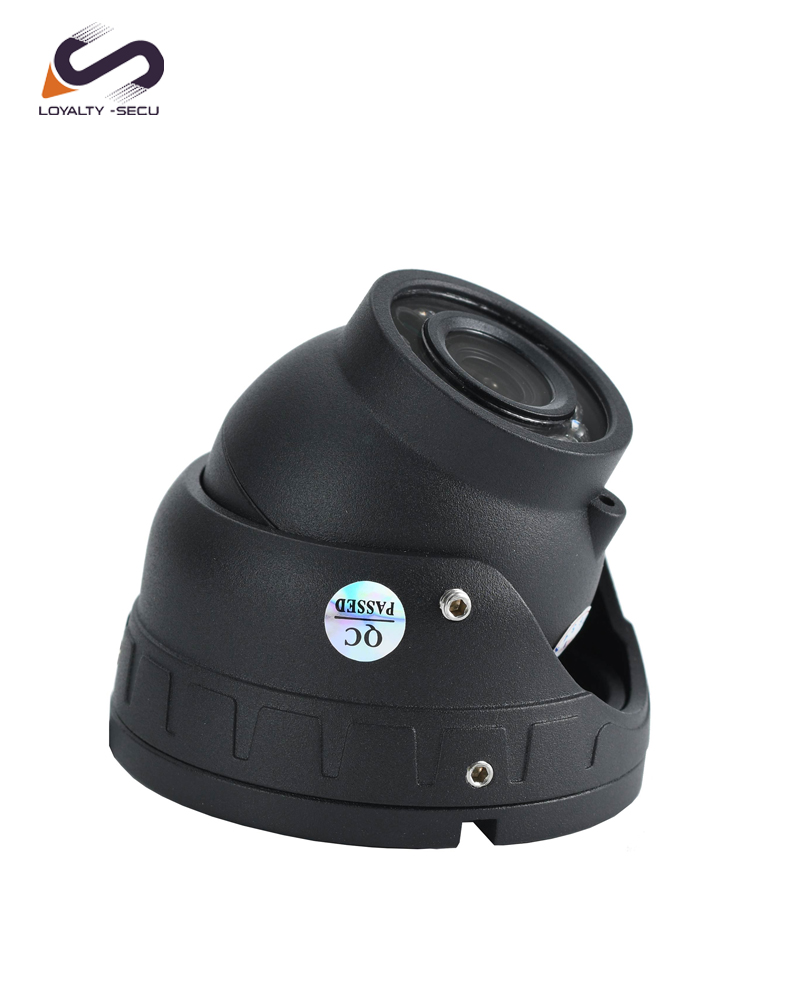

1.1080P Full HD Resolution/Dome In-Car Camera

Engineering Standard Metal Housing.

Support coaxial high-definition output, the image is clear and delicate, and the resolution is up to 1080p.

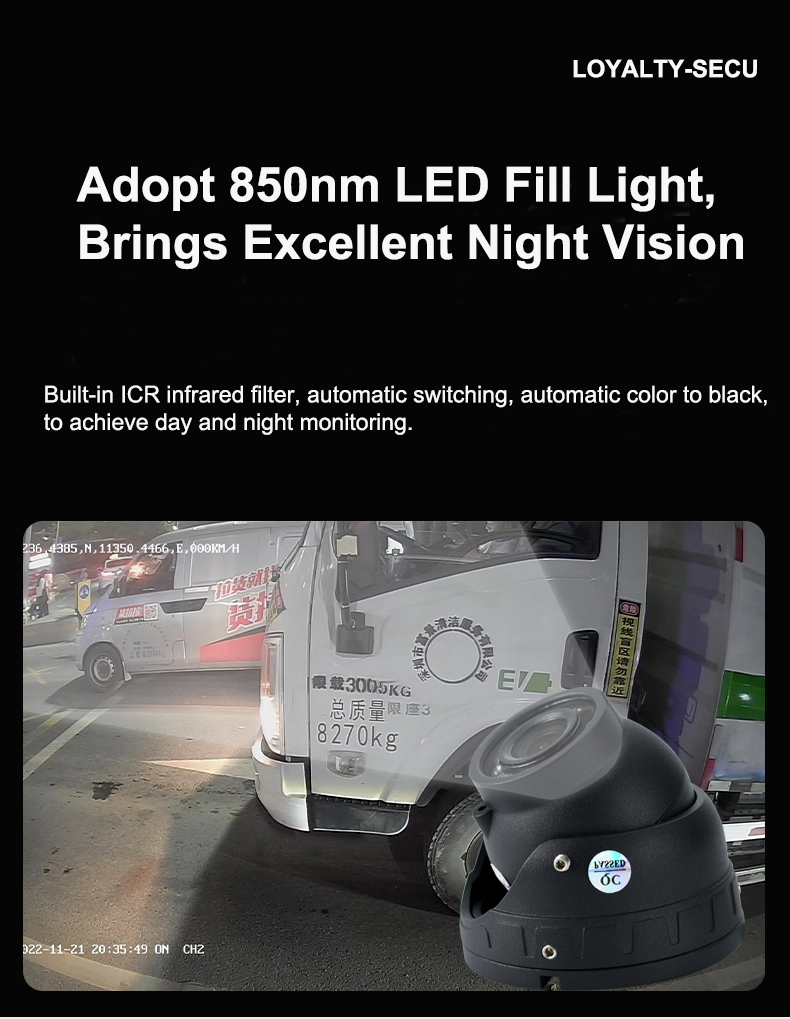

2.Adopt 850nm LED fill light, brings much more clearer night vision

Equipped with 10pcs 850nm IR LEDs, with highly sensitive photosensitive IC control, brings precise day and night switch.Built-in ICR infrared filter, automatic switching, automatic color to black, to achieve day and night monitoring.

Support ICR infrared filter automatic switching, automatic color to black function, to achieve day and night monitoring

3.Pure copper double-shielded tail wire design minimizes signal interference.

National standard 26AWG wire, video cable as braided shielding net

Phosphor bronze material, with good light guiding performance, not easy to generate heat, ensures safety and has strong fatigue resistance.

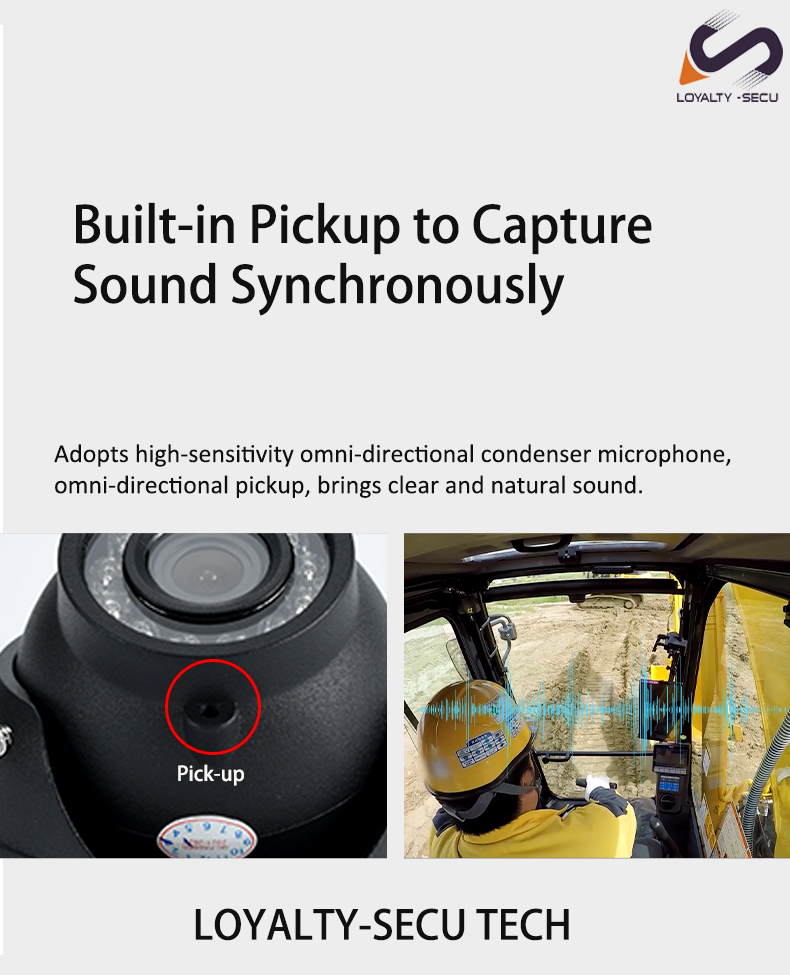

4.Built-in pickup to capture sound synchronously.

Adopts high-sensitivity omni-directional condenser microphone, omni-directional pickup, brings clear and natural sound.Adaptive digital noise reduction, 2D-DNR and 3D-DNR ensure clean and delicate images in various environments.

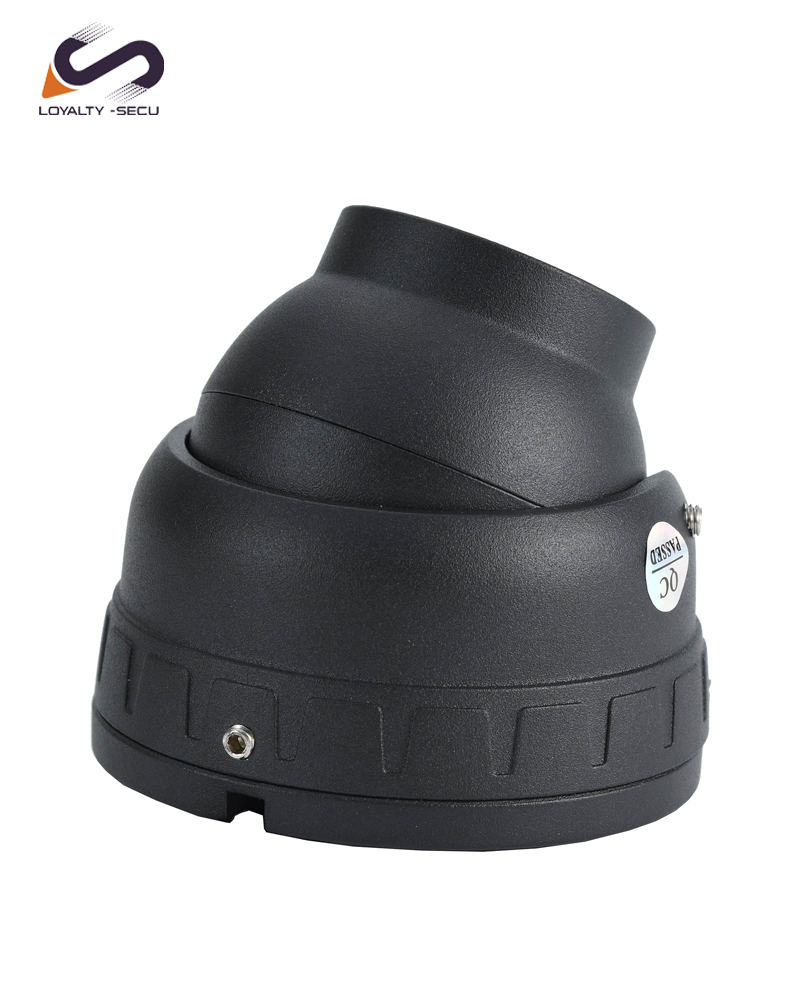

5.The surface is sprayed to prevent corrosion.

Electrostatic adsorption spraying process, the formation of 300UM thick coating, after 200 degrees of high temperature baking curing.GB/T28046.4-2011 standard salt spray environmental condition test, 288 hours cycle test without corrosion phenomenon.

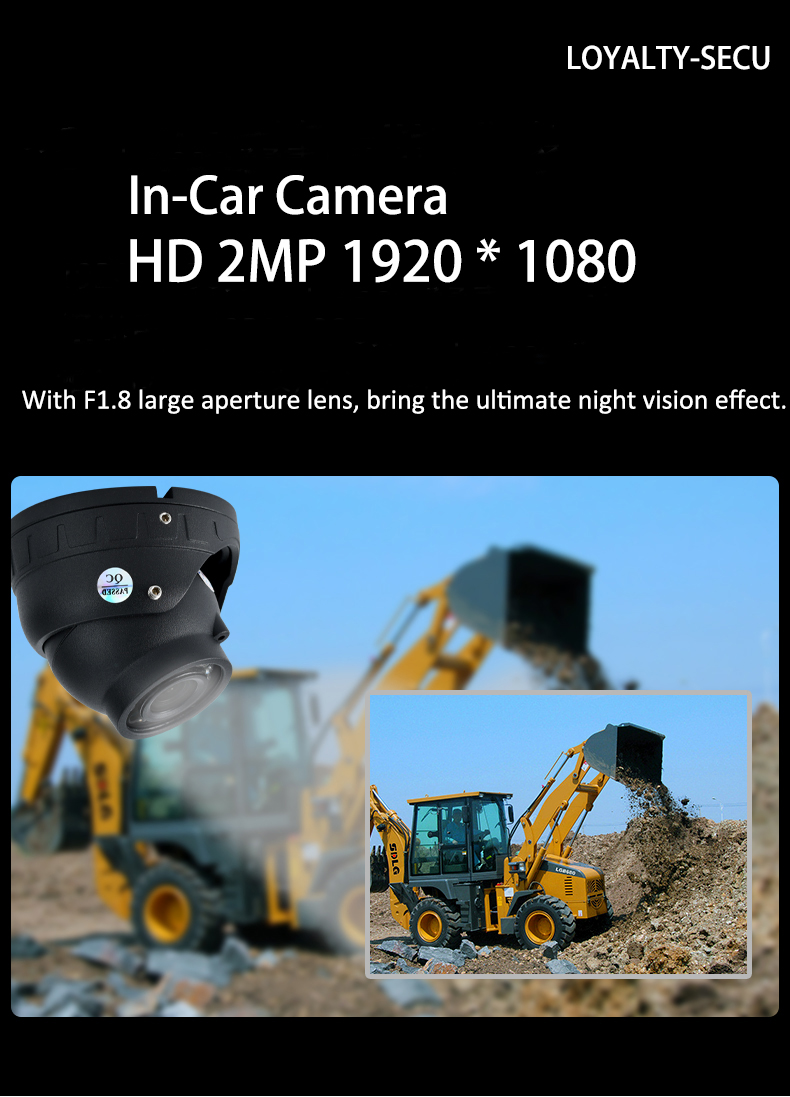

6. HD 2MP, 1920 * 1080 resolution.

With F1.8 large aperture lens, bring the ultimate night vision effect.Using 2 million progressive scan CMOS, capture moving images without jagged.

7.LOYALTY-SECU Truck Security Camera System Comparison with Other Companies

8.In-Vehicle Mobile Video Camera Surveillance System Application

Van truck/Cargo,Commuter Bus,Concrete Transport Truck,Commercial Vehicles,Crane,Carrier Vehicle/Transport Vehicle

9.Truck Surveillance Camera Specification

Item

LY-LY-TCS-B210

Camera parameter

Sensor

1/2.9″ CMOS

Pixel

1920(H)X1080(V)

Signal System

PAL/NTSC

Minimum illumination

0.01LUX (color), F1.2

Shutter Speed

AUTO/1/30 seconds -1/5000 seconds

Day-night Switching Mode

IR-Cut

WDR

≥80db

IR Distance

10m

BLC

Support

Lens

Interface Type

M12 lens

Aperture

Fixed aperture F1.8

View Angle

Horizontal 100°

Others

Temperature

-20°C – +70°C

Humidity

10%-90%

Power Supply

DC 12V

Power

< 2W

Size

70mm*50mm(H)

Weight

216g

Case Demo

Product Dimension
