6Inch High Speed 30X PTZ POE IP Camera Global Shutter Hikvision Private Protocol
Model: LY-H6-G330P
- 3MP(2048*1536), 6 Inch High Speed POE PTZ Camera
- HIKVISION Private Protocol
- 30X Optical Zoom (5.4-162mm Lens)
- With Global shutter function
- With WDR (Wide Dynamic Range) feature
- Infrared distance up to 200m
- High Speed PTZ: 0.05-240°/S, 360° all-frame endless rotation
- PTZ function: Preset, Cruise, Auto-Scan, Power on action, Park action
- Interface: Network + Power in + Audio I/O + Alarm I/O
- Power in: POE++(IEEE802.3bt)/DC12V/DC24V/AC24V
3MP Global Shutter High-Speed PTZ Camera with POE++ and 200m IR
What Is a Global Shutter Camera?
A Global Shutter camera captures the entire image sensor at the same moment, ensuring all pixel data is recorded from a single point in time. This enables clear, distortion-free images, even when capturing fast-moving objects.
Compared with rolling shutter cameras, the key advantage of global shutter technology is its ability to eliminate motion smearing and image skew, making it highly suitable for dynamic scenes.
Global shutter cameras are ideal for applications where:
- Fast-moving objects must be captured accurately
- Image geometry and timing precision are critical
- The camera itself moves rapidly, such as in high-speed PTZ operation
By delivering true-to-life images, global shutter technology provides a reliable foundation for high-speed surveillance and intelligent video analysis.

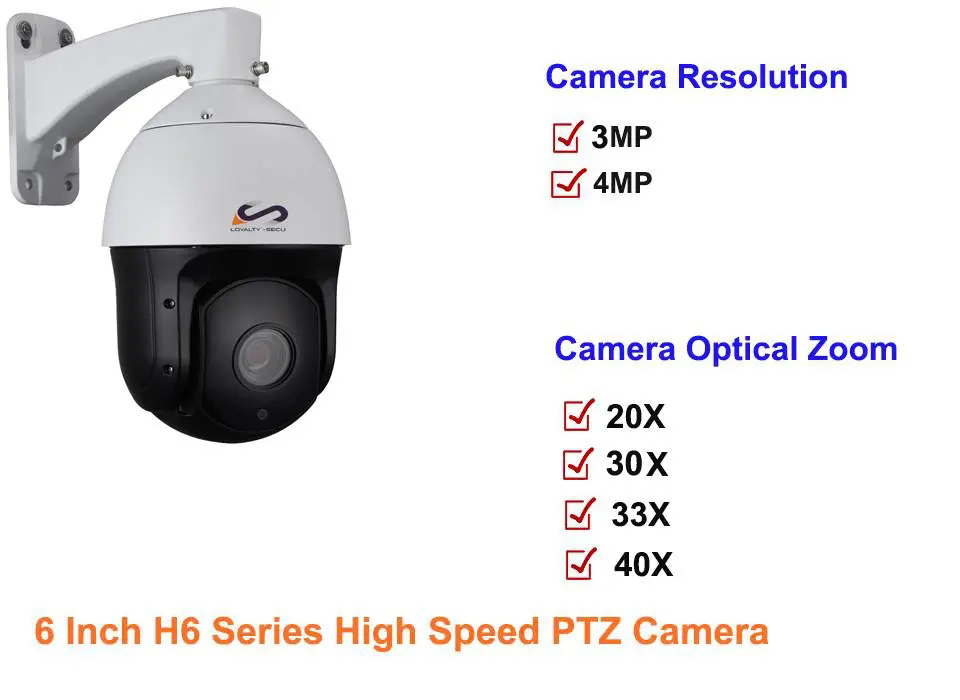

LOYALTY-SECU 6 Inch H6 Series High Speed PTZ Camera
LOYALTY-SECU 6 Inch High Speed POE PTZ Camera H6 Series with full metal housing,PTZ Speed: 240°/s,after equipped the excellent lighting control,ensure the PTZ Camera Infrared IR distance up to 656ft (200M).LOYALTY-SECU H6 200M IR PTZ Camera Series offers the full featured function ,includes Interface: Network + Power in + Audio I/O + Alarm I/O,Power: POE++(IEEE802.3bt)/DC12V/DC24V/AC24V,the camera resolution can be 3MP/4MP,meanwhile the camera with wide optical zoom for option: 20X 30X 33X 40X,it’s the perfect solution for the project integrators who can choose the suitable model based on their actual demands

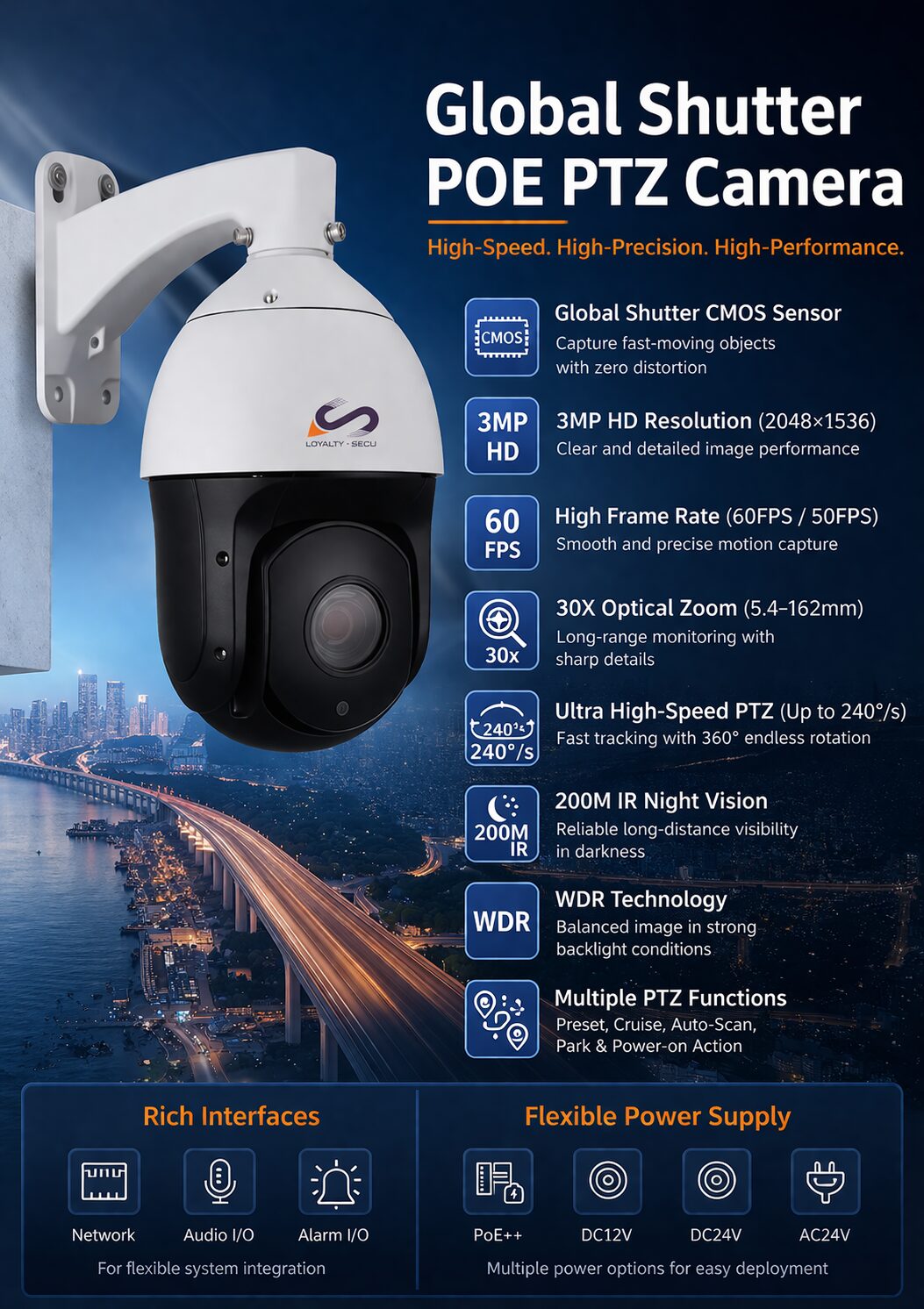

Main Features
*Advanced IR & Laser Illumination
Equipped with 6 high-quality IR LEDs and 4 laser LEDs, supporting automatic switching between long-, mid-, and short-range illumination, delivering up to 200m IR night vision.
* 3MP Global Shutter Imaging
High-performance 3MP Global Shutter CMOS sensor with advanced encoding ensures clear, distortion-free images in high-speed and dynamic scenes.
* 5A Intelligent Image Processing
Supports Auto White Balance, Auto Focus, Auto Exposure, Auto Noise Reduction, and Auto Contrast Enhancement for optimal image quality in all environments.
* Precision PTZ Control
High-precision motor design enables smooth motion, accurate positioning, and stable high-speed rotation.
* High-Efficiency Video Encoding
Built on a high-performance platform supporting dual streams, H.264 / H.265 compression, and multi-level video quality configuration.
* Smart IR Matching Algorithm
Intelligent matching of IR distance, brightness, zoom ratio, and viewing angle to ensure optimal night-time image clarity.
* Flexible Power & Networking
Supports POE++ (IEEE 802.3bt) for simplified installation and stable power delivery.
* Open System Compatibility
Fully compatible with the ONVIF protocol for seamless integration with mainstream VMS platforms.
*Audio & Alarm Interfaces (Optional)
Optional Audio Input/Output and Alarm Input/Output for extended system integration.
* Industrial-Grade Protection
IP66-rated weatherproof housing with built-in surge and lightning protection up to 8000V, ensuring reliable outdoor operation.

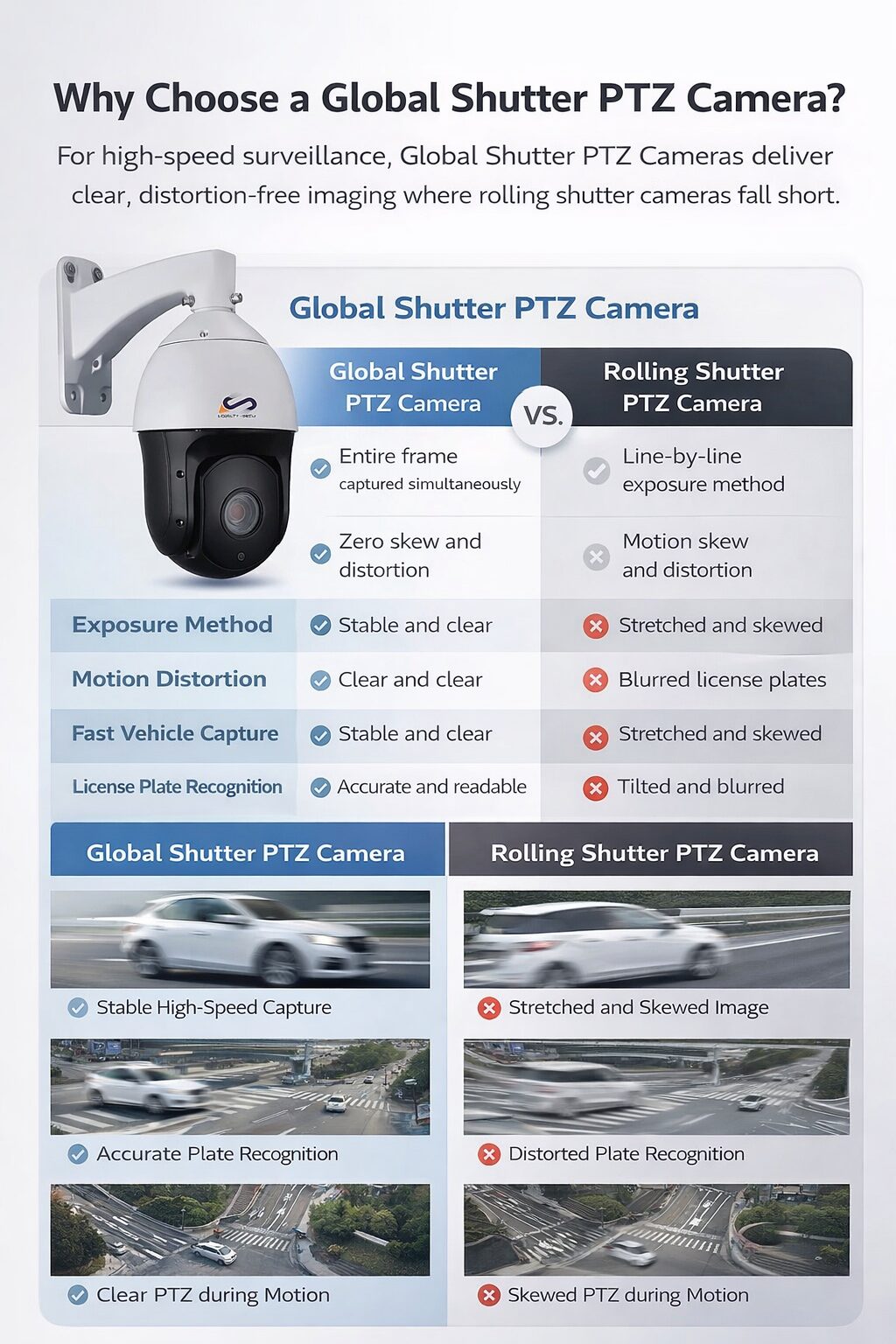

Why Choose a Global Shutter PTZ Camera for High-Speed Surveillance?
As surveillance projects increasingly focus on traffic monitoring, vehicle capture, and intelligent video analytics, image accuracy during high-speed movement has become a critical requirement.
This is where Global Shutter PTZ cameras deliver a clear advantage over traditional rolling shutter solutions.
What Is a Global Shutter Camera?
A Global Shutter camera captures the entire image sensor at the same time. All pixels are exposed simultaneously, ensuring that fast-moving objects are recorded without motion distortion.
This technology is especially important for applications involving:
- High-speed vehicles
- Rapid PTZ pan, tilt, and zoom
- License plate recognition (ANPR/LPR)
- AI-based video analytics
Global Shutter vs. Rolling Shutter
Rolling shutter cameras expose the image line by line. When objects move quickly or when a PTZ camera rotates at high speed, this exposure often results in:
- Skewed or stretched objects
- Distorted vehicle shapes
- Tilted or unreadable license plates
A Global Shutter PTZ camera eliminates these issues by capturing the entire frame at once, delivering geometrically accurate images even during rapid motion.
Why Global Shutter Is Critical for PTZ Cameras
PTZ cameras continuously pan, tilt, and zoom to track targets. When combined with rolling shutter sensors, fast PTZ movement can significantly degrade image quality.
With Global Shutter technology, PTZ cameras maintain:
- Stable, distortion-free images during high-speed rotation
- Accurate target tracking
- Reliable image data for AI and intelligent analytics systems
Technology Comparison: Global Shuttervs. Rolling Shutter
Feature
| Global Shutter PTZ Camera | Rolling Shutter PTZ Camera |
Exposure Method | Entire frame captured simultaneously | Line-by-line exposure |
Motion Distortion | None | Common at high speed |
Fast Vehicle Capture | Accurate and clear | Skewed or stretched |
License Plate Recognition | Reliable and readable | Often tilted or blurred |
High-Speed PTZ Rotation | Stable images | Image deformation |
AI & Video Analytics | High-quality input data | Reduced accuracy |
Ideal Applications | Traffic, ANPR, Smart City | General surveillance |
Summary
While rolling shutter cameras are suitable for standard surveillance scenarios, high-speed and precision applications demand Global Shutter technology.
A Global Shutter PTZ Camera ensures accurate imaging, reliable analytics, and professional performance for modern traffic and intelligent surveillance systems.

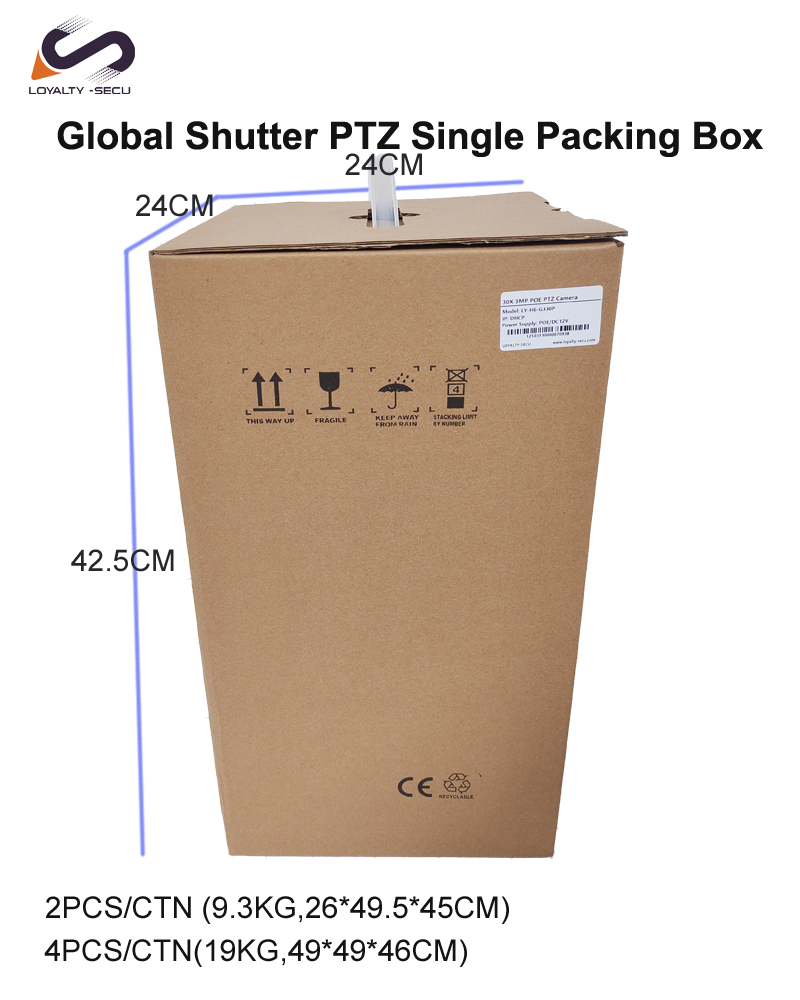

1. 3MP 30X Global Shutter PTZ Camera Packing Details
2.Avaible Brackets for the 3MP PTZ Camera
3. Waterproof IP66 & 8000V Thunder-proof
The 30X High Speed PTZ Camera is equipped with an IP66 rated weatherproof metal shell and supports 8000V Thunder-proof, designed to operate the security PTZ camera even in some real extreme weather conditions
4.Support Local storage and playback
The 3MP Network 30X Ultra Wide Lens PTZ Camera Outdoor supports micro SD card up to 256GB. Insert a micro SD card, and then it is a competed remote home security system. When the SD card is full, the new recordings will overwrite the old ones, it can make sure the recording of security camera working normally all the time. Meanwhile you can play videos via your mobile phone APP directly.
5.Intelligent WDR Function& Real Color
With true WDR technology, it can produce images of good clarity even under varying light conditions by using different shutter speeds to allow more light in some darker areas of the image and less light in others brighter. The sensor’s exposure to light-receiving from the exterior environment is controlled to achieve a compensated vision.
What's Included?
Manual, Camera, Wall Bracket (default), a 65W PoE injector and installation screws.
Dimensions
