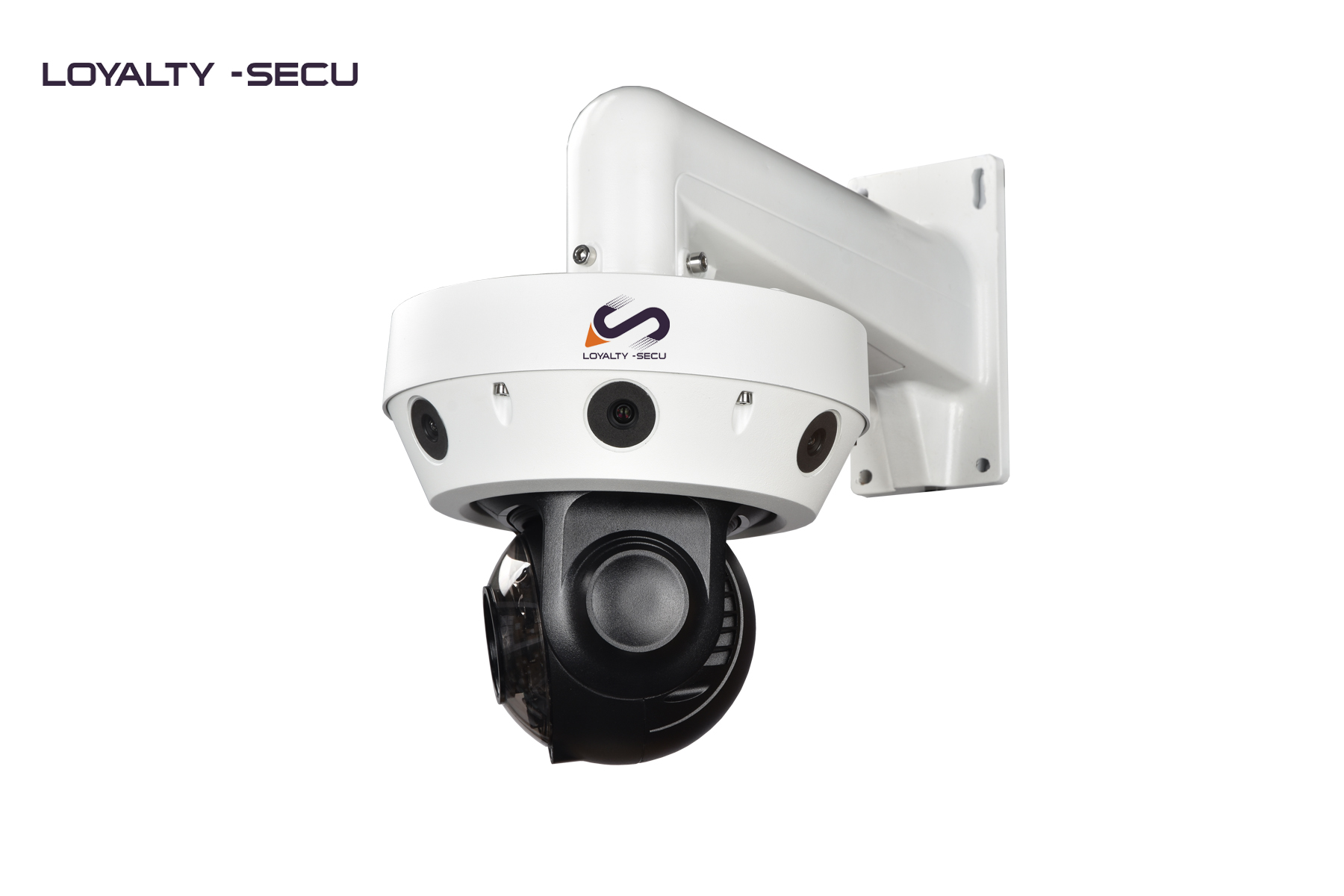

5MP 5-in-1 Panoramic Multi-Sensor PTZ Camera with 18X Optical Zoom

4x 5MP 270° Multi-sensor Panoramic + 1x 5MP 360° PTZ

Model: LY-MTL-5L5A-18X

  • 5 In 1 Fixed Lens and Zoom Lens PTZ Camera System
  • Intelligent Analysis + Panoramic Smart Linkage + Auto-Tracking+ Multi-Lens +Multi-Sensor +Multi-Objects
  •  Fixed & PTZ Camera Smart Linkage System:
    4x 5MP 270° Multi-sensor Panoramic + 1x 5MP 360° PTZ
    5MP 4 pcs × Fixed Lens: 6mm/ F1.0, 5MP 1 pcs × Zoom Lens (5.5-99mm), 18X Optical Zoom
  •  Camera Solution: 5MP,5 ×SigmaStar377+GC4653 (ColorVu Super Starlight)
  • 5 in 1 Camera with 1 RJ45 Cable Interface, Output 5 Images:
    All 5 cameras integrate into one camera housing work via one network cable interface, inputs 5 channel recording images.
  • With ONVIF Protocol,support to work with most of the NVRs brand in the market. With built-in Microphone.
  •  Fixed & PTZ Camera Linkage Monitoring System, support tracking multiple objects simultaneously
  •  Money & time saving, facilitates real-time management.
  • 18X Zoom PTZ camera Magnified image to detect target details for global detail monitoring. More accurate tracking with close-up images
  •  Color Night Vision & Full Metal Housing
  •  High Speed PTZ 0.05-240°/S, 360° all-frame endless rotation
  • Waterproof: IP66, Lighting protection: 6000V

Overview

5MP Panoramic Multi-Sensor PTZ Camera with 18X Optical Zoom

The LOYALTY-SECU 5MP Panoramic Multi-Sensor PTZ Camera is an advanced 5-in-1 surveillance system integrating four fixed cameras and one high-speed PTZ camera into a single housing.

The four fixed cameras provide 270° panoramic monitoring, enabling simultaneous surveillance across a wide area. The integrated PTZ camera features an 18X optical zoom lens (5.5–99mm), allowing operators to zoom in on distant objects and capture important details.

With intelligent panoramic-to-PTZ linkage, the system combines wide-area monitoring with focused target tracking. When a moving target is detected by the fixed cameras, the PTZ camera can be directed to track and zoom in on the target, subject to the supported intelligent analysis and software configuration.

Unlike conventional multi-lens cameras that share a single network interface, this system features five independent IP cameras, each with its own IP address and network interface. This architecture provides flexible network deployment, independent video transmission, and convenient integration into professional surveillance systems.

Combining panoramic coverage, optical zoom, intelligent linkage, and independent network connectivity, this multi-sensor PTZ camera is an ideal solution for large-area security monitoring and complex surveillance applications.

LOYALTY-SECU vs. Consumer Multi-Lens Cameras



Feature



Consumer Dual/Multi-Lens Camera

Hikvision/Dahua Dual/Multi-Lens Camera

LOYALTY-SECU Dual/Multi-Lens Camera

IP Address

One IP address for multiple lenses

One IP address for multiple lenses

Each lens has its own independent IP address

Supported Devices

Only connects to mobile app

Only connects to its own brand NVR (Hikvision NVR for Hikvision cameras, Dahua NVR for Dahua cameras)

Supports connection to mainstream NVRs, servers, and third-party VMS devices

Compatibility

Low, cannot connect with existing NVR or servers

Limited to compatibility with the same brand’s NVR system

High, compatible with multiple brands and third-party systems

Application Scenarios

Suitable for home or simple consumer-level applications

Suitable for professional security monitoring, but limited to a single brand system

Suitable for complex monitoring needs, especially for cross-brand and third-party platform applications

Demo Video

Main Features

5 In 1 Panoramic Smart Linkage Multi-Objects High Speed PTZ Camera

1.5-in-1 Multi-Sensor Camera System
Integrates four fixed cameras and one high-speed PTZ camera into a single housing, providing comprehensive panoramic surveillance and detailed target monitoring.
2. 270° Panoramic Coverage
Four fixed cameras work together to provide 270° panoramic monitoring, covering multiple directions simultaneously and helping reduce surveillance blind spots.
3. 18X Optical Zoom PTZ Camera
Equipped with an 18X optical zoom lens (5.5–99mm), the PTZ camera enables operators to observe distant objects and capture important details.
4. Intelligent Panoramic-to-PTZ Linkage
Combines fixed-camera monitoring with PTZ target tracking. The system can link detected moving targets to the PTZ camera for focused observation, subject to supported software and configuration.
5. Five Independent IP Cameras
Each camera has its own independent IP address and network interface, providing five separate video channels for flexible network deployment and system integration.
6. Multi-Target Monitoring
Combines wide-area fixed-camera surveillance with PTZ monitoring to help security operators observe moving objects and monitor multiple areas more effectively.
7. Advanced Video Surveillance
Designed for professional security applications requiring panoramic observation, optical zoom, and integrated multi-camera monitoring.
8. Flexible System Integration
The independent network architecture provides flexibility for connecting the five camera channels to compatible network video recorders, servers, and video management systems.

How Does the Panoramic-to-PTZ Linkage Work?

The 5-in-1 panoramic PTZ camera combines four fixed cameras and one PTZ camera to provide a coordinated surveillance solution.

Step 1: Panoramic Monitoring

The four fixed cameras continuously monitor a combined 270° field of view, covering multiple directions within the surveillance area.

Step 2: Target Detection

When a moving object is detected through the supported intelligent video analysis functions, the system identifies the target within the monitored area.

Step 3: PTZ Camera Linkage

The PTZ camera can be directed toward the detected target through the supported panoramic-to-PTZ linkage function.

Step 4: Optical Zoom and Tracking

The integrated 18X optical zoom PTZ camera provides a closer view of the target, helping operators observe important details while the fixed cameras continue panoramic monitoring.

Five Independent IP Cameras for Flexible Integration

One of the key advantages of this multi-sensor PTZ camera is its independent network architecture.

Unlike some multi-lens surveillance systems that use a shared network connection, this product integrates five independent IP cameras, each equipped with its own IP address.

Key advantages include:

  • Five independent IP addresses.
  • Five separate video channels.
  • Flexible network configuration.
  • Convenient integration with compatible NVRs, servers, and VMS platforms.

This architecture is particularly suitable for professional surveillance projects requiring independent camera management and flexible system integration.

Panoramic Smart Linkage Multi-Objects PTZ Camera CMS

Multi-Lens 20X Zoom PTZ Camera Application Scenarios

1. City Surveillance and Traffic Monitoring
Suitable for monitoring urban roads, intersections, public areas, and traffic infrastructure with wide panoramic coverage and PTZ close-up observation.
2. Industrial Parks and Factories
Provides multi-directional monitoring of factory buildings, production areas, facility perimeters, and industrial operations.
3. Ports and Logistics Centers
Helps monitor container yards, vehicle movement, loading areas, warehouses, and large logistics facilities.
4. Parking Lots and Commercial Areas
Provides wide-area surveillance of parking facilities, vehicle entrances, pedestrian areas, and commercial properties.
5. Schools and Campus Security
Suitable for monitoring campus entrances, outdoor walkways, public spaces, and other important security areas.
6. Perimeter Security
Combines panoramic monitoring and PTZ close-up observation for large secured areas, industrial boundaries, and critical infrastructure.

Frequently Asked Questions

1. How many cameras are integrated into this panoramic PTZ camera system?
The system integrates five cameras, including four fixed cameras for panoramic monitoring and one high-speed PTZ camera for optical zoom and target observation.
2. What is the panoramic viewing angle?
The four fixed cameras provide a combined panoramic monitoring angle of 270°.
3. What is the optical zoom capability of the PTZ camera?
The integrated PTZ camera features an 18X optical zoom lens with a focal length of 5.5–99mm.
4. Does each camera have an independent IP address?
Yes. The system features five independent IP cameras, each with its own IP address. This allows the five camera channels to be connected and managed independently.
5. Can the PTZ camera automatically track targets detected by the fixed cameras?
The system supports panoramic-to-PTZ linkage for target observation and tracking. The actual tracking functions depend on the supported intelligent analysis features and software configuration.
6. Can this camera system work with third-party NVRs?
The five independent IP camera channels provide flexible integration options. Compatibility with third-party NVRs and VMS platforms depends on protocol support, firmware, and system configuration. We recommend confirming compatibility before deployment.
7. What applications is this multi-sensor PTZ camera suitable for?
It is suitable for city surveillance, traffic monitoring, industrial parks, factories, ports, logistics centers, parking facilities, campus security, and large-area perimeter protection.



Looking for a Panoramic Multi-Sensor PTZ Camera Solution?

Contact LOYALTY-SECU to discuss your project requirements, camera configuration, and system integration needs.

Our team can help you evaluate the suitable surveillance solution for your application.

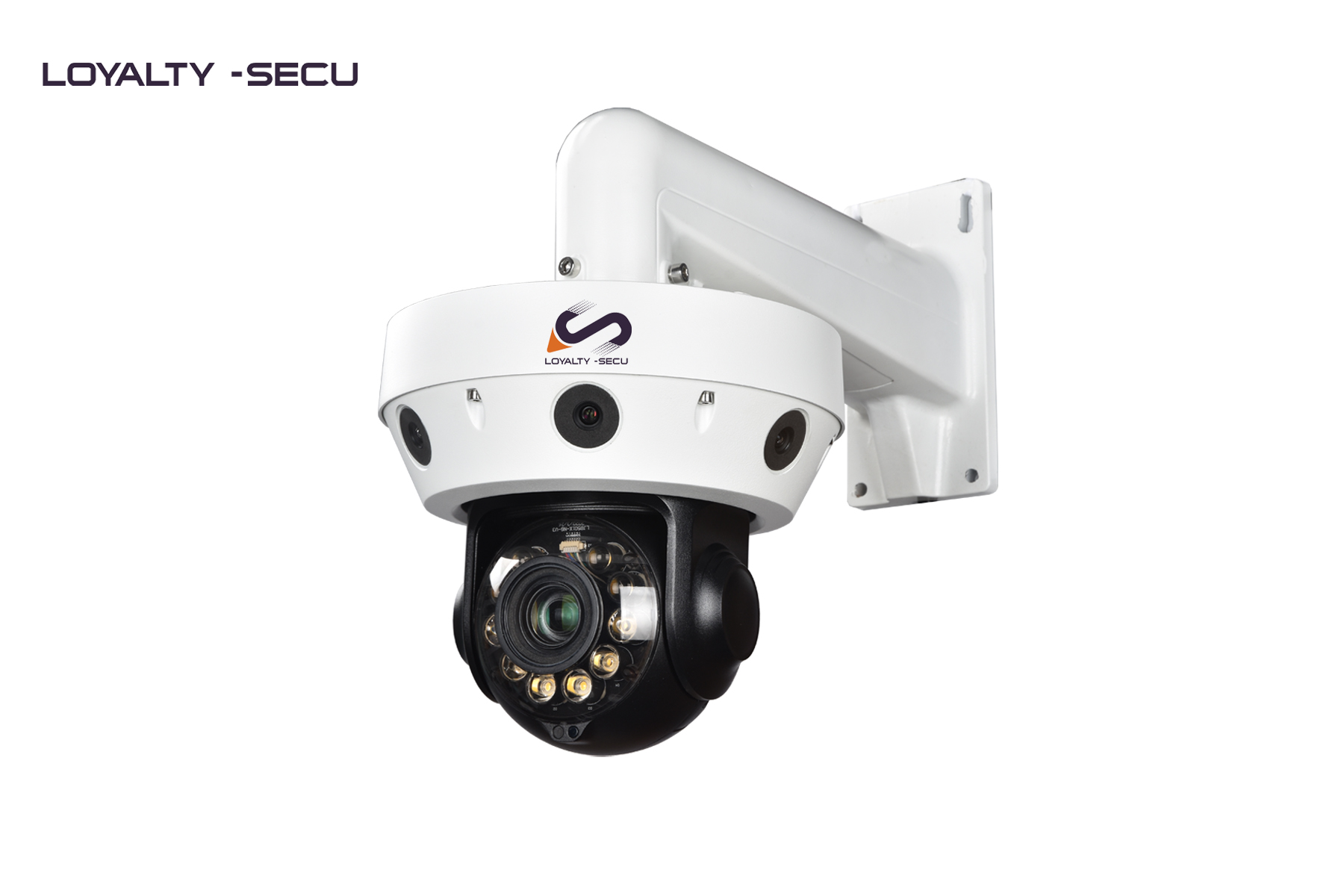

4x 5MP 270° Multi-sensor Panoramic 1x 5MP 360° PTZ Specification

Camera

Model

LY-MTL-5L5A-18X

Image Sensor

1/2.8″ CMOS

Camera Types

5 pcs× SigmaStar377+GC4653

Minimum Illumination

Color: 0.001Lux, B/W: 0.001Lux,0 Lux with IR

ColorVu Super Star-light

Camera Lens

4 pcs×6mm/F1.0 Fixed lens + 1pcs × 5.5-99mm Zoom Lens

3D NDR

Support

WDR

Support

Electronic Shutter

Auto

Day Night Mode

AUTO ICR Color to B/W

Focal length

18X Optical zoom, 5.5- 99mm

Zoom speed

Approx.3s (Optical Wide~Tele)

Built-in Microphone

Yes

Panoramic field of view:

270°

PTZ angle of view:

52-2.9°(Wide-Tele)

Resolution

2592(H) x1944(V)

Mainstream

2592 x1944@30fps,2592 x1520@30fps,1920 x1080@30fps

Video compression

H.265+/H.265/H.264H

Network protocol

HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181

Interface protocol

ONVIF 2.4

APP

AC18Pro or Video-Link

PTZ Control

Color Night Vision

Yes

Infrared Night Vision

Default camera, don’t have infrared night vison, support to custom this function

Horizontal range

0°~360° continuously

Vertical range

-5°~90°

Horizontal speed

0.05°~240°/s

Vertical speed

0.05°~100°/s

Max Speed

240°/S

Preset

256

Patrol scan

4pcs(10 preset for each)

L/R Scan

1pc

Horizontal scan

1pc

Power-off memory

Support

PARK action

Watch position/ Area Scan /Horizontal 360°scan/ Cruise

Watch position

Support

General

Power

DC12V/4A

Consumption

<30W

Mounting

Wall mounting or lifting

Work environment

Temperature:-20~60℃;Humidity<90%

Protection level

IP66 waterproof, 6000V lightning protection

Single Camera Packing Size

29.5*29.5*38cm, (Not include the bracket)

Single Camera GW

4.2KG

Carton box

61.5*61.5*38cm (4pcs/carton), (Not include the bracket)

Carton GW

18Kg

Single Bracket Packing

32*10*19cm(0.8KG)

Dimensions

Panorama 360 Multi-Sensor PTZ Camera
