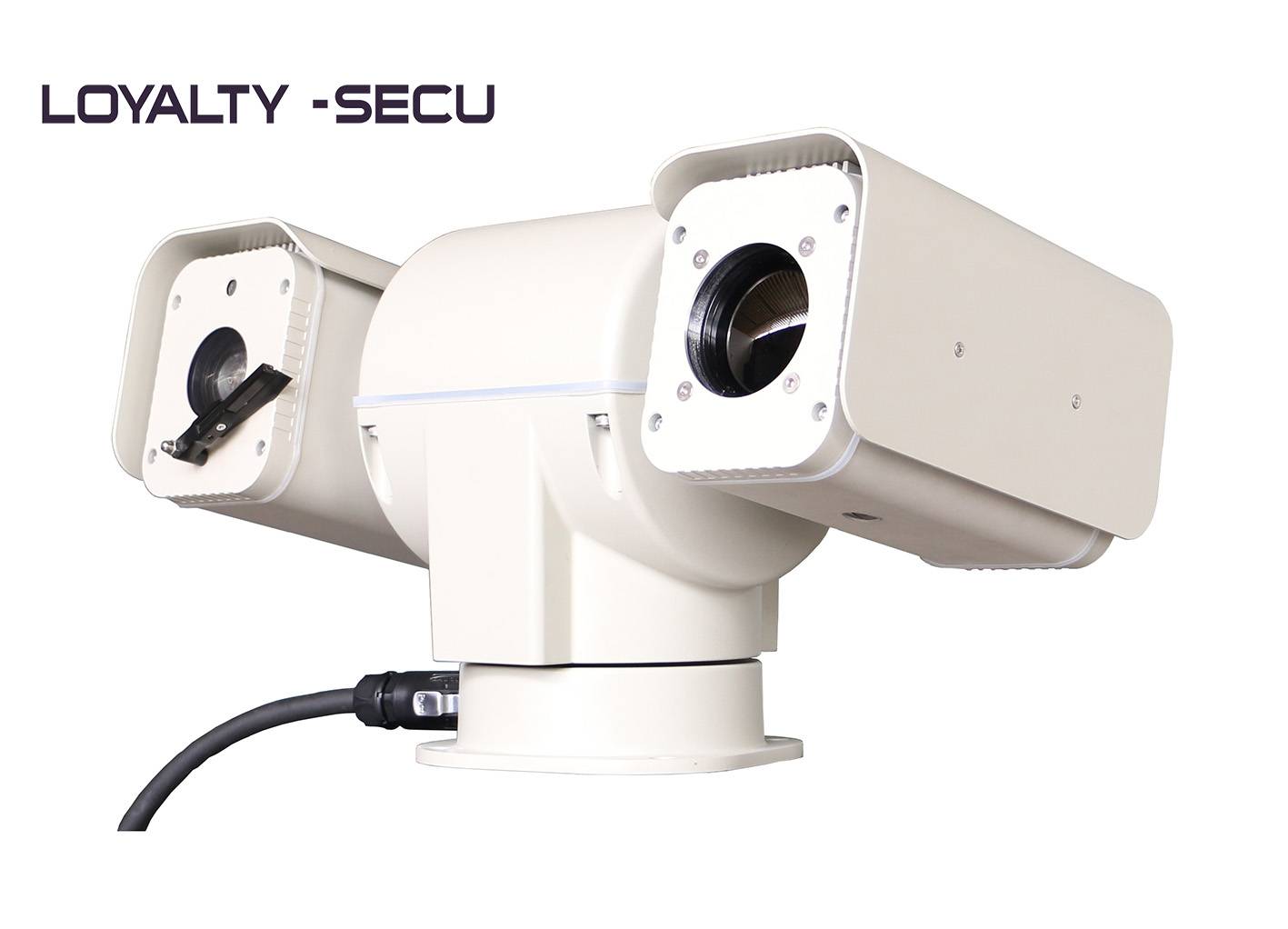

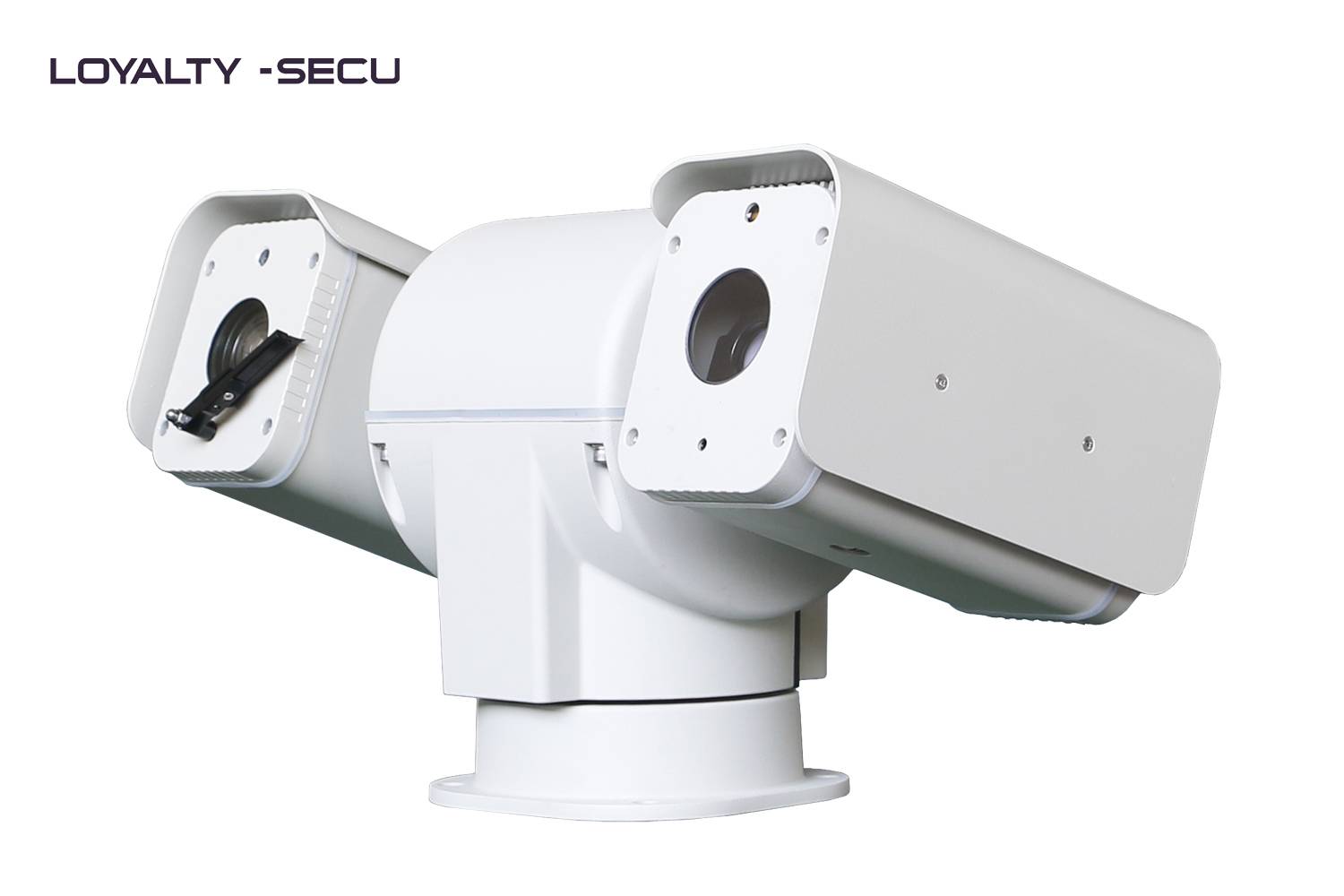

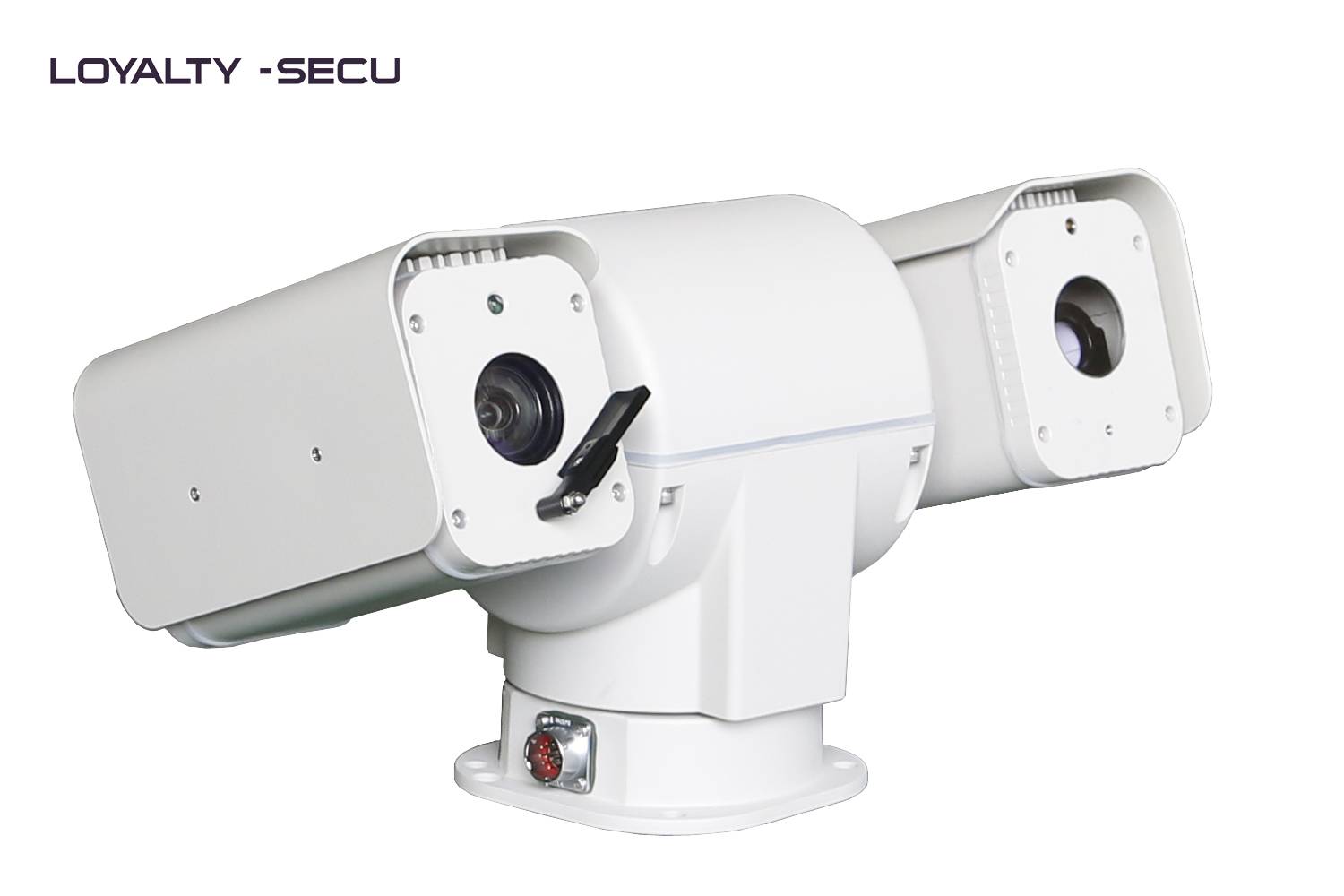

500M Long-Range Dual-Spectrum PTZ Laser IR Night Vision Camera for Perimeter Monitoring
Model: LY-PN3502LN
- Visible Camera Resolution: 2MP, Lens: 4.8-158mm,33X Zoom
- Laser Type: Class A high-power fiber-coupled semiconductor laser
- Laser Output Power: 18W
- Max Laser IR Night Vision: 500m illumination range
- Laser Synchronized Zoom: Illumination area automatically matches the zoomed image.
- Adjustable Illumination Spot: Size and intensity can be stored and recalled for different scenarios.
- Accept Laser IR PTZ Camera Customization
Overview

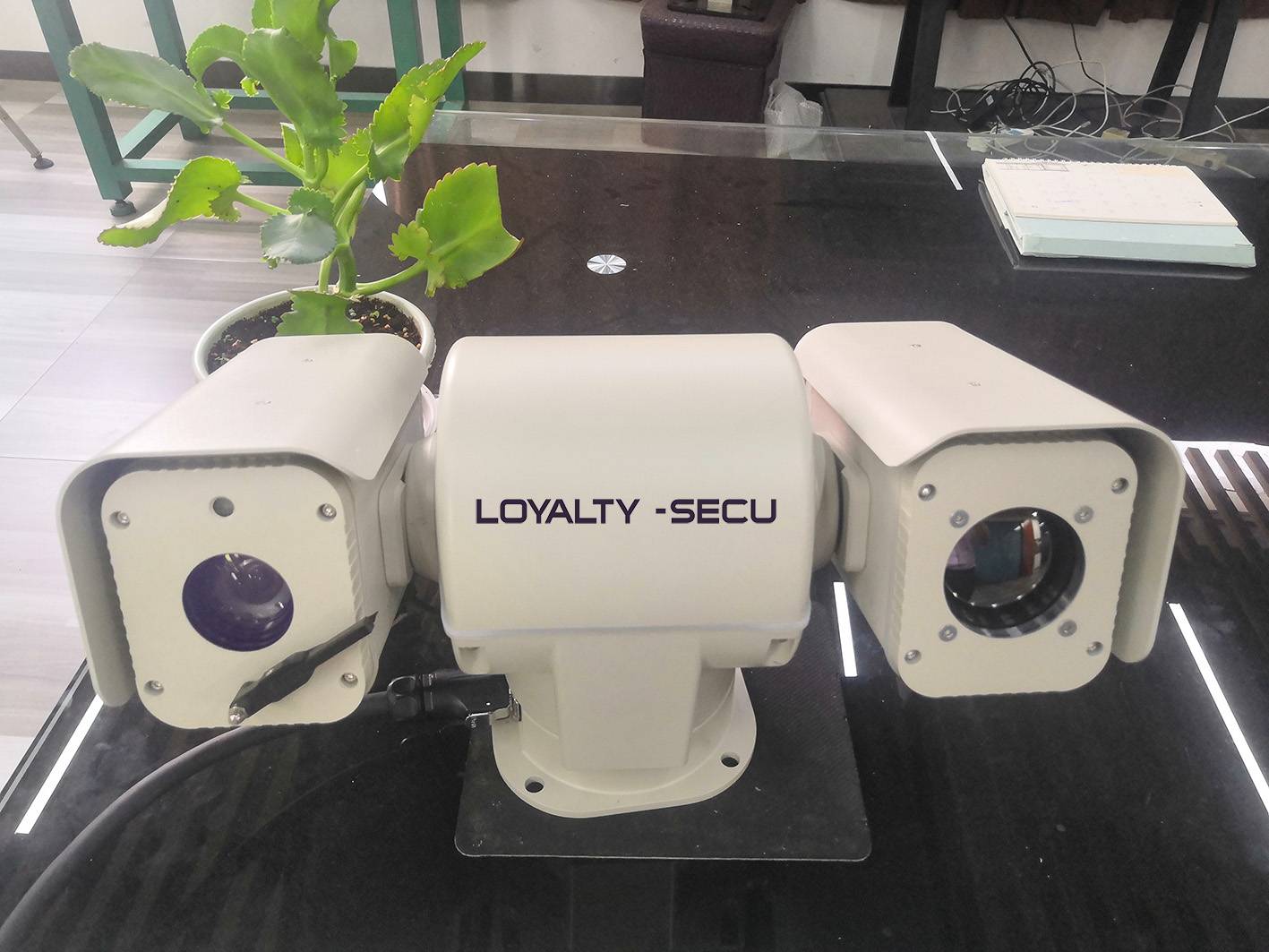

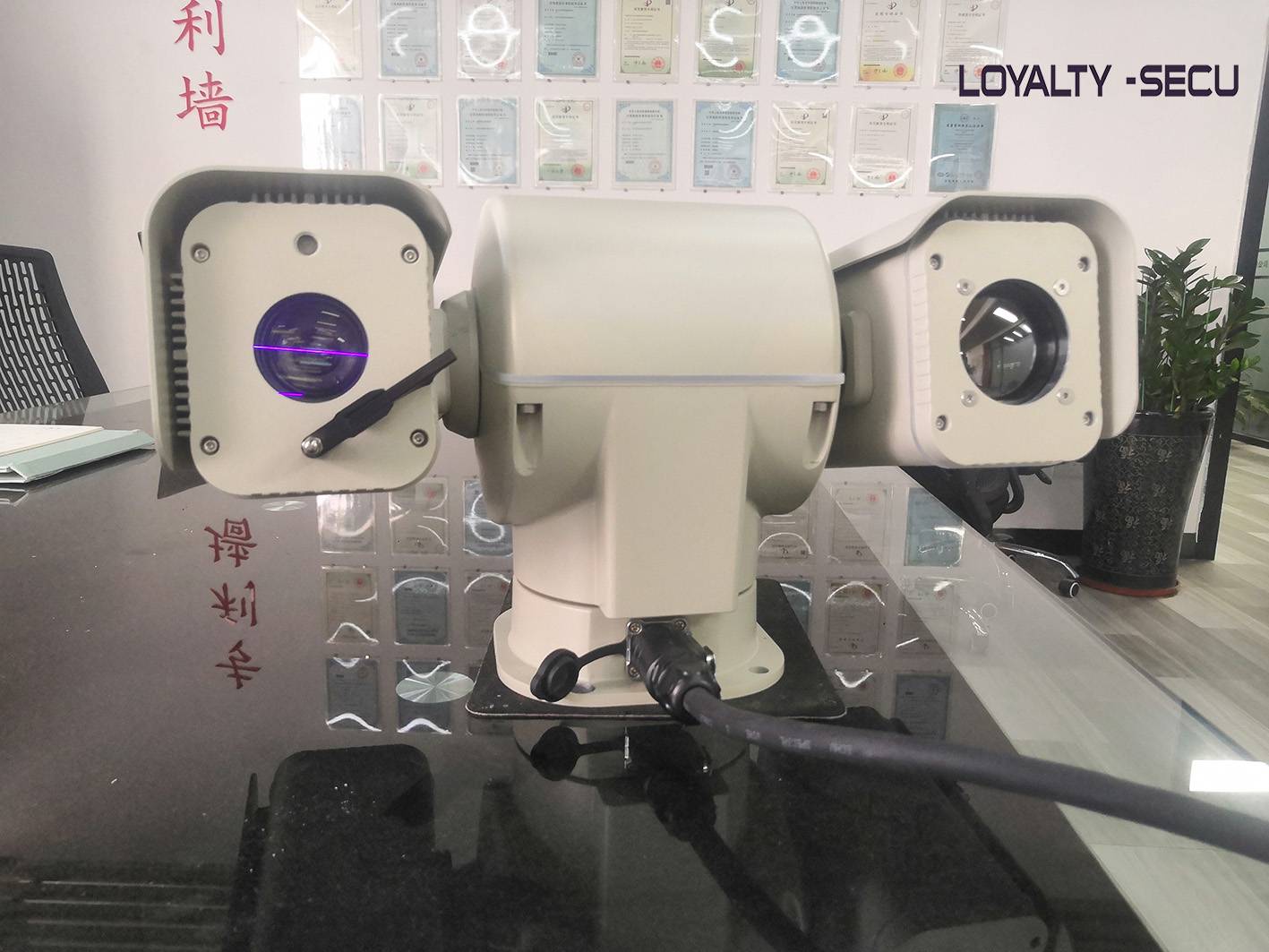

The LY-PN3502LN series Dual-Spectrum Integrated PTZ Camera is a high-performance camera specifically designed for special applications and long-range day/night surveillance.
The camera is built on the latest opto-mechatronics integration technology, including high-power semiconductor laser illumination, high-definition visible-light imaging, high-speed precision PTZ, edge computing (AI at the edge), and advanced outdoor protection technology. It ensures the device can operate in harsh night-time and outdoor environments while allowing users to “see far, see clearly, and understand”.
It features an all-in-one full HD color/black-and-white low-light imaging module. The compact and lightweight design provides significant convenience for installation. Equipped with a 360° full-range high-speed PTZ, it supports target search over distances of several kilometers. The embedded industrial-grade control system enables highly stable control of zoom, focus, mode switching, and PTZ pan/tilt operations.
The LY-PN3502LN series can optionally integrate edge computing functionality, enabling features such as area intrusion detection, multi-scene patrol, 3D box zoom/positioning, automatic target tracking, panoramic stitching, and radar linkage, achieving automated, unattended monitoring.
The camera housing is made of high-strength aluminum alloy, fully sealed, and meets IP67 protection standards. The surface is treated for anti-oxidation and salt-fog resistance. In addition, the robust thermal design ensures excellent heat dissipation for high-power components, allowing the device to operate reliably in harsh outdoor environments.
Demo Video
Laser Night Vision for Shipborne Monitoring
Laser Night Vision for Vehicle Monitoring
Main Features
33X Laser IR PTZ Camera Key Features:
*Laser Night Vision: Full-color HD monitoring during the day and black-and-white HD monitoring with infrared laser at night; supports fast target search over wide areas and clear observation of nearby targets.
* Near-Infrared High-Definition Lens: 33x optical zoom, 4.8–158mm.
* Motorized Optical Axis Adjustment: Easy correction of optical axis deviation.
* Laser Synchronized Zoom: Illumination area automatically matches the zoomed image.
* Adjustable Illumination Spot: Size and intensity can be stored and recalled for different scenarios.
* HPLM Laser Lens Module: Maintains optical axis alignment during zoom.
* FTIS & ATPC Multi-Protection: High-efficiency, precision power supply extends laser lifespan.
* Class A High-Power Fiber-Coupled Laser: Inert gas-sealed, robust thermal design, expected lifespan over 20,000 hours.
* Multi-Layer Infrared Anti-Reflection Coatings: Advanced lens homogenization technology, spot uniformity ≥95%.
* Electronic-Optical Triple Defog Function: Effective in sand, haze, fog, rain, and snow.
* Image Enhancement: Anti-shake, heat shimmer suppression, stable images under vibration, clear images under strong sunlight without crawling artifacts.
* Positioning Support: Absolute, relative, and geodetic coordinate positioning; compatible with radar and other detection devices to reduce system integration time.
* Radar Linkage: No autofocus delay, clear target images for easy tracking.
* Motion Target PID Prediction Algorithm: Optional video tracking integrates seamlessly with radar tracking to cover blind spots.
* Data Upload: Azimuth, field of view, focal length, and focus values can be uploaded proactively.
* Stepless Speed Control: Speed resolution 0.01°.
* Surge and Lightning Protection: Effective protection up to 2500VA.
* Intelligent Temperature Control: Variable-power heater, ultra-low temperature startup, automatic cooling fan.
* Housing Protection: IP67, optional nitrogen-sealed enclosure.
Specifications
Visible Light Specifications | |
Model | LY-PN3502LN |
Image Sensor | 2MP, 1/2.8″ low-light CMOS |
Lens | 33x optical zoom, 4.8–158mm, F1.5–F4.0 |
Minimum Illumination | Color: 0.001 Lux (F1.5), B/W: 0.0005 Lux (F1.5) |
Defog | Electronic + Optical Triple Defog |
Anti-Shake | Supports electronic stabilization, heat shimmer suppression; optical stabilization optional |
Image Processing | 3D intelligent noise reduction, strong light suppression, WDR, frame accumulation, backlight compensation |
Laser Specifications | |
Laser Type | Class A high-power fiber-coupled semiconductor laser, 808±nm wavelength, nitrogen-sealed, expected lifespan 20,000 hours |
Laser Output Power | 18W |
White-Light Laser (Optional) | 18W electrical power RGB white light, 4W net output, 500m illumination range |
Beam Homogenization | Lens homogenization technology, uniformity ≥95% |
Laser Lens | Focal length 2–80mm, HPLM laser lens module, optical axis remains aligned during zoom |
Laser Power Supply | FTIS & ATPC multi-protection, high-efficiency precision constant-current supply, delayed start, digital filtering |
Optical Axis Adjustment | Remote motorized optical axis calibration |
Beam Divergence Angle | 0.1°–48°, continuously adjustable, optional beam angle display and projection positioning |
Operational Specifications | |
Pan/Tilt Speed | Control speed: 0.01°/s–60°/s, preset speed: 100°/s |
Speed Levels | 64 levels, supports stepless speed (up to 10,000 levels) |
Rotation Range | Horizontal 360° continuous rotation, vertical +90° to –90° |
Presets | 255 presets (expandable to 10,000), power-off memory, no deviation after power cycle |
Positioning Accuracy | ±0.1° |
Positioning Function | Supports absolute, relative, and geodetic coordinate positioning |
3D Positioning | Supports box selection and zoom positioning |
Data Upload | Azimuth, field of view, focal length, and focus value query/upload or proactive upload |
Data Upload Protocol | Transparent channel, SDK protocol, high-precision interface protocol, compatible with mainstream coastal and border defense platforms |
Interface Specifications | |
Network Interface | 1×100M Ethernet port |
Serial Interface | 1×RS422 port |
Video Interface | Optional HD-SDI digital video, analog video |
Power Interface | Optional DC12V/DC24V/DC30V, max power 45W, 15W without heater |
Environmental Specifications | |
Manual Defog/Defrost | On/Off |
Operating Temperature | –40°C to +70°C |
Storage Temperature | –60°C to +90°C |
External Environment | Humidity ≤95% RH (non-condensing), suitable for 3500m altitude |
Temperature Control | Intelligent temperature control, variable-power heater, ultra-low temperature startup, automatic cooling fan |
Wind Resistance | Normal operation at 150 km/h wind, withstand up to 210 km/h |
Lightning & Surge Protection | Power interface 6000V, signal interface 2500V |
Protection Level | IP67 |
Airtightness | 48-hour pressure retention after high-pressure gas fill; optional nitrogen-sealed enclosure |
Dimensions (L×W×H) | 426 × 210 × 236 mm |
Weight | Net weight 8 kg |

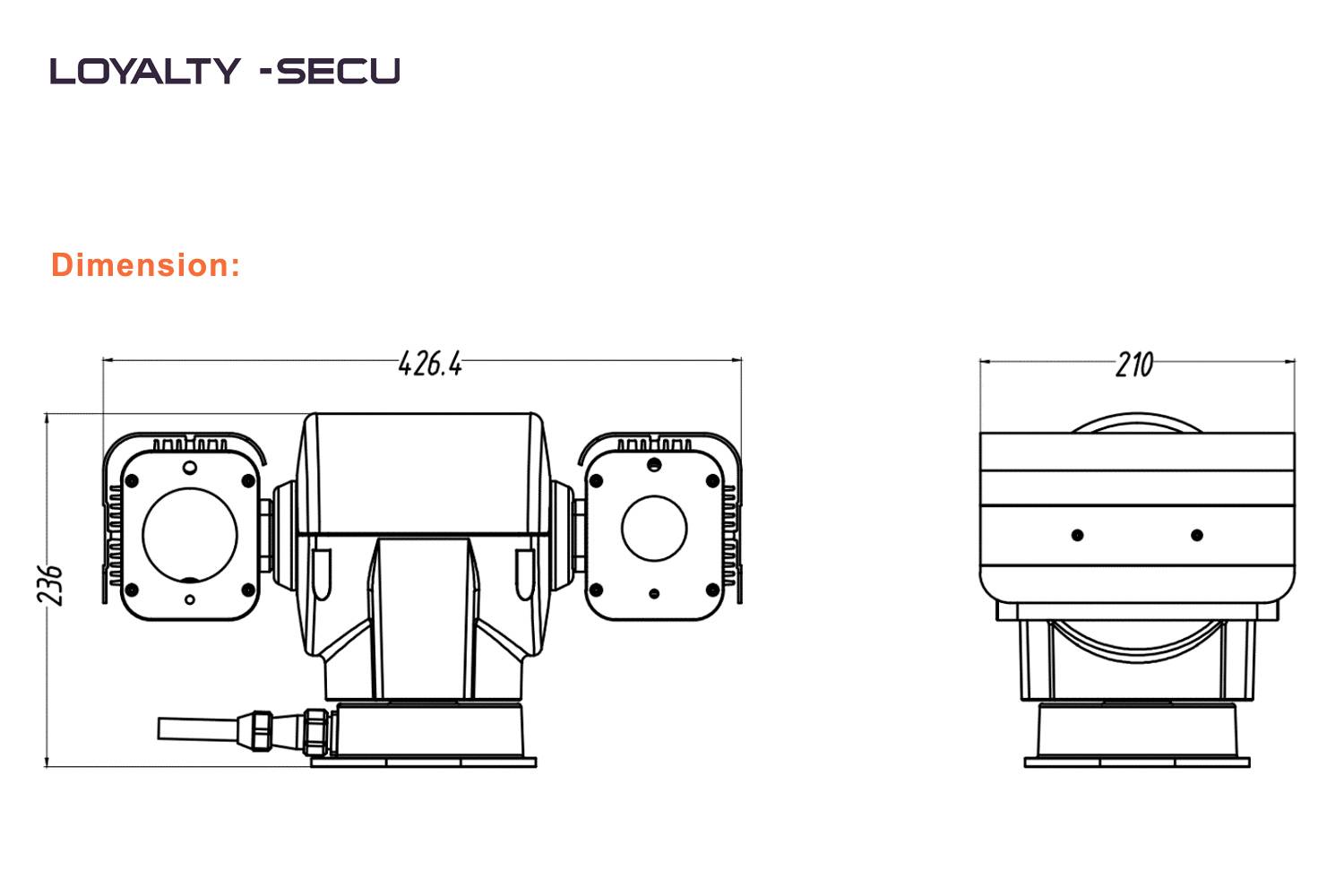

Dimensions
