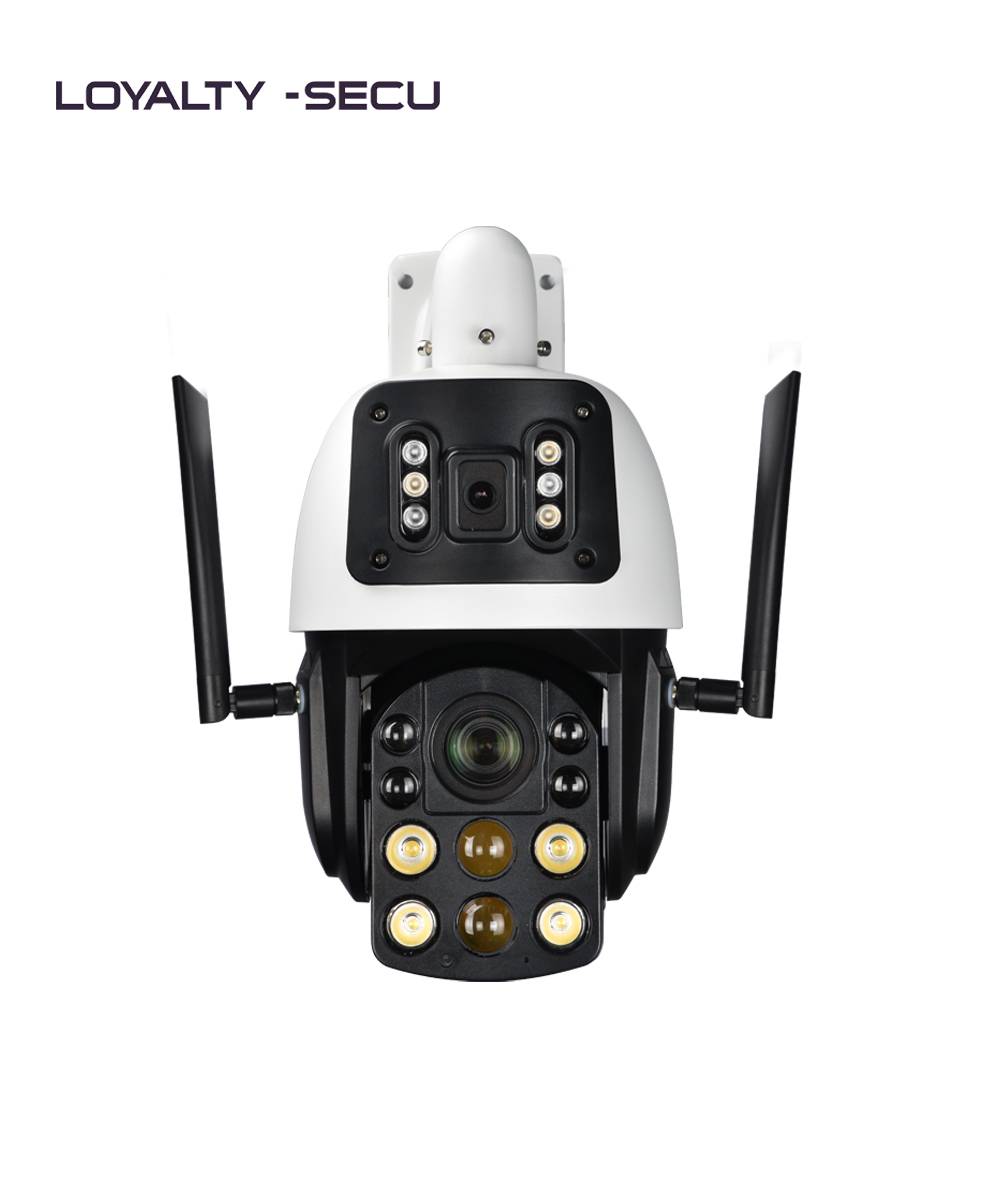

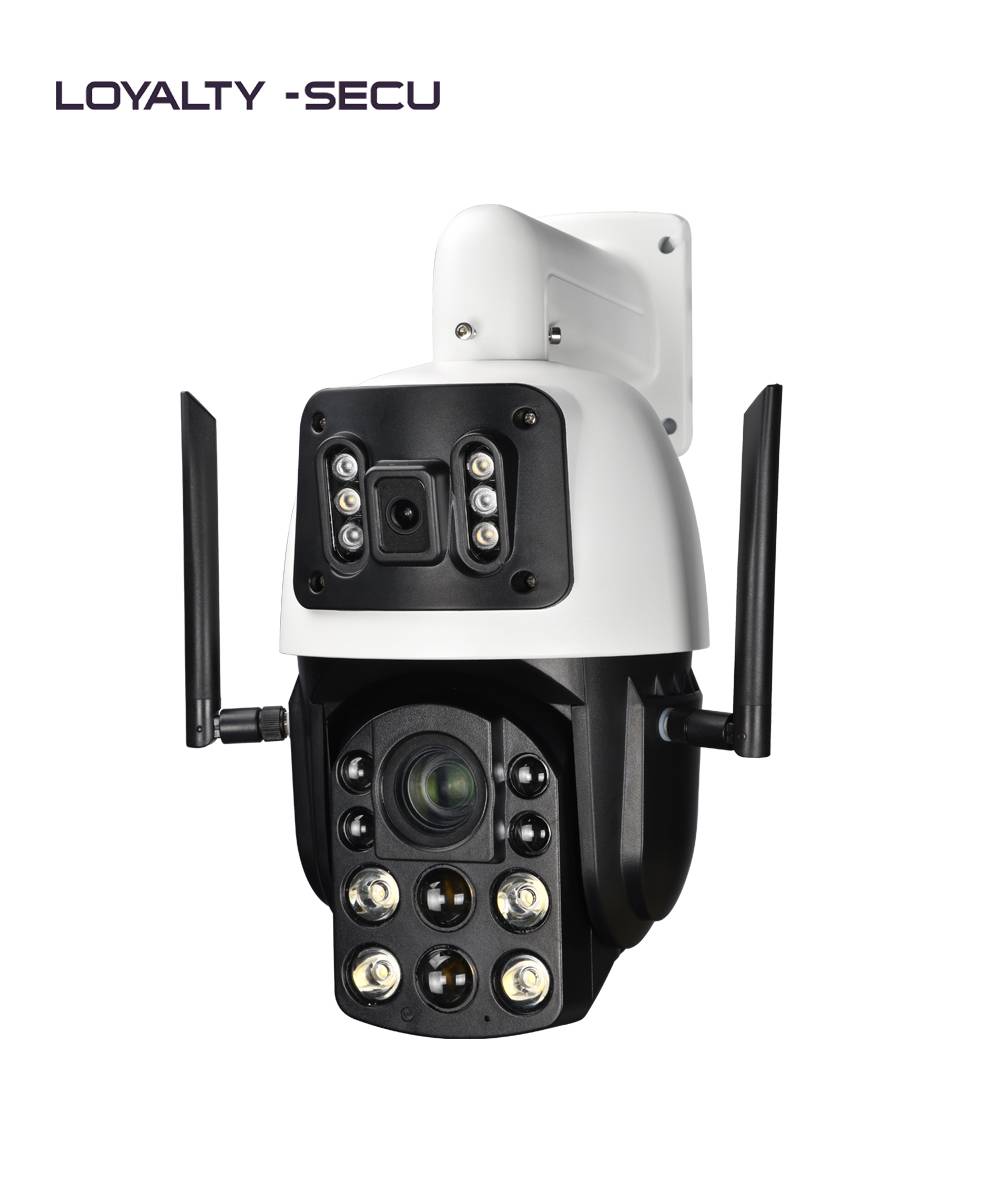

5-Inch Dual-Lens 3MP Wi-Fi PTZ Camera | Auto Tracking | Color & Infrared Night Vision | 18x Optical Zoom
1x 3MP Fixed Lens + 1x 3MP 350° 18X Zoom PTZ
Model: LY-AW5-318B
- 3MP Dual Lens WiFi PTZ Camera
- Camera Lens: 4MM Fixed Lens+ 18X Zoom Lens (5.6-99mm)
- With color night vision and infrared night vision, dual light mode,The infrared night vision work distance up to 100m.
- Supports preset point tracking, cruise tracking, and scan tracking
- Smart Linkage Tracking:The fixed-lens camera detects human intrusion or boundary crossing, then triggers the PTZ camera to rotate and zoom in for tracking. This ensures clear footage of the target for identification and evidence.
- 2 way Audio, works with Max 512GB TF Card
Overview
1x 3MP Fixed Lens+ 1x 3MP 350° 18X Zoom PTZ Smart Linkage Monitoring System
Demo Video
Main Features
2 In 1 Panoramic Smart Linkage Multi-Objects High Speed PTZ Camera
This 5-inch 3-megapixel dual-lens PTZ tracking camera combines powerful night vision, AI-based human detection, and smart tracking capabilities. Designed for demanding outdoor surveillance scenarios, it delivers ultra-clear video monitoring with reliable Wi-Fi connectivity and intelligent threat response.
3-Megapixel High-Resolution Imaging
Equipped with a 2304×1296 resolution sensor, the camera captures sharp, detailed images at up to 3 million pixels, delivering enhanced clarity for both day and night surveillance.
Advanced Night Vision with Multi-Light Array
Features 4 dual-light IR LEDs, 2 warm white LEDs, and 4 IR LEDs, providing effective night illumination over 100 meters.
Multiple Smart Tracking Modes
Supports preset point tracking, cruise tracking, and scan tracking to achieve seamless 360° area coverage.
Intelligent PTZ Linkage Tracking
The fixed-lens camera can be configured to detect human intrusion or boundary crossing across the full screen or within specified zones. Once a target is detected, the high-speed PTZ camera automatically rotates to the target’s location and zooms in for close-up tracking. This enables security personnel to clearly capture facial features and key details, providing reliable, high-quality video evidence for identification and post-event analysis.
Built-in Microphone and Speaker
Integrated audio system supports two-way communication and active deterrence.
AI Human Detection with Low False Alarm Rate
Powered by a high-performance chip and advanced algorithm to recognize human shapes and filter out irrelevant motion.
Smooth & Precise PTZ Control
Precision motors ensure fast, accurate, and stable movement of the camera for reliable real-time tracking.
Efficient Video Compression
Supports dual-streaming and H.265 compression technology with multi-level video quality adjustment, optimizing both bandwidth and storage.
Auto-Adaptive Lighting Control
Intelligent algorithm adjusts light brightness and angle based on zoom level and subject distance, ensuring optimal image quality.
Industrial-Grade Surge Protection
Built-in surge and lightning protection up to 4000V safeguards against power spikes and harsh weather.
High-Speed Wireless Connectivity
Supports Wi-Fi 6 (2.4GHz) with Bluetooth-assisted pairing; compatible with IEEE 802.11 b/g/n/ax standards for stable performance.
Panoramic Smart Linkage Multi-Objects PTZ Camera CMS
1x 3MP 80° Multi-sensor Panoramic 1x 3MP 350° PTZ Specification:
Model | LY-AW5-318B |
Camera Specification | |
Camera Sensor | 1/2.9″ CMOS |
Minimum Illumination | Color: 0.05Lux, (Black/White); 0.001Lux,0 Lux with IR |
3D Noise Reduction | Support |
WDR | Support |
Electronic Shutter | 1/1 ~ 1/10000s, AUTO |
Day/Night Mode | Dual Light: Color Night Vision (Starlight), Infrared |
Camera Lens | 4mm Fixed (Monitoring Angle: 80°) 5.6-99mm Lens, 18X Optical Zoom |
Camera Resolution | 3MP,2304×1296 |
Main Stream | 25fps: (2×2304×1296), (1920×1080), (1280×720) |
Sub Stream | 25fps: D1, VGA, 640×360 |
Video Format | H.265+/H.265/H.264 |
Network Protocols | HTTP,ONVIF,NTP,RTSP,TCP,DHCP |
APP | AC18 pro |
PC CMS | Support |
Local Storage | Max 512G |
PTZ Function | |
Illumination Distance | 100m |
Horizontal Range | 0° to 350° Continuous Rotation |
Vertical Range | -5°～90° |
Pan Speed | 0.1°～60°/s |
Tilt Speed
| 0.1°～60°/s |
Max Speed | 60°/s (Preset Position Adjustment Speed) |
Presets | 256 PCS |
Cruise Scan | 1 patrol route (supports up to 40 preset points with adjustable dwell time) |
Left-Right Scan | 1PCS |
Horizontal Scan | 1PCS |
Power-On Actions | Preset Position / Pan Scan / Cruise Scan |
Idle Action | Preset Position / Pan Scan / Cruise Scan |
Preset Position | 1PCS |
General info | |
Power Consumption | ＜20W |
Work Environment | Temp: -20～60℃; Humidity: ＜90% |
IP Grade | Built-in 4000V Surge, Lightning, and Spike Protection |
Camera Weight | 2.3KG |
Power Supply | DC 12V/2A |
