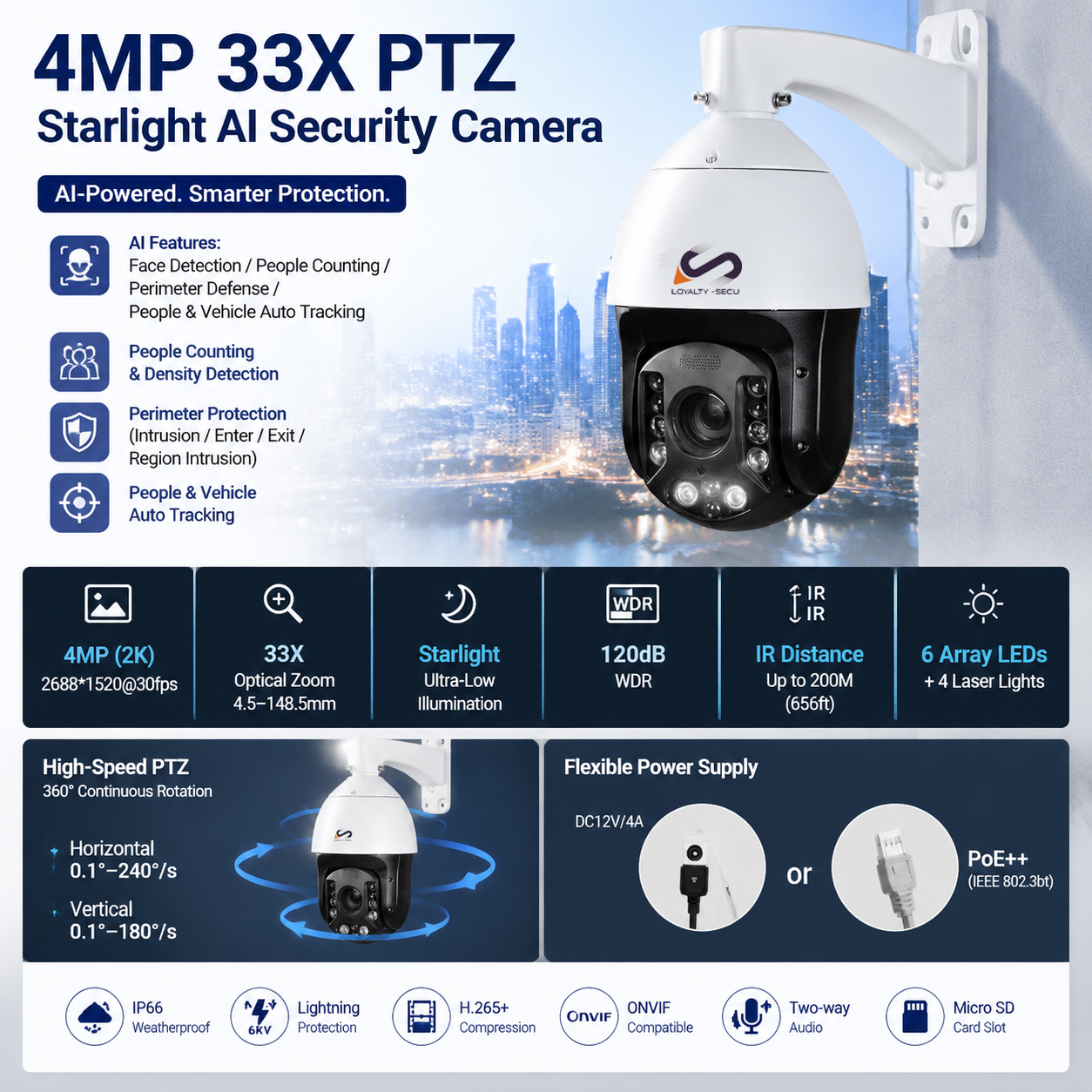

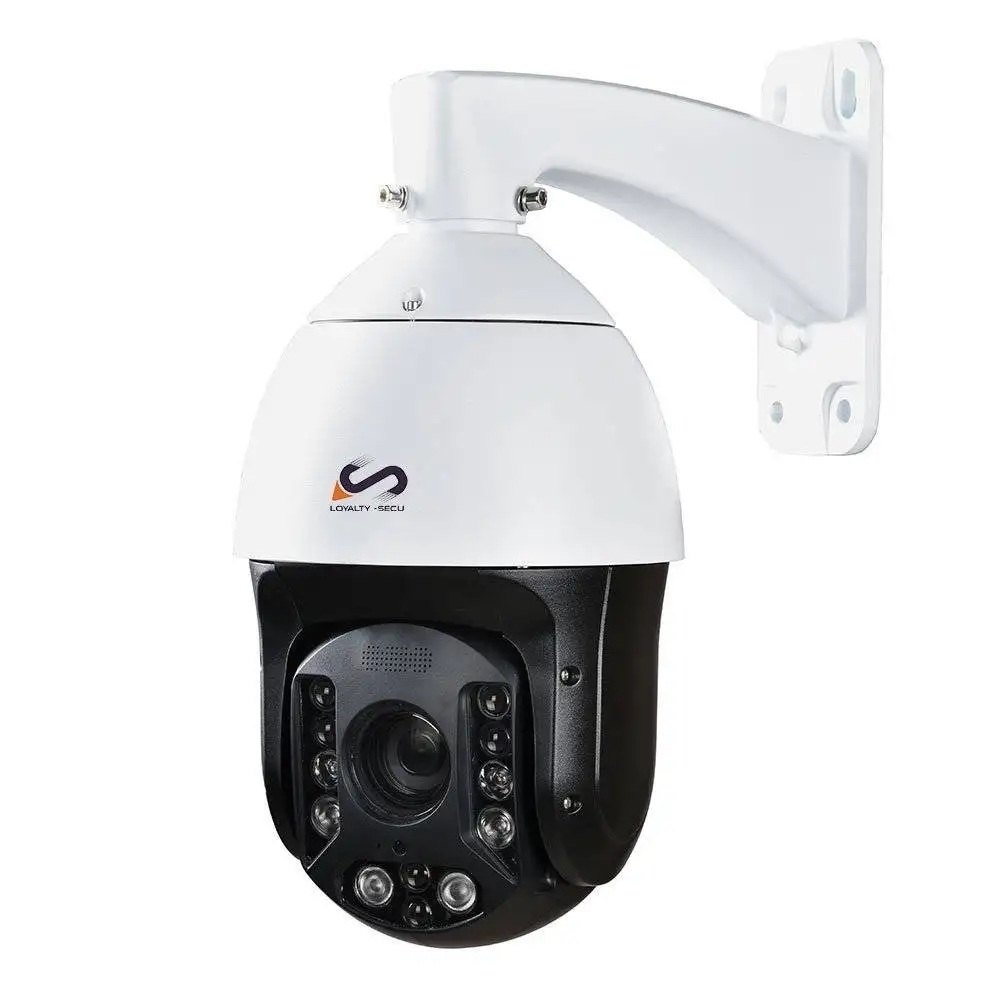

4MP AI Auto Tracking PTZ Camera | 33X Optical Zoom | 200M Laser IR Night Vision Outdoor Security Camera
Model: LY-U6-433P
- AI Features: Face Detection / People Counting / Perimeter Defense / People & Vehicle Auto Tracking
- 4MP (2688*1520@30fps), HD-IP (2K) Starlight Ultra-Low Illumination Camera
- Lens: 33X Optical Zoom, 4.5–148.5mm
- Starlight Illumination + 120dB WDR
- 6PCS Array LEDs + 4PCS Laser Lights, IR Distance up to 200M(656ft)
- Power Supply: DC12V/4A or PoE++ (IEEE 802.3bt)
- High-Speed PTZ: Horizontal 0.1°–240°/s, Vertical 0.1°–180°/s, 360° Continuous Rotation
- Two-Way Audio & Free APP: Guard Viewer
Overview
4MP Outdoor PTZ Security Camera | 33X Optical Zoom | AI Auto Tracking | H.265
The LOYALTY-SECU LY-U6-433P 4MP AI Auto Tracking PTZ Camera is a professional outdoor surveillance solution designed for long-range security monitoring applications. Equipped with advanced AI analytics, 33X optical zoom, 200M laser infrared night vision, starlight ultra-low illumination, and H.265 video compression technology, this AI PTZ Security Camera delivers reliable 24/7 monitoring performance in complex environments.
Supporting intelligent features such as face detection, people counting, perimeter protection, human & vehicle classification, and AI auto tracking, the LY-U6-433P is ideal for factories, warehouses, campuses, parking lots, farms, highways, construction sites, and other professional outdoor surveillance projects.
As a professional Outdoor PTZ Camera, the LY-U6-433P supports ONVIF compatibility, PoE++ power supply, and seamless integration with NVRs, VMS platforms, and third-party security systems.
Demo Video
Main Features
4MP 33X PTZ Camera Core AI Technical Features:
AI Intelligent Analytics & Auto Tracking
*Face Detection & Intelligent Snapshot
*People Counting & Crowd Density Analysis
*Perimeter Protection & Intrusion Detection
*Human & Vehicle Classification
*AI Auto Tracking for People, Vehicles, and Motorcycles
*Automatic Return to Preset Position After Tracking
Powered by advanced AI algorithms, the camera can quickly identify and lock onto moving targets for smarter and more efficient security monitoring.
4MP Starlight Ultra HD Surveillance
Excellent Low-Light Performance
*1/2.7″ Progressive Scan 4MP CMOS Sensor
*Resolution up to 2688×1520 @30fps
*Starlight Ultra-Low Illumination Technology
*120dB True WDR
*AI ISP Smart Noise Reduction
*Automatic Day/Night ICR Switching
The camera provides clear and stable video images even in low-light, backlight, and challenging outdoor environments.
33X Optical Zoom PTZ Camera
Long-Range Monitoring with High Image Clarity
*33X Optical Zoom Lens
*Focal Length: 4.5mm–148.5mm
*Fast & Accurate Auto Focus Algorithm
*Clear Long-Distance Target Monitoring
Perfect for large-area surveillance, perimeter protection, highways, industrial facilities, and remote outdoor monitoring applications.
200M Laser IR Night Vision
Professional Long-Distance Night Surveillance
*Built-in 6PCS High-Power Array IR LEDs
*Built-in 4PCS Laser IR Lights
*IR Distance up to 200 Meters
*Smart IR Brightness Adjustment
As a professional Long Range PTZ Camera, the LY-U6-433P delivers reliable monitoring performance even in complete darkness.
High-Speed PTZ Performance
Fast & Accurate Target Tracking
*Horizontal Speed: 0.1°–240°/s
*Vertical Speed: 0.1°–180°/s
*360° Continuous Rotation
*Smooth & Precise PTZ Movement
The high-speed PTZ system works seamlessly with AI auto tracking to quickly follow moving objects in real time.
H.265 Video Compression Technology
Lower Bandwidth & Storage Requirements
*H.265 / H.264 Video Compression
*SVC Scalable Video Coding
*Triple Stream Support
*ROI (Region of Interest) Enhancement
*Customizable OSD Display
The advanced compression technology reduces bandwidth and storage consumption while maintaining excellent image quality.
Intelligent Image Enhancement Technology
Stable Video Quality in Complex Environments
*Adaptive Defog Technology
*Heat Wave Reduction
*Electronic Image Stabilization (EIS)
*Strong Light Suppression
Designed to deliver stable and clear images in rain, fog, heat, backlight, and vehicle headlight environments.
ONVIF Compatible | PoE++ Power Supply
Easy Integration for Security Projects
*ONVIF Compatible
*GB/T28181 Protocol Support
*PoE++ (IEEE 802.3bt)
*Adaptive Network Transmission
*Stable Monitoring Under Packet Loss Conditions
Easily integrates with NVRs, VMS software, and third-party security management platforms.
Two-Way Audio & Remote Monitoring
Free Mobile APP for Remote Access
*Two-Way Audio Communication
*Free Guard Viewer APP
*Live Remote Viewing
*Remote Playback
*Real-Time Alarm Notifications
*Mobile PTZ Control
Users can remotely monitor and manage the surveillance system anytime and anywhere.

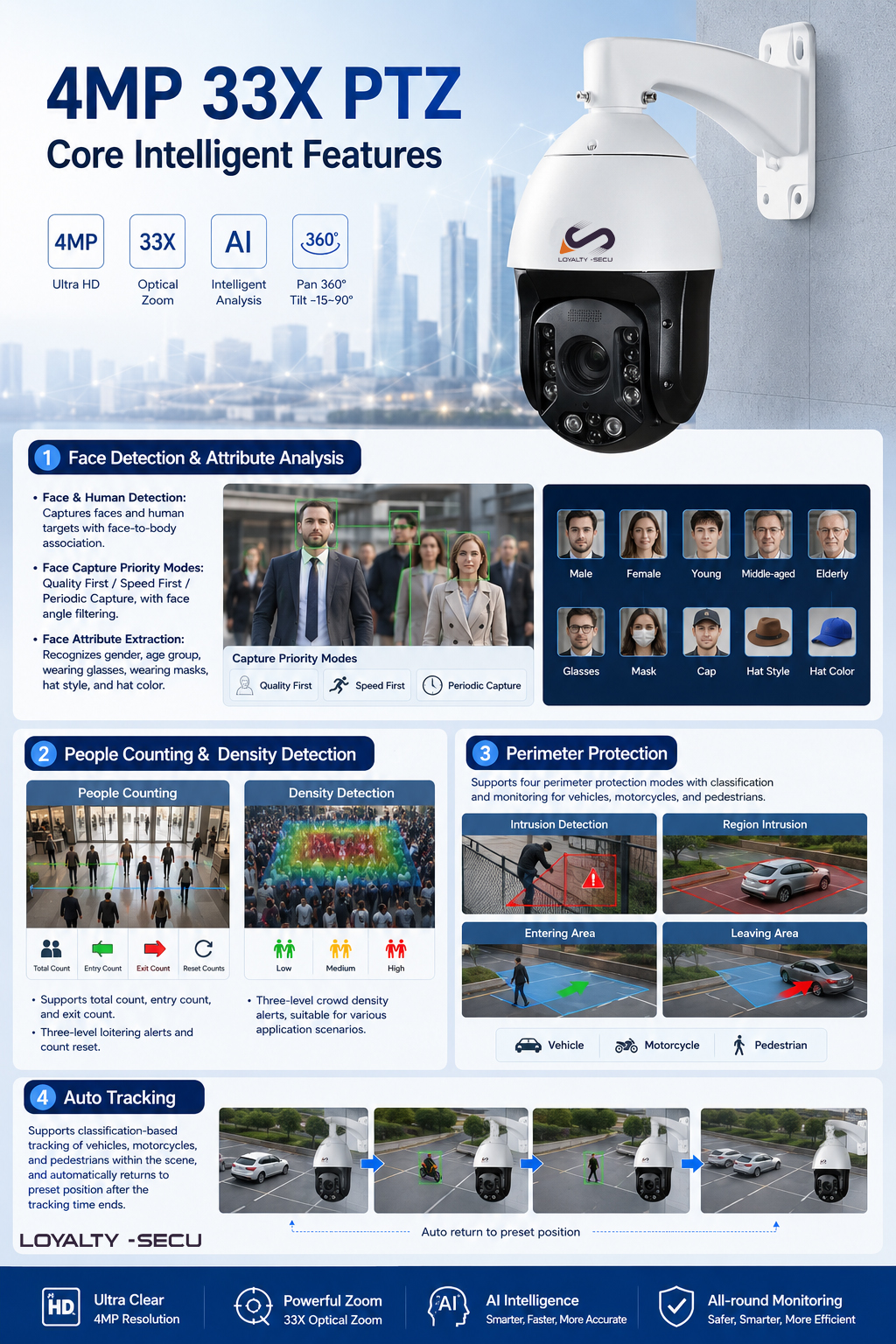

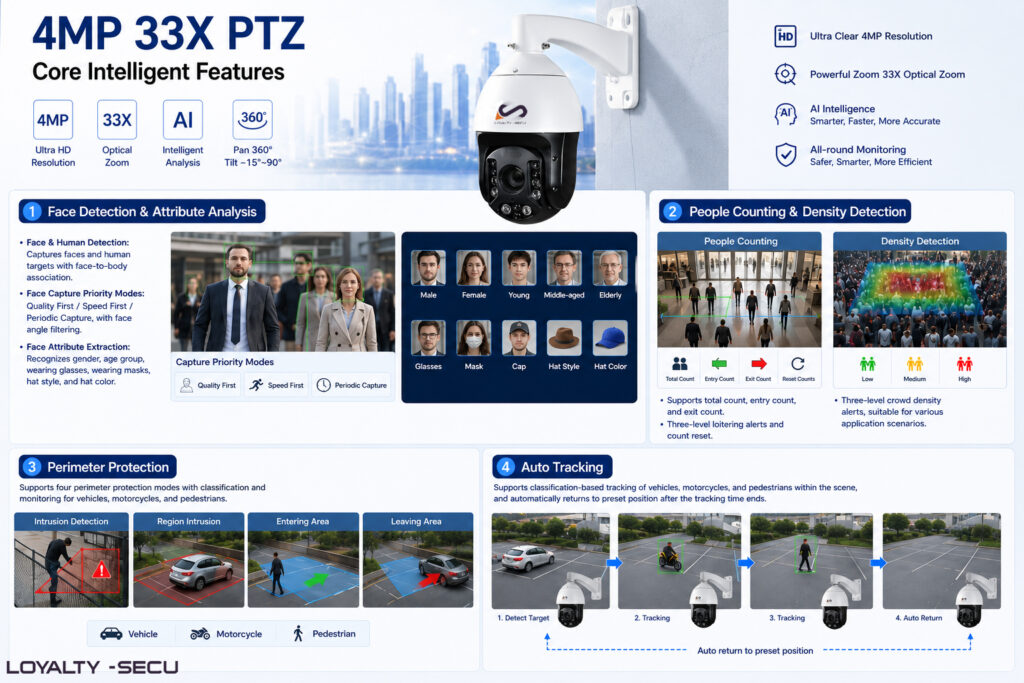

4MP 33X PTZ Core Intelligent Features
- Face Detection & Attribute Analysis
- Face & Human Detection: Supports capturing faces and human targets, with face-to-body association.
- Face Capture Priority Modes: Supports three modes – Quality First, Speed First, and Periodic Capture – automatically selecting the best images according to strategy, with face angle filtering.
- Face Attribute Extraction: Can recognize gender, age group, wearing glasses, wearing masks, hat style, and hat color.
- People Counting & Density Detection
- People Counting: Supports total count, entry count, and exit count, with three-level loitering alerts and the ability to reset counts.
- Density Detection: Supports three-level crowd density alerts, suitable for various application scenarios.
- Perimeter Protection
Supports four perimeter protection modes – intrusion detection, region intrusion, entering area, and leaving area – with classification and monitoring for vehicles, motorcycles, and pedestrians.
- Auto Tracking
Supports classification-based tracking of vehicles, motorcycles, and pedestrians within the scene, and automatically returns to preset position after the tracking time ends.
Ideal Applications
The LOYALTY-SECU LY-U6-433P AI Auto Tracking PTZ Camera is widely used for:
* Factory Security Monitoring
* Warehouse Surveillance
* Parking Lot Monitoring
* Farm & Ranch Monitoring
* School & Campus Security
* Construction Site Surveillance
* Highway Monitoring
* Perimeter Protection Projects
* Smart City Surveillance
* Unattended Area Monitoring
Features in Details
1. Auto Tracking
Humanoid Detection + Face Detection + Auto Tracking
The High-end 33X Pan Tilt Zoom Security Camera System supports Face Detection, Multi-behavior Detection, like, cross border detection, regional invasion, entering area, leaving area, wandering detection, rapid movement, personnel gathering, parking detection, items left behind, objects movement. It can auto-tracking the above objects once detection is triggered.
LOYALTY-SECU is keeping on improving the performance of AI, like, Face Detection, Multi-behavior Detection and Auto-Tracking to reduce false alarms, make the real push notification to be sent to your phone app or your mailbox!
In order to track the target in motion and keep it in the scene all the time, our 360 Uniview Solution PTZ Security Camera can control the pan/tilt/zoom actions accurately. Once detection is triggered, the camera can zoom in and then track the target automatically.
2. Dual Audio Solution
Uniview Solution Auto Tracking PTZ comes with built-in mic & speaker allows users to speak with anyone on the camera’s end through smartphone app with warning decal for compliance purpose.

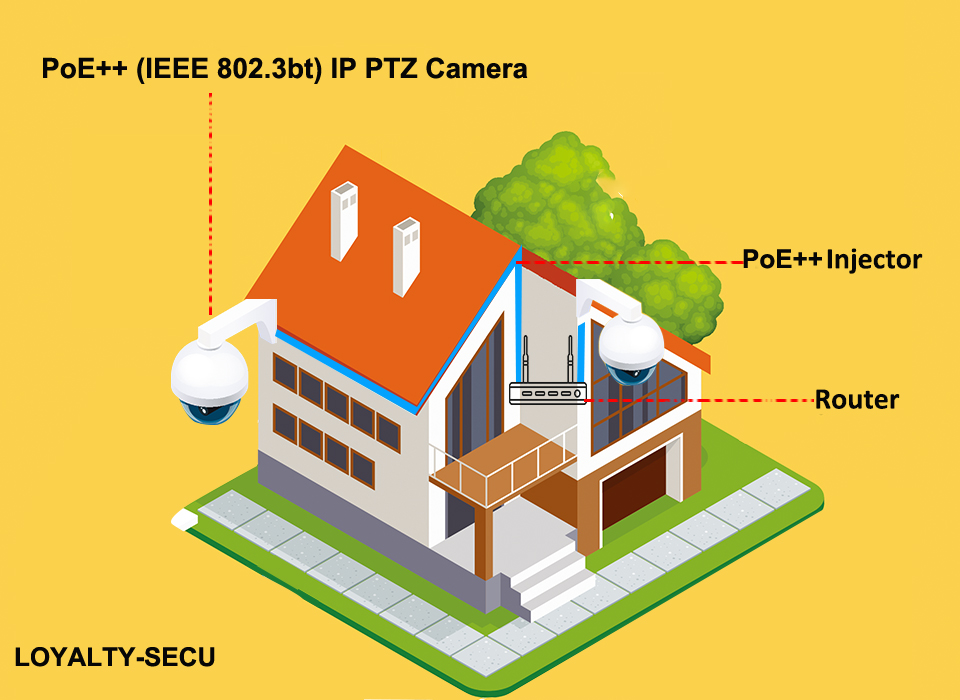

This H.265 4MP 33X POE PTZ IP Camera with built-in POE++(IEEE802.3bt) 60W, comes with a standard 65w super POE injector, and the POE transmission distance up to 150M
12VDC 4A (if using the optional power adapter). Higher voltage will damage the unit.
Remotely watch live view & playback and control PTZ/Preset through Guard Viewer app (iOS & Android) with motion detection snapshot stored in cloud server. Cloud platform registration required to enable push notification.
5.Protect Your Property at Night
Your property will be covered by the superior night vision of LOYALTY-SECU 4MP 33X Panoramic Security Camera with 6pcs OSRAM IR Array LEDs+4pcs Laser LEDs. The infrared illumination distance can reach up to 200m(565ft) depending on the scene.
6.Smart Automatically Patrol
Support preset cruise points, time and speed-patrol in the monitoring zone you cared!
Patrol: Up to 4 patrol groups.
Preset: 10 presets per patrol group
Patrol time: Adjustable
Our HD IR Network Speed Dome Camera supports “Cruise” and “Auto Tracking” simultaneously!
Secure your cares through both Cruise and Auto Tracking
i.When there is no human movement detected, the PTZ security camera will cruise according to your preset trajectory.
ii.When there is human detection, this network security camera will auto tracking the human until the human disappears in the field of view. Then it will resume cruise.
7. Waterproof IP66 & 6000V Thunder-proof
The PAN Tilt Outdoor Security Camera is equipped with an IP66 rated weatherproof metal shell and supports 6000V Thunder-proof, designed to operate the security PTZ camera even in some real extreme weather conditions.
8.Support Local storage and playback
The 4MP 33X IP Face Recognition Camera supports micro SD card up to 256GB. Insert a micro SD card, and then it is a competed remote home security system. When the SD card is full, the new recordings will overwrite the old ones, it can make sure the recording of security camera working normally all the time. Meanwhile you can play videos via your mobile phone APP directly.
9.Intelligent 120dB WDR Function& Real Color
With true WDR technology, it can produce images of good clarity even under varying light conditions by using different shutter speeds to allow more light in some darker areas of the image and less light in others brighter. The sensor’s exposure to light-receiving from the exterior environment is controlled to achieve a compensated vision.
Why Choose LOYALTY-SECU LY-U6-433P AI PTZ Camera?
Compared with traditional PTZ cameras, the LY-U6-433P provides more advanced AI analytics, longer night vision distance, faster auto tracking response, and more stable outdoor monitoring performance.
Featuring starlight imaging technology, 200M laser infrared night vision, 33X optical zoom, ONVIF compatibility, and intelligent AI functions, this AI PTZ Security Camera is an ideal choice for professional security projects, system integration, and long-range surveillance applications.
If you are looking for:
* AI PTZ Camera
* Auto Tracking PTZ Camera
* Outdoor PTZ Security Camera
* Long Range PTZ Camera
* Laser IR PTZ Camera
* ONVIF PTZ Camera
* PoE PTZ Security Camera
The LOYALTY-SECU LY-U6-433P will be an excellent solution for your surveillance projects.
4MP 33X POE PTZ Camera Datasheet
Camera | |
Model | LY-U6-433P |
Camera Solution | Uniview Solution |
Sensor | 1/2.7″ Progressive Scan 4MP CMOS Image Sensor |
Minimum Illumination | 0.003 lux (F1.65, AGC ON, Color) 0.002 lux (F1.65, AGC ON, B/W) |
Storage Space | Max Support 512GB Micro SD card |
Aperture | F1.65 (W) – F4.7 (T) |
Electronic Shutter | Auto/Manual, 1 – 1/100,000 s |
Defog | Adaptive Defog |
S/N Ratio | >56 dB |
WDR | 120db |
Day Night Mode | Auto / Day / Night / Trigger Control |
Focal Length: | 4.5-148.5mm, 33X Optical Zoom |
Zoom Speed | Approx.4s(Optical Wide~Tele) |
Angle of View: | 55.4-2.9°(Wide-Tele) |
3D Positioning | Support |
Image Stabilization | Support |
Resolution | 2688*1520@30fps |
Video Streams | * Main Stream: 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 (720P), 720×576 (D1), 640×360, 704×288 (2CIF), 352×288 (CIF) * Sub Stream: 1920×1080, 1280×720 (720P), 720×576 (D1), 640×360, 704×288 (2CIF), 352×288 (CIF) * Third Stream: 720×576 (D1), 640×360, 704×288 (2CIF), 352×288 (CIF) |
Video Bitrate | 128 Kbps – 16 Mbps |
Video Compression | H.265/H.264/MJPEG |
OSD | Time, PTZ coordinates, Zoom level, Preset positions, Serial port OSD, People counting, Network OSD, Image OSD, Ambient sound level, Device latitude & longitude, etc. |
Privacy Masking | Black style and Mosaic style; single-scene up to 8 masks, multi-scene up to 24 masks |
ROI | 8 regions |
Snapshot Capture | Scheduled snapshot, periodic snapshot, cruise preset snapshot, manual snapshot |
Maximum Snapshot Resolution | 2688×1520 |
Audio Encoding Format | G.711μ (G.711U), G.711A |
Audio Sampling Rate | G.711μ / G.711A: 8 kHz / 16 kHz |
Network Protocol | L2TP, IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP |
Compatibility & Integration | ONVIF Profile G / Profile T / Profile S, GB/T28181, GA/T 1400, API |
4MP 33X PTZ Core Intelligent Features | |
Face Detection & Attribute Analysis | 1.Face & Human Detection: Supports capturing faces and human targets, with face-to-body association. 2.Face Capture Priority Modes: Supports three modes – Quality First, Speed First, and Periodic Capture – automatically selecting the best images according to strategy, with face angle filtering. 3.Face Attribute Extraction: Can recognize gender, age group, wearing glasses, wearing masks, hat style, and hat color. |
People Counting & Density Detection | 1.People Counting: Supports total count, entry count, and exit count, with three-level loitering alerts and the ability to reset counts. 2.Density Detection: Supports three-level crowd density alerts, suitable for various application scenarios. |
Perimeter Protection | Supports four perimeter protection modes – intrusion detection, region intrusion, entering area, and leaving area – with classification and monitoring for vehicles, motorcycles, and pedestrians. |
Auto Tracking | Supports classification-based tracking of vehicles, motorcycles, and pedestrians within the scene, and automatically returns to preset position after the tracking time ends. |
APP | Guard Viewer |
PTZ Control | |
IR Distance | 200m(656ft) |
LEDs | 6pcs OSRAM IR Array LEDs + 4pcs Laser LEDs |
Horizontal Range | 0°～360° continuously |
Vertical Range | -5°～90° |
Vertical/Horizontal Speed | 0.05°～240°/s |
Max Speed | 240°/S |
Preset | 256 |
Patrol Scan | 4groups(10 preset for each) |
L/R Scan | 1group |
Horizontal Scan | 1group |
Power-off Memory | Support |
PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
Watch Position | Support |
Wide Angle Speed Limit | Focus / speed automatic matching function |
General | |
POE Supply Voltage | DC48V |
POE Supply Pin | 1,2(+) 3,6(-) / 4,5(+) 7,8(-) Auto adapting |
Power Supply | DC12V/4A or PoE++, |
Consumption | <35W |
Mounting | Wall mounting or lifting |
Work Environment | Temperature : -20～60℃; Humidity＜90% |
Protection Level | IP66 waterproof, 6000V lightning protection |
GW(KG) | 4.6KG |

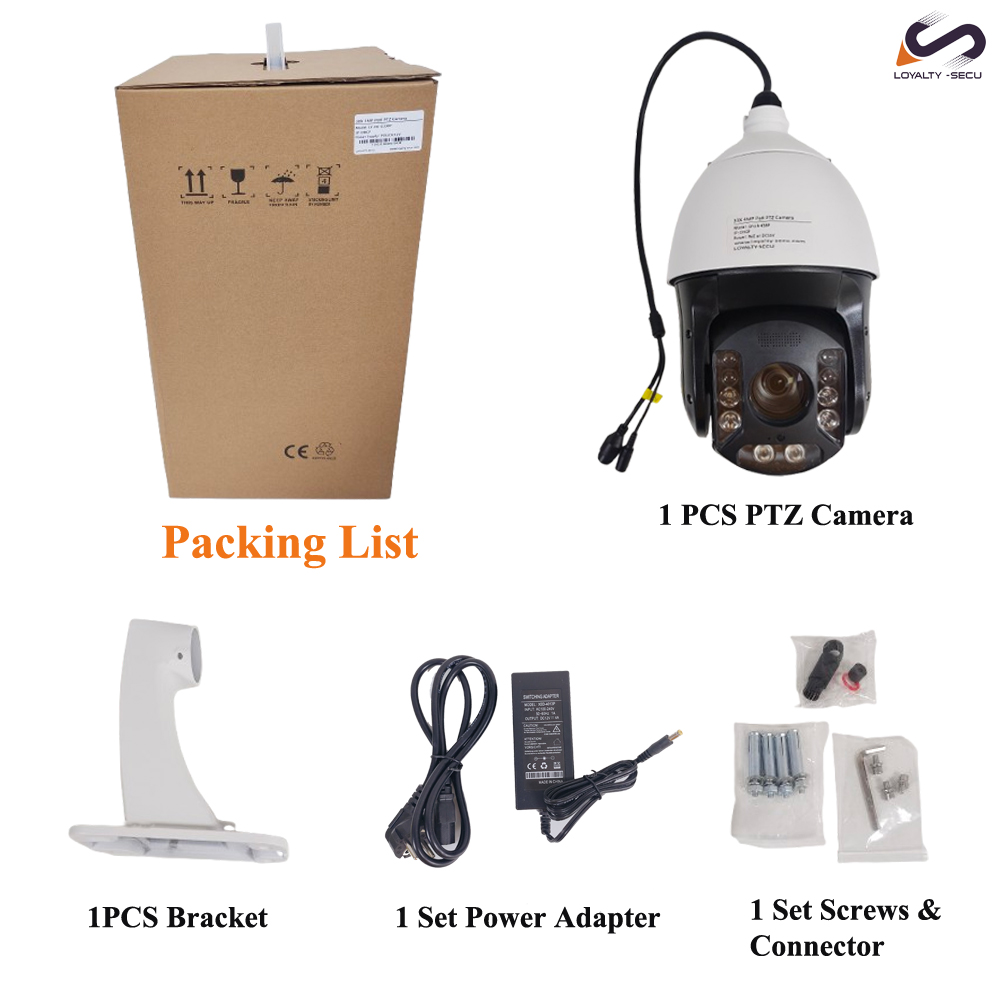

What's Included?
Manual, Camera, Wall Bracket (default), a 65W PoE injector and installation screws.

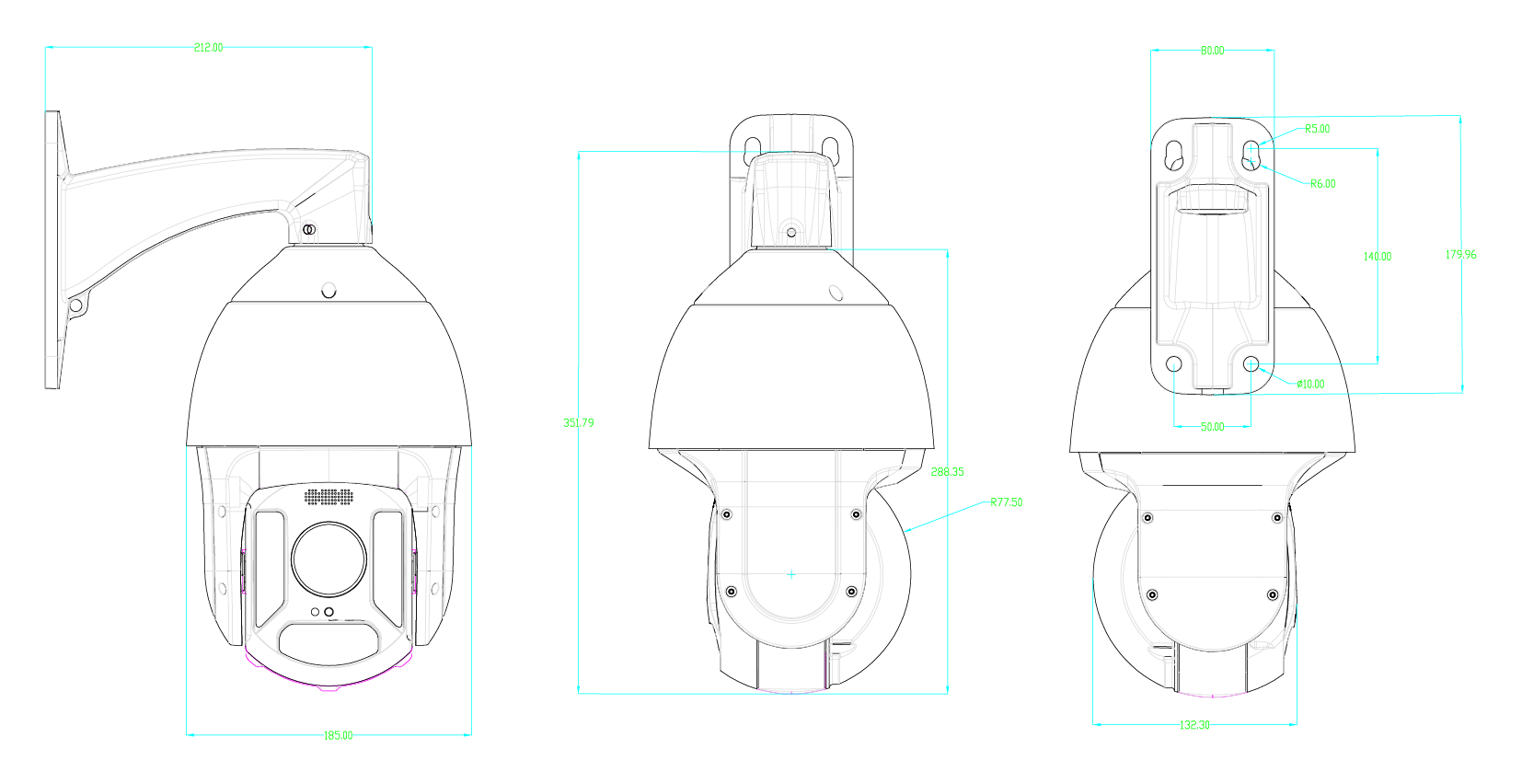

Dimensions
