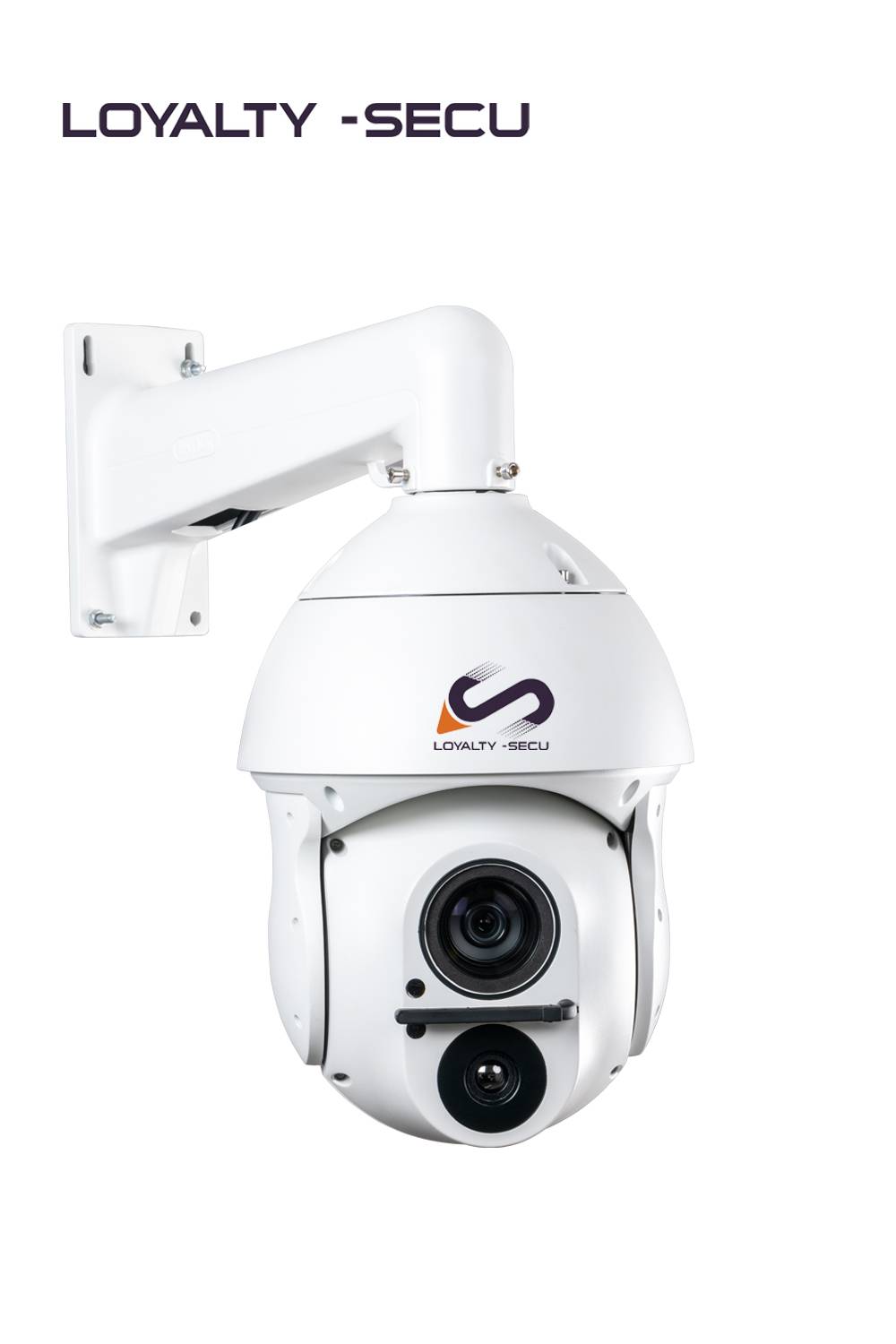

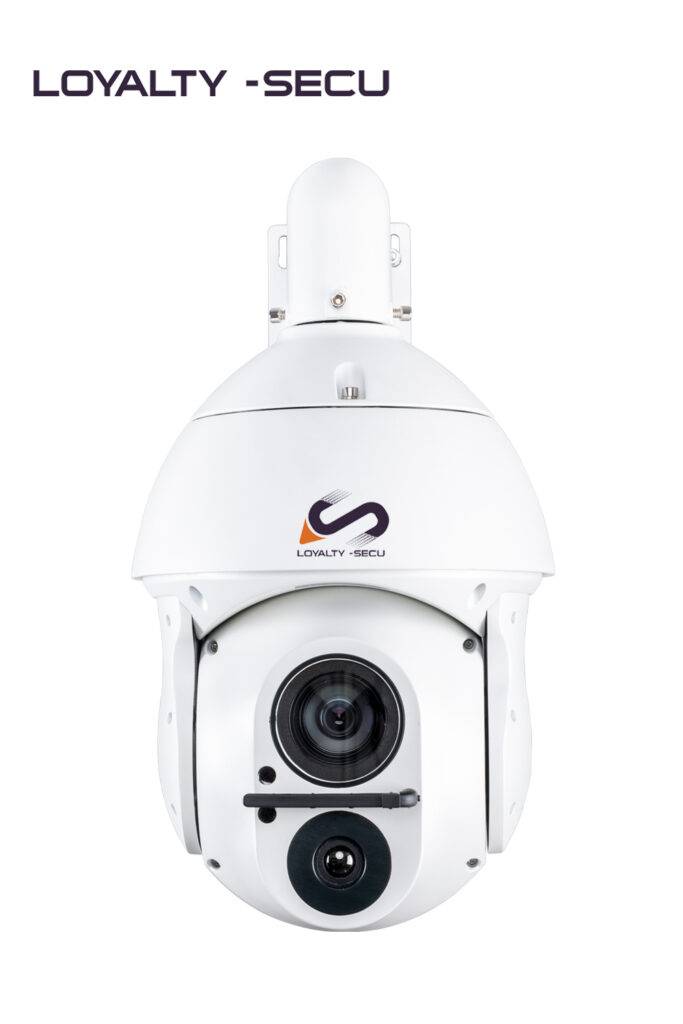

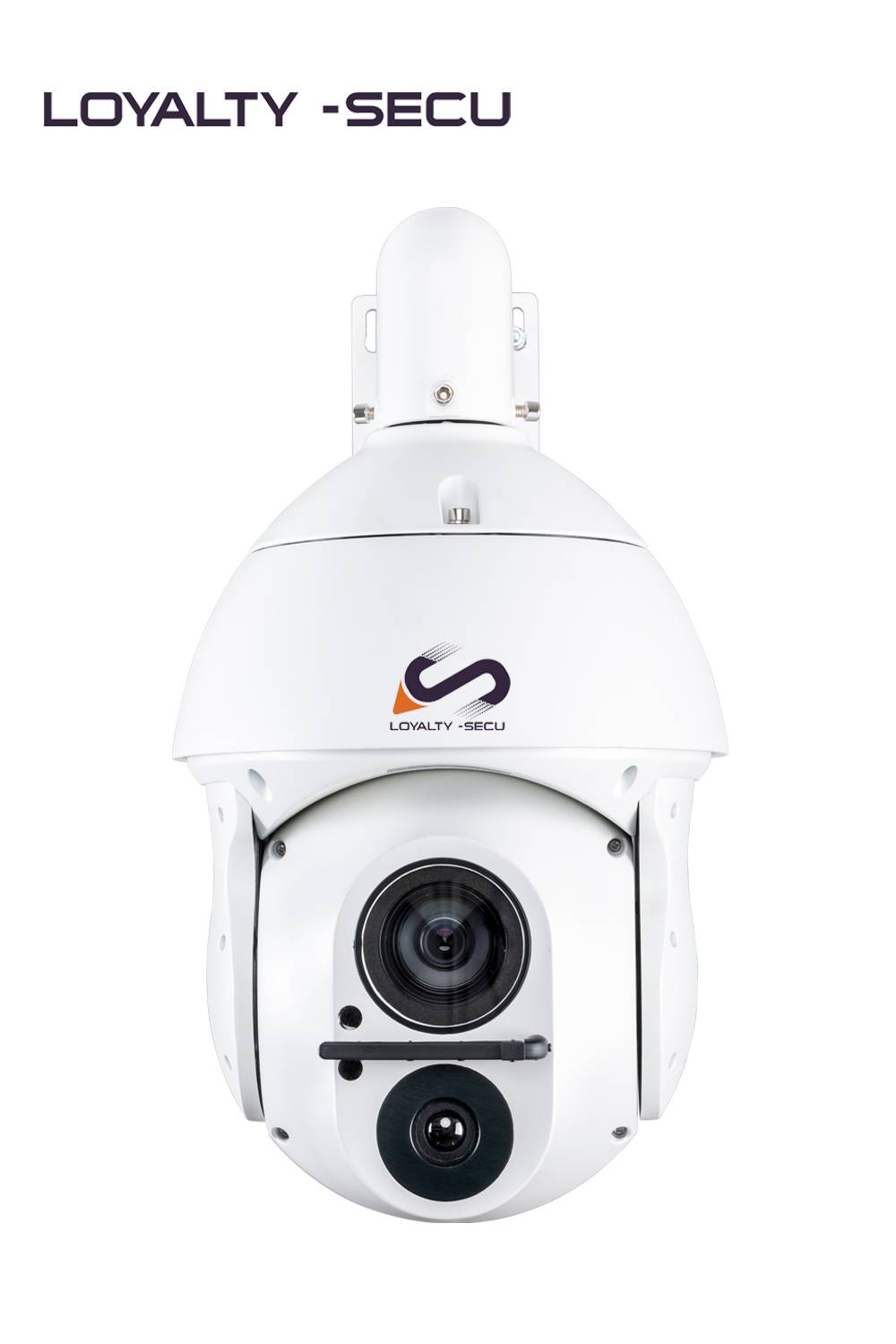

4MP 38X Laser IR PTZ Camera | 800M Night Vision | 8 Inch Starlight High-Speed Dome
4MP 38X IR 800M PTZ Camera
Model: LY-LU8-4038
- 4MP HD-IP Camera (2688×1520 @ 60fps)
Equipped with a 1/1.8″ CMOS starlight sensor for superior low-light performance. - Ultra-Fast PTZ Control
High-speed pan/tilt movement at up to 240°/s for rapid and precise positioning. - 38X Optical Zoom Lens (6–228mm)
Capture distant details with ultra-long-range, high-precision zoom. - Laser IR Night Vision – Up to 800m
Smart IR adjustment for near/mid/far ranges ensures crystal-clear imaging day and night. - Advanced AI Detection
Includes face recognition, people counting, perimeter protection, and target classification. - Versatile I/O & Protocol Support
Supports audio, alarm I/O, CVBS output, and ONVIF for seamless integration. - Industrial-Grade Surge Protection
Built-in 8000V surge protection ensures long-term stability and reliability.
Overview
4MP 38X Zoom IR 800M PTZ Camera
LOYALTY-SECU 8-Inch 4MP Laser IR PTZ Dome Camera is built for mission-critical surveillance in large-scale environments like borders, highways, industrial zones, and public safety areas. Featuring an 800-meter laser infrared night vision, 38X optical zoom, and a starlight-grade 4MP sensor, this camera delivers uncompromising image quality under any lighting condition.
Engineered with smart AI capabilities, it supports real-time face detection & comparison, people counting, and perimeter defense, ensuring accurate monitoring and intelligent alerts. With ONVIF compliance, full-function I/O support, 5A auto-optimization, and lightning protection up to 8000V, this PTZ system offers unmatched reliability, precision, and intelligence in a compact, high-speed dome form factor.
Demo Video
Main Features
4MP 38X Zoom Laser IR 800M AI PTZ Camera
Imaging & Zoom Performance
• 4MP CMOS Sensor with high efficiency encoding delivers crystal-clear, dynamic image quality.
• 38X Synchronous Laser Zoom (6–228mm) with intelligent IR switching for long/mid/short range—up to 800 meters night vision.
• 5A Smart Adjustment: Auto white balance, focus, exposure, noise reduction, and contrast enhancement for optimal imaging.
• Advanced IR Optimization: Infrared and zoom coordination algorithm based on distance, brightness, and angle for best clarity.
________________________________________
🤖 AI Video Analytics
• Face Detection:
• Up to 120 simultaneous face detections
• Supports three capture modes: effect-priority, speed-priority, cycle optimization
• Face & body association with attribute extraction:
▫ Face: Gender, age group, glasses, mask, hat style/color
▫ Body: Clothing color/style/texture, mask, posture, hairstyle, shoes, direction, bags
• Face detection masking supported
• Facial Recognition:
• Up to 16 face databases, with 100,000 face image capacity
• People Counting & Crowd Monitoring:
• Real-time in/out flow statistics
• Three-level alarm for crowd density and stranded individuals
• Support manual or scheduled counter reset
• Perimeter Protection & Target Classification:
• Intelligent detection of:
▫ Cross-line intrusion
▫ Area entrance/exit
▫ Region-based intrusion
• Accurate classification and tracking of vehicles, non-motor vehicles, and pedestrians
________________________________________
⚙️ System & Protocol
• High-Precision PTZ Motor: Smooth rotation and stable control for accurate tracking.
* Triple-stream Encoding Supported with H.265, H.264, and MJPEG compression for flexible and efficient bandwidth usage.
• ONVIF & UNIVIEW Protocol Compatible for seamless integration with NVRs and VMS platforms.
________________________________________
⚡ Industrial-Grade Protection
• Built-in 8000V surge & lightning protection for outdoor durability and long-term reliability.
4MP 38X PTZ Camera Specification
Model | LY-LU8-4038 |
Camera | |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Minimum Illumination | 0.0003lux (F1.2, AGC ON, Color); 0.0001lux (F1.2, AGC ON, B/W) |
3D NDR | Support |
WDR | 120DB |
Electronic Shutter | 1s—1/10000s, AUTO |
Day Night Mode | AUTO ICR Color to B/W |
Focal Length | 6- 228mm,38X Optical Zoom, (F1.2 to F4.6) |
Anti-shake | Gyroscope stabilization |
Penetrating fog | Optical fog transmission |
Resolution | 2688(H)x1520(V) |
Maximum Frame Rate | 60FPS |
Mainstream | 2688*1520,2560*1440,1920*1080,1280*720,640*360,720*576(D1),704*288(2CIF), 352*288(CIF) |
Sub Stream | 1920*1080,1280*720,640*360,720*576(D1),704*288 (2CIF),352*288(CIF) |
3rd Stream | 640*360,720*576(D1),704*288(2CIF),352*288(CIF) |
Video Bitrate | 128Kbps~16Mbps |
Video Coding | H.265, H.264, MJPEG |
Network Protocol | L2TP, IPv4, IPv6, IGMP, ICMP,ARP,TCP, UDP,DHCP,RTP,RTSP,RTMP, DNS,DDNS, DNTP, FTP, UPnP, HTTP, SNMP,SIP |
Interface Protocol | ONVIF(PROFILE S,PROFILE G,PROFILE T) GB/T28181,GA/T 1400,API |
Snapshot | Scheduled snapshot, periodic snapshot, preset position snapshot, intelligent snapshot |
AI Functions | |
Face Detection | *Supports up to 120 concurrent face detections, suitable for high-density scenarios. *Offers three facial capture optimization modes: effect priority, speed priority, and cycle optimization, with facial angle filtering to enhance accuracy. *Supports face and human body capture correlation, enabling extraction of both facial and body attributes. Facial attributes include gender, age group, wearing glasses, wearing masks, hat style, and hat color. *Supports customizable face detection area blocking for flexible application scenarios. |
Facial Comparison | * Supports up to 16 facial recognition databases for versatile multi-scenario management. * Each database can store up to 100,000 facial images, ensuring large-scale facial data capacity. |
People Counting | * Human Traffic Statistics: * Personnel Density Detection: |
Perimeter Defense | *Supports cross-boundary detection, area intrusion, entry, and exit monitoring. *Enables classification, detection, capture, and protection of motor vehicles, non-motor vehicles, and pedestrian targets. |
PTZ Control | |
IR Distance | 800m |
Horizontal Range | 0°～360° continuously |
Vertical Range | -15°～90° |
Horizontal Speed | 0.05°～240°/s |
Vertical Speed | 0.05°～180°/s |
Max Speed | 240°/S |
Preset | 256 |
Patrol Scan | support |
L/R Scan | 1pcs |
Horizontal Scan | 1pcs |
Power-off Memory | Support |
PARK Action | Watch position/ Area Scan /Horizontal 360°scan/ Cruise |
Watch Position | Support |
Wide Angle Speed Limit | Focus / speed automatic matching function |
General | |
Power | DC12V-5A |
Consumption | ＜40W |
Mounting | Wall mounting or lifting |
Work Environment | Temperature : -20～60℃; Humidity＜90% |
Protection Level | IP66 waterproof, 8000V lightning protection |
Camera GW | 7.1KG |

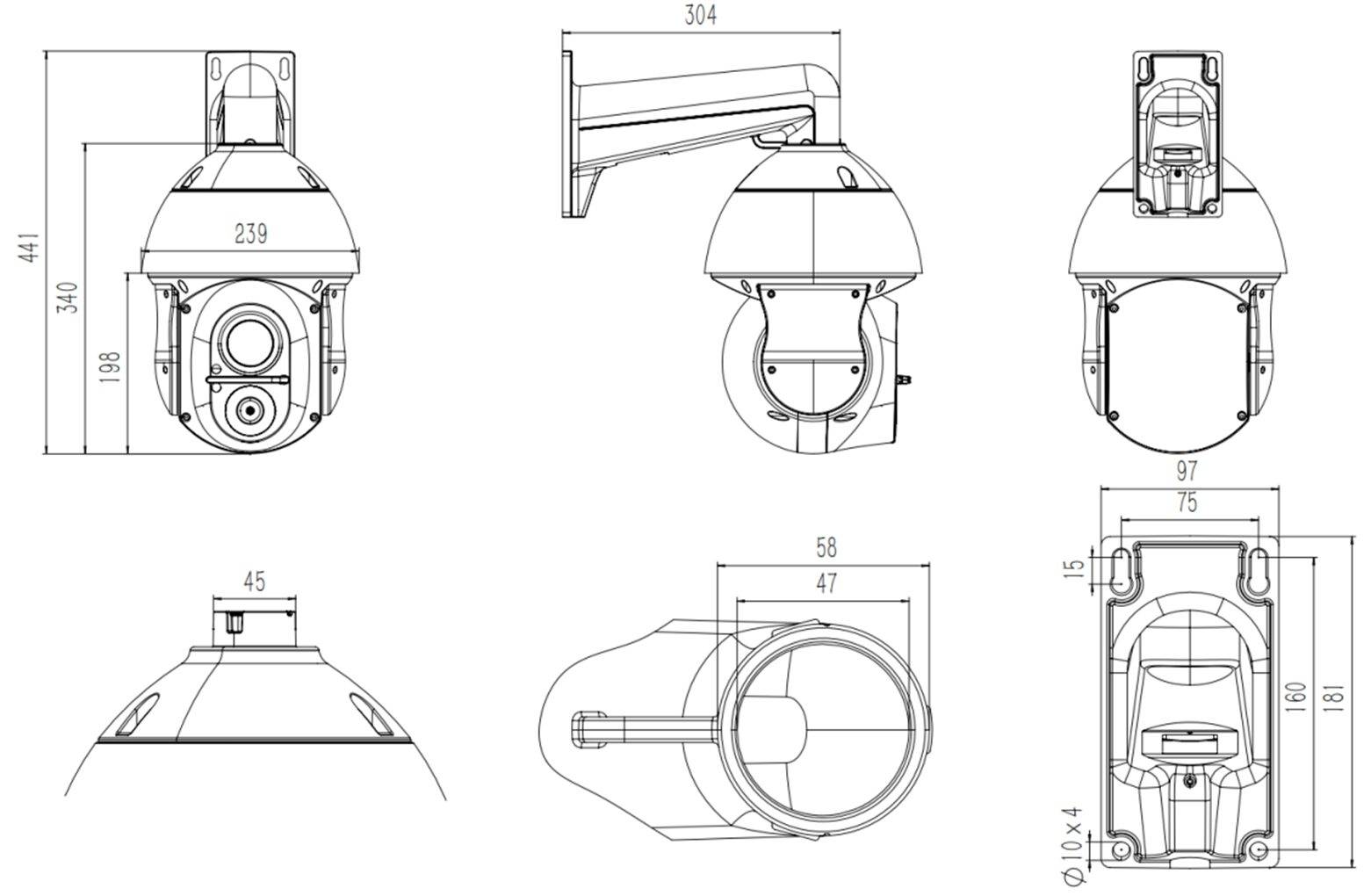

Product Dimension:
