2MP Multi-Functional Dual-Spectrum 38X Optical Zoom Laser PTZ Camera | 3000m Day & 1500m Night Vision | IP68 Outdoor Surveillance for Border, Coastal & Airport Security
Model: LY-P6520LN Series
- 2MP ,38X Zoom,8.5–323mm ultra-telephoto zoom lens with defog and auto-focus
- Long-range monitoring: 3000m by day, 1500m at night
- Laser-synchronized zoom, automatically matches beam to zoom field
- Customizable laser spot storage, supports size memory and adjustment
- Military-grade laser module, lifespan up to 20,000 hours
- Motorized 2D optical axis adjustment, remotely corrects laser offset
- Advanced protection: surge & lightning protection up to 4500V
- Smart PTZ control: 128 presets, patrol scanning, scheduled tasks
- Full coverage: 360° endless pan, ±90° tilt, zero blind spots
- Industrial-grade durability: IP66/IP68 waterproof, anti-corrosion, anti-salt-fog
- Installation-friendly design: hoisting mounts for field and high-altitude work
Overview
The LOYALTY-SECU LY-P6520LN Series Multi-Functional Dual-Spectrum 38X PTZ Camera combines advanced opto-mechatronic technologies with a high-performance 2MP long-range zoom camera module and a precision infrared laser illuminator. It delivers a monitoring distance of up to 3000m by day and provides full HD monitoring up to 1500m at night, even in complete darkness.
Featuring laser-synchronized zoom and auto-focus, the laser beam automatically adjusts to the zoom range without manual intervention. The unique motorized two-dimensional laser alignment system allows remote correction of optical axis deviations, ensuring long-term image accuracy.
Equipped with a high-torque, high-speed PTZ unit, the camera supports 360° continuous pan and ±90° tilt for seamless, blind-spot-free monitoring. With 128 preset positions and 4 patrol routes, it delivers precise positioning with reliable memory retention even after power loss.
The housing adopts an integrated heavy-duty protection design, rated IP66/IP68, resistant to water, dust, salt-fog, and extreme temperatures. It remains operational under hurricane wind speeds up to 150 km/h, ensuring true all-weather reliability. A built-in hoisting mount design further simplifies high-altitude and field installations.
This series is ideal for ports, coastal defense, border surveillance, airports, energy facilities, and other demanding long-range monitoring applications.
Demo Video
1.5KM Laser Night Vision for Yacht & Buoy
Main Features
*2MP 38X Ultra-Long Range Optical Zoom
Featuring an 8.5–323mm motorized zoom lens with 38X optical zoom, the camera delivers exceptional clarity for ultra-long-distance surveillance. With built-in defog and auto-focus technology, it achieves up to 3000m daytime monitoring and 1500m night-time recognition, making it ideal for large-scale perimeter security.
*Laser-Synchronized Zoom
The laser beam automatically adjusts in synchronization with the camera’s zoom, ensuring the illuminated area perfectly matches the field of view without manual intervention.
*Customizable Laser Spot Storage
Advanced spot storage technology allows users to define and save different laser illumination sizes, ensuring optimal adaptation to various monitoring scenarios.
*HPLM Laser Lens Module
The integrated HPLM laser optics maintain precise beam alignment during zooming, preventing optical deviation and ensuring stable image quality.
*High-Reliability Power Protection
Built with FTIS and ATPC advanced protection technologies, offering efficient constant-current supply, delayed startup, and digital filtering for safe and reliable laser operation.
*Military-Grade Laser Module
Equipped with a high-power military-grade semiconductor laser, providing a service life of up to 20,000 hours, ensuring long-term stability under demanding conditions.
*Motorized 2D Optical Axis Adjustment
The built-in motorized dual-axis adjustment allows remote calibration of the laser beam alignment, eliminating the need for on-site manual corrections.
*Surge & Lightning Protection
Integrated with surge and lightning protection up to 4500V, ensuring reliable operation in areas with unstable power or frequent thunderstorms.
*Multi-Language On-Screen Display (OSD)
Features a built-in English menu and supports multiple input methods for convenient international operation.
*Advanced PTZ Control
Supports 128 high-precision presets (0.01° accuracy), 4 patrol routes, and scanning modes. Provides full coverage with 360° endless pan and ±90° tilt rotation, guaranteeing zero blind spots.
*Rugged All-in-One Structure
Engineered for durability with an IP68-rated waterproof and dustproof housing, resistant to salt, alkali, and corrosion. Operates reliably in extreme weather conditions, including hurricanes up to 150 km/h.
*Installation-Friendly Design
The camera body includes hoisting mount points, making high-altitude and outdoor installations safer and more convenient.
Application Fields
This Laser PTZ Camera particularly used in projects such as Safe City surveillance, airport perimeter monitoring, factory security, vehicle-mounted monitoring, highways, aquaculture farms, railway safety, border and coastal perimeter protection, ports and docks, waterways and shipping, maritime and fishery law enforcement, military bases, oil pipelines, landslide monitoring, ocean dynamic monitoring, and nature reserves.
Specifications
Laser 1500M Night Vision PTZ Camera
Visible Light Specifications | |
Model | LY-P6520LN |
Image Sensor | 1/2.5″ Exmor CMOS,2MP Resolution |
Lens | 38X Optical Zoom, Auto Iris Function, f＝8.5~323mm,F1.8~F6.1 |
Image Format | H.264 video encoding, 1080P Full HD, dual-stream output |
Day/Night Switching | Photosensitive / Camera / Timer modes, dual filter auto-switching |
Focusing System | Auto/Manual, with unique night-time fast focusing technology |
Intelligent Noise Reduction | Supports 3D noise reduction |
Defog Function | Combined optical and electronic defog, visibility enhanced by over 4 times |
Laser Module Specifications | |
Laser Type | Military-grade high-power semiconductor laser, wavelength range 0.8–2.5µm, expected lifespan 20,000 hours |
Laser Output Power | 12W |
Laser Lens | HPLM laser lens module, ensuring accurate laser beam alignment |
Laser Power Supply | Advanced FTIS & ATPC protection technology, high-precision constant current supply, delayed start, digital filtering |
Optical Axis Alignment | Motorized 2D axis adjustment |
Illumination Angle | 2°–48°, motorized continuous precision adjustment, auto-synchronized with zoom
|
Operational Parameters | |
Control Speed | Manual: Pan 0.01°/s – 80°/s, Tilt 0.01°/s – 80°/s |
Rotation Range | Pan: 360° endless rotation, Tilt: +90° ~ -90° |
Presets | 128 preset positions (accuracy: 0.01°), no loss after power-off, no deviation |
Patrol Routes | 4 patrol routes, each with up to 16 points |
On-Screen Display (OSD) | Supports Chinese, English, and numeric input |
Interface Specifications | |
Video Output | Isolated 100M adaptive Ethernet port, protection against 2500V surge |
Communication Interface | Supports PELCO-D/P serial control, PTZ data feedback, precise positioning without blind spots |
Power Input | AC 24V, max power consumption 90W (70W without heater) |
Environmental Parameters | |
Operating Environment | Temperature: -55°C ~ +65°C, Humidity: ≤95% RH (non-condensing),Suitable for high-altitude environments |
Wind Resistance | Operates under wind speeds up to 150 km/h, Withstands maximum wind speed of 210 km/h |
Surge & Lightning Protection | Power interface protection up to 4500V |
Protection Level | IP66 overall protection, IP68 waterproof rating |
Weight | Net weight: 18 kg |

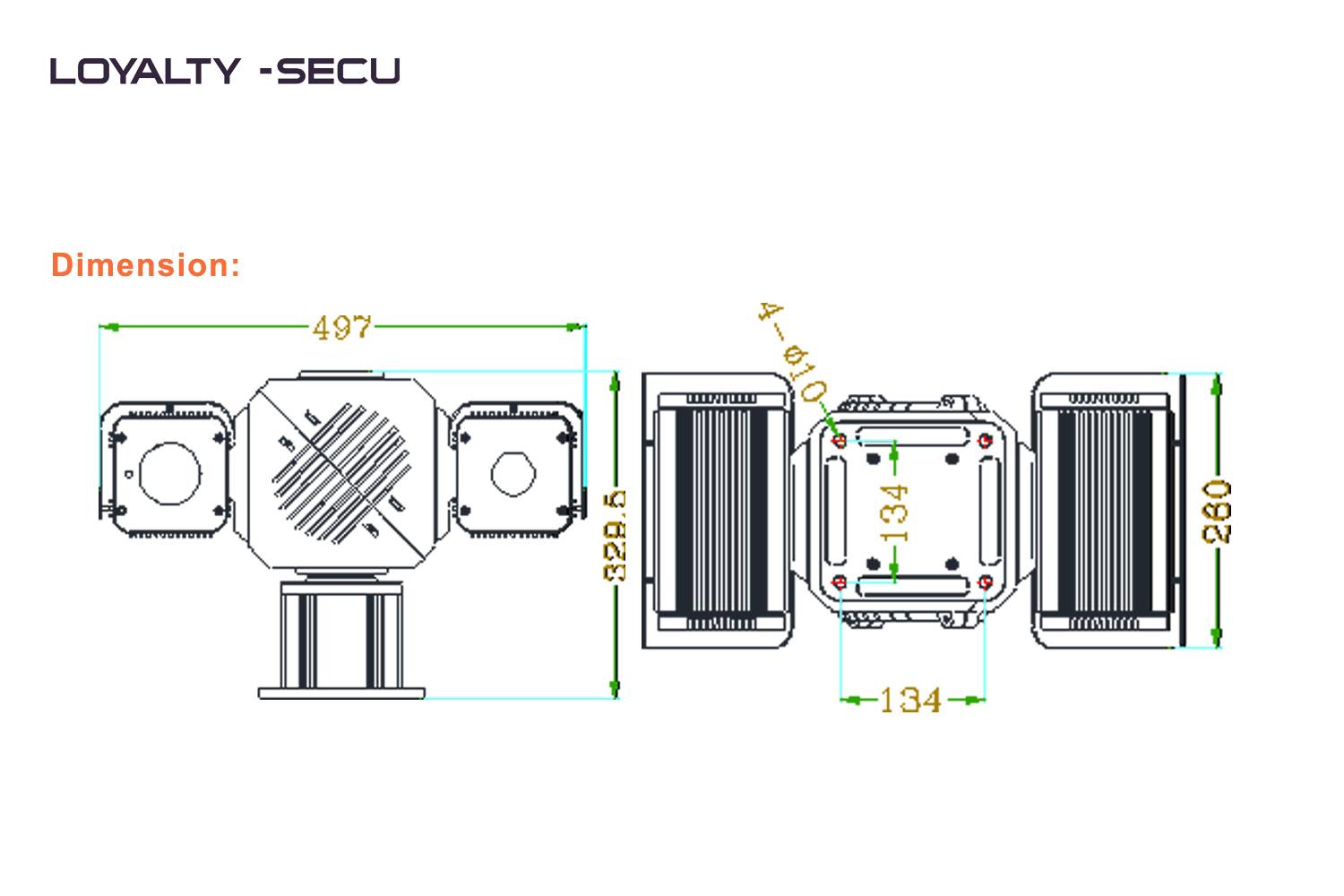

Dimensions
