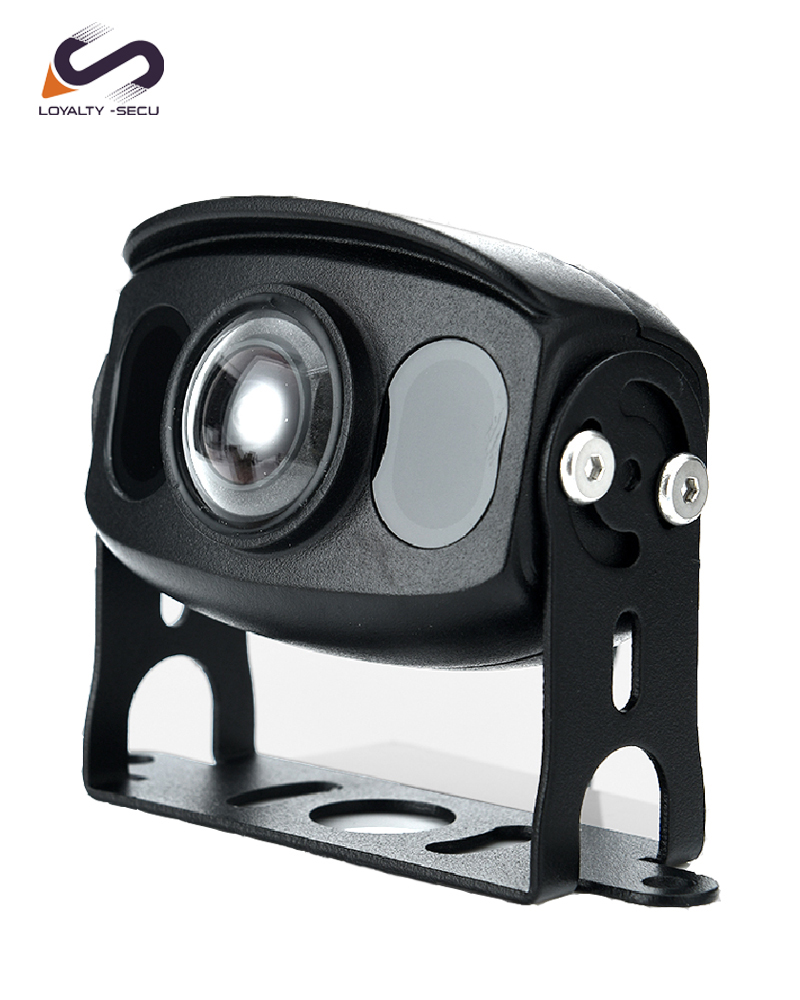

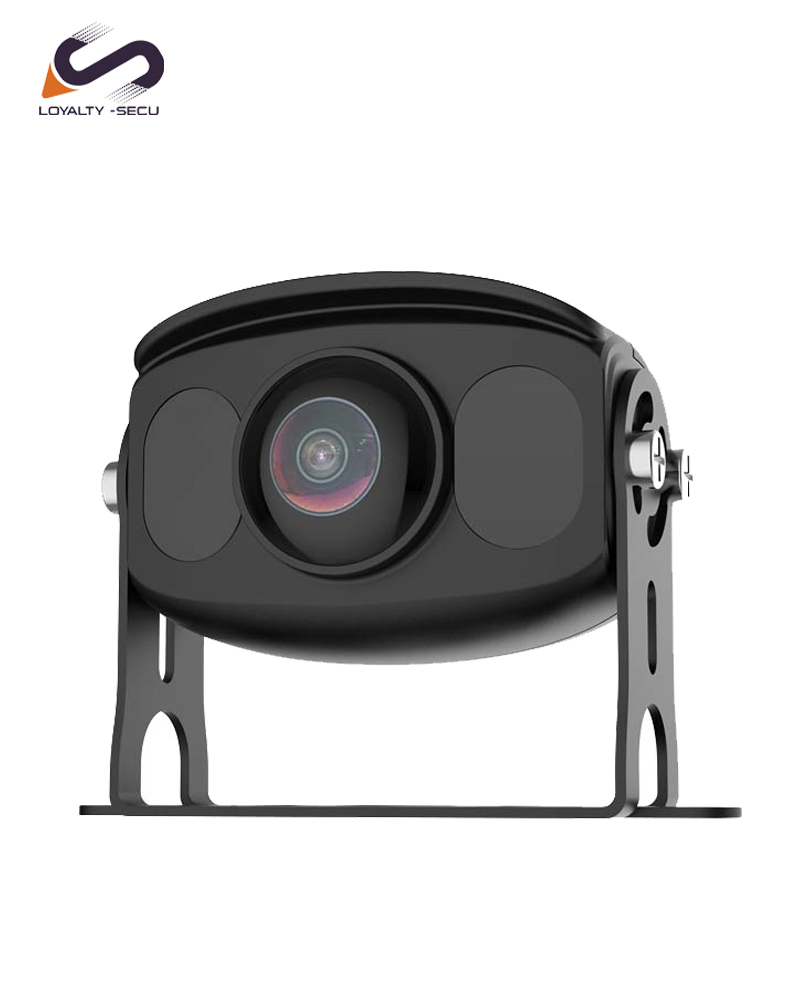

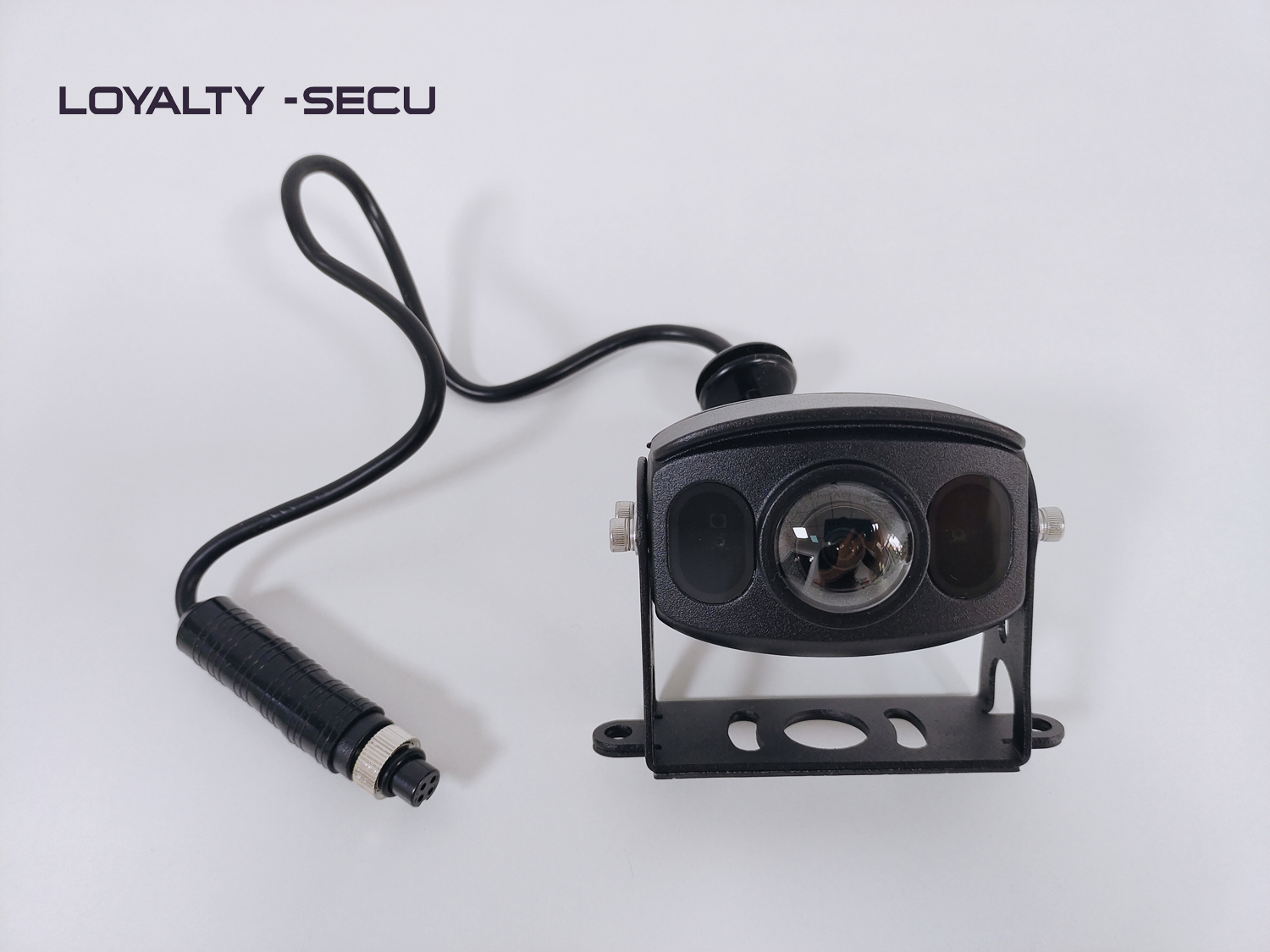

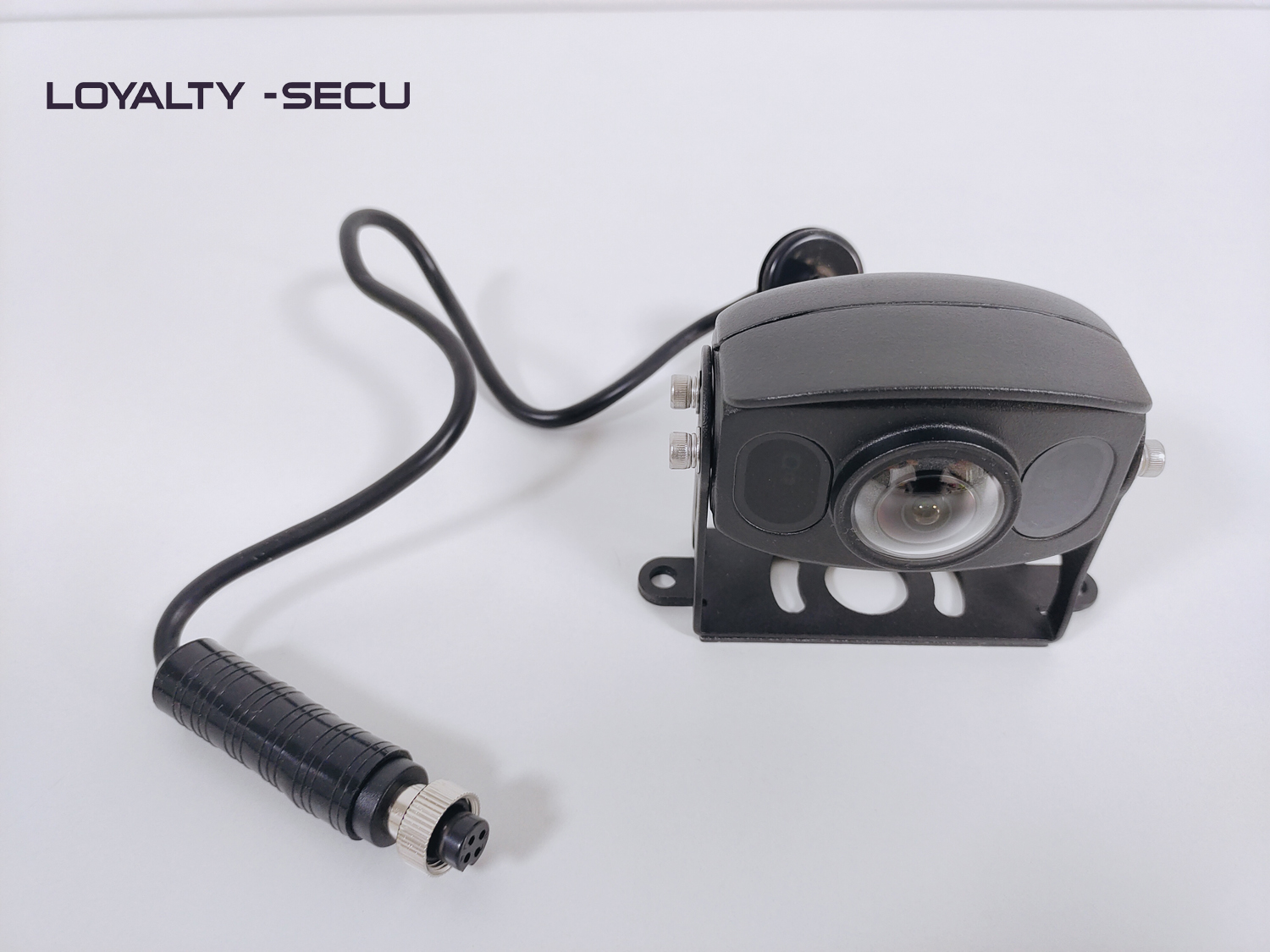

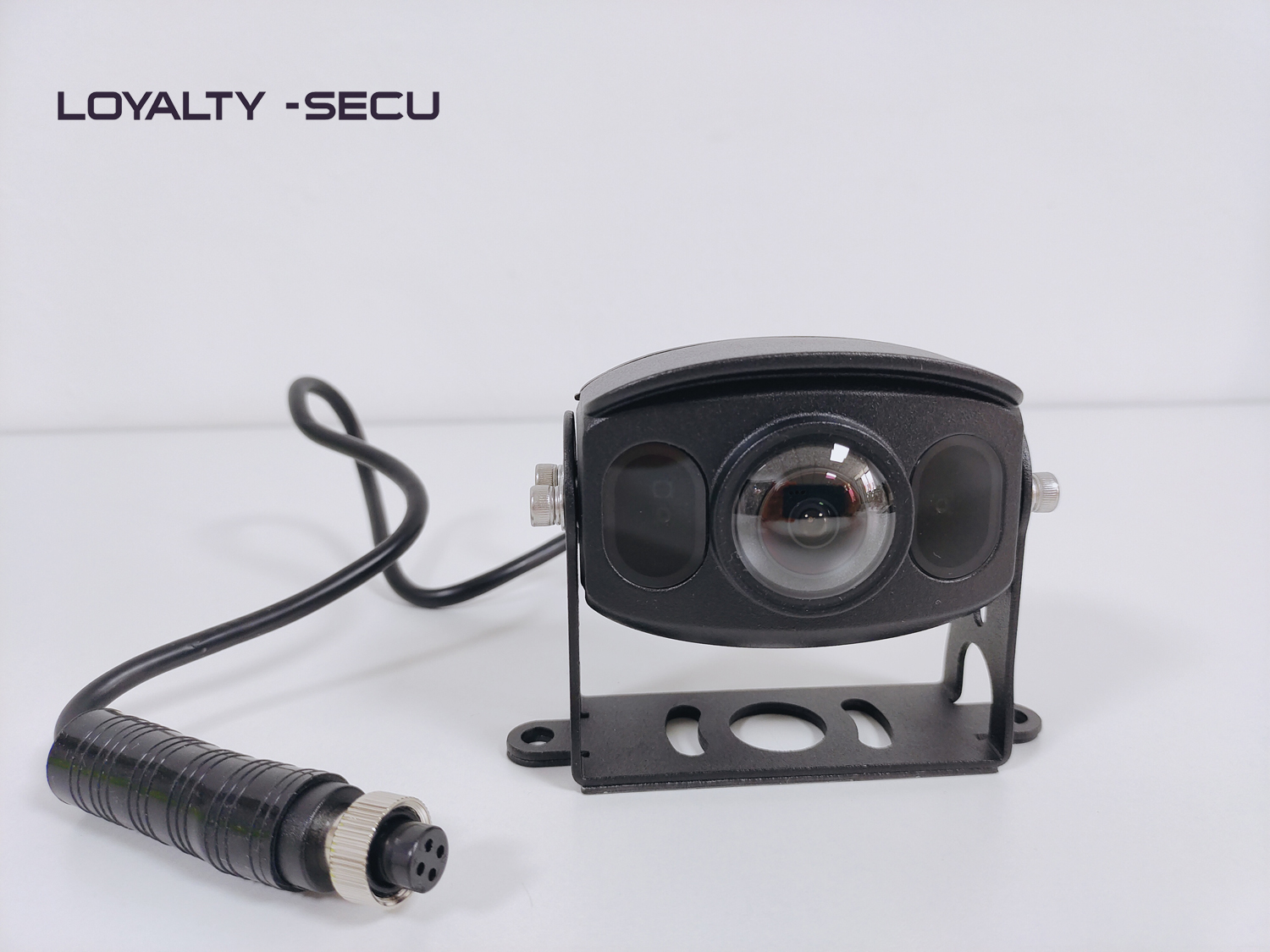

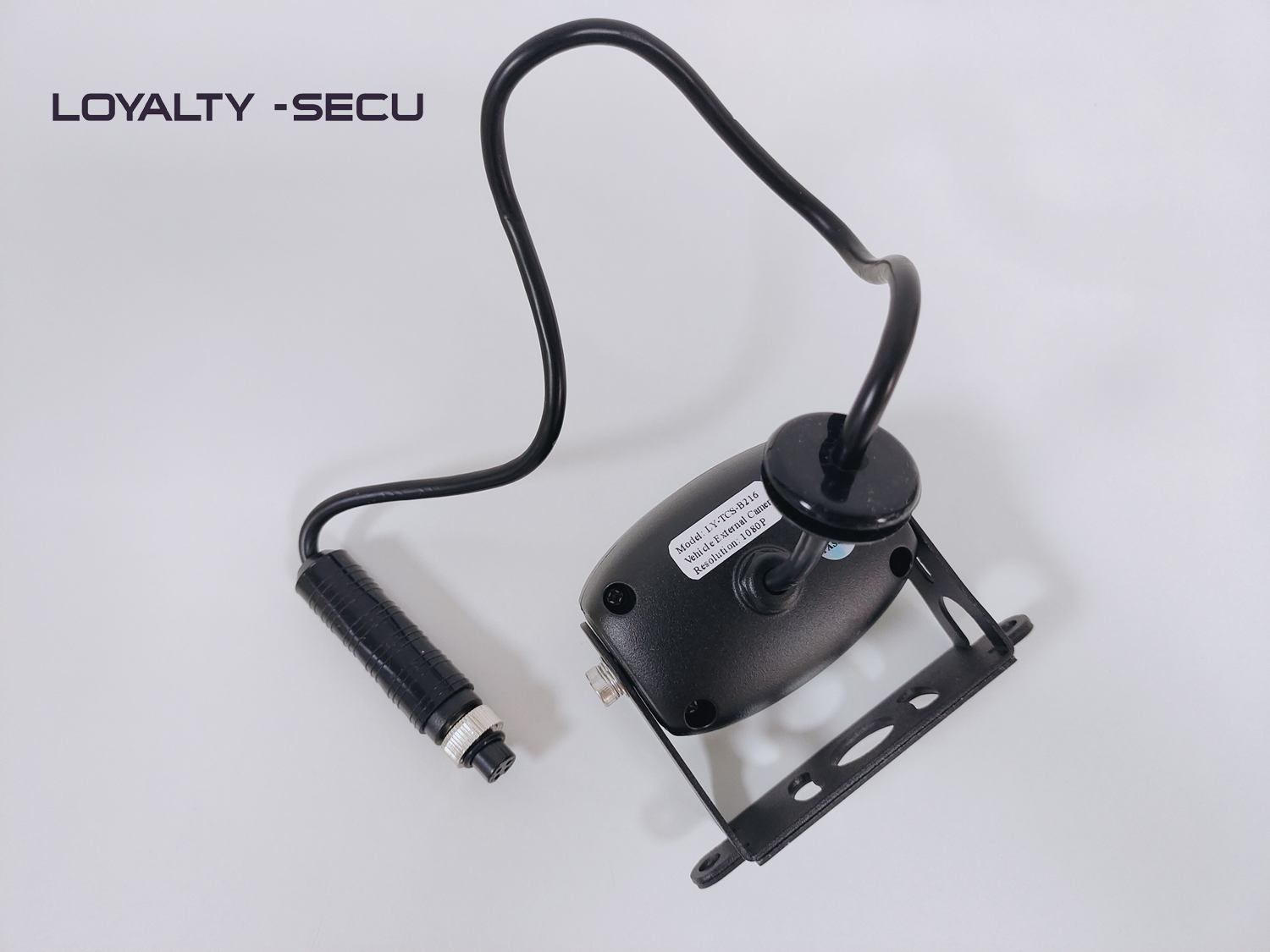

165 Degrees Wide Viewing Angle In-Vehicle Mobile Video Camera Surveillance System for Heavy Vehicle & Cargo Trucks
Model: LY-TCS-B216
- With 165 Degrees Horizontal Viewing Angle, brings much wider vision, no blind spots during the video monitoring.
- Truck surveillance camera with upgraded THD polymer material anti-vibration pad, much more vibration resistant.
- IP69K protection grade, waterproof, weather-proof
- With Large target surface sensor, brings excellent view in dark environment.
- Support coaxial high-definition output, the image is clear and delicate, and the resolution is up to 1080P
- The camera has a built-in IR switcher, supports automatic color to black function, and realizes day and night monitoring
- Adaptive digital noise reduction, 2D-DNR and 3D-DNR ensure clean and delicate images in various environments.
Overview
The visual blind area of construction machinery is much larger than that of vehicles such as cars. These blind areas can have a significant impact on safety. Looking outside from the perspective of the excavator cab, because the structural layout of the excavator is that the cab is on the left, the boom is in the middle, and the upper extension body of the excavator can also turn, it is doomed that the right side and the rear side of the excavator are a certain height area of the sight blind area during work.
LOYALTY-SECU MVSS Mobile Vehicle Surveillance System based on a large number of video and picture data in the blind area can accurately identify pedestrians, animals and other living beings in the blind area of large vehicles on the right side, behind the vehicle and in front of the vehicle, and timely remind drivers and passers-by to avoid, minimizing casualties and property losses.
Truck Camera System Description
LOYALTY-SECU LY-TCS-B216 In-Vehicle Mobile Video Camera Surveillance System adopts the 165 Degree Wide Viewing Angle Camera, brings much wider vision, no blind spots during the video monitoring. The Truck Safety Surveillance Camera System equipped with the IP69K protection grade, waterproof, weatherproof, when installing the camera outside the car, no need to worry about the water anymore, convenient high pressure water gun to clean the camera regularly.
LOYALTY-SECU LY-TCS-B216 Heavy Vehicle & Cargo Truck Security Camera System uses the upgraded 1.5mm THD polymer material anti-vibration anti-shock pad. Effectively reduce vibration frequency, more shock resistant, ensure the camera can work under the stable condition all the time. The Truck Security Camera System also adopts the large target surface sensor, brings excellent 1080P view in dark environment, the infrared night vision up to 15m. The vehicle cameras are widely applied to the video surveillance of Forklift, Excavator, Minecart, Shovel Loader, Grader, Road Roller and other construction machinery.
Main Features

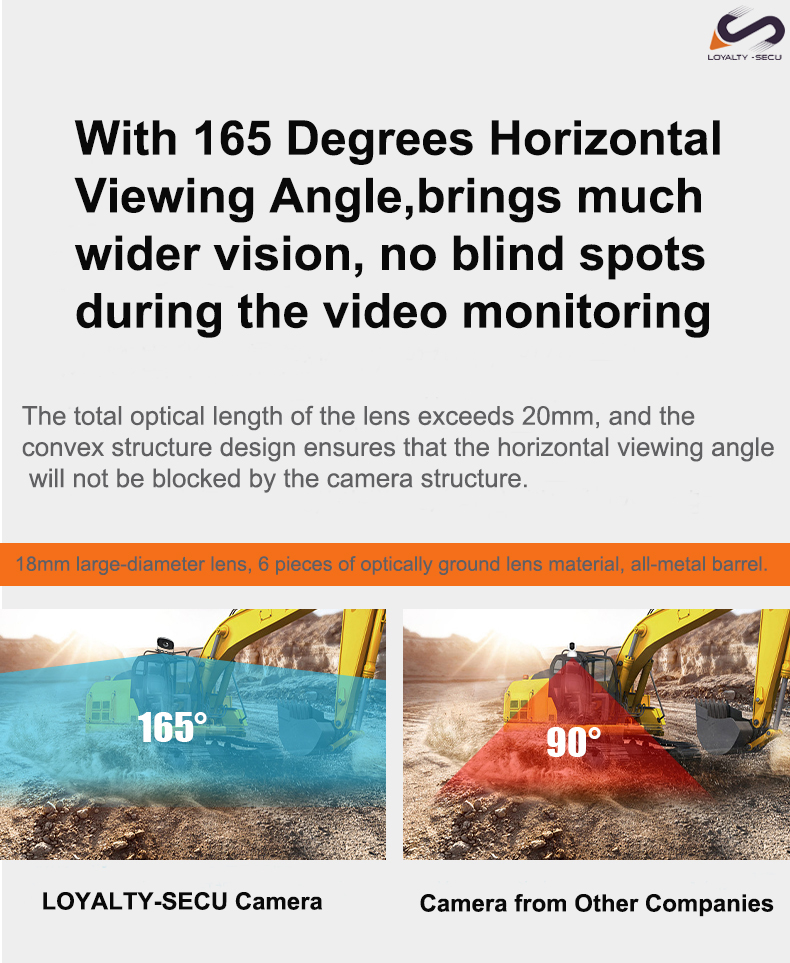

1.With 165 degrees horizontal viewing angle, brings much wider vision, no blind spots during the video monitoring.
The total optical length of the lens exceeds 20mm, and the convex structure design ensures that the horizontal viewing angle will not be blocked by the camera structure.18mm large-diameter lens, 6 pieces of optically ground lens material, all-metal barrel.

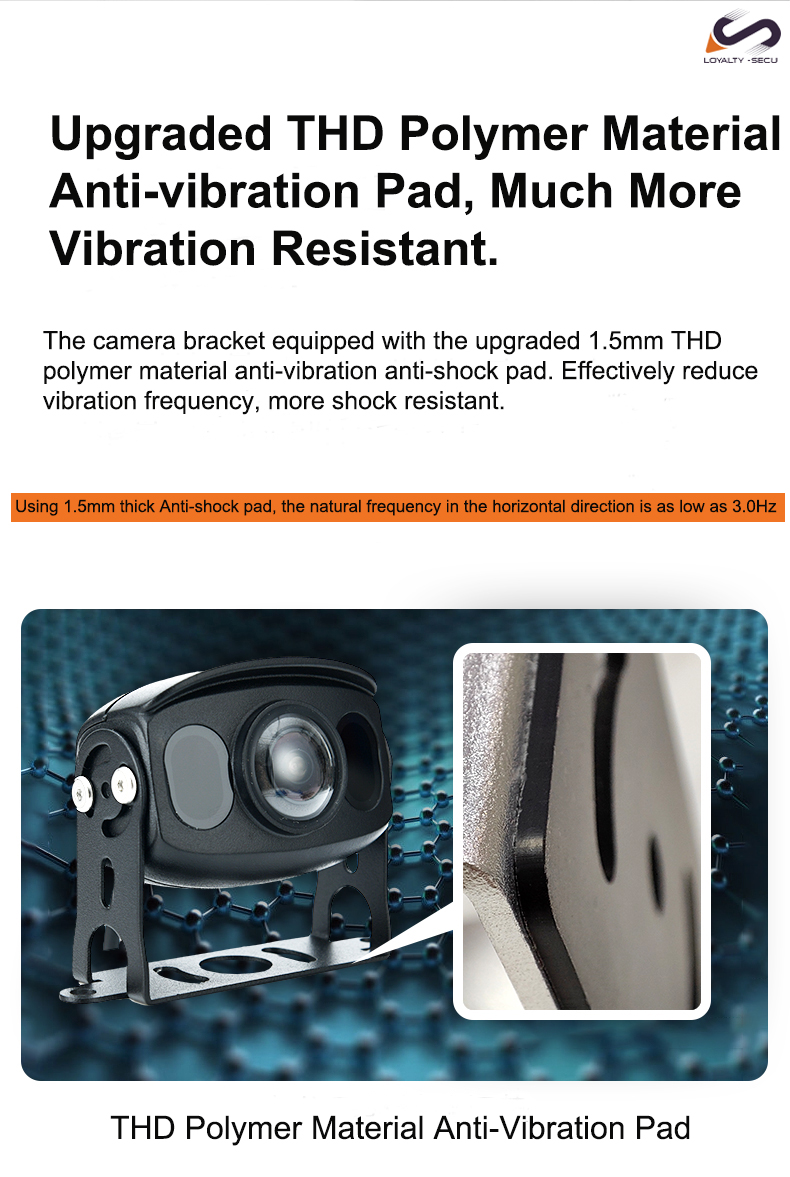

2.The camera with upgraded THD polymer material anti-vibration pad, much more vibration resistant.
The camera bracket equipped with the upgraded 1.5mm THD polymer material anti-vibration anti-shock pad. Effectively reduce vibration frequency, more shock resistant.It is more suitable for the application environment with large vibration amplitude of vehicle and construction machinery.Using 1.5mm thick Anti-shock pad, the natural frequency in the horizontal direction is as low as 3.0Hz.

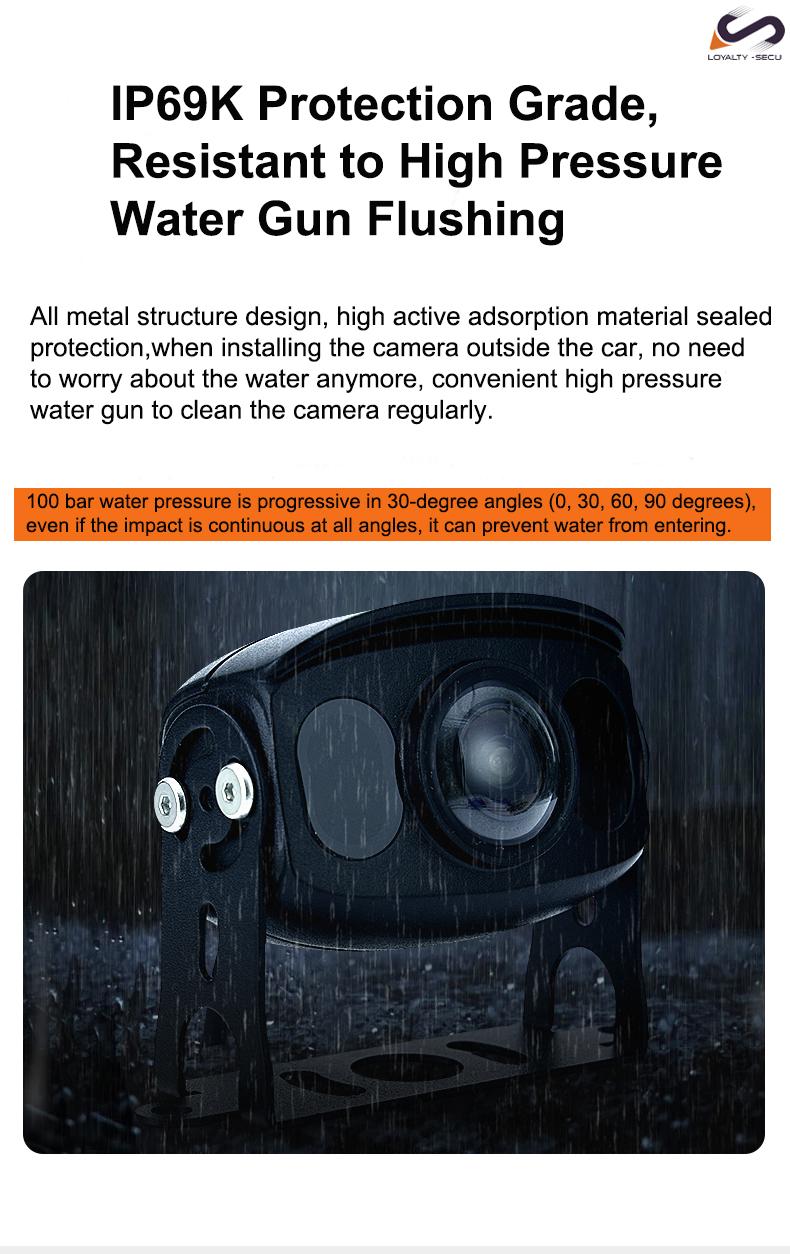

3.IP69K protection level, when installing the camera outside the car, no need to worry about the water anymore, convenient high pressure water gun to clean the camera regularly.
All metal structure design, high active adsorption material sealed protection.
100 bar water pressure is progressive in 30-degree angles (0, 30, 60, 90 degrees), even if the impact is continuous at all angles, it can prevent water from entering.

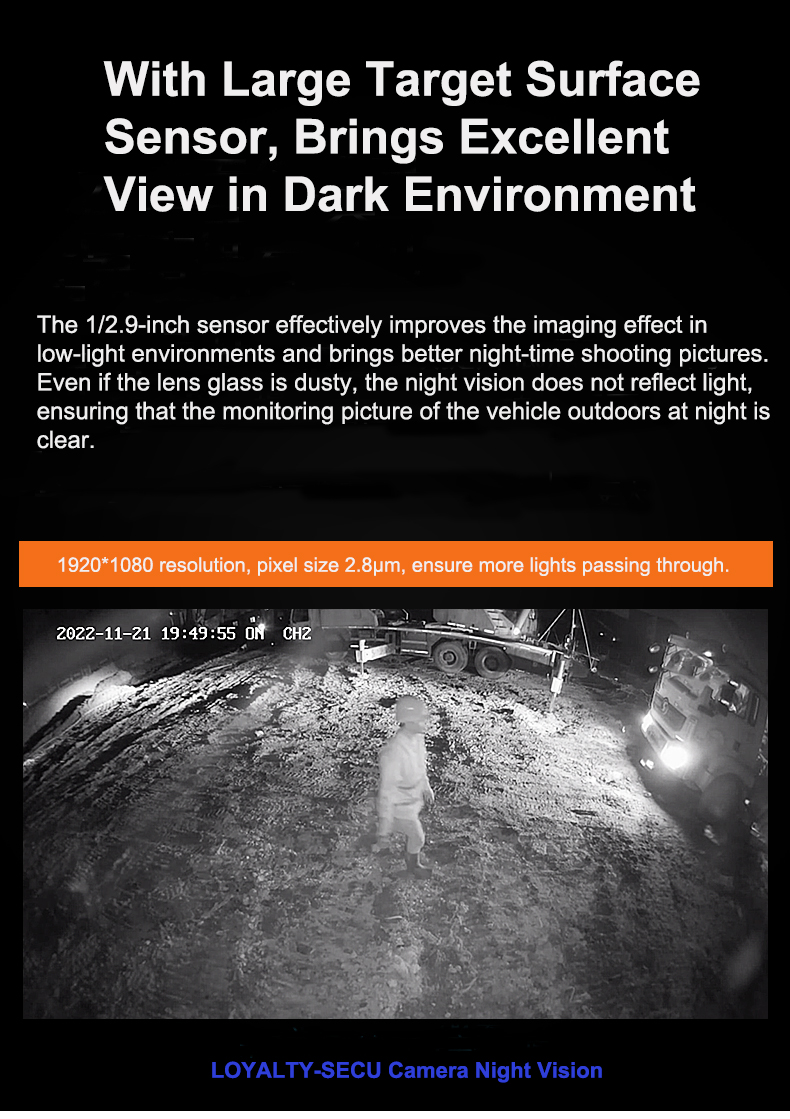

4.With Large target surface sensor, brings excellent view in dark environment. Even if the lens glass is dusty, the night vision does not reflect light, ensuring that the monitoring picture of the vehicle outdoors at night is clear.
The 1/2.9-inch sensor effectively improves the imaging effect in low-light environments and brings better night-time shooting pictures.1920*1080 resolution, pixel size 2.8µm, ensure more lights passing through.
5.Strong shockproof camera for construction machinery
Military Seismic Standard.165 Degree wide angle, with 1080P infrared night vision.

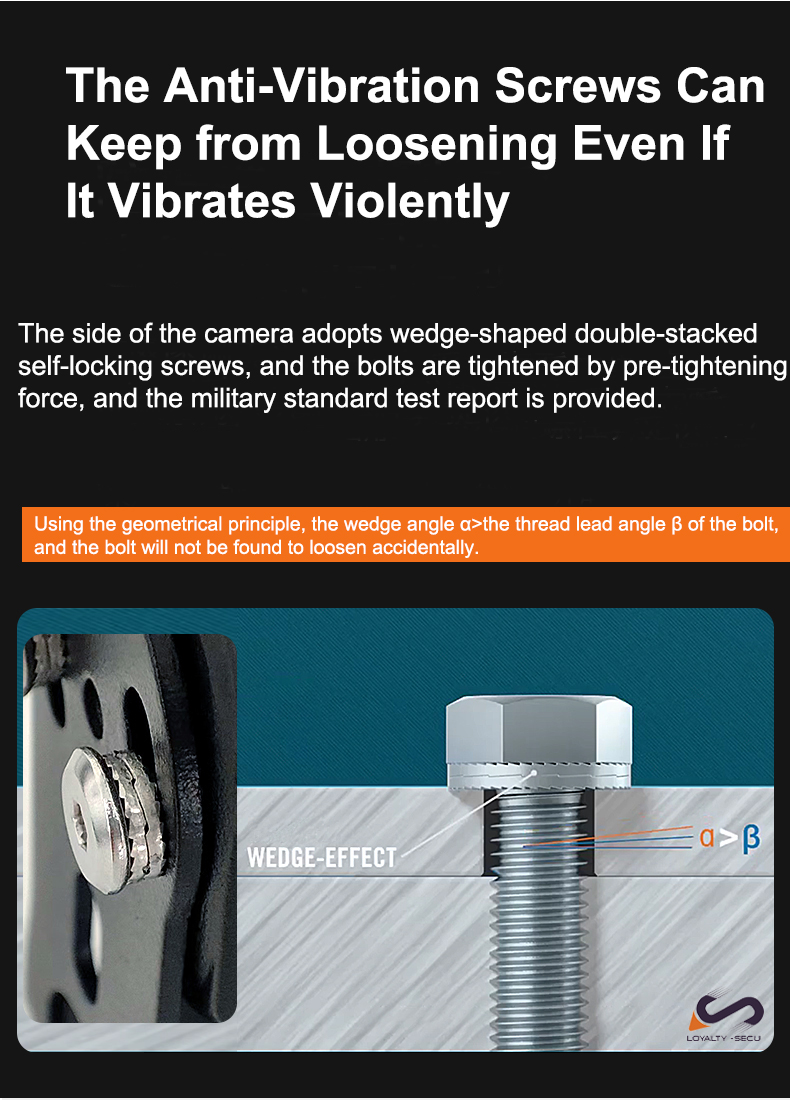

6. The Anti-vibration screws can keep from loosening even if it vibrates violently.
The side of the camera adopts wedge-shaped double-stacked self-locking screws, and the bolts are tightened by pre-tightening force, and the military standard test report is provided.
Using the geometrical principle, the wedge angle α>the thread lead angle β of the bolt, and the bolt will not be found to loosen accidentally.

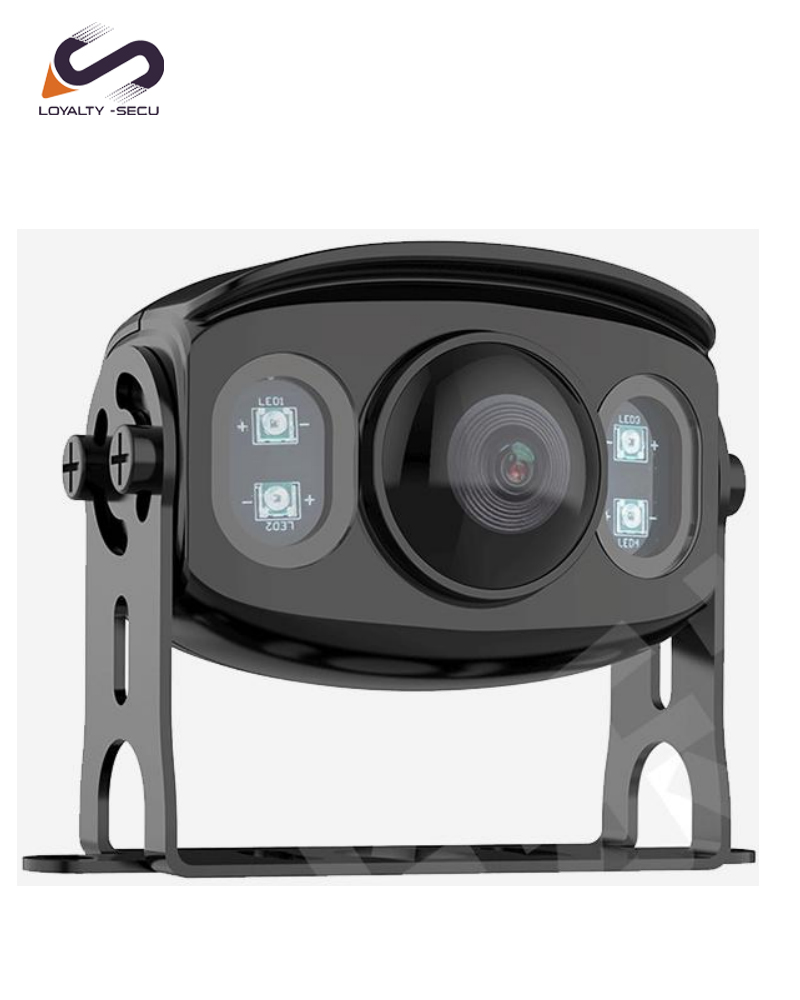

7.Use ceramic lights for light compensation, brings clearer night vision (Infrared night vision up to 15m)
The tempered curved glass protects the lens from being scratched, the lens and fill light are divided into compartments, and the glass is dusty and does not reflect light.
Using energy-saving ceramic infrared fill light, the power consumption of the whole machine is less than 3W, 1080P high-definition, and the night vision distance can reach 15 meters.
8.The surface is sprayed to prevent corrosion.
Electrostatic adsorption spraying process, the formation of 300UM thick coating, after 200 degrees of high temperature baking curing.
GB/T28046.4-2011 standard salt spray environmental condition test, 288 hours cycle test without corrosion phenomenon.
9.LOYALTY-SECU Truck Security Camera System Comparison with Other Companies
10.In-Vehicle Mobile Video Camera Surveillance System Application
Forklift, Excavator, Minecart, Shovel Loader, Grader, Road Roller and other construction machinery.
Truck Surveillance Camera Specification
Item | LY-TCS-B216 | |
· Camera Specification ·
| Camera Sensor | 1/2.9″CMOS |
Effective Pixels | 1920(H) × 1080(V) | |
Signal System | PAL/NTSC | |
Minimum Illumination | 0.001Lux (Color Illumination), F1.2 | |
Shutter Speed | AUTO/ 1/50(1/60)-1/100,000sec | |
Day-night Switching Mode | Car special switcher | |
WDR | ≥95db | |
IR Distance | 15M | |
BLC | Support | |
View Angle | Horizontal 165°, vertical 100 ° | |
Others | Temperature | -25℃–＋70℃ |
Power Supply | DC 12V | |
Waterproof | IP69K | |
Power | <3W | |
Size | 76MM(L)x74MM(W)x51MM(H) | |
Weight | 270G | |
Case Demo
Product Dimension
