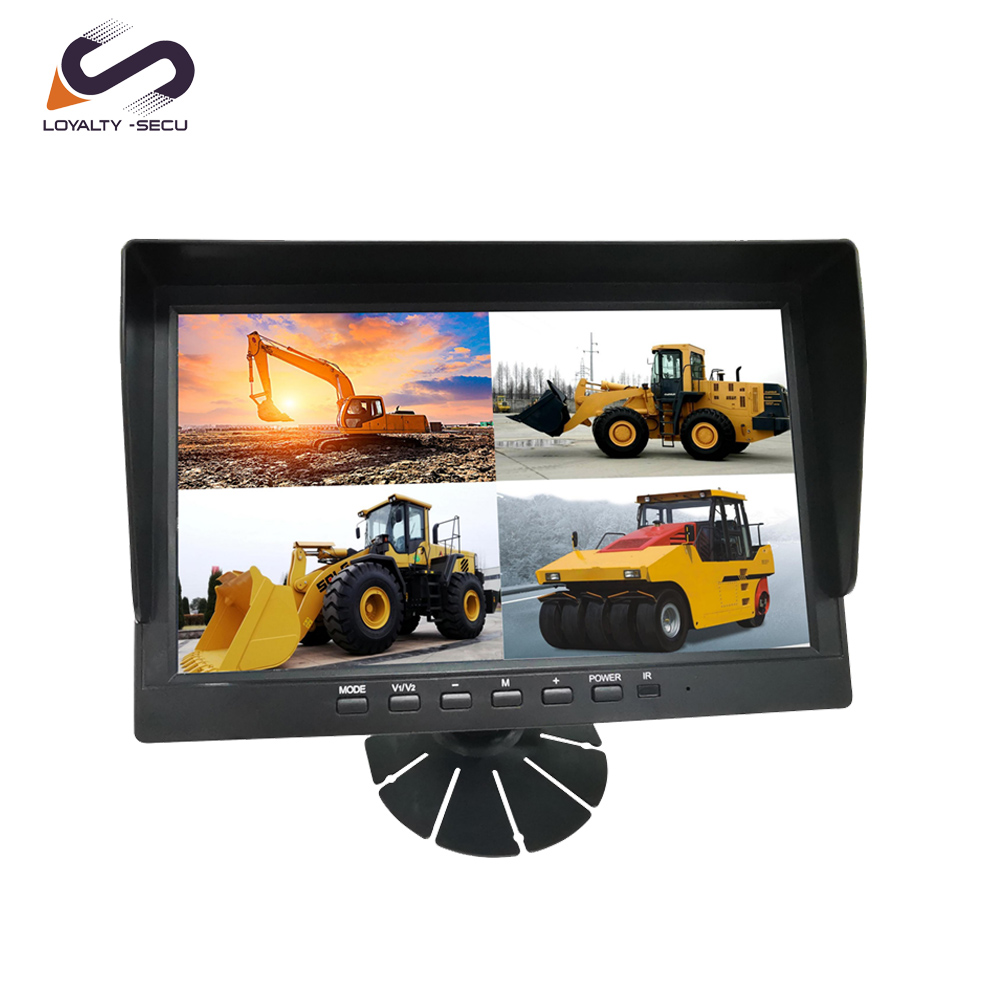

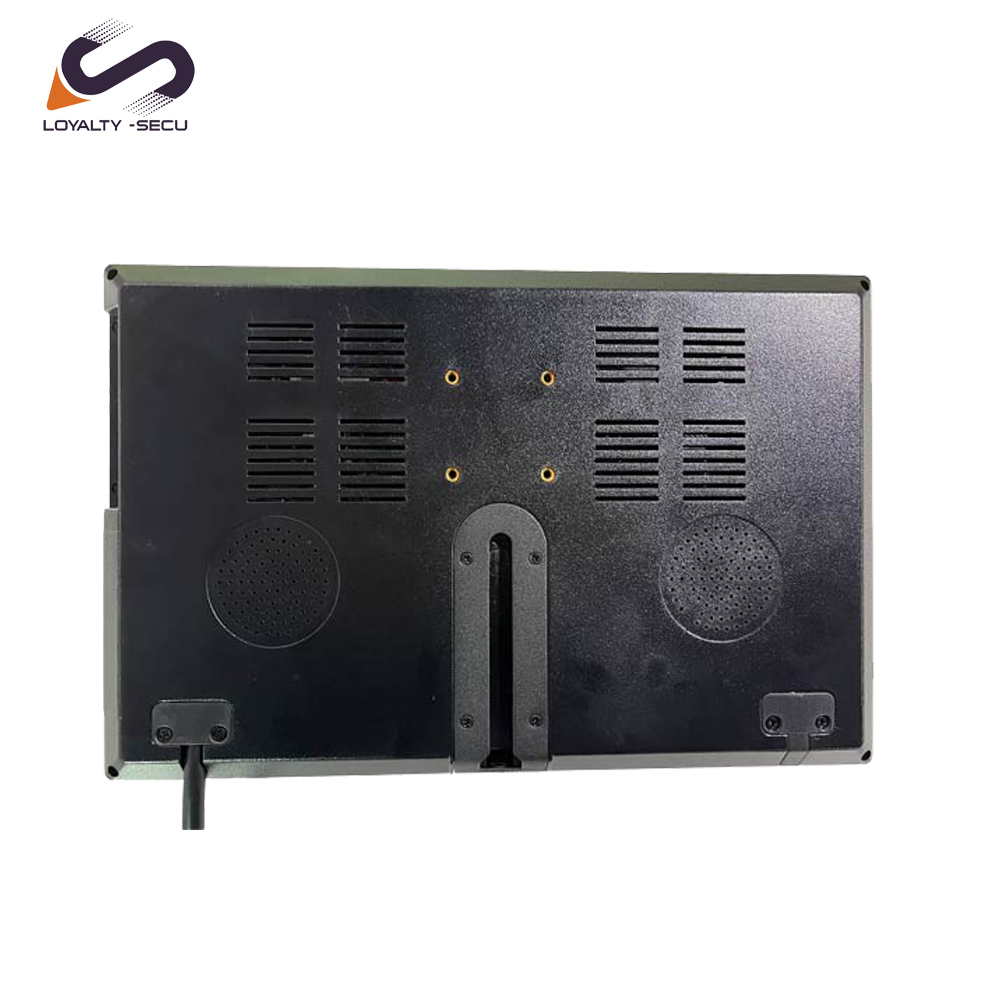

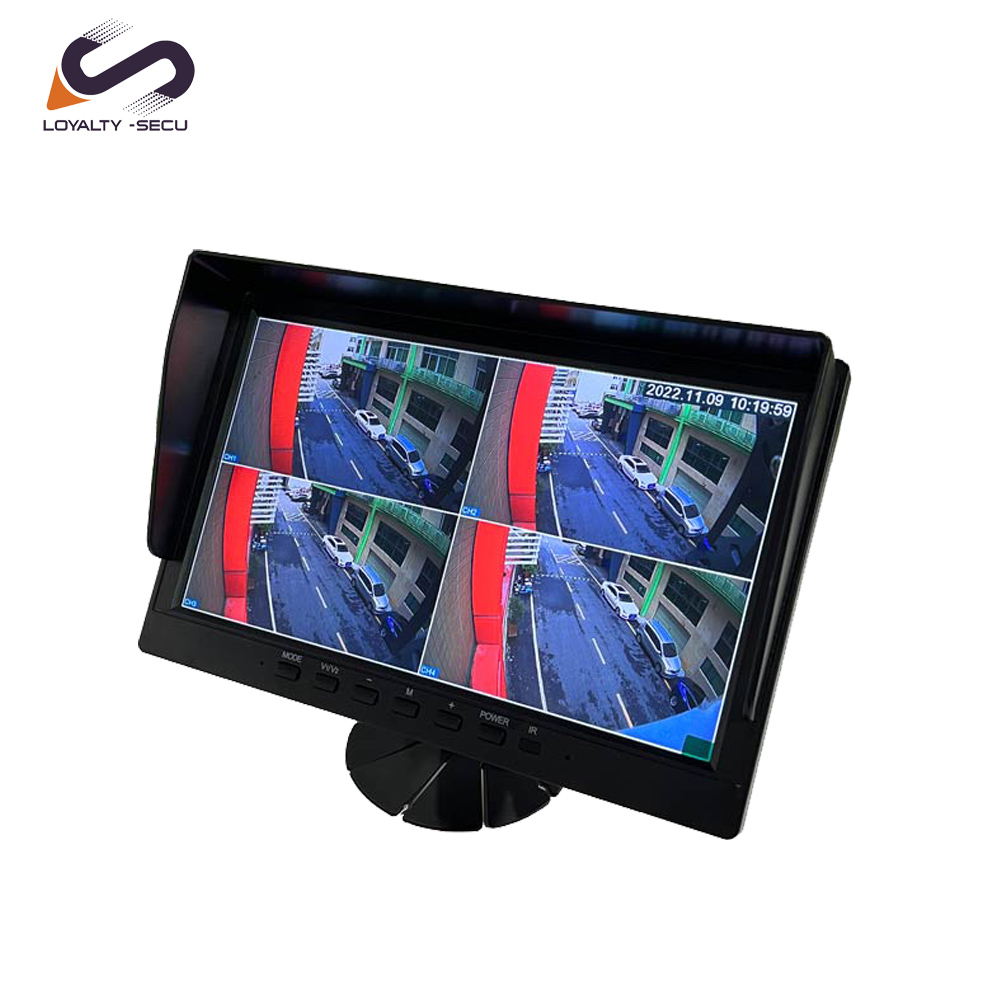

10.1-inch IPS Vehicle Monitor, Supports 4-Channel Video Input, 9–36V Wide Voltage Vehicle Design

Model: LY-101M-4

  • Wide Voltage Compatibility – Works with 9–36V DC, stable and reliable for various vehicles.

  • Multi-Channel HD Input – Supports 4-channel video, compatible with 1080P, 960P, 720P, and CVBS signals.

  • Clear IPS Display – 10.1-inch 16:9 IPS panel, 1024×600 resolution, high brightness, wide viewing angles.

  • Durable & Safe Design – ABS+PC housing, vibration-resistant, double-shielded cables, and surge protection.

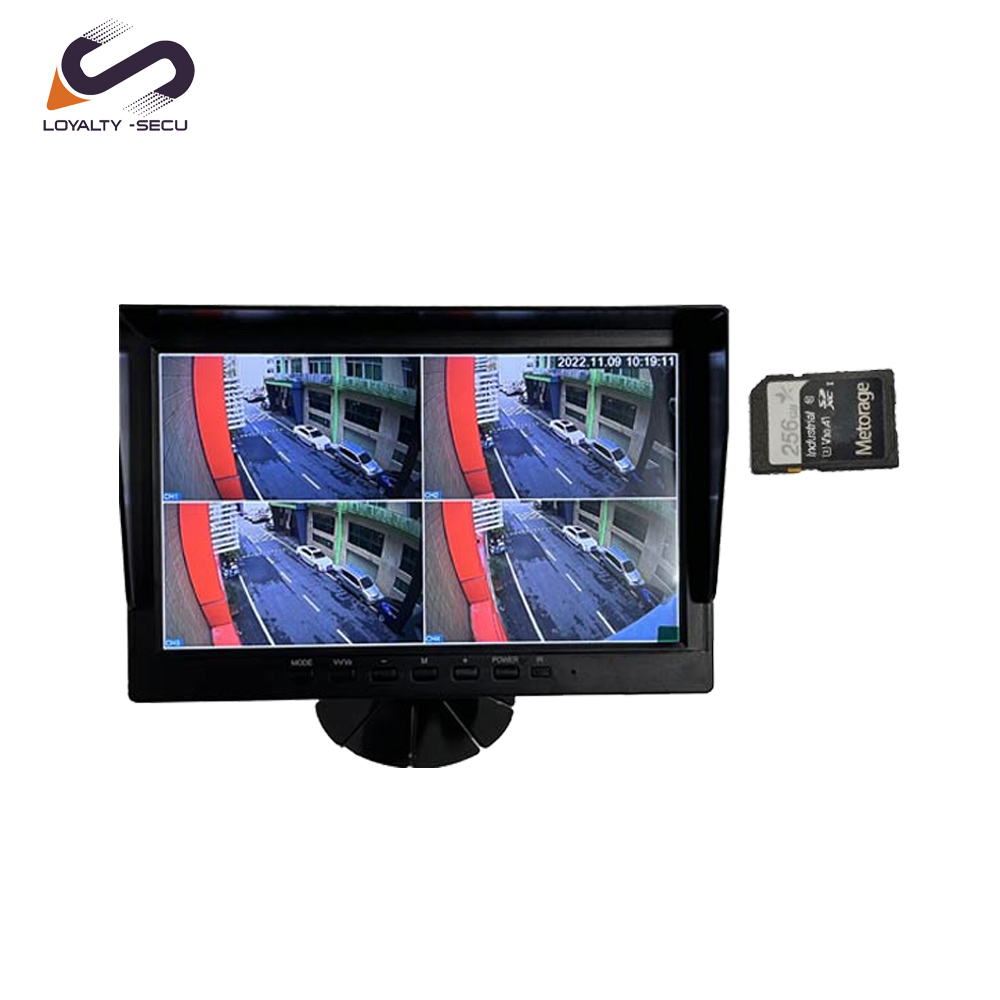

  • Simultaneous Multi-Camera View – Supports 4 HD cameras displaying at the same time.

Get a Quote Now!
Get a Quote Now!

Overview

10.1-Inch IPS Vehicle Monitor with 4-Channel Video Input for Trucks and Buses.

The LY-101M-4 10.1-inch IPS Vehicle Monitor is a high-performance display solution designed for vehicles, offering wide voltage compatibility, multi-channel video input, and clear HD imaging. Built for reliability and durability, it is ideal for commercial vehicles, buses, trucks, and special-purpose vehicles.

Demo Video

Brief Introduction

High-Brightness 10.1" IPS LCD Monitor for Vehicles Main Features

* Wide Voltage Design: 9–36V DC vehicle input, compatible with various vehicle voltage environments, stable and reliable.

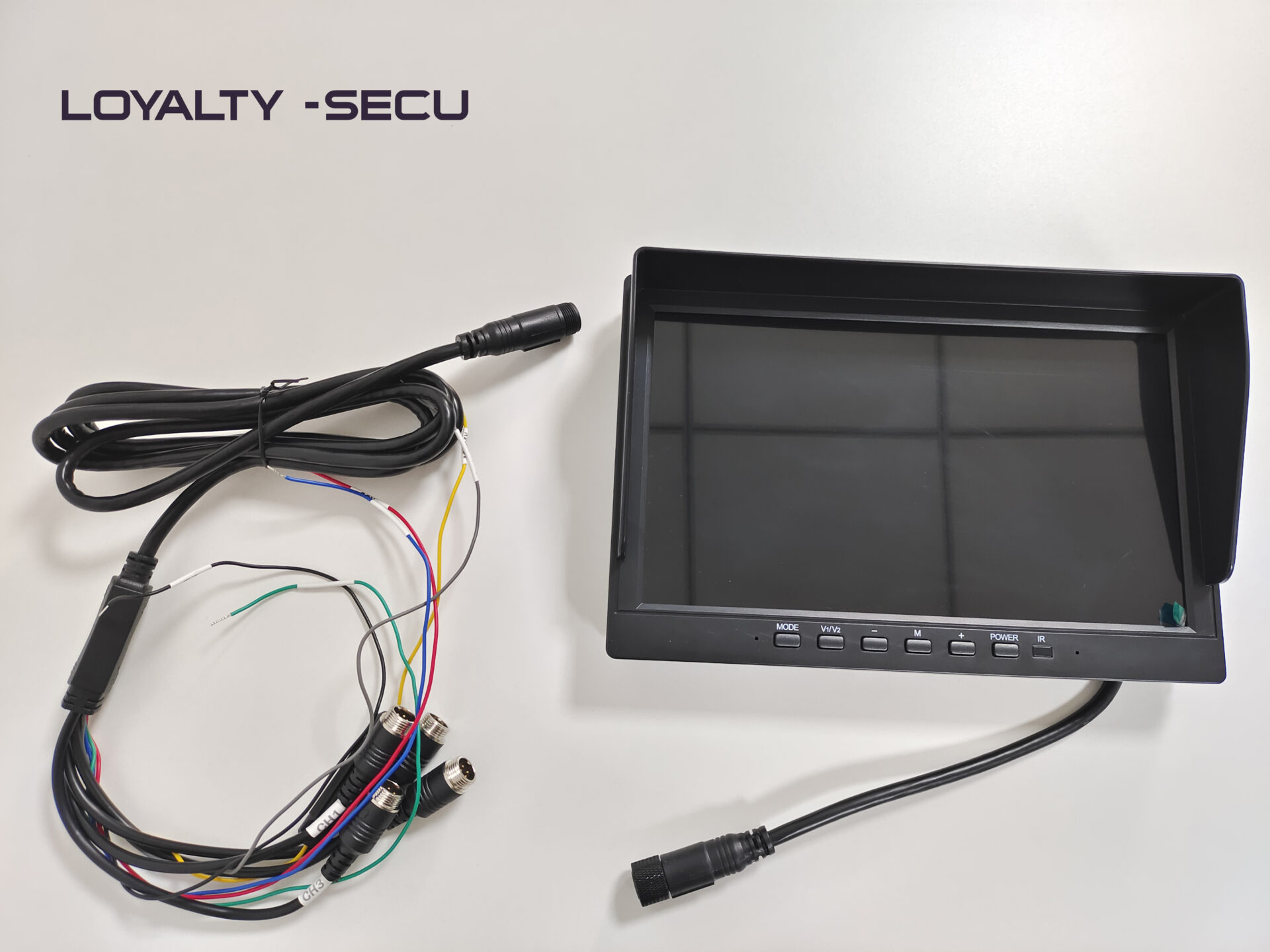

* Video Input: Supports 4-channel aviation connector video input, compatible with 1080P, 960P, 720P, 960H, D1 (CVBS) signals, offering strong compatibility.

* Resolution & Display: 1024×600 resolution, 16:9 widescreen, IPS LCD panel, 380 ppi pixel density, high brightness of 600 cd/m².

* Video Clarity: 2-megapixel resolution for clear HD images, downward compatible with 960P, 720P, and CVBS analog cameras.

* Flicker-Free Design: Triple-shielded cables ensure stable display without flickering.

* Durable Materials: Made with A-grade new materials and ABS+PC composite housing, vibration-resistant, suitable for frequent vehicle shocks.

* Backlight & Display: High-brightness backlight with IPS panel provides wide viewing angles; images remain clear from any angle.

* Light Guidance & Safety: Pure copper double-shielded tail cables with phosphor bronze material, anti-interference, low heat generation, fatigue-resistant, ensuring safe use.

* Interface & Protection: Imported LCD panel with high-quality driver chip, equipped with TVS surge protection to enhance system reliability.

* Video Switching: Supports connection to 1080P HD cameras and displays four video channels simultaneously.

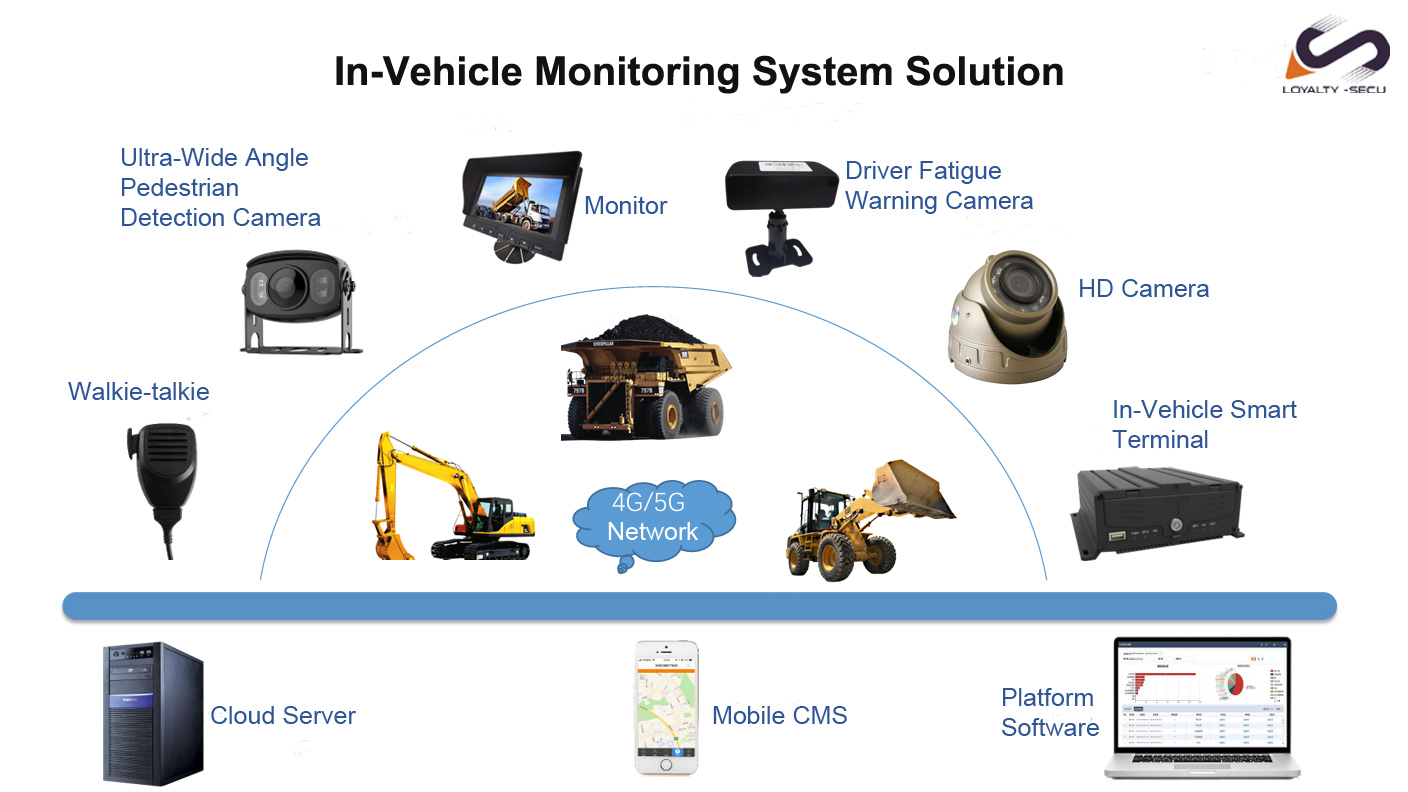

One Stop In-Vehicle Mornitoring System Solution

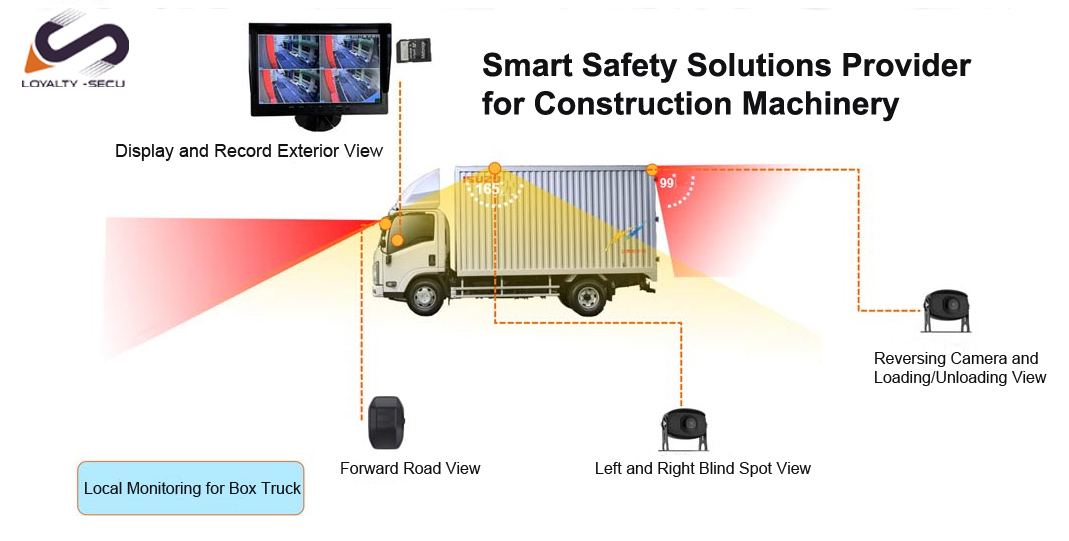

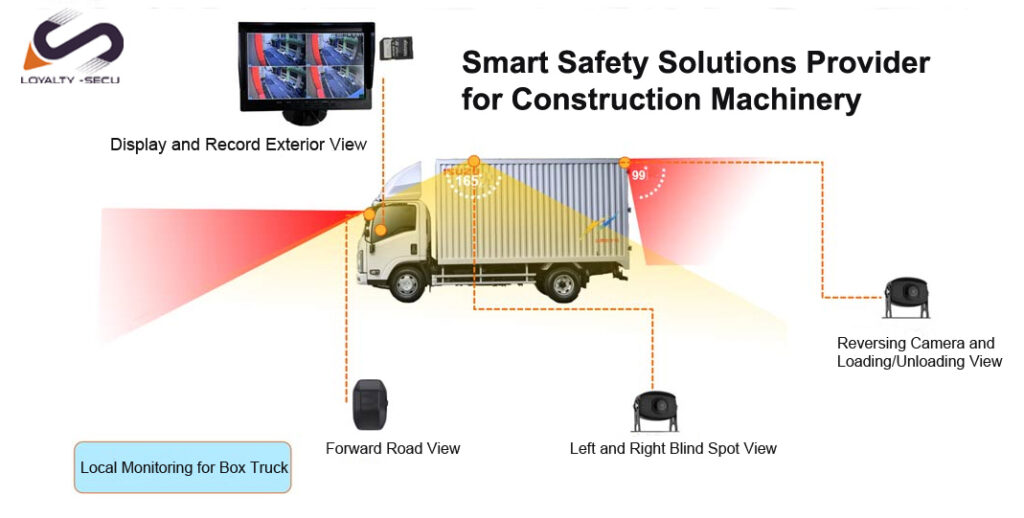

Smart Safety Solutions Provider for Construction machinery

Provider of Intelligent Safety Solutions for Construction Machinery

Construction Machinery Safety Monitoring System Solution for Police Vehicles, Fire Trucks and Heavy Duty Vehicles

Reversing Camera Monitor Application Scenarios

Widely used in semi-trailers, tractor trucks, dump trucks, cargo trucks, flatbed trucks, and heavy-duty trucks, suitable for outdoor operations, reversing assistance, cargo monitoring, and multi-angle vehicle vision enhancement.

10.1-inch IPS Vehicle Monitor Datasheet

Model

LY-101M-4

























Monitor Specifications

Panel Brand

Innolux

Panel Type

IPS

LCD Screen Size

10.1 Inches

Pixel Density

380 ppi

Aspect Ratio

16:9

LCD Brightness

600cd/m2 (Typ.)

Contrast Ratio

500:1 (Typ.) (Transmissive)

Viewing Angle

85/85/80/80° (Typ.) (CR≥10) (Left/Right/Up/Down)

Video Frame Rate

1080P: P25f/s/N30f/s

OSD Control

Character Overlay Function: Supports overlaying time and date, channel characters, split borders, vehicle information, and other image data.

Signal Input

4-channel video input: Supports 1080P, 960P, 720P, 960H, D1 (CVBS), etc.; compatible with mixed CVBS and AHD signal input.

System Language

Chinese, English (additional languages can be added)

Display Screen

Supports multiple split-screen layouts

Recording Function

Supports (up to 256GB SD card)

Trigger Control

Equipped with 3-channel IO for trigger-based screen switching and auxiliary reversing lines

Operating Temperature

-25~70°C， (5-95 %RH)

Storage Temperature

-35~75°C， (5-95 %RH)

Power Input

9～36V DC

Power Consumption

≤5.64W

Production Dimension

252x165x29 mm

Net Weight

690g

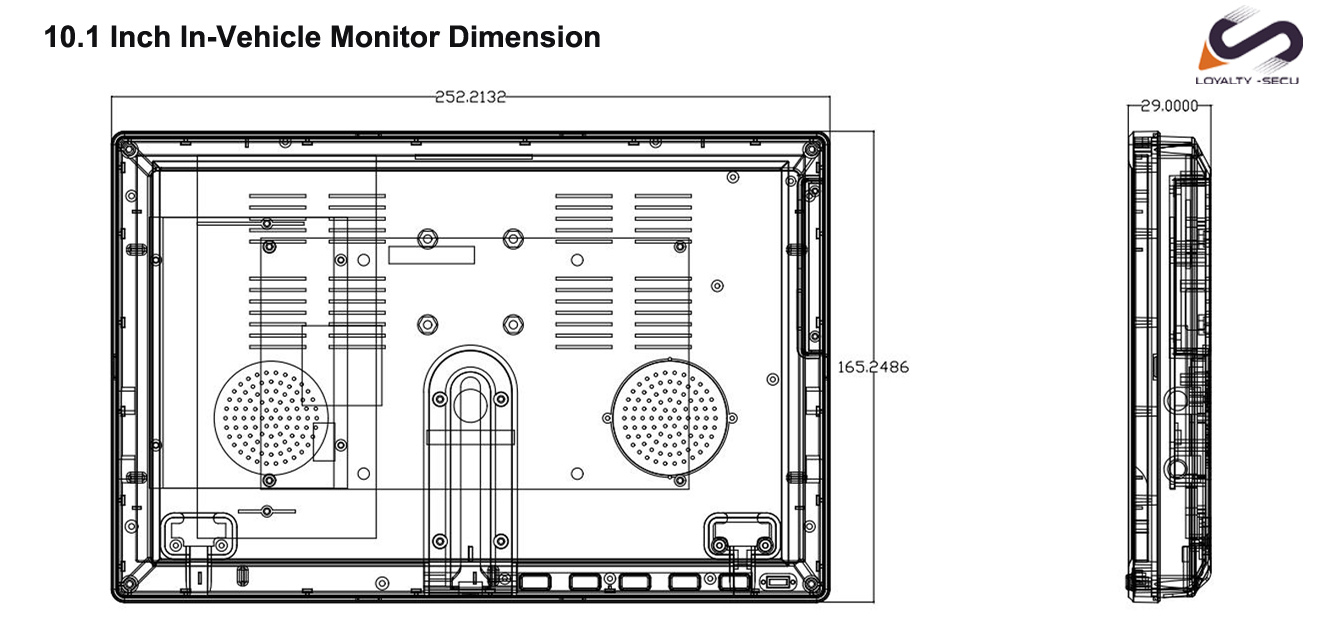

Product Dimension
